5G Portable Caravan WiFi Internet
Owner’s Manual

Contents hide

1 5G Portable Caravan WiFi Internet

2 What’s great about RV

3 RV WIFI 5G Specifications

4 Internal 4G/5G Antenna

5 Internal WIFI Antenna

6 Differences between RV WIFI 4GX and RV WIFI 5G

7 Documents / Resources

7.1 References

8 Related Posts

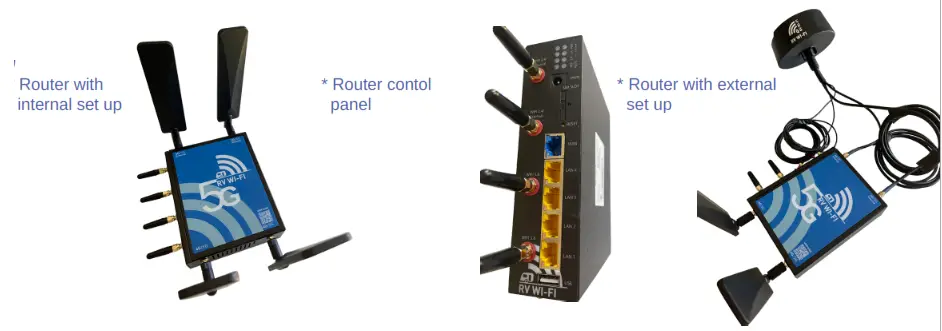

5G Portable Caravan WiFi Internet

What’s great about RV

– RV WIFI 5G is designed specifically for Recreational Vehicles.
– RV WIFI 5G comes with an external antenna. Better Range/less interference and noise.
– RV WIFI 5G comes with a 12 volt power connection, no batteries to run out, just set and forget!
– RV WIFI 5G is not locked into any providers, your choice to buy on range or price.
– RV WIFI 5G has no limit on users. The more the merrier!
– RV WIFI 5G offers ‘In Car Entertainment’, while on the move.
– RV WIFI 5G has excellent WIFI range in and around your Caravan.
– RV WIFI 5G has a mulifuncitonal 4G/5G/ WIFI exeternal antenna, this equals great range!
– RV WIFI 5G is a fully enabled MIMO router.
– RV WIFI 5G has improved 4G capability.
– RV WIFI 5G is 5G!
– RV WIFI 5G can connect to Starlink.

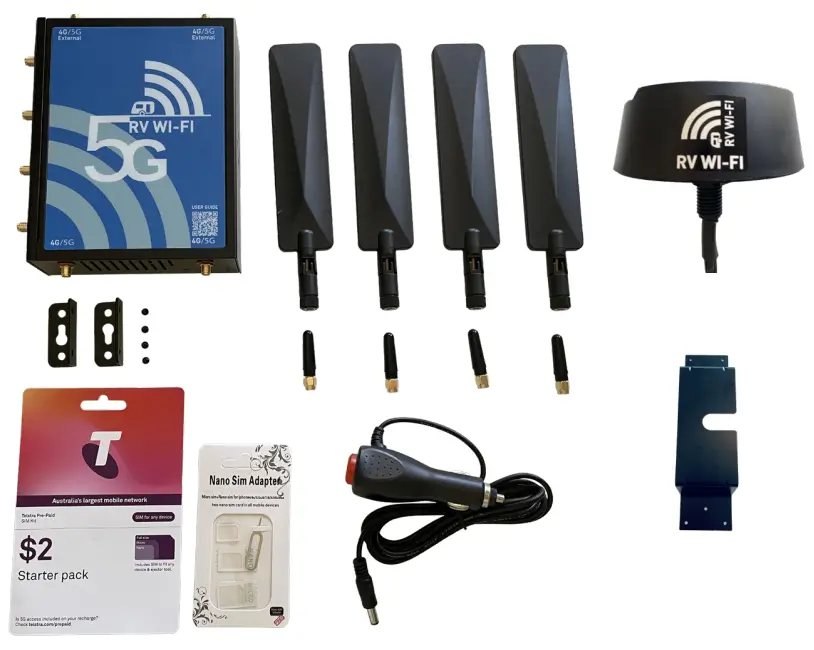

* RV WIFI 5G Complete Kit

RV WIFI 5G Specifications

Router

Supports:	4G/5G (MIMO)
Frequencies:	5G bands (700MHz / 850MHz / 2300MHz / 3500MHz (n1/ 2/3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/70/ 71/ 75/ 76/ 77/ 78/ 79) 3G/4G bands (700MHz / 850MHz / 900MHz / 1800MHz /2100MHz / 2300MHz / 2600MHz (B1 / B3 / B5 / B7 / B8 / B28 /B40
WIFI Standards:	80.11ac / 802.11a / 802.11n / 802.11g / 802.11b 2.4GHz and 5.8GHz
Starlink compatible Dimensions:	Height: 45mm, Width: 130mm, Length: 165mm, Weight: 875 gms
Electrical:	12volt 300mA (typical)
Operating Temp:	0 °C to + 40 °C Runs on all Australian Mobile Data SIMS (must be used in conjunction with provided SIM adapter)
Antenna connection:	WIFI – SMA Male 4G/5G – SMA Female

Internal 4G/5G Antenna

QTY:	4
Supports:	4G/5G
Frequencies:	5G bands (700MHz / 850MHz / 2300MHz / 3500MHz (n1/ 2/3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/66/70/ 71/ 75/ 76/ 77/ 78/ 79)3G/4G bands (700MHz / 850MHz / 900MHz / 1800MHz /2100MHz / 2300MHz / 2600MHz (B1 / B3 / B5 / B7 / B8 / B28 /B40)
Dimensions:	Length: 190mm
SMA:	Male
Gain:	4dBi

Internal WIFI Antenna

QTY:	4
Supports:	2.4GHz and 5.8GHz
Frequencies:	80.11ac / 802.11a / 802.11n / 802.11g / 802.11b
SMA:	Female
Gain:	3dBi

RV WIFI 5G Specifications
External 4G/5G/WIFI Antenna

QTY:	1
Supports:	4G/5G
Frequencies:	5G bands (700MHz / 850MHz / 2300MHz / 3500MHz (n1/ 2/3/5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 5/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/70/ 71/ 75/ 76/ 77/ 78/ 79)3G/4G bands (700MHz / 850MHz / 900MHz / 1800MHz /2100MHz / 2300MHz / 2600MHz (B1 / B3 / B5 / B7 / B8 / 28 /B40)
Dimensions:	Length: 130mm, Height: 50mm Weight .50gms
Bracket:	Aluminium
SMA:	Female (WIFI), Male (4G/5G)
Gain:	6dBi
Cable Length:	2 metres (x4)
Type of cables:	2 x 4G/5G, 2 x WIFI

* RV WIFI 5G Complete Kit

Differences between RV WIFI 4GX and RV WIFI 5G

4GX
4G router
Speed: 4G speeds
External Antenna Gain: 3dBi
Size: H:32mm W:83mm L:130mm
Weight:290gms
External Antenna has three ports. WIFI/3G/4G
External Antenna: H:50mm(including bracket)
Diameter:125mm Weight:277gms
Antenna ports: 4
Router not MIMO
Frequencies supported:
3G/4G frequencies supported – B1 (2100MHz)/ B2(1900MHz)/ B3(1800MHz)/ B4 (1700MHz)/ B5(850MHz)/ B7(2600MHz )/ B8(900MHz )/ B28(700MHz)
5G
5G router
Speed:5G and improved 4G speeds
External Antenna Gain: 6dBi
Size: H: 45mm W: 130mm L: 165mm Weight: 875gms
External Antenna has four ports. WIFI x 2, 4G/5G x 2
External Antenna: H:50mm Diameter: 130mm
Weight:50gms
Antenna ports: 8
Router is MIMO
Frequencies supported: 5G bands (700MHz / 850MHz / 2300MHz / 3500MHz (n1/ 2/3/5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/66/70/ 71/ 75/ 76/ 77/ 78/ 79) 3G/4G bands (700MHz / 850MHz / 900MHz / 1800MHz / 2100MHz / 2300MHz / 2600MHz (B1 / B3 / B5 / B7 / B8 / B28 / B40 )
Improved WIFI encryption/security
