84Vs Brass
User Guide
84Vs Brass
| PENDANTS: | one |

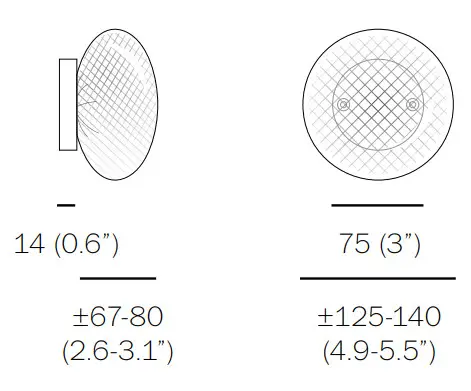

| MOUNTING: | brass mounting plate 75mm (3”) in diameter |
| LAMPING: | 1.5w LED (2500K or 3500K) |
| INSTALLATION: | threaded on – wall or ceiling mount |
| MATERIALS: | blown glass, copper mesh, electrical components, silicon gasket, brass mounting plate |
| WEIGHT: | approximately 2kg (4.5lb) |
| POWER SUPPLIES: | remote mounted. Power supplies included |
DESCRIPTION
The ‘s’ designation in this variation on the 84V refers to it being surface mounted, with power supplies mounted remotely. This surface light has a 75mm (3”) mounting plate designed for installation on walls.
A white glass bubble is captured inside a fine copper mesh basket and then plunged into hot clear glass. Air is blown into the matrix to gently push the white glass through the mesh, creating a delicate pillowed form that is suspended inside the thick outer layer of clear glass. Sometimes the copper mesh basket folds and crinkles, adding specificity to each piece.
NOTES
- Purchase replacement lamps online at www.bocci.com/shop/bulbs
- Please specify the color temperature when ordering LED fixtures
- Power supplies must be remote mounted
- The brass mounting base is untreated and, as such, will develop a natural patina over time.
- Mount the power supply remotely and route output wiring from the power supply to surface mounted light location.

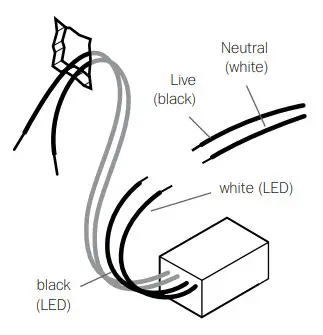

Connect the black wire to the live wire and the white wire to the neutral wire.
Note: Standard junction boxes are not compatible with the canopy. The surface-mounted light base mounts directly to the wall. Power supplies must be remote mounted in a close-by, accessible and hidden location for ease of long-term maintenance. Installation is to be done by certified personnel to ensure code compliance.

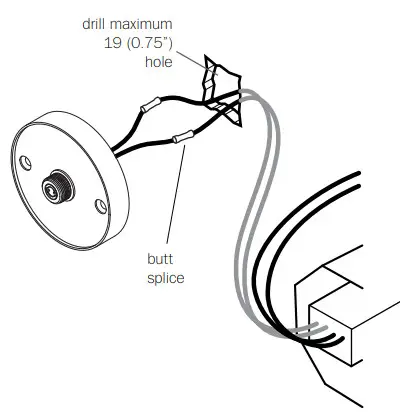

- Drill a maximum 19mm (0.75”) diameter hole.
Join power supply wiring to mounting base wiring using #16 butt splices, provided (stagger the splices).

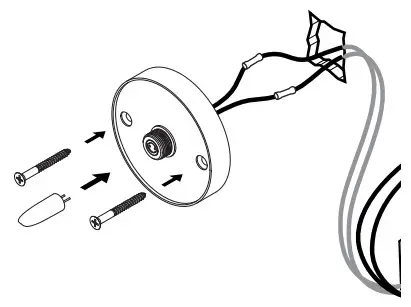

- Tuck wiring into a wall opening and affix the mounting base with the fasteners provided.
Stagger the provided connectors so that they can be passed through the hole.
Turn the power to the fixture on.
Insert the provided lamp into the socket. Check that each lamp is working properly as you go along by keeping the power on.

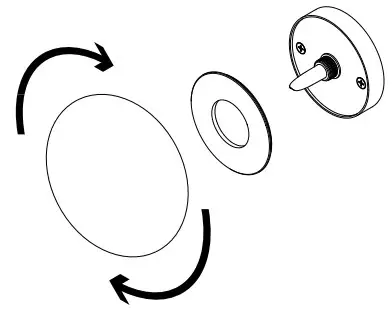

- Place the plate adapter on the mounting base, and gently thread the glass sconce on.
- Clean fingerprints from surfaces.
For additional assistance, please contact Bocci:
Vancouver
[email protected]
www.bocci.com
Berlin
[email protected]
www.bocci.com
US Patent Pending
EU Patent # 003611144-0001 to 0004
Made in Vancouver, Canada
