Dimension and installation guide
Built in microwave
WMB2522SC & WMB2522DSC

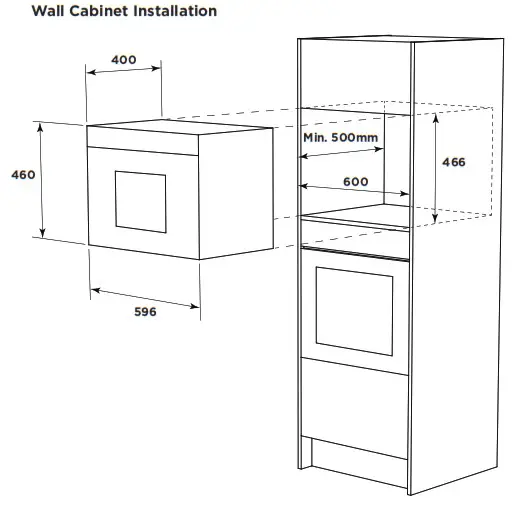

| Product WxHxD (mm) | 596 x 460 x 400 |

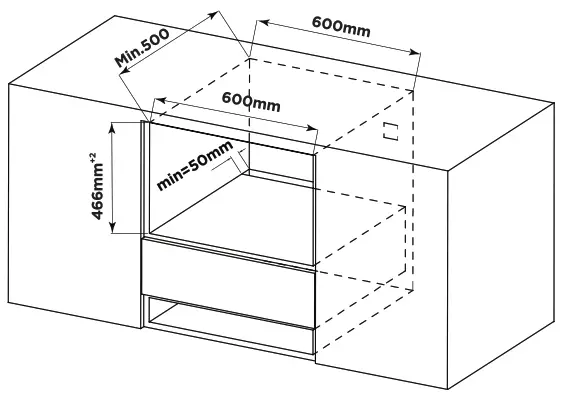

| Flush mount cut-out WxHxD (mm) | 600 x 466 x 500 |
IMPORTANT
These dimensions are a guide only. All measurements are in millimeters (mm). For complete installation instructions, refer to the manual provided with the product.
© 2021 Electrolux Home Products Pty Ltd. ABN 51 004 762 341. W_DIM_WMB2522SC_Aug21
