Graphics Cards
Quick Guide
www.gigabyte.com
Hardware Installation
- Make sure the computer *oil and power cable are unplugged.

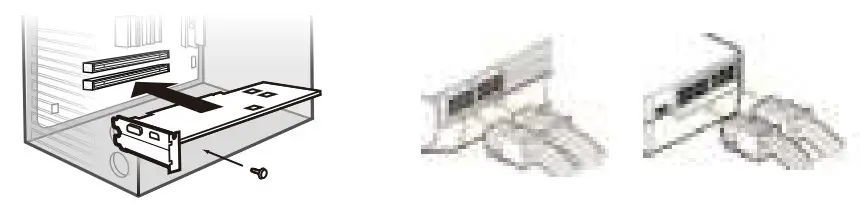

- Remove the chassis cover and locate the PCI Express x16 or AGP slat. If necessarysernave the bracket(s) from the back of the chassis.
- Insert to card into the slot until it is firmly in place. if necessary, plug in the external power cord.
- Screw in the ‘, a picket of the card to the chassis and dose the chassis cover.

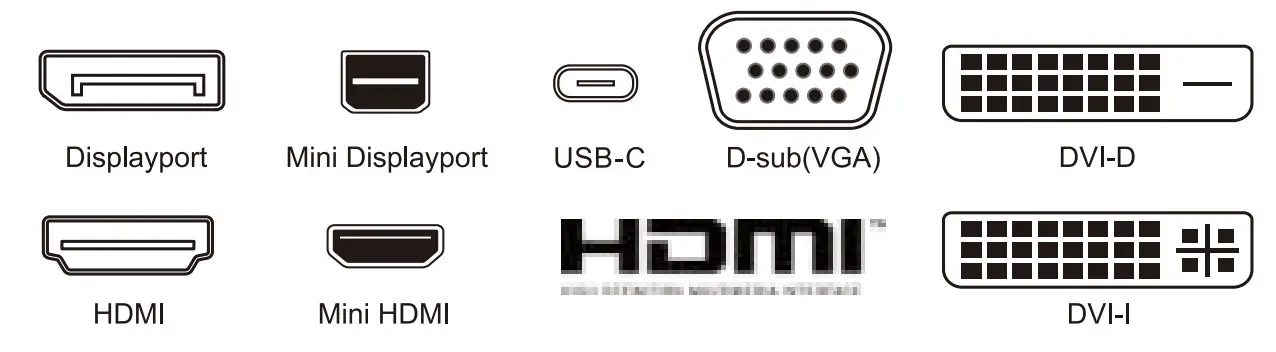

- Connect the appropriate cable(HDMI D-sub . Display Pat) to the card and the display.
- Reconnect the power cable.
Software Installation
- Insert the driver disk nto your optical drive, the driver Autovn screen will be automatically displayed.
- Follow the on-screen instructions to install the driver and software.
- If the driver Autcan screen does not appear automatically, go to My Computer, double-click the optical drive, and double dick”setup.exe”. For the latest software download or product information. please visit the GIGABYTE website. http://www.gigebyte.com
| Equipment name Type designation (Type) Model name | ||||||
| Unit | Restricted substances and its chemical symbols | |||||
| Lead (Pb) | Mercury (Hg) | Cadmium (Cd) | Hexavalent chromium (Cr+6) | Polybrominated biphenyls (PBB) | Polybrominated diphenyl ethers (PBDE) | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| – | 0 | 0 | 0 | 0 | 0 | |
| – | 0 | 0 | 0 | 0 | 0 | |
| 0 | 0 | 0 | 0 | 0 | 0 | |
| Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicates that the percentage content of the restricted substance exceeds the reference percentage value of the present condition. Note 2: “0” indicates that the percentage content of the restricted substance does not exceed the percentage of the reference value of presence. Note 3: The “-” indicates that the restricted substance corresponds to the exemption. | ||||||
Notice
Please do not remove any labels on this graphics card. Doing so may void the warranty of this card. Due to rapid changes in technology, some of the specifications might be out of date before the publication of this manual. The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein.
Rovi Product Notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.
Europe – EU Declaration Conformity
See: http://www.gigabyte.com/WebPage/146/euro_compliance.html
Trademarks
Third-party brands and names are the properties of their respective owners.
Copyright 0 2013 GIGABYTE TECHNOLOGY CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO.. LTD. (“Geri. No part of this manual may be reproduced or transmitted in any form without the expressed, written permission of GBT.
12QM-VGAGUIDE-105*R
