Msi Geforce Rtx 3080 Ti 12gb Gdrr6x Graphics Card User Guide

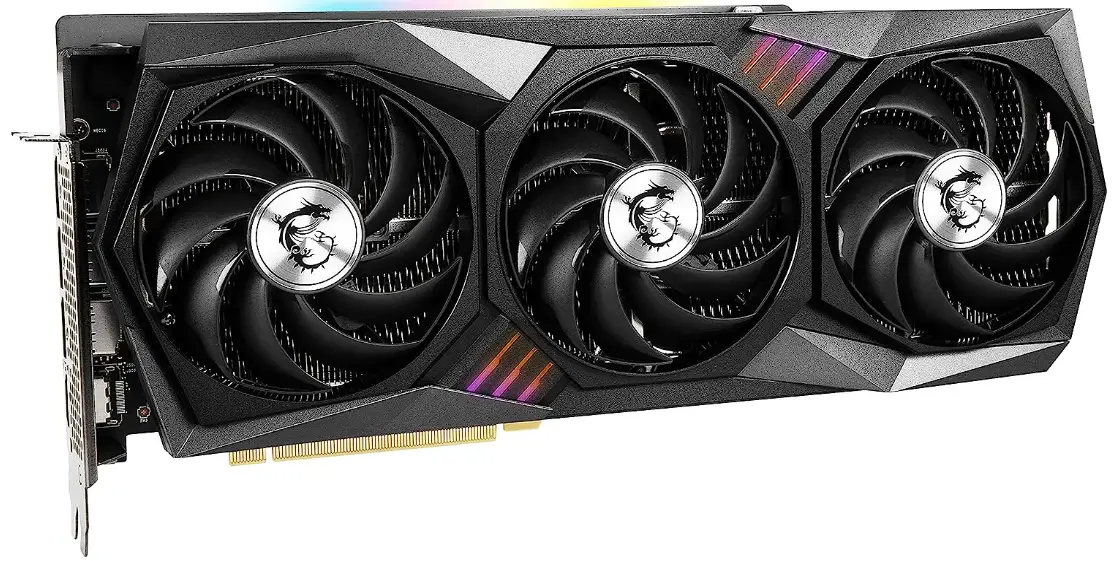

MSI GeForce RTX 3080 Ti 12GB GDRR6X Graphics Card

DESCRIPTION

Stunning visuals and outstanding gaming experiences are provided by the high-performance gaming GPU MSI GeForce RTX 3080 Ti 12GB GDDR6X Graphics Card. It has tremendous power and efficiency thanks to the NVIDIA GeForce RTX 3080 Ti GPU, enabling fluid gameplay and lifelike graphics.

The graphics card has 12GB of GDRR6X VRAM, which provides enough memory bandwidth to run demanding games and programmes. It supports real-time ray tracing and makes use of NVIDIA RTX technology to provide your games realistic lighting, shadows, and reflections. Even during lengthy gaming sessions, the MSI GeForce RTX 3080 Ti’s powerful cooling system will keep the GPU operating at ideal temperatures. It has a well-designed heatsink, heat pipes, and several fans for effective heat dissipation, ensuring stability and longevity.

The graphics card supports multi-monitor configurations and has numerous DisplayPort and HDMI connectors, enabling you to immerse yourself in expansive game scenes or increase your productivity with more desktop space. Although the card is backward compatible with PCIe 3.0 slots, PCIe 4.0 compatibility allows for better data transfer rates. With stunning images and fluid frame rates, it is perfect for gaming at high resolutions, including 8K, thanks to its tremendous performance.

SPECIFICATIONS

• Model Name: GeForce RTX™ 3080 GAMING X TRIO 10G
• Graphics Processing Unit: NVIDIA® GeForce RTX™ 3080
• Interface: PCI Express® Gen 4
• Core Clocks Boost: 1815 MHz
• CUDA® CORES: 8704 Units
• Memory Speed: 19 Gbps
• Memory: 12GB GDDR6X
• Memory Bus: 320-bit
• Output: DisplayPort x 3 (v1.4a); HDMI™ x 1 (Supports 4K@120Hz as specified in HDMI™ 2.1)
• HDCP Support: Y
• Power consumption: 340 W
• Power connectors: 8-pin x 3
• Recommended PSU: 750 W
• Card Dimension (mm): 323 x 140 x 56mm
• Weight (Card / Package): 1565 g / 2370 g
• DirectX Version Support: 12 API
• OpenGL Version Support: 4.6
• Maximum Displays: 4
• VR Ready: Y
• G-SYNC® technology: Y
• Adaptive Vertical Sync: Y
• Digital Maximum Resolution: 7680×4320

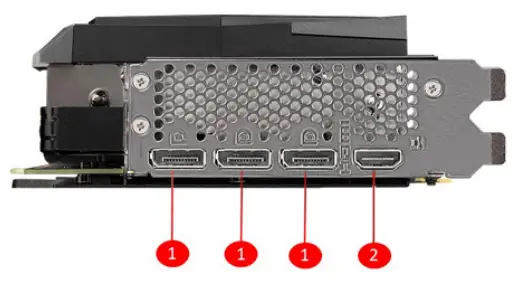

CONNECTIONS

1. DisplayPort
2. HDMI™

FEATURES

• TRI FROZR 2
  TRI FROZR 2 offers the perfect balance between cool temperatures and quiet fans during endless gaming sessions.
• TORX FAN 4.0
  A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
• Airflow Control
  Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
• Core Pipe
  Precision-machined heat pipes ensure max contact and spread heat along the full length of the heatsink.
• Graphene Backplate
  A composite Graphene backplate reinforces the graphics card while providing passive thermal conduction properties.
• Dragon Center
  MSI’s exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
• Zero Frozr
  The fans completely stop when temperatures are relatively low, eliminating all noise.
• Mystic Light
  Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products.
