CLEERLINE SSF-8SFPx2RJ45-1G SFP/Ethernet Non Managed Switch
Model & Description
SSF-8SFPx2RJ45-1G – 8xSFP Slot 1000Base-X, 2xRJ45 Gigabit 10/100/1000Base-Tx, AC US adapter included.
Overview
- The SSF-8SFPx2RJ45-1 G is an 8*100/1 000Base-X SFP to 2*RJ45 uplink Gigabit Ethernet 10/100/1 000Base non managed switch.
- This Gigabit SFP Ethernet network switch provides a high-performance communication solution. The Bea SFP slots can accept all SFP types, including multi-mode, single-mode, CWDM, DWDM, or BiDi. Bi Di allows bi-directional transmission over a single strand of fiber.
- The SSF-8SFPx2RJ45-1 G is ideal for secure data transmission and for connecting with devices like computers, other switches, hubs, servers, etc.
Features
- 8xSFP Slot 1 000Base-X, 2xRJ45 Gigabit 10/100/1 000Base-Tx
- Automatic MAC addresses learning and aging
- 10/100/1 000Mbps Auto-negotiation, auto-MDI-MDI-X
- Power supply included; Input AC100-250V /Output DC12-15V.
- LED indicators for monitoring power/link/activity
- Supports 10/100/1 000Mbps-Full/Half-duplex
- Excellent heat dispersion without a cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Contents
The package contains the following:
- 1 x 10 port SFP-TP Gigabit switch
- AC-DC power adapter
- This User’s Manual
LED Layout
There are 9 LEDs on the SSF-8SFPx2RJ45-1 G Gigabit Ethernet Switch
| NAME | INDICATION |
| 1000 | Lit when TP speed is 1000Mbps |
| LINK | Lit when the TP connection is active |
| Blinks when TP data is transmitting | |
| SFP1-8 | Lit when the SFPn connection is active or when data is transmitting |
| PWR | Lit when receiving +SV power |

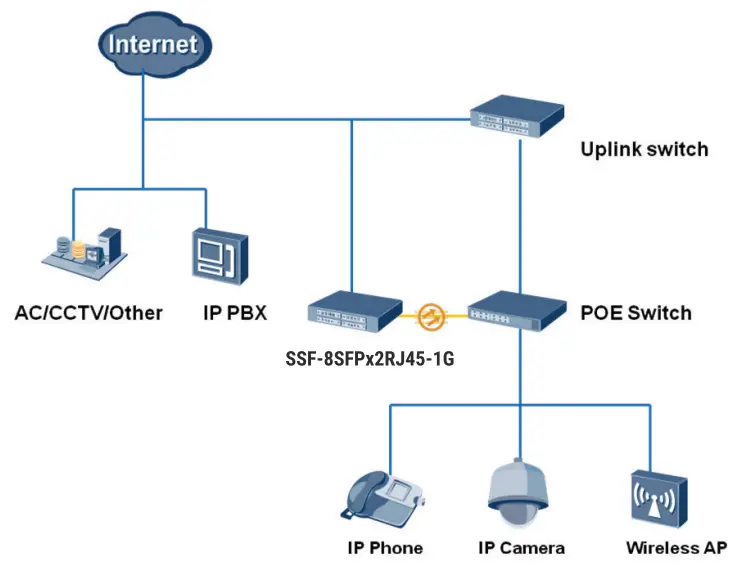

Applications
Technical Specifications
| MODEL | SSF-8SFP-2RJ45-1G |
| TP ports (RJ45) | 2 x 10/100/1000Mbps w/Auto Uplink |
| SFP slots | 8 x 100/1000 |
| Network Protocols | IEEE 802.3 Ethernet Media Access Control Protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x 1000BASE-TX Fast Ethernet |
| Bandwidth | 20Gpbs Full duplex |
| Packet Forward Rate | 488000pps/port |
| MAC address table size | 4K |
| Safety | Present |
| Power input | AC100 – 250V |
| Reverse Polarity Protection | Yes |
| DATA PIN | 1/2+ 3/6- , 4/5+ 7/8- |
| Network Media | 10BASE-T: Cat3,4,5 UTP (≤100m) |
| 100BASE-TX: Cat5 or later UTP (≤100m) | |
| 1000BASE-TX: Cat6 or later UTP (≤100m) | |
|
Network Protocols | IEEE 802.3 10BASE-T |
| IEEE 802.3i 100BASE-T | |
| IEEE 802.3u 100BASE-TX/FX | |
| IEEE 802.3AB 1000BASE-T | |
| IEEE 802.3z 1000BASE-X | |
| IEEE 802.3x | |
| Fiber Media | Multimode: 550m-2Km |
| Single mode: 20/40/60/80/100/120Km | |
| Operating Temp (°C) | 0 ~ +55 |
| Operating Humidity | 5% ~ 90% RH without condensation |
| Storage Temp (°C) | -20 ~ +70 |
| Dimensions (mm) | 183 x 100 x 30 |
| Weight (g) | N.W. 0.477Kg G.W: 1.1Kg |
| Warranty | 2 years |
- dimensions are taken with no SFPs inserted, nor power block connectors.
