Ethernet / SFP Switch
SSF-2SFPx8RJ45POE-1G
Ethernet / SFP Non-Managed Switch
Model & Description
SSF-2SFPx8RJ45POE-1G – Gigabit switch 2xSFP Slot 1000Base-X, 8xRJ45 Gigabit 10/100/1000Base-Tx, 120W, PoE+ 30W/4 port, PoE 15W/8 port. Built-in AC power supply.
Overview
The PoE+ switch provides power and data from a single point, using Power over Ethernet (PoE+) over a single Cat-X cable. It can be used for any 10/100/1000Mbps link and supply industry-standard IEEE 802.3af/at power. Advanced auto- sensing algorithm gives power to 802.3af/at end devices, In addition, the PoE+ switch automatically determines PoE+ requirements, speed, duplex, and cable type using Auto Uplink. Easy to operate and reliable. The PoE+ switch is ideal for powering PoE+ devices such as IP cameras, WLAN access point, IP phones, office access control systems, and other PD devices. This switch helps to provide an overall solution for Ethernet applications in different environments.
Features
- 8*10/100/1000mbps RJ45 POE+ port,UP-Link 2*1000mbps SFP port
- 100m Transmission Distance,1-8 port support VLAN mode
- Compatible with IEEE802.3AF/AT
- Built-in power supply: 120W PoE (52V 2.3A) Full duplex
- All port supported by MDI/MDIX auto flip and self negotiation
- Supply 8ea 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port.
- Max port power 30W/4 PoE+ or 15W/8 PoE
- Low heat design, safe and reliable, high stability
- Application:? Wireless Access Point? IP Camera 2 |P Phone? Computer Networks

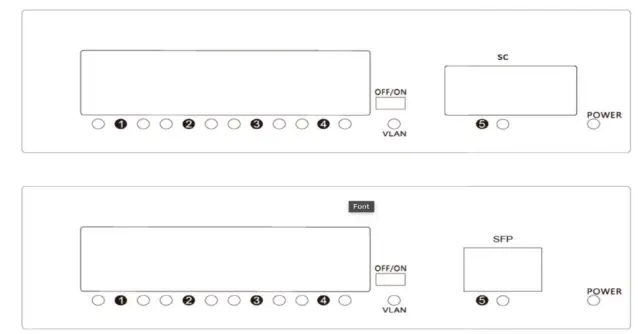

Indicators
| NAME | DEFINITION | INDICATION |
| Power | Power supply indicator | ON when the power supply is turned on and in normal working status |
| Link/Act | Network port indicator | Lights up when the link is active |
| Blinks when transferring data | ||
| FX | SFP optical port indicator | Lights up whe nthe link is active |
| Blinks when transferring data |
Applications
Ethernet / SFP Switch
Technical Specifications
| MODEL | SSF-2SFP-8RJ45POE-1G |
| TP ports (RJ45) | 8 x 10/100/1000mbps, 120W, 30W/4 PoE+ or 15W/8 PoE |
| SFP slots | 2 x 100/1000mbps |
| LEDs | System: Power, PoE Maximum power Per port: Link, Activity, Speed, PoE active, PoE error |
| Network Protocols | IEEE 802.3i 10Base-T IEEE 802.3u 100Base-Tx IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
| Bandwidth | 20Gpbs Full duplex |
| Buffer memory | 48Kb embedded memory |
| Packet max. size (bytes) | 10K |
| MAC address table size | 8K MAC address |
| Safety | Present |
| Power input | AC: 110V-240V |
| Reverse Polarity Protection | Yes |
| PoE Power | 1/2, 3/6, 4/5+, 7/8- |
| Operating Temp (°C) | -10 ~ 55 |
| Storage Temp (°C) | -40 ~ 70 |
| Operating Humidity | 90% maximum relative humidity, non-condensing |
| Dimensions (mm) * | 202 x 140 x 45mm (L*W*H) |
| Weight (Kg) | 0.9Kg, G.W: 1.1Kg |
| Warranty | 2 years |
* dimensions are taken with no SFPs inserted, nor power block connectors
Ethernet port (NODE/HUB)
Supports auto MDI/MDIX crossover, RJ-45 pin configuration:
| PIN | SIGNAL DEFINE | DIRECTION |
| Pin1 | BI_DA+ | Output + |
| Pin2 | BI_DA- | Output – |
| Pin3 | BI_DB+ | Input + |
| Pin4 | BI_DC- | Output + |
| Pin5 | BI_DC- | Output – |
| Pin6 | BI_DB- | Input – |
| Pin7 | BI_DD+ | Input + |
| Pin8 | BI_DD- | Input – |
Troubleshooting
| ISSUE | REASON | CHECK | SOLUTION |
| Power Off | Power Supply | Check power input | Examine the external power supply or turn on the power switch |
| Check that power switch is turned on | |||
| FRX Off | Optical port fault | Check fiber link | Examine the fiber link |
| Check whether the connection is correct | Correct the connection | ||
| TRX Off | TP port fault | Check UTP line | Examine the UTP |
| Check whether connection type is matched | Check connection | ||
| Check whether the rate is matched | Correct the rate |
