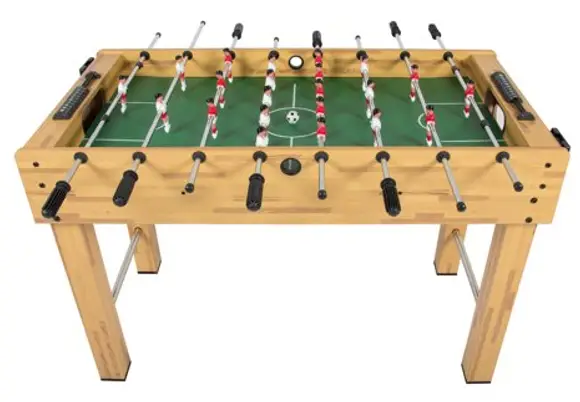

SKY2603 Foosball Game Table
Instruction Manual
As shoppers, we’re always trying to find the perfect balance between quality & value. At BCP, we believe we’ve achieved that. Our diverse catalog of everyday essentials is tailored especially to our customers & guaranteed to hit that sweet spot of high quality & low price.
Always.
NOTICE Please retain these instructions for future reference.
- Do not stand on or use any part of this set as a step ladder
- Firmly secure all bolts, screws, and knobs before use.
- Reconfirm that all bolts, screws, and knobs are secure every 90 days.
- Be aware that some parts are heavy and have sharp edges.
- Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
- If any parts are missing, broken, damaged, or worn, stop using this product until repairs are made and/or factory replacement parts are installed.
- Do not use this item in a way inconsistent with the manufacturer’s instructions as this could void the product warranty.
AGE RANGE: 3 years old and up
TOOLS REQUIRED
HARDWARE

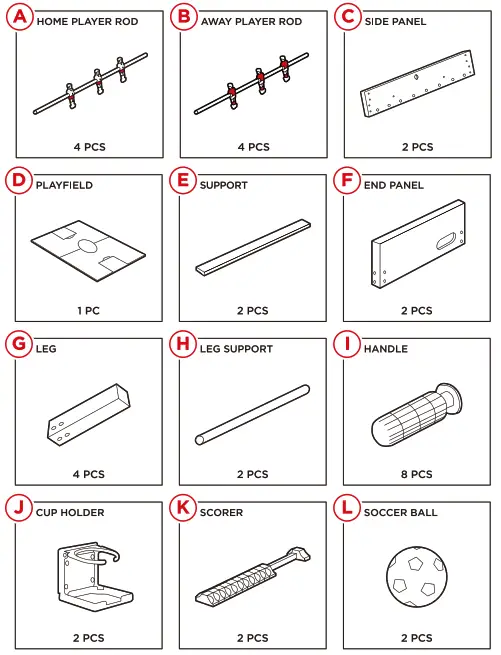

PARTS
PRODUCT ASSEMBLY

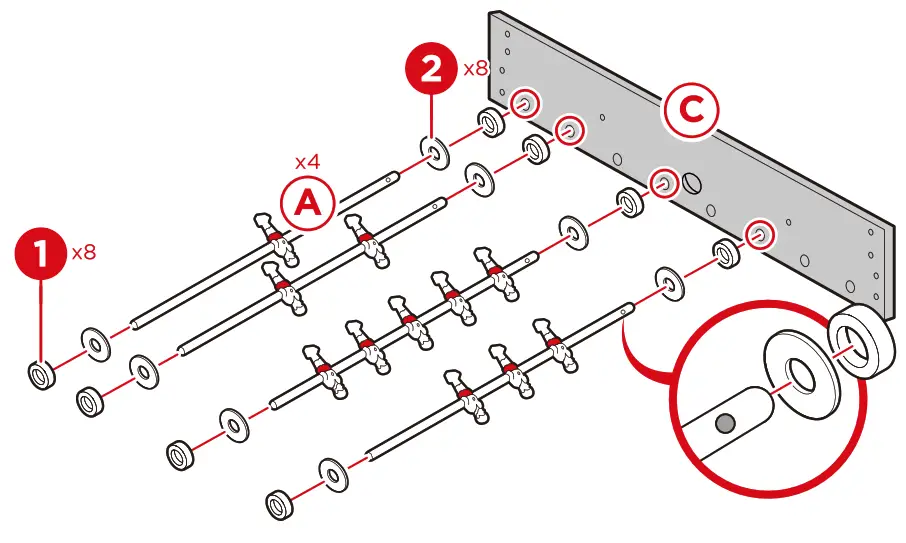

- Place a part C side panel with the ball entry hole closer to the floor.
Slide four-part A home player rods with eight-part 1 rubber spacers and eight-part 2 plastic washers into the designated holes.”
Make sure that the ends with a hole are arranged on the same side. - Slide four part B away player rods with eight-part 1 rubber spacers and eight-part 2 plastic washers into the designated holes.

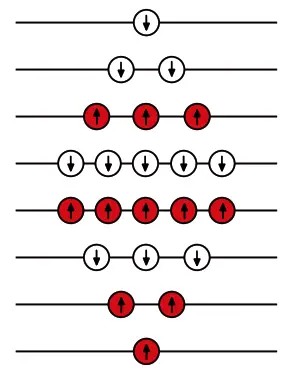

- Confirm that the rods are arranged correctly and the players on the same team face the same direction.
NOTE: The figures and table are upsides down in this diagram.

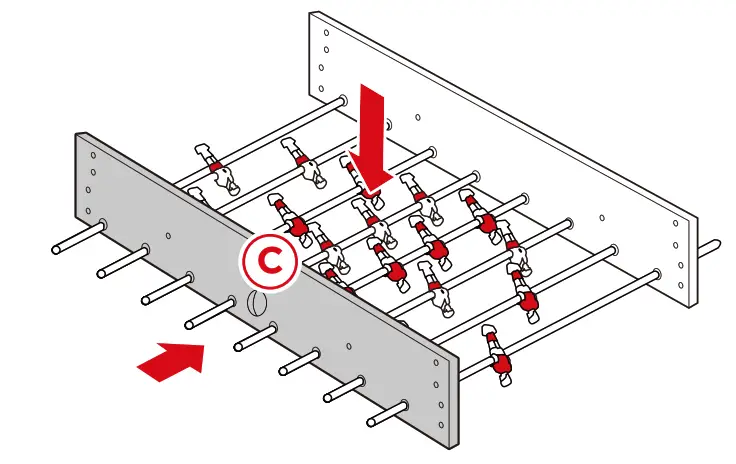

- Slide the other part C side panel onto the rods.

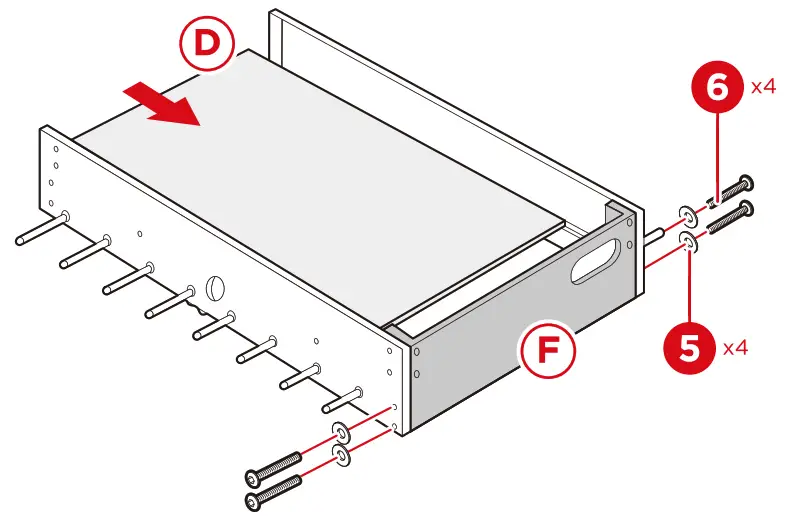

- Attach one part F end panel with four-part 6 bolts and four part 5 washers. Flip the part D playfield upside down and slide it into the slots of the part C side panels

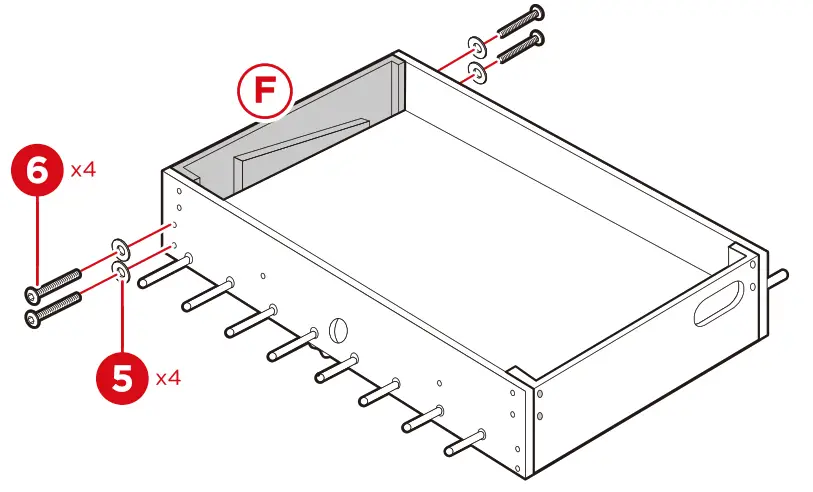

- Attach the other part F end panel with four-part 6 bolts and four part 5 washers.

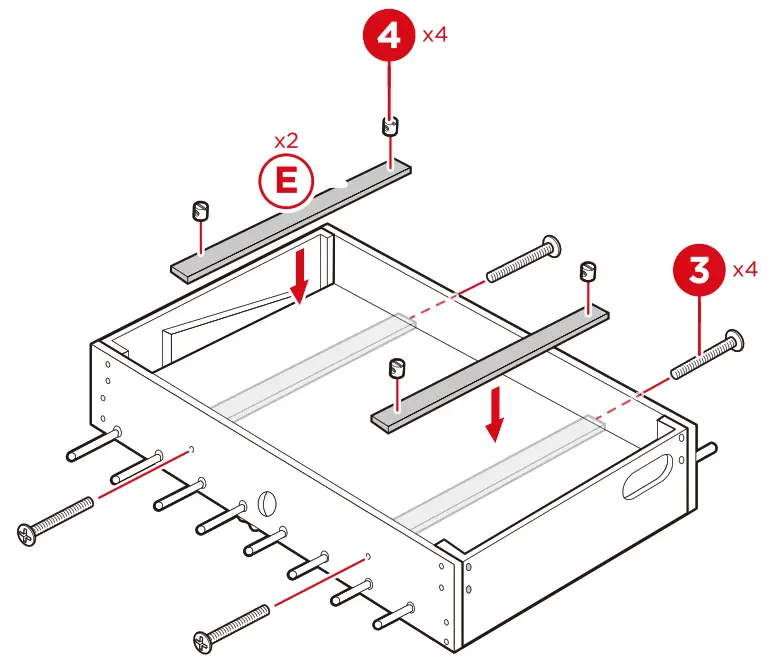

- Attach two-part E supports with four-part 3 screws and four-part 4 nuts.

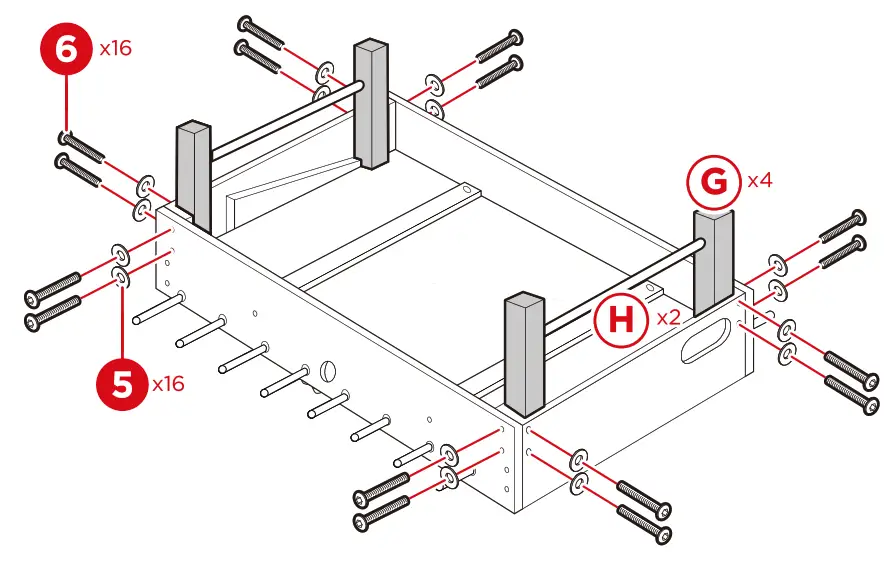

- Insert four part G legs into the corners. Place two part H support bars between the legs. Attach the legs with sixteen part 6 bolts and sixteen part 5 washers.
- Screw in four parts 7 feet.

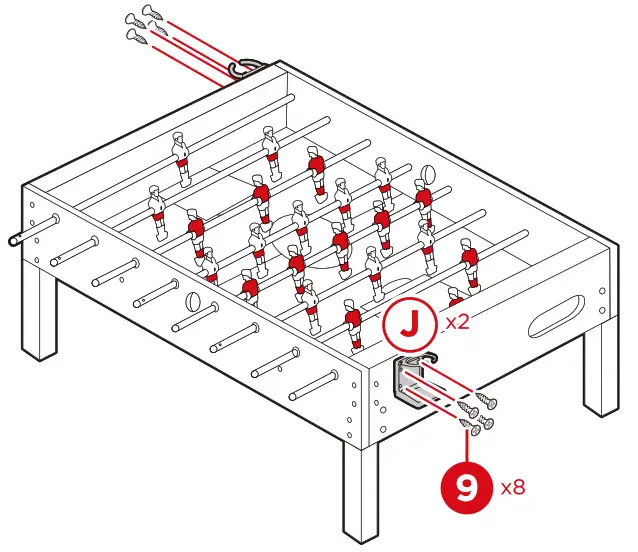

- Carefully flip the table over. Attach two part J cup holders with eight-part 9 screws.
NOTE: Do not lift the table while holding onto the rods.

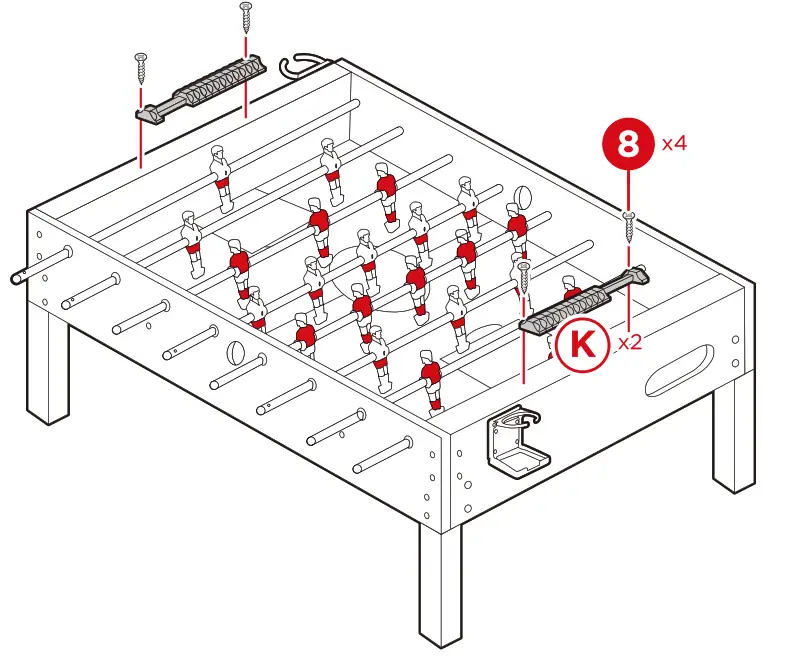

- Attach two part K scorers with four-part 8 screws.

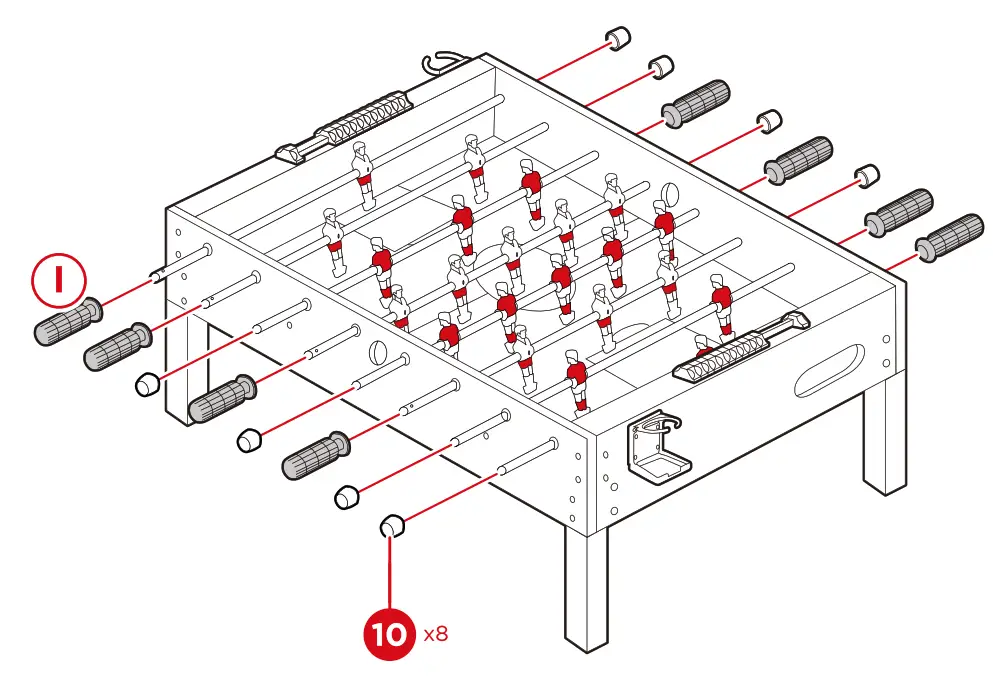

- Slide eight-part I handle onto the ends of rods with a hole.
Slide eight part 10 end caps onto the ends of rods without a hole.
a drop of liquid soap may help the handles slide on.
