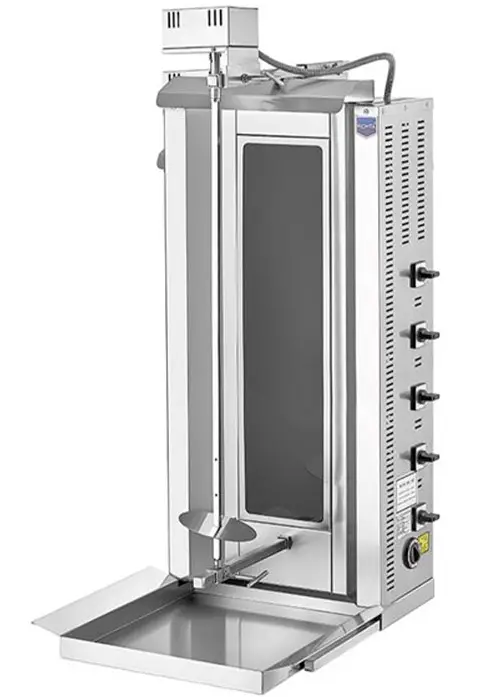

REMTA SD19 Top Motor Doner Kebab Cooker

PRESENTATION

Dear user;
Our best thanks to you about you to choose our product and trusting in us. Our products are used in lots of domestic cities like your choice. Our product is manufactured according to the standard rules. We kindly remind you to read the user manual carefully for having the best performance against your expectations from the product and using for a long time and be sure the other users read it, too. Please care about the rules written below before calling the service.

WARNINGS

Please read this manual carefully and be sure the other users read it before the product is installed and operated first. The product will be out of warranty if you operate the device without reading the user manual. The user manual should be written carefully to install, use, and the maintenance of the product that you have bought. The electrical circuit that you will plug into your product, should be suitable for the legislation. The faults are your responsibility which is occurred by your electrical circuit. Please call the authorized service to have more information about the subjects that you have doubts about or misunderstand. We wish you to have the best performance from the product. You will be charged when you want service next to you about this product.

DESCRIPTION AND PURPOSE OF THE PRODUCT

The device is produced to cook the meat with cooker burners which are used in industrial kitchen services (collective food services, restaurants, touristic places, buffets and etc.)

PREPARINGS BEFORE ASSEMBLING

Please read this manual carefully and be sure the other users read it before the product is installed and operated first. The product will be out of warranty if you operate the device without reading the user manual. Please call the authorized service to have more information about the subjects that you have doubts about or misunderstand.
The electrical circuit that you will plug into your product, should be suitable for the legislation installed by an authorized person before you call the service for activating the device. Please care about the security details. It will be charged to you for the unnecessary time spent and the other spent by the service person if you do not prepare the steps before assembling.

TECHNICAL PROPERTIES

GENERAL DIMENSIONS AND THE LABELS

WARNING! GROUNDED ELECTICITY CIRCUIT

SAFETY DETAILS

ASSEMBLING SAFETY

The device should be located and operated in a suitable for legislation and a well-aired place. Please check the instructions before locating and operating the device. It has to be operated in a well-aired place. All flammable solid and liquid materials (cloth, alcohol kinds, petrochemical materials, wooden materials, plastic materials, and curtains) should be removed from the area where the device is operated.

USAGE SAFETY

All users should read the user manual. The oil which falls out while the device is operated may occur a greasy surface on the ground, so should be cleaned on time.

MAINTENANCE AND CLEANING SAFETY

Do not use pressured water when you clean the device. The device should be cleaned when it is out of use. If any flammable cleaners are used on the surfaces of the device, these surfaces should be cleaned and dried well before first use after this cleaning. Just the authorized service person should fix the device.
Caution:

• Please read this manual carefully and be sure the other users read it before the product is installed and operated first.
• The electrical circuit that you will plug into your product, should be suitable for the legislation and designed by an authorized person only.
• Please call the authorized service to have more information about the subjects that you have doubts about or misunderstand.
• The device should be plugged into the grounded socket out.
• Do not carry the device when the cooker surfaces are hot.
• The device should be located on a flat and non-vibration surface.
• Please be sure the device is plugged out when you clean it.
• The device works with 220-230 Volt ~ 50-60 Hz electricity.
• Do not put any insulator or conductive object into the device.
• Keep away from the children.
• The electricity circuit should have a leakage current breaker of 30 mA.
• The cable of the device should be changed with a brand new one by authorized service personnel only if it is damaged.
• Do not use the device for its main purpose.

CARRYING AND MOVING

CARRYING

• It can be carried by human power.
• Do not bump or drop the device while you carry it.

MOVING

• Only the authorized tecnical service personal can change the operation place, changing the cable of the device (adding, fixing,shorting etc.)
• The all switches on the device should be checked, all the cooking surfaces should be warmed down before replacement of the device. After replacement the device the all components of the device should checked again if the device is working or not.
• The device becomes out of warranty if any one makes any replacement instead of the authorized technical service.

MONTAGE

Customer Preparings

• The non flammable compartments should be at least 5 cm close to the device otherwise distance should be 20 cm for the flammable parts.
• Care about the rules against the fire.
• Please make ready the electrical circuit before you call the authorized technical service for installing the device.

Montage (Technical Service Responsibility)

• The under set desk should be parralel with the ground and have adjustable legs when the device is use on it. The device should be located on a flat and
  non-flammable surface.
• The safety situations should be checked for the validity before installing the device.
• Do not connect the device instead of the properties are written on.
• The device should be checked after it is installed if it is working or not.
• The device becomes out of warranty if any experts are used who are not original.

USING THE DEVICE

PURPOSE OF THE PRODUCT
The device is produced to cook the meat with cooker burners which are used in industrial kitchen services (collective food services, restaurants, touristic places, buffets and etc.)
Note: Do not use the device for its main purpose. The users should read the user manual and care about safety before using the device.
USAGE:
Placing The Food,
The food which is prepared before should be fixed to the device.
Operating:

1. Put the small plate (nr:9) to the doner skewer (nr:6) from the upside., then fix the down part to the skewer middle (nr:7) and fix the up part to the skewer holder (nr:5)
2. Make the motor switch (nr:18) as I position to unfix the doner skewer (nr:6)
3. The cooking block (nr:1) is backward and forward movable. You can adjust the position of the cooking surface according to the food amount.You can fix the cooking block via using the brake apparatus (nr:20) with turning right and left.
4. You use the device by manually if the motor becomes out of use.
5. You can adjust the cooking time of the food by positioning of the swicth as maximum (2) or minimum (1).

TURN OFF THE SWITCHES AND CUT OFF THE ELECTRIC CIRCUIT BREAKERS AFTER END OF THE USE

Turning Off:

• Turn off the switch from the on position.
• For your own safety please cut off the electrical connection.

CLEANING AND MAINTENANCE

CLEANING:

• Clean the out surface with a sponge via using dish detergent and dry it out after every end of service beginning the first use.
• After every use the device should be cleaned very well. The burnt oil on the device and the table can make bad smell and that can occur unhealthy situations.
• Do not use nitric acid or any kind of CHEMICAL MATERIALS to clean the device.

MAINTENANCE:

• The periodical maintenance should be done by authorized technical personnel.
• We recommend maintenance about every 6 months according to the use frequency.
• It will be charged to the user for maintenance even if the device is under warranty.

EFFICIENCY USE

• Turn off the device when it is out of use.
• Always keep the device clean.
• Please obey the directives written in the user manual.
• At 24 °C, you can have the best performance from the device.
• The device can work between -5 and +40 °C.
• The life of the device is about 10 years.

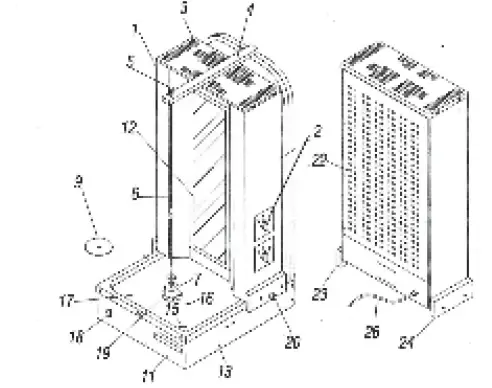

PARTS DESCRIPTION

SERVICE AND EXPART POINT

• REMTA MAKİNA İTH. İHR. SAN. ve TİC. LTD. ŞTİ.
• Adres: Akçaburgaz Mah. 4. Cad. 153. Sok. No:23 Esenyurt / İstanbul
• Tel: +90 212 886 27 11
• [email protected]
• www.remta.com.tr
• You can find all communication information about our services in the link below.
• www.remta.com.tr/yetkili-servisler
