WMB2-MA12/MA12EX Pitch Lock Upper
Bracket for MA12/MA12EX Modular Line Array Loudspeakers

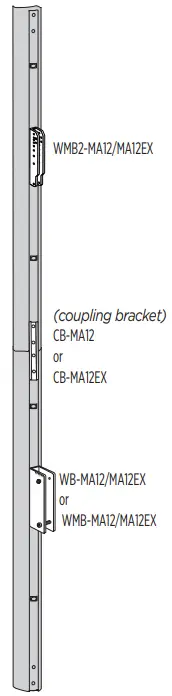

(WB-MA12/MA12EX Pitch Only Bracket or WMB-MA12/MA12EX Bi-Pivot Bracket and CB-MA12
Coupling Bracket or CB-MA12EX Coupling Bracket also required)
WMB2-MA12 Pitch Lock Upper Bracket

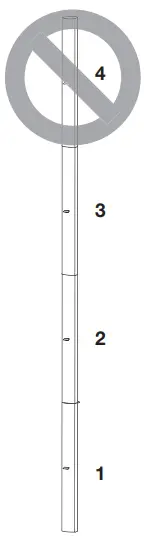

Stacks greater than three units will require custom rigging.

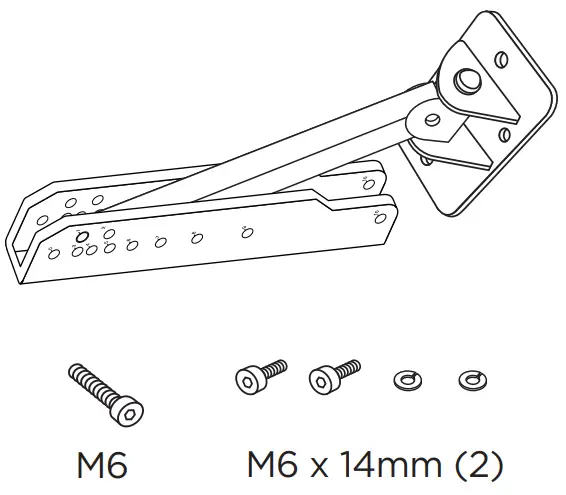

Contents
For use only by trained installers
Choose a position and mounting method consistent with local building codes and regulations. Ensure the mounting surface and the method of attaching the loudspeaker to the surface is structurally capable of supporting the weight of the loudspeaker. A 10:1 safety weight ratio is recommended.

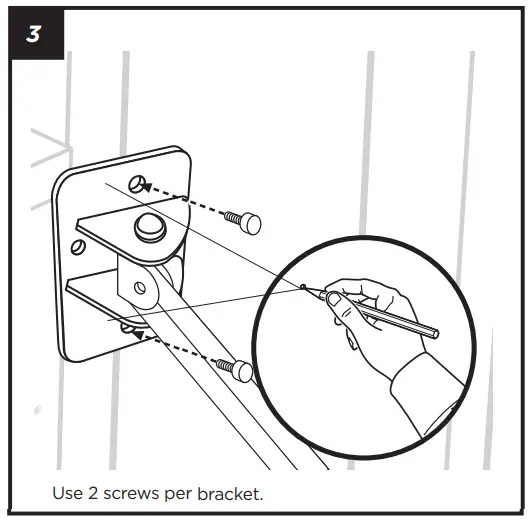

Minimum Installation Requirements when
mounted to wood studs: 1/4” x 1 1/2” (M6 x 38 mm) lagscrew

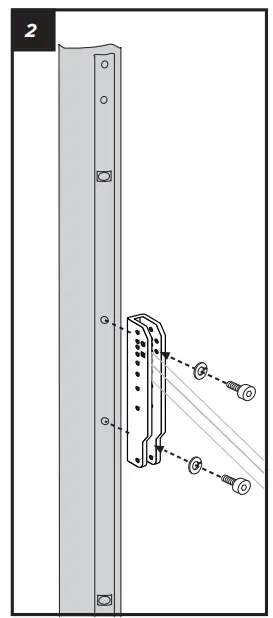

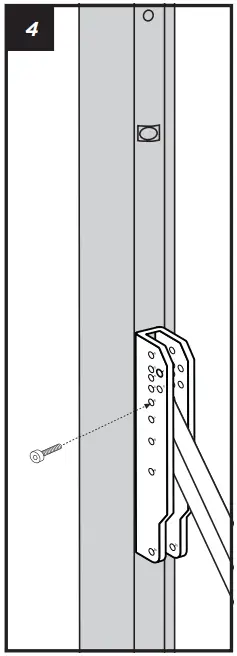

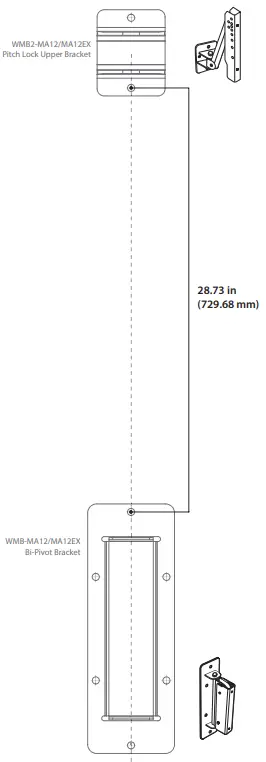

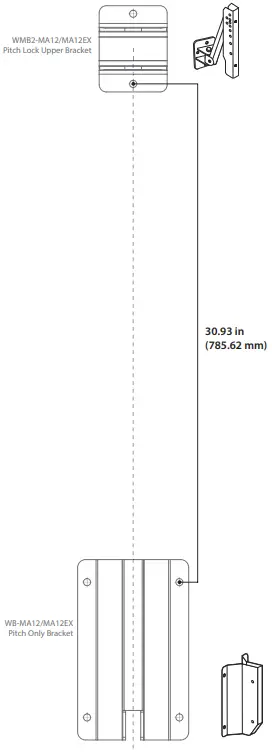

| 1-A With WB-MA12/MA12EX Pitch Only Bracket (part number 318418-0200) | 1-B With WMB-MA12/ MA12EX Bi-Pivot Bracket (part number 318338-0200) |
 |  |
 |  |
 |  |
