HENNY PENNY Change Shaft Seal and Locking Washer
Read the installation instructions for the units and observe the safety information.
The target group for this installation manual is trained qualified personnel entrusted with the technical functioning and operation of the unit.
Safety instructions
Organizational measures
Risk of property damage and personal injury from lack of organizational measures
- Use equipment and protective gear suitable for the activity.
Required tools
- Fan wheel puller 10016069
- Socket wrench 7 mm
- Slotted-head screwdriver

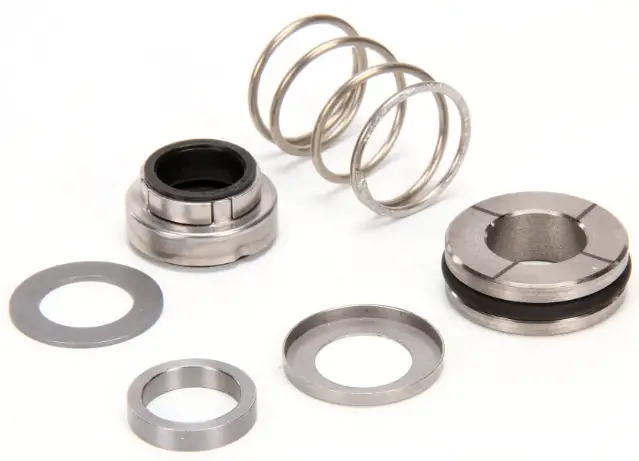

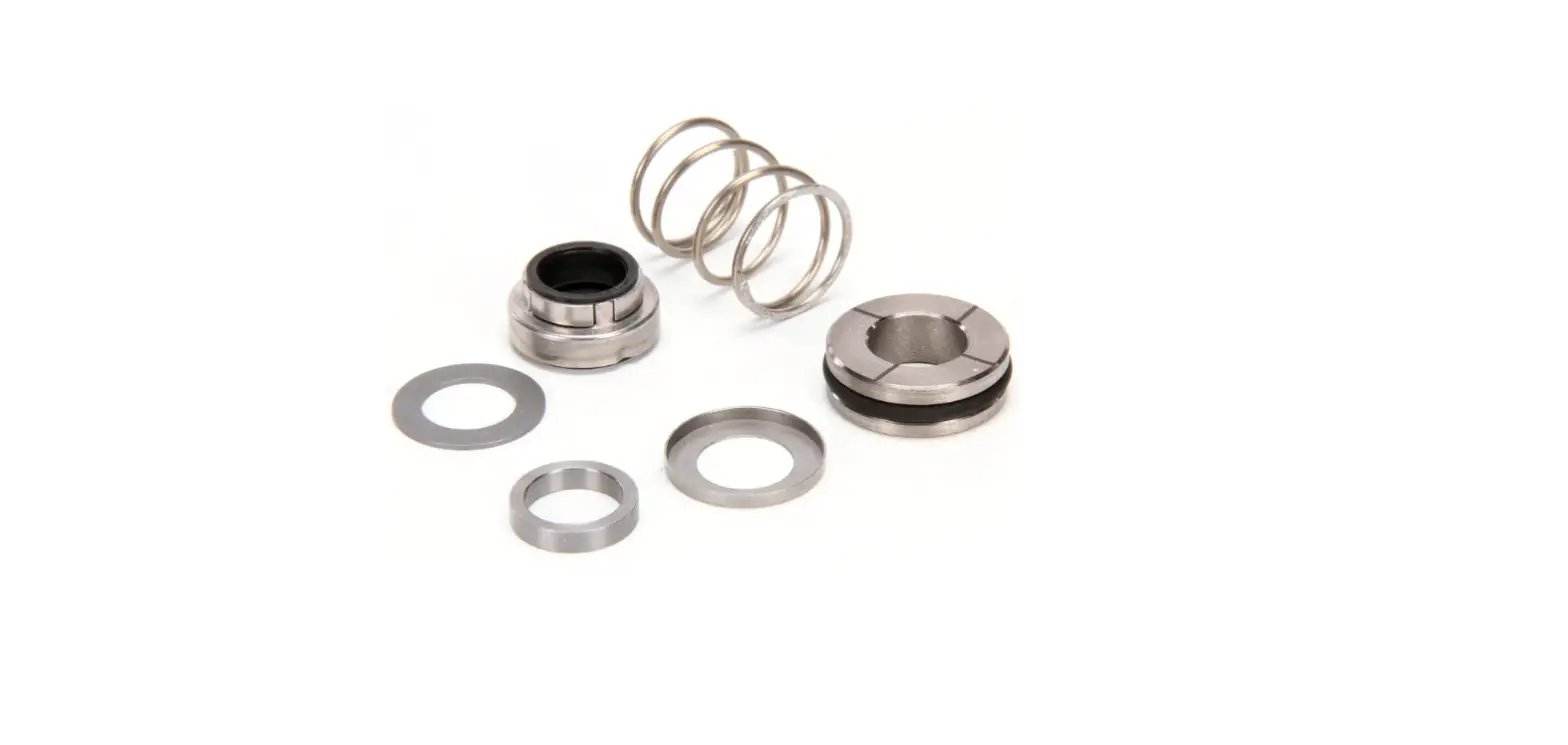

Overview of locking washer and shaft seal

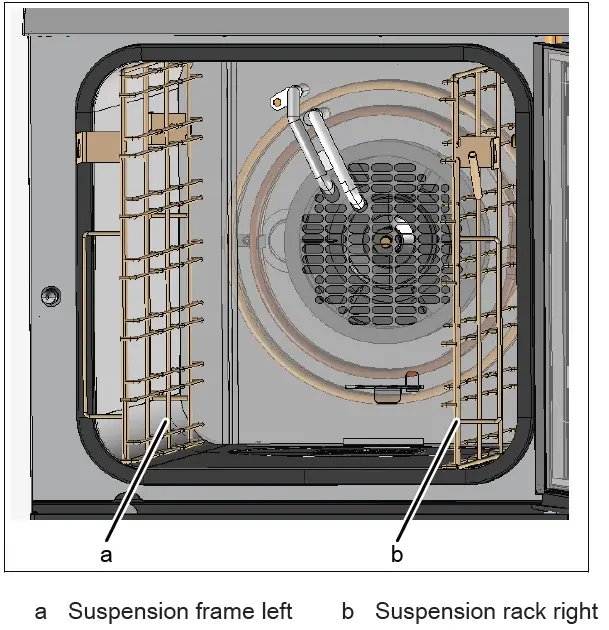

Remove suspension racks
- Open the cooking chamber door
- Remove the two suspension racks.
Removing the air diverter
- Dismantle hexagon head screw
- Pull off water inlet pipe
- Remove air baffle

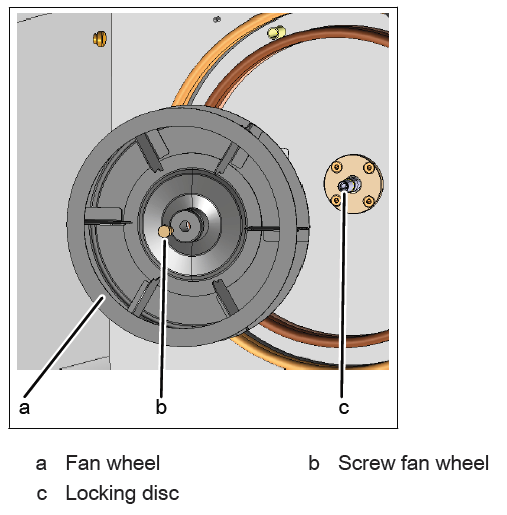

Remove fan wheel
- Loosen the screw of the fan wheel.
- Loosen fan wheel with fan wheel puller.
- Pull the fan wheel off the motor shaft.

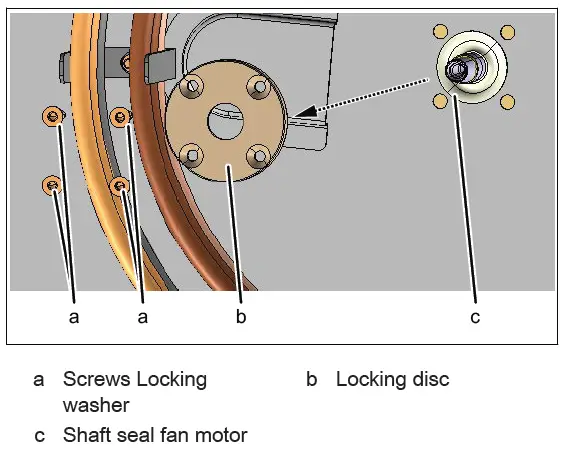

Remove shaft seal
- Remove the screws on the locking disc
- Pull the locking disc off the motor shaft
- Pull the shaft seal off the motor shaft
Install shaft seal
- Fit new shaft seal10029110. Observe the installation direction!
- Install new locking washer 10028883.
INFORMATION
Tighten the screws only hand-tight. The torque should be 1 Nm.
Assemble remaining components
The remaining parts are assembled in the reverse order.
