i-PRO WV-S22600-V2LG S-Series Wide Lineup High Resolution Network Camera with AI Engine
New S-series wide lineup high resolution network camera with AI engine
INSTRUCTION

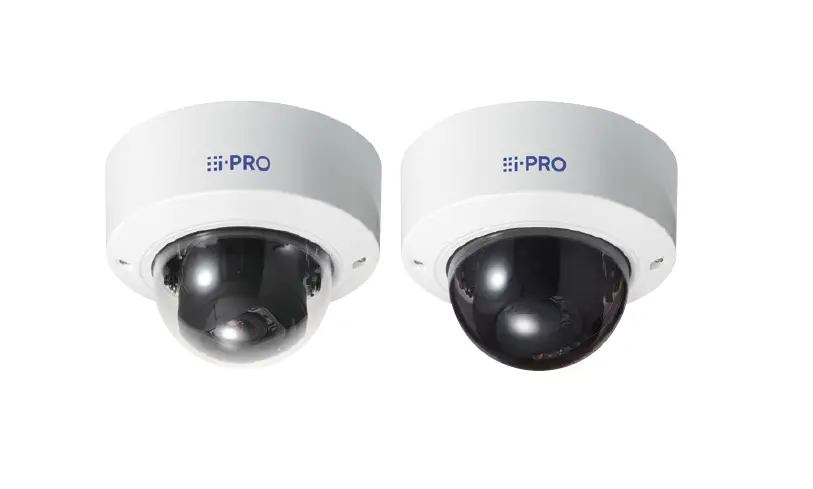

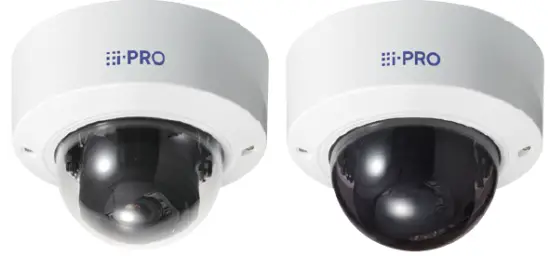

6MP Vandal Resistant Indoor Dome Network Camera
Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly
improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes.
It realizes high-quality and clearer images even in low-light and wide-range shooting scenes.
3 AI Apps operation at same time
- Up to 3 AI apps can be operated at the same time from the wide variety.
Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model.
As result, it can be used many industries.
High image quality / High compression
- Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality
and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.
Easy setting and installation
- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
The grommet on the outdoor model can reduce the time and effort required for installation.
User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.
High security
- Equipped with FIPS 140-2 level 3 certified hardware in addition to the digital certificate issued by a third party organization (GlobalSign®).
For Global
Key i-PRO Spec.
- 6MP
- Intelligent Auto (with AI Engine)
- Super Dynamic 132dB
- Color night vision (0.04 to 0.06 lx)
(G : 0.12 to 0.17 lx) - Smart Coding (with AI Engine)
- Built-in IR LED
- IK10 Vandal Resistant
- ONVIF® Profile G / M / S / T
*ONVIF is a trademark of ONVIF, Inc. - FIPS 140-2 level3 certified
Industry examples
- Airport (Passport control / Security checkpoint / Ticket counter)
- Retail / Bank / Education / Hospital / Building
Specifications
| Camera | Image Sensor | Approx. 1/1.8 type CMOS image sensor | |
| Minimum Illumination | Color : 0.04 lx (G: 0.12 lx)(30IRE, F1.5, 1/30s) *1 Color : 0.06 lx (G: 0.17 lx)(50IRE, F1.5, 1/30s) BW : 0.03 lx (G: 0.09 lx)(50IRE, F1.5, 1/30s) BW : 0 lx(50IRE, F1.5,1/30s with IR LED) | ||
| White Balance | ATW1 / ATW2 / AWC | ||
| Shutter Speed | [30fps/15fps mode] 1/30 Fix to 1/10000 Fix [25fps/12.5fps mode] 1/25 Fix to 1/10000 Fix | ||
| Intelligent Auto | On / Off | ||
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. | ||
| Dynamic Range | Max.132 dB (Super Dynamic : On, Level 31) | ||
| Adaptive Black Stretch | The level can be set in the range of 0 to 255. | ||
| Back light compensation / High light compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) | ||
| Fog compensation | On / Off (only when Intelligent auto / auto contrast adjust : Off) | ||
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. | ||
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) | ||
| IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 50 m {Approx. 164 ft}(G: 35 m{Approx.115 ft})(30IRE) *1 35 m {Approx. 115 ft}(G: 25 m{Approx.82 ft})(50IRE) | ||
| Digital Noise Reduction | The level can be set in the range of 0 to 255. | ||
| Video Motion Detection (VMD) | On / Off, 4 areas available | ||
| Scene Change Detection (SCD) | On / Off, 1 areas available | ||
| Audio Detection | On / Off | ||
| AI Sound Classification | Gunshot, Yell, Vehicle horn, Glass break | ||
| AI Analytics | Yes | ||
| Privacy Zone | On / Off, Up to 8 zones available | ||
| VIQS | On / Off, Up to 8 zones available | ||
| Image rotation*2 | 0 ° / 90 ° / 180 ° / 270 ° | ||
| Camera Title (OSD) | On / Off, Up to 40 characters (alphanumeric characters, marks) | ||
| Focus Adjustment | Auto focus | ||
| Lens | Optical zoom | 2.0x (Motorized zoom / Motorized Focus) | |
| Extra zoom | 2.0x – 6.0x (when resolution is 1280 x 720) | ||
| Focal length | 4.3 – 8.6 mm {5/32 inches – 11/32 inches} | ||
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 52° (TELE) – 101° (WIDE), Vertical : 29° (TELE) – 55° (WIDE) | ||
| Maximum Aperture Ratio | 1 : 1.5 (WIDE) – 1 : 2.4 (TELE) | ||
| Focus range | 1.0 m {39-3/8 inches} – ∞ | ||
| DORI | Detect (25ppm / 8ppf) | Wide: 54.9 m / 180.0 ft, Tele: 136.5 m / 447.7 ft | |
| Observe (62.5ppm / 19ppf) | Wide: 21.9 m / 72.0 ft, Tele: 54.6 m / 179.1 ft | ||
| Recognize (125ppm / 38ppf) | Wide: 11.0 m / 36.0 ft, Tele: 27.3 m / 89.5 ft | ||
| Identify (250ppm / 76ppf) | Wide: 5.5 m / 18.0 ft, Tele: 13.6 m / 44.8 ft | ||
| System on | Chip (SoC) | Ambarella CV22 | |
| Adjusting | Angle | Horizontal : -240 to +120°, Vertical : -30 to +85°, Yaw : ±100° | |
| Browser GUI | Camera Control | Brightness, AUX On / Off | |
| Audio | Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High Audio Output : On / Off Volume adjustment : Low / Middle / High | ||
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | ||
| Browser *3 | Microsoft Edge, Firefox, Google Chrome | ||
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | |
| Resolution H.265/ H.264/ JPEG (MJPEG) | [16:9 mode (30 fps mode)][16:9 mode (25 fps mode)] 3328×1872/2560×1440/1920×1080/1280×720/640×360/320×180 | ||
| H.265/ H.264 *4 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | |
| Transmission Type | Unicast port (AUTO) / Unicast port (MANUAL) / Multicast | ||
| JPEG | Image Quality | 10 steps | |
| Smart Coding | GOP(Group of pictures) control: Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/ Advanced(Fixed GOP 60s w/1s key-frame)/ Frame rate control (Variable GOP 4s-16s with frame rate control) *Advanced and Frame rate control are only available with H.265. Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off | ||
| Network | Audio Compression | G.726 (ADPCM) : 16 kbps / 32 kbps G.711 : 64 kbps AAC-LC*5 : 64 kbps / 96 kbps / 128 kbps | ||
| Audio transmission mode | Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex) | |||
| Supported Protocol | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP | |||
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | |||
| Secure | FIPS 140-2 level3 | |||
| SDXC/SDHC/SD Memory Card | H.265 / H.264 recording : Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure JPEG recording : Manual REC / Alarm REC (Pre/Post) / Backup upon network failure Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB | |||
| Mobile Terminal Compatibility | iPad, iPhone(iOS 8.0 or later), AndroidTM terminals | |||
| ONVIF® Profile | G / M / S / T | |||
| Alarm | Alarm Source | 3 terminals input, VMD alarm, Command alarm, Audio detection alarm | ||
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output | |||
| Input/ Output | Monitor Output (for adjustment) | VBS : 1.0 V [p-p] / 75 , composite, Pin jack An NTSC or PAL signal can be outputted from camera | ||
| Audio input | ø3.5 mm stereo mini jack | |||
| For microphone input : | Recommended applicable microphone : Plug-in power type (Sensitivity of microphone : -51 dB to -38 dB (0 dB=1 V/Pa, 1 kHz)) Input impedance : Approx. 2 k (unbalanced) Supply voltage : 2.5 V ±0.5 V | |||
| For line input : | Input level : Approx. –10 dBV | |||
| Audio Output | ø3.5 mm stereo mini jack (monaural output) Output impedance : Approx. 600 (unbalanced) Output level : –20 dBV | |||
| External I/O Terminals | ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1) ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1) ALARM IN 3 (Alarm input 3/ AUX OUT) (x1) | |||
| General | Safety | UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1 | ||
| EMC | FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035 | |||
| Power Source and Power Consumption | DC power supply : DC12 V 1.0 A, Approx. 12.0 W PoE (IEEE802.3af compliant) Device : DC48 V 240 mA, Approx. 11.5 W (Class 0 device) | |||
| Ambient Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) (Power On range: 0 °C to 50 °C {32°F to 122 °F}) | |||
| Shock Resistance | IK10 (IEC 62262) | |||
| Ambient Operating Humidity | 10 to 90 % (no condensation) | |||
| Dimensions | ø129.5 mm x 102.5 mm (H) {ø5-3/32 inches x 4-1/32 inches (H)} Dome radius 41.5 mm {1-5/8 inches} | |||
| Mass (approx.) | 800 g {1.77 lbs.} | |||
| Finish | Main body : Aluminum die cast, i-PRO white Dome cover : Polycarbonate resin, Clear (G: Smoke) | |||
- Converted value
- When the 320×180 resolution is used, the “90°” and “270°” settings are not available.
- For information on the operation verification of the supported web browsers, refer to our support website <Control No.: C0132>.
- Transmission for 4 streams can be individually set.
- When recording audio on an microSD memory card, only use AAC-LC (Advanced Audio Coding – Low Complexity).

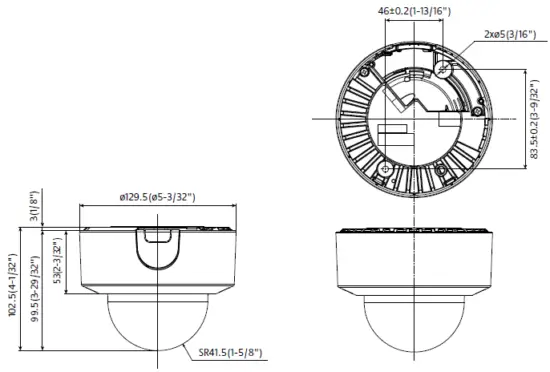

Appearance
AI Analytics applications
AI Video Motion Detection (AI-VMD)
Advanced video analysis technology detects objects (faces, people, cars, motorcycles) in a specified area.
(Intruder Detection, Loitering Detection, Direction Detection, Cross Line Detection)
AI Privacy Guard
To protect privacy and portrait rights, it is possible to automatically apply a mosaic the entire face and figure of a person photographed by the camera.
AI Face Detection
Detects faces with high precision even in low-light, backlit, and mask-wearing environments.
AI People Detection
Extract the characteristics of human face/clothing and classify them into meaningful categories such as gender, age, and clothing color.
AI Vehicle Detection
Extract vehicle characteristics and classify them into meaningful categories such as type and color.
AI Non mask Detection
Deep-learning and proprietary image processing technologies recognize mask and detect people who are not wearing them.
AI Occupancy Detection
Detecting the congestion via network camera with AI engine enables that information to be used direct visitors in advance or help store staff work more efficiently.
3rd party applications are also available.
https://i-pro.com/global/en/surveillance/i-pro-application-platform/application-list

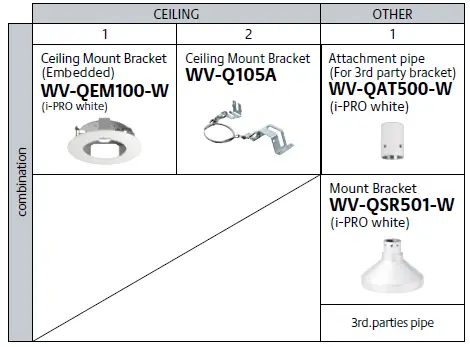

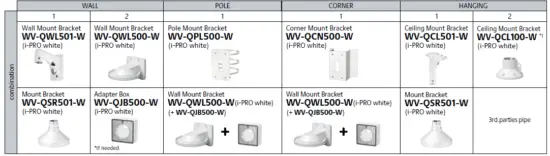

Optional Accessories
Mount Bracket / Other
Dome Cover
Dome Cover (Smoke type)
WV-CR1S
Trademarks and registered trademarks
- GlobalSign and the GlobalSign Logo are registered trademarks of GMO GlobalSign K.K.
- iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google LLC.
- ONVIF is a trademark of ONVIF, Inc.
- All other trademarks identified herein are the property of their respective owners.
Important
- Safety Precautions : Carefully read the Basic Information, Installation Guide and
Operating Instructions before using this product. - i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
Masses and dimensions are approximate. • Specifications are subject to change without notice.
