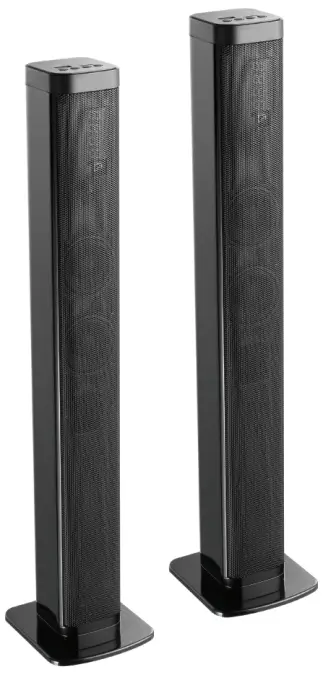

Pyle Phsptw60 39 Inch 2-channel Detachable Stereo Soundbar User Guide

PyleUSA.comPHSPTW60 39” 2-Channel
Detachable Stereo Soundbar
Convertible Soundbar Speakers

SAFETY PRECAUTION

1. To avoid electric shock, do not expose the speaker to rain or humid environments.
2. The speaker is for indoor use only.
3. Installation of speaker should be performed by a qualied installer.
4. Contact your place of purchase should you have questions or need assistance.

PACKING LIST

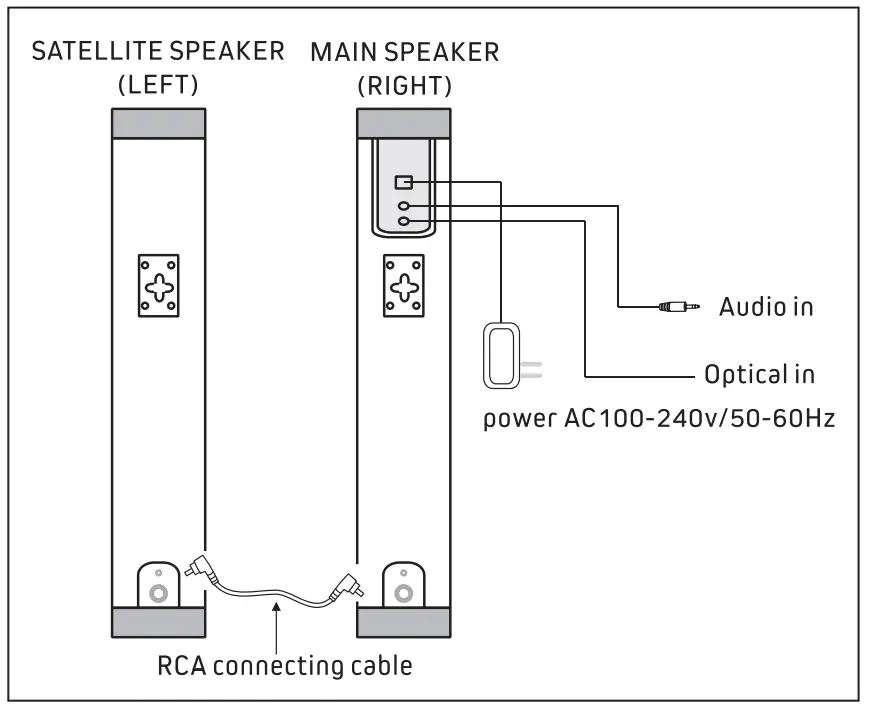

INTRODUCTION

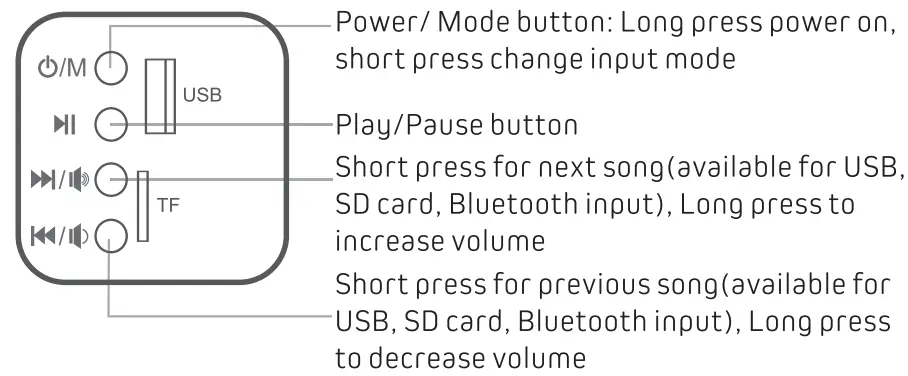

Panel Control Buttons

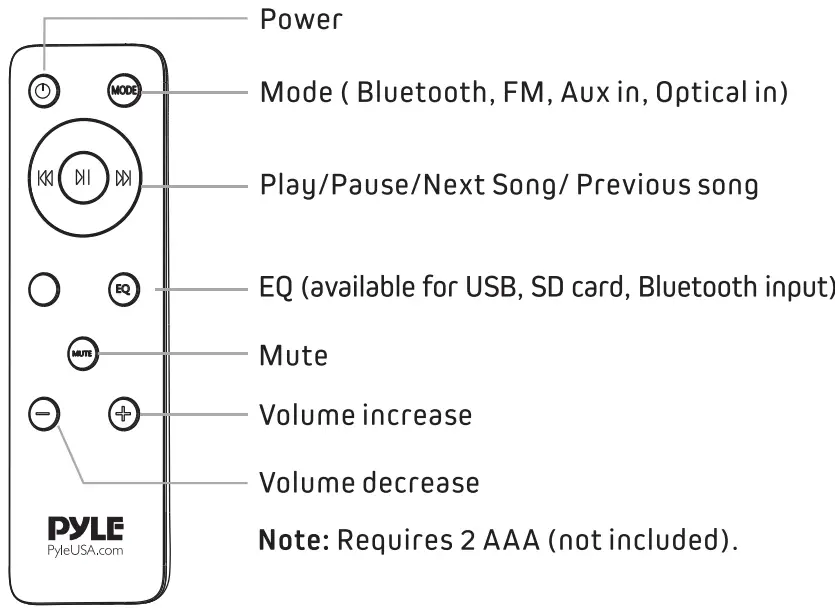

Remote control

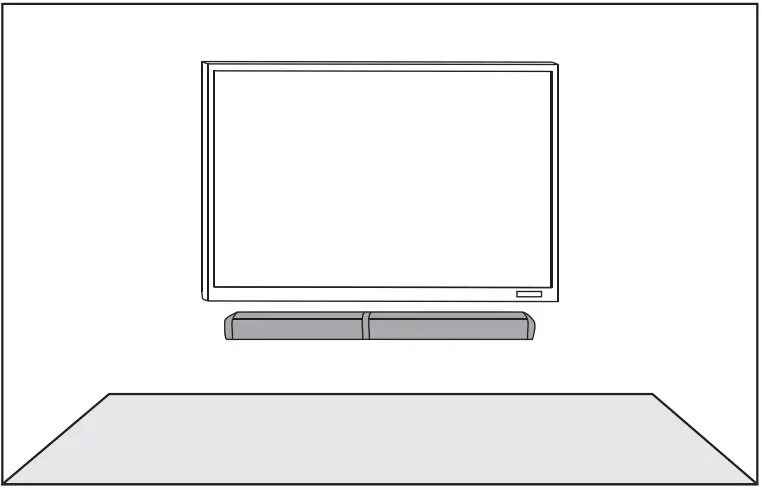

1. Wall Mount

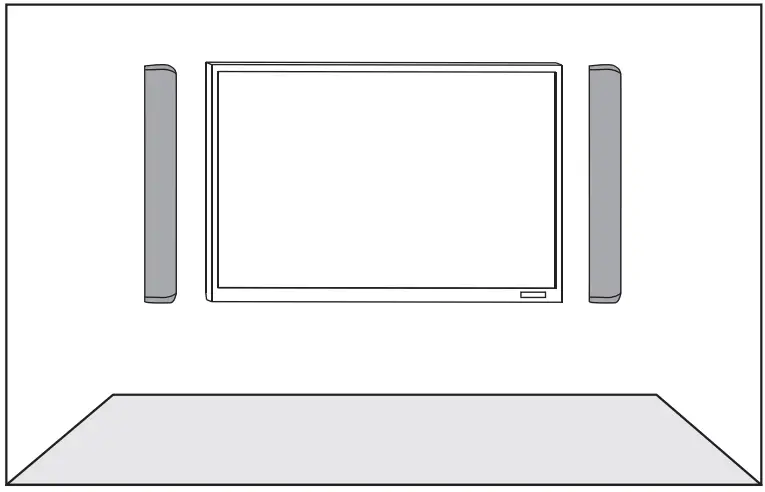

2. Left and Right Wall Mount

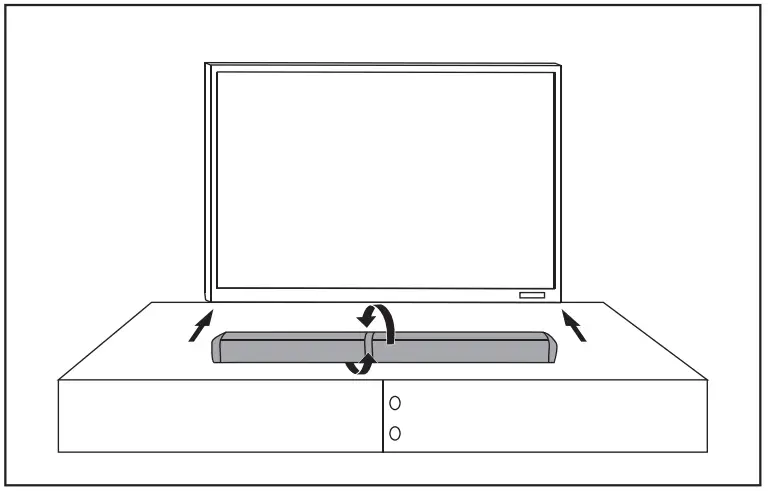

3. Desktop Placement

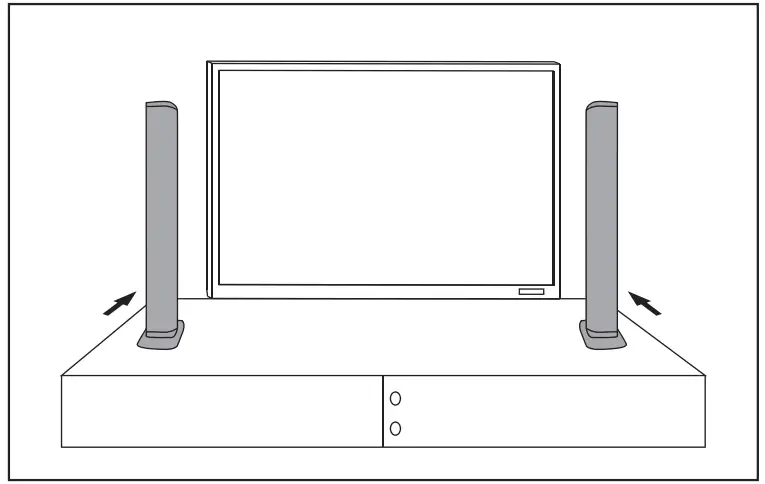

4. Split Placement

Wireless BT Streaming Connectivity:

• Built-in BT for Wireless Music Streaming
• Simple and Hassle-Free Pairing
• Works with All of Today’s Latest Devices (Smartphones, Tablets, Laptops, computers, etc.)
• Wireless BT Version: 5.0
• Wireless BT Network Name: “PyleUSA”
• Wireless Range: 32.8′ ft.

Technical Specs:

• MAX Power: 100W
• RMS Power: 40W
• Minimum Speaker Impedance: 4
• Sensitivity(1M/1W): 86dB
• Frequency Response: 60Hz-20kHz
• Total Harmonic Distortion(THD): ≤1%
• Signal-to-Noise Ratio: ≥72dB
• Amplier Type Class: D
• Power Supply DC: 15V/2A
• Product Dimension: 19.3 ‘’ x 2.4’’ x 2.4’’ -inches

California Prop 65 Warning
WARNING:
This product contains Bisohenol A (BPA) which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.Pé65warnings.ca.gov

VISIT US ONLINE:
Have a question?
Need service or repair?
Want to leave a comment?
PyleUSA.com/ContactUs
Questions? Issues?
We are here to help!
Phone: (1) 718-535-1800
Email: [email protected]
