C2SR
Outdoor RFID Reader
Quick Guide V1.1
Anviz brand and product are trademarked and protected under law of the United States.
Unauthorized use is prohibited.
For more information, please visit www.anviz.com or send email to [email protected] for more help.
©2021 Anviz Global Inc. All Rights Reserved.
1. Parts List
|
|
|
Mounting Bracket

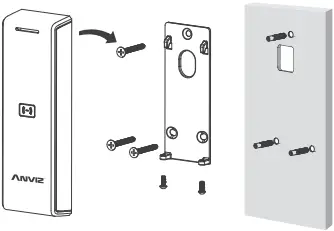

Accessories2. Installation Diagram
- Drill outlet hole on the wall for device wiring and 3 screw holes on the wall according to the mounting bracket.
- Use the screws to fix the mounting bracket on the wall. Use the screwdriver to tighten the screw follow the direction indicated, to complete the installation.
3. Wiring Instruction
| Function | Description | Color |
| Wiegand Output | Wiegand 1 (WO1) | White (WT) |
| Wiegand 0 (WO0) | Green (GN) | |
| RS 485 Input | 485 B | Blue (BU) |
| 485 A | Brown (BN) | |
| Power Input | GND | Black (BK) |
| PWR +12V | Red (RD) |

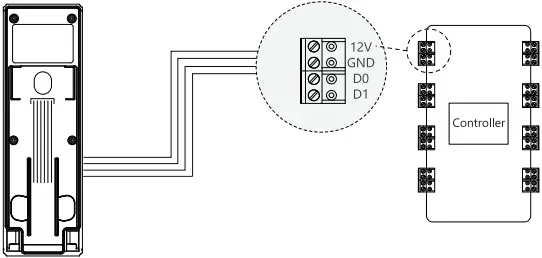

4. Access Wiring
In use, please refer to the wiring diagram description for wiring. Any damage caused by improper wiring is not covered by the warranty.
22 10
