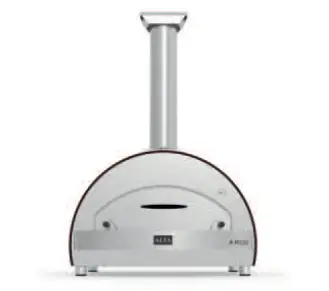

Used material	iron sheet. stainless steel. ceramic fiber
Type of refractory	Alumina silicate bricks
Recommended fuel	Max 1.9 in diam. logs. trimmings
Rated charge	8.3 kg/h 18.3 Lbs/h
Minimum flue draught	11 Pa
Flue smokes mass flow	49.6 g/s
2 CO emission at 13% O2	0.35% 4444 mg/Nm³
Smoke temperature	395°C 743°F
Weight	143 kg 315 lbs
Oven floor area	0.48 m2 5.1 ft2
Oven floor dim.	80 x 60 cm 31.5 x 23.6 in
Heating time (min)	20
Pizza capacity	4
Infornata di pane Bread capacity	4 kg 8.8 lbs
Max oven temperature	500°C 1000°F
Average fuel consumption	4 kg/h 8.8 lbs/h

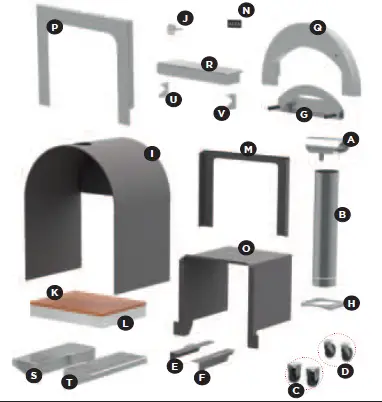

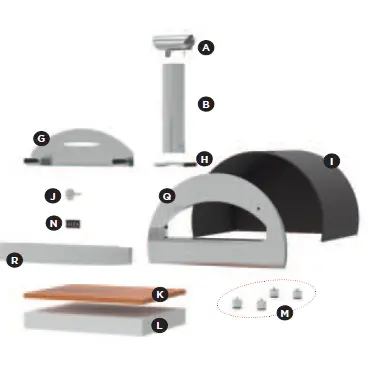

Description		Code
Chimney cap	A	SPZP_01_024
Canna	B	TI150_750_SAT
Door	G	SSML-01-044
Flange	H	FML_01_070
Carter External shell Copper	I	SCRT-01-026-RA
Carter External shell Grey	I	SCRT-01-026-GR
Thermometer	J	YT63-135
Mattoni 30×20 cm Red bricks 30×20 cm	K	RRA3020
Gasbeton	L	FCGSB602515
Feet (n.4)	M	SETPIE-M10X20
Logo Alfa (v1.0)	N	D14PLAC-ALFA
Arch	Q	SSML-01-040
Sill	R	SSML-01-041

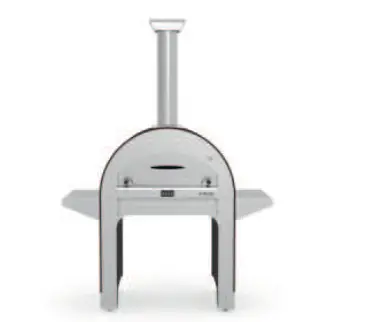

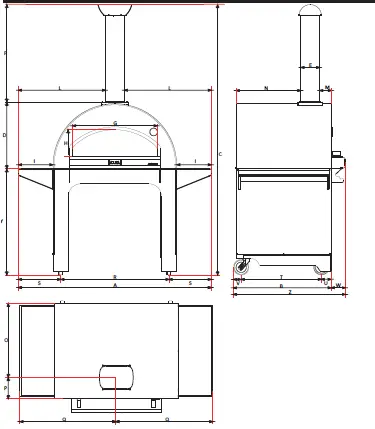

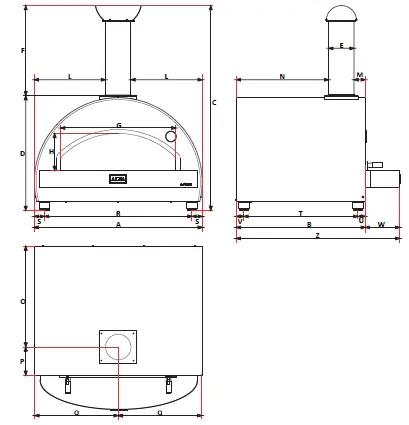

A B C D E F G H L M N		99.2 cm 38.6 in		O	49.6 cm 19.5 in
		76.25 cm 29.7 in		P Q R S T U V W Z	16.7 cm 6.6 in
		121 cm 47.6 in			49.6 cm 19.5 in
		67.7 cm 26.7 in			87 cm 34.3 in
		15 cm 5.9 in			6.1 cm 2.4 in
		53.3 cm 21 in			67.3 cm 26.5 in
		68 cm 26.5 in			4.4 cm 1.7 in
		21.8 cm 8.5 in			4.5 cm 1.8 in
		42.1 cm 16.6 in			20.2 cm 7.9 in
		6.7 cm 2.6 in			96.5 cm 38 in
		54.5 cm 21.5 in
	DIMENSIONE IMBALLO PACKAGING
	Width		Depth			Height	Weight
	106 cm 41.3 in		103.5 cm 40.7 in			78 cm 30.4 in	164 Kg 361 lbs
