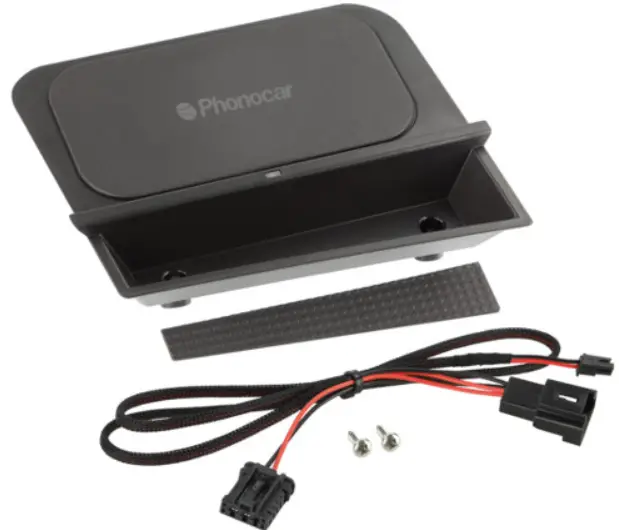

Phonocar COMPLEMENTS 05723 VOLKSWAGEN Fast Wireless Charging Tray

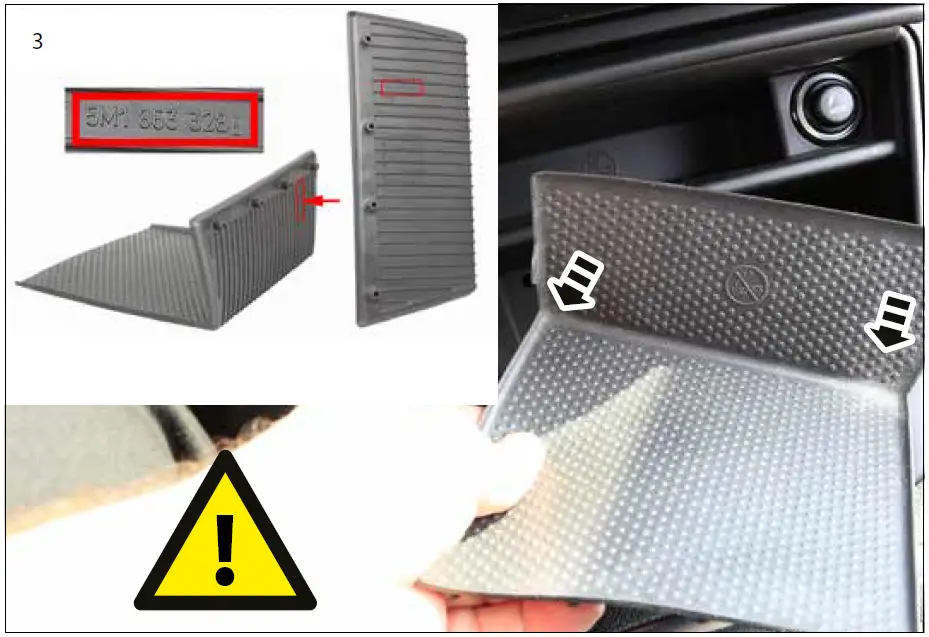

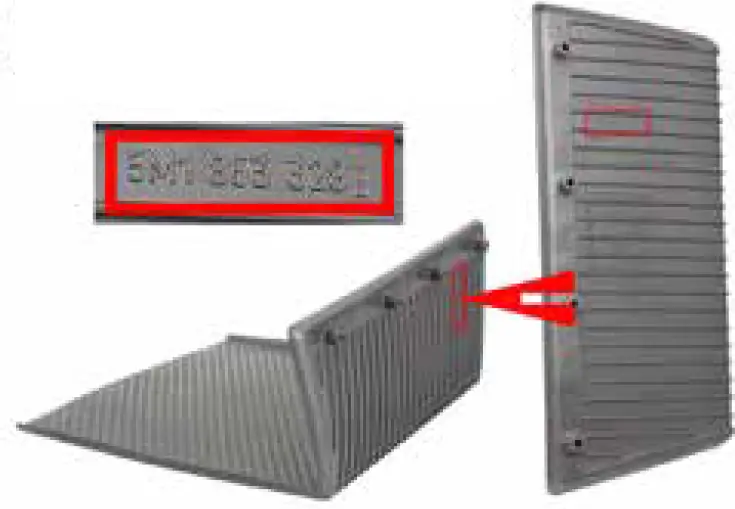

Only suitable for OEM-inlay part-no.: 5M1 863 328 B.

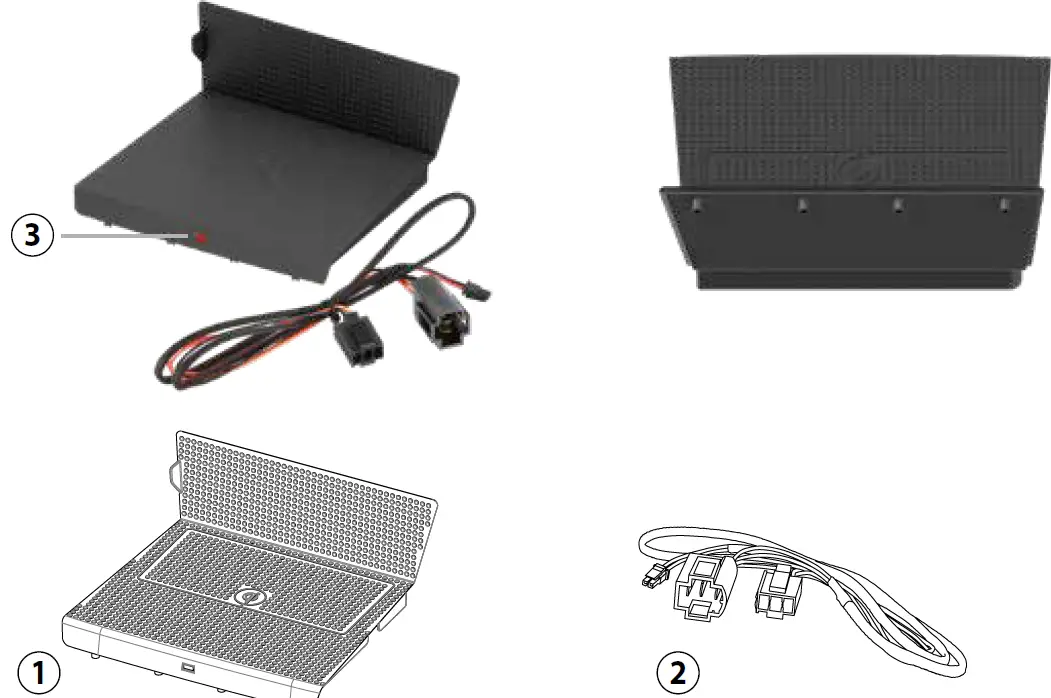

Product description
- CHARGER (1)
- POWER CABLE (2)
- LED LIGHT (3)

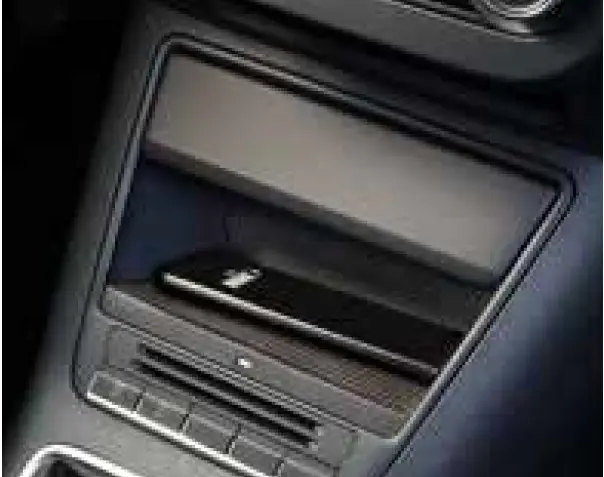

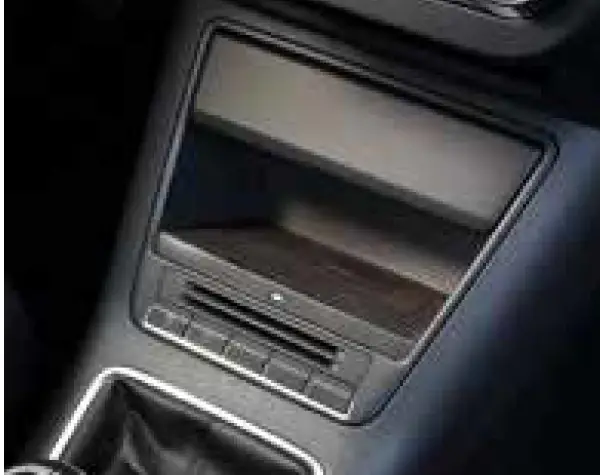

INDUCTION CHARGER WITH QI TECHNOLOGY FOR FAST CHARGING DIRECTLY INTO THE ORIGINAL GLOVE COMPARTMENT
- “Qi standard” certified.
- Stable and fast charging.
- 3 Coils for electromagnetic induction.
- Power supply 10-24V.
- Automatic power output adjustment.
- Charging temperature >60°C.
ATTENTION
An appropriate installation in observance of these operating instructions is necessary. Please make sure the wiring is arranged so it is not bended or crimped due to the risk of cable break. Make sure that all connections are correct. Route the cable away from moving parts, do not allow the cable to be entangled, pinched or damaged in any way.
We will not be liable for damage due to improper installation or utilization. Use the specified accessory parts to prevent product failure. Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
- Charging distance 2,3 – 7,5 mm.
- Compatible with all smartphones with Qi technology.

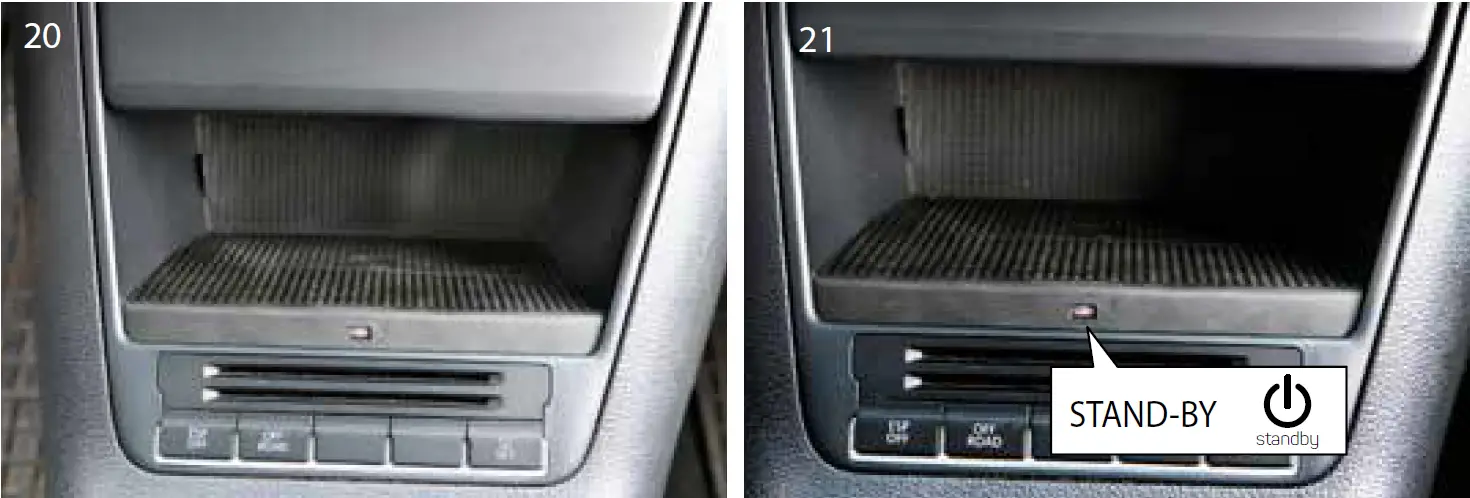

LED LIGHT (3):
- red light = stand-by
- blue light = charging
All images are included for illustrative purposes only.
Phonocar S.p.A. reserves the right to make changes to the products even without notice. Any changes to the products are to be considered improvements and do not affect their functionality. All mentioned trademarks and reproduced logos belong to their legitimate owners and have been indicated for information purposes only. The “Qi” symbol is a trademark of the “Wireless Power Consortium”.

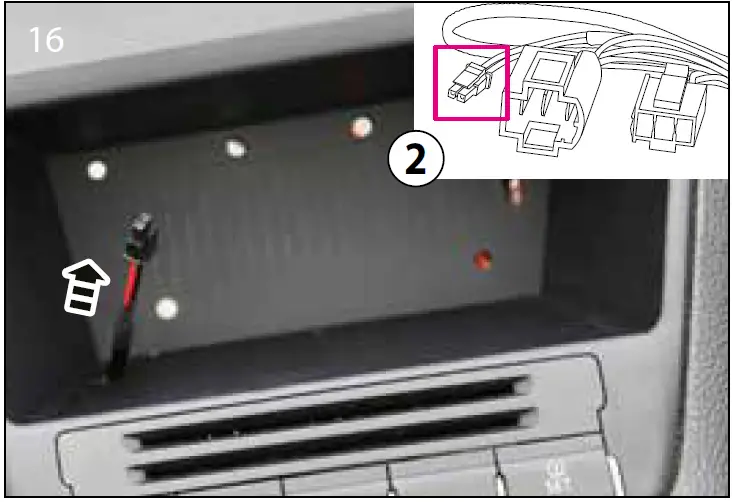

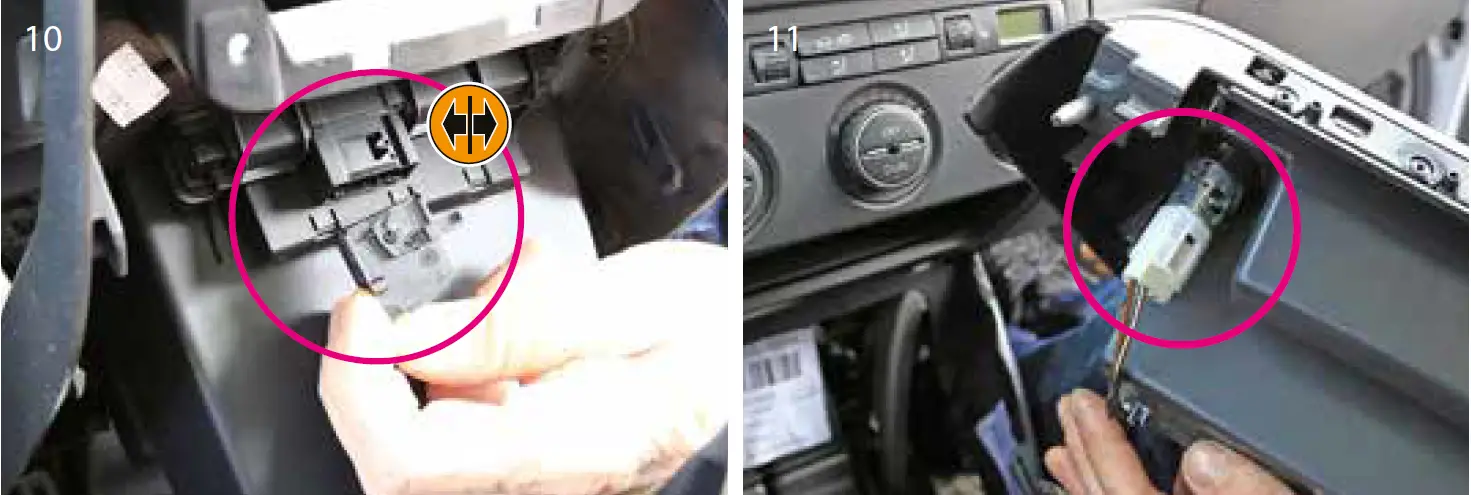

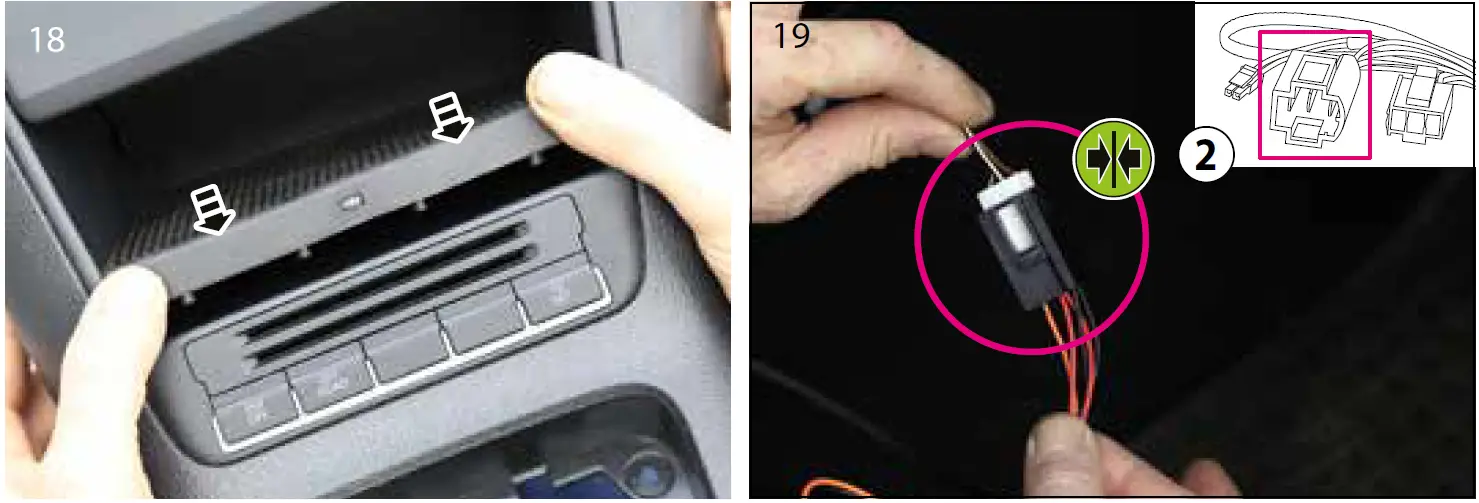

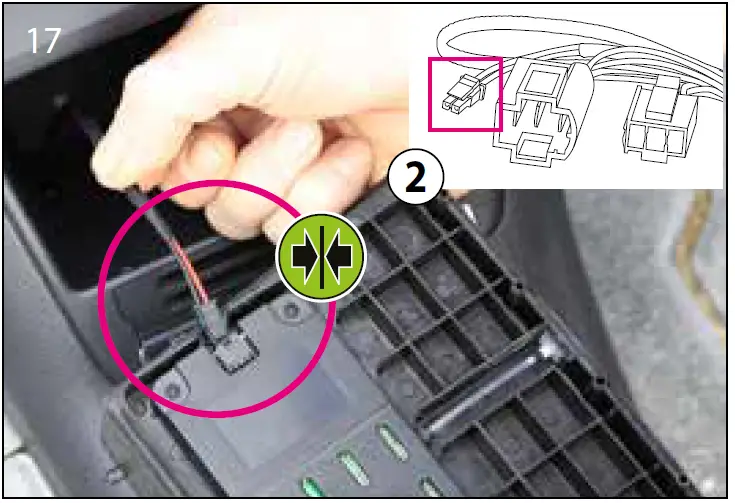

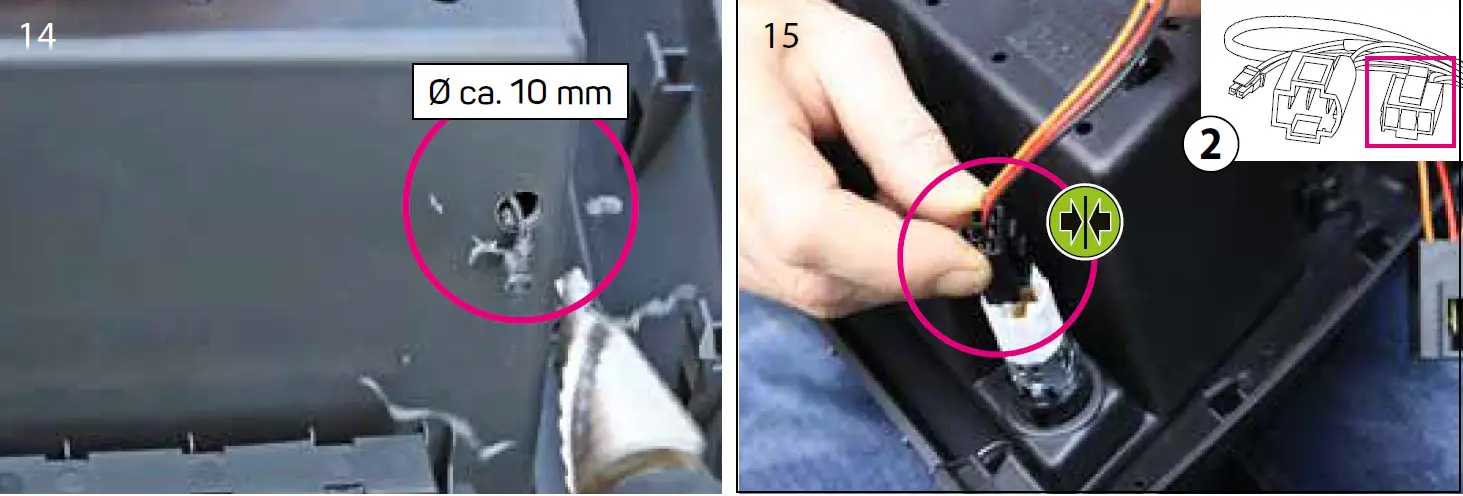

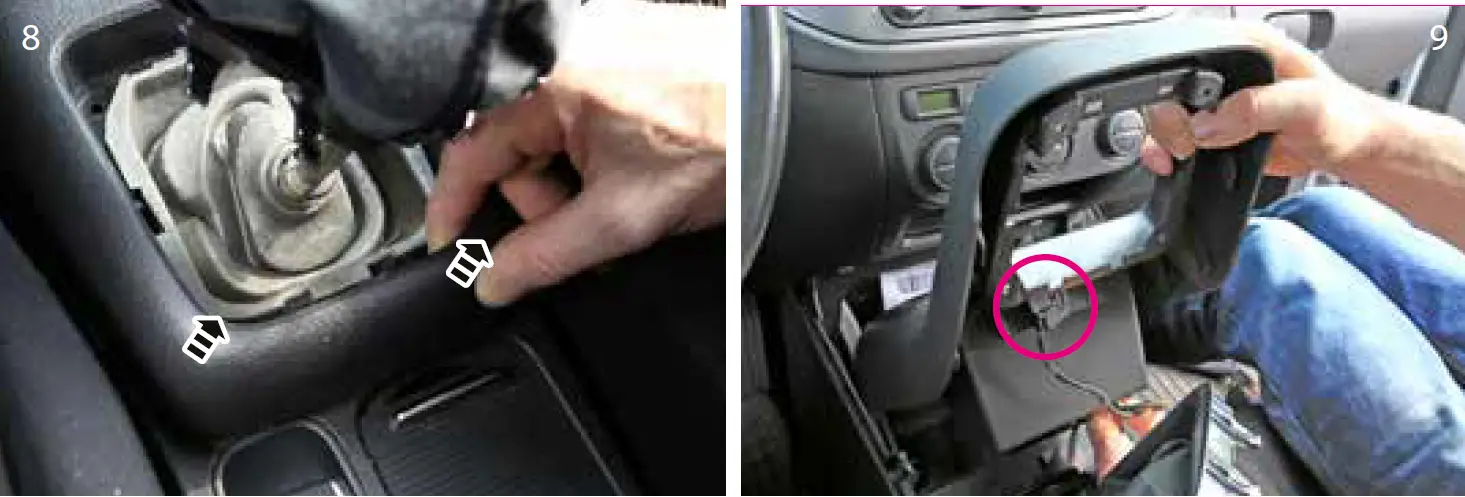

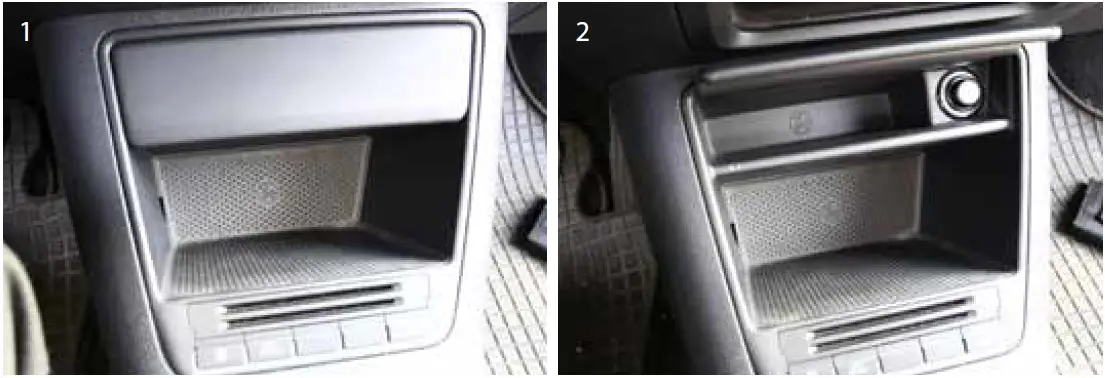

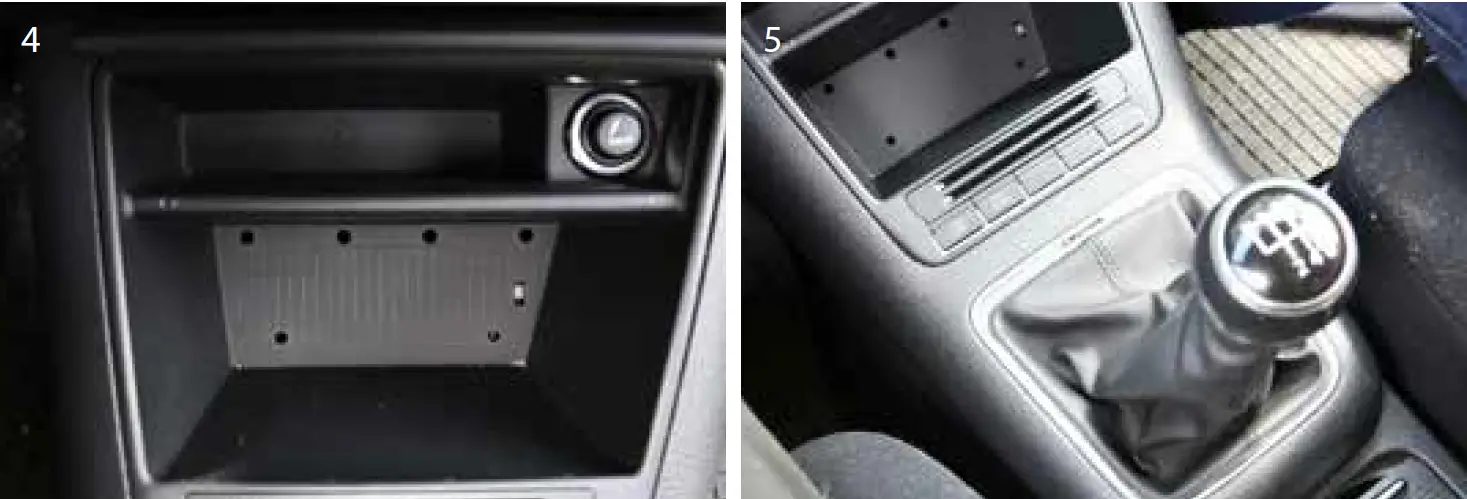

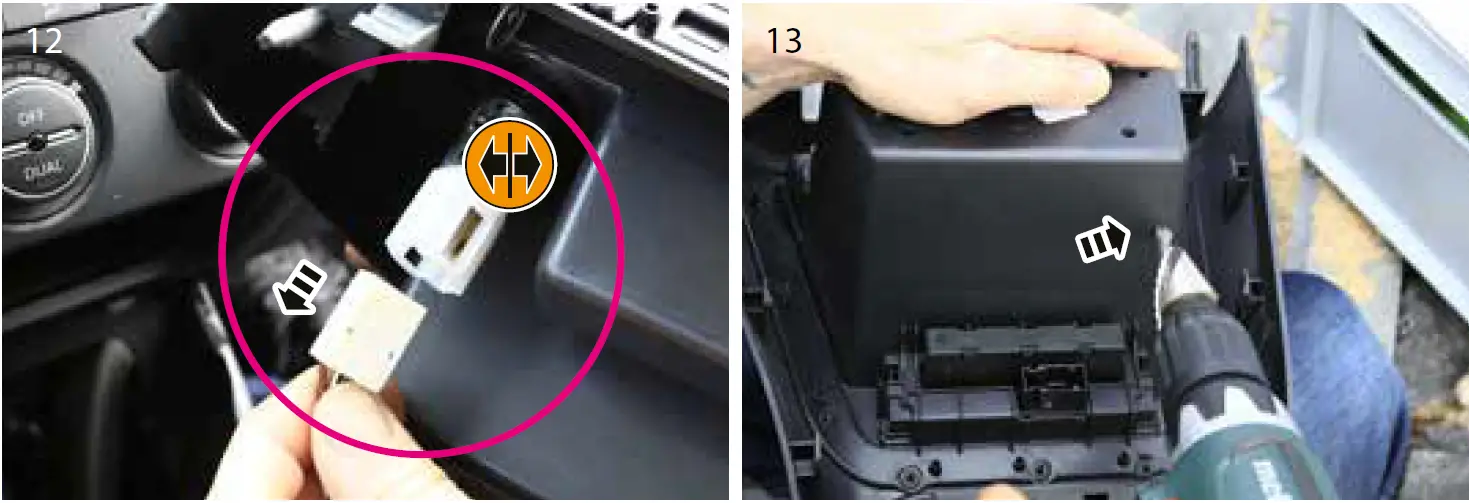

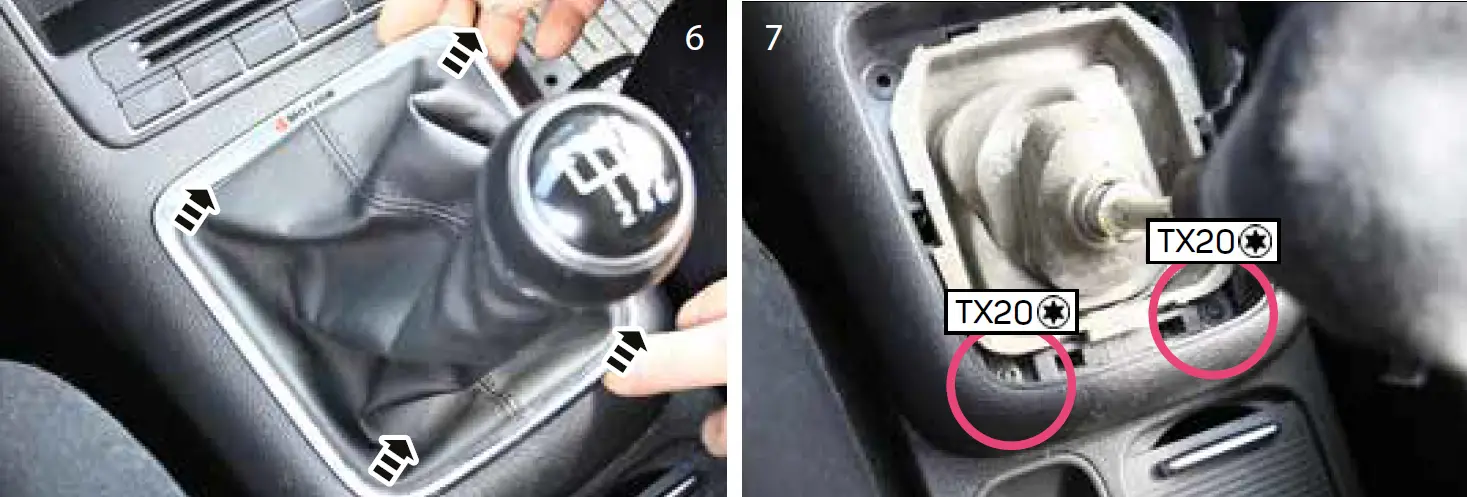

INSTALLATION
CAUTION HOT!
NO METAL OBJECTS
CAUTION
Don‘t place any other objects such as coins, credit cards etc. onto the surface. Especially smartphones with attached ring stand holder should not be used!
