Tray
Instruction Manual
05713 Mercedes Fast Wireless Charging Tray
Classe C/C-Class (W205) 2014>
GLC (X253) 6/2015> (pag. 5-8)
Classe E/E-Class (W213) 4/2016>
05713

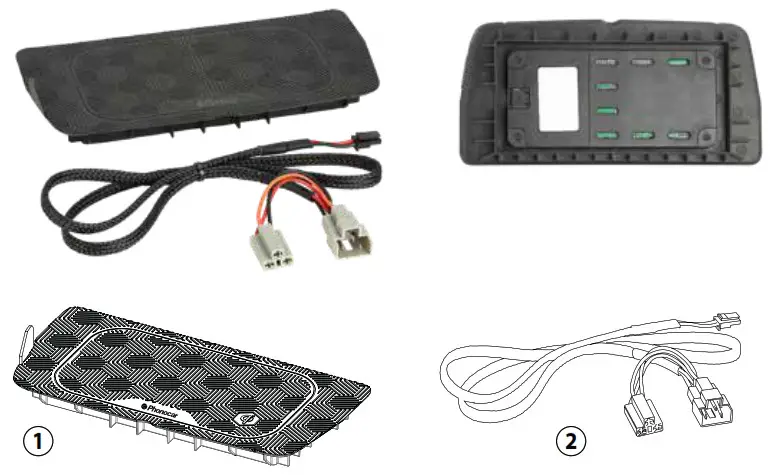

Supplied:
CHARGER (1)
POWER CABLE (2)

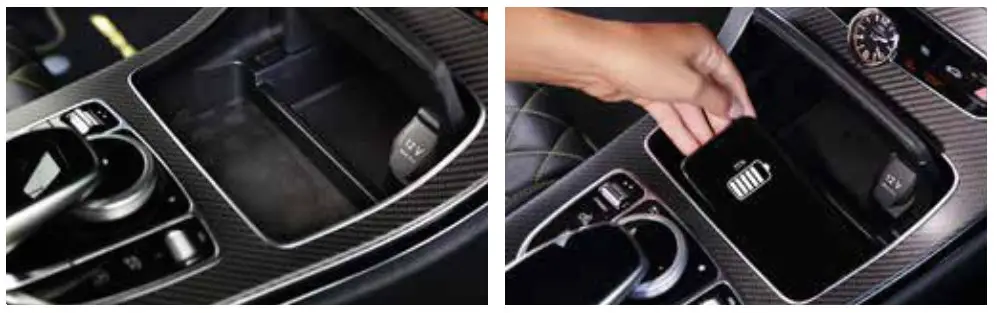

INDUCTION CHARGER WITH QI TECHNOLOGY FOR FAST CHARGING DIRECTLY INTO THE ORIGINAL GLOVE COMPARTMENT
“Qi standard” certified.
Stable and fast charging.
3 Coils for electromagnetic induction.
Power supply 10-24V.
Automatic power output adjustment.
Charging temperature >60°C.
ATTENTION An appropriate installation in observance of these operating instructions is necessary. Please make sure the wiring is arranged so it is not bent or crimped due to the risk of a cable break. Make sure that all connections are correct. Route the cable away from moving parts, and do not allow the cable to be entangled, pinched, or damaged in any way. We will not be liable for damage due to improper installation or utilization. Use the specified accessory parts to prevent product failure. Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
Charging distance 2,3 – 7,5 mm.
Compatible with all smartphones with Qi technology.
All images are included for illustrative purposes only.
Phonocar S.p.A. reserves the right to make changes to the products even without notice.
Any changes to the products are to be considered improvements and do not affect their functionality.
All mentioned trademarks and reproduced logos belong to their legitimate owners and have been indicated for information purposes only.
The “Qi” symbol is a trademark of the “Wireless Power Consortium”.

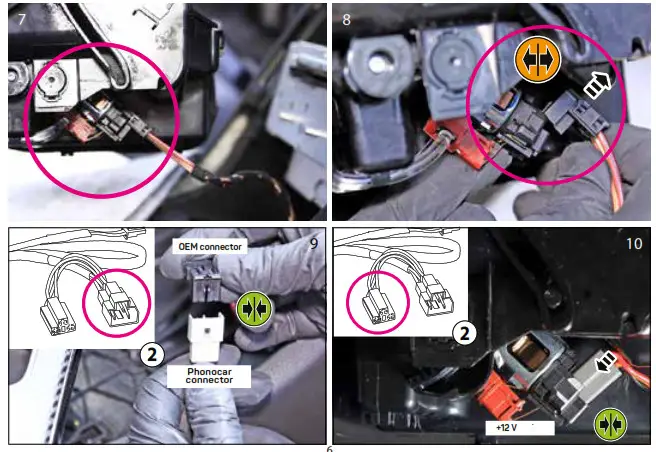

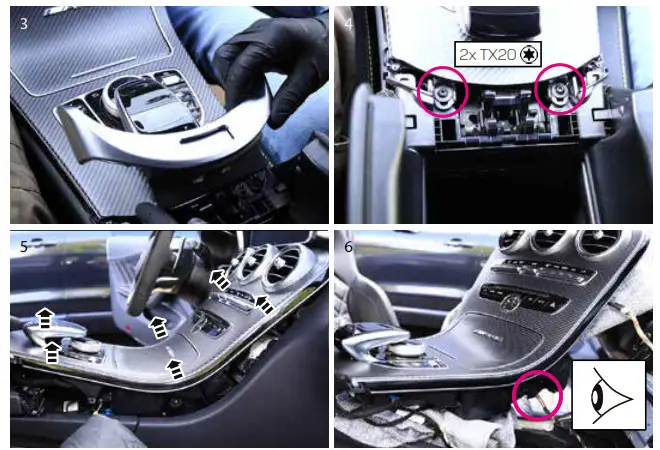

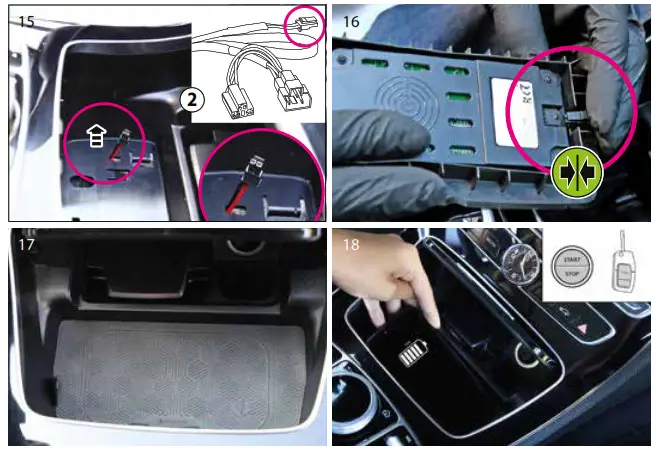

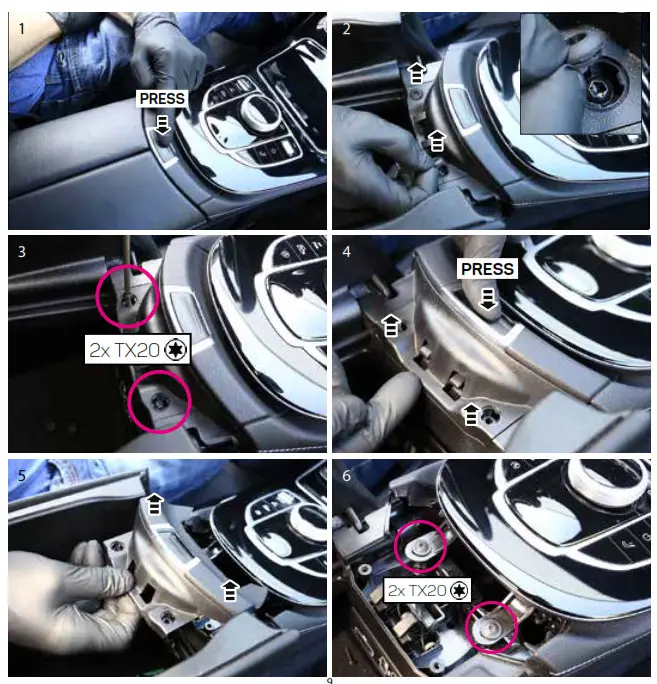

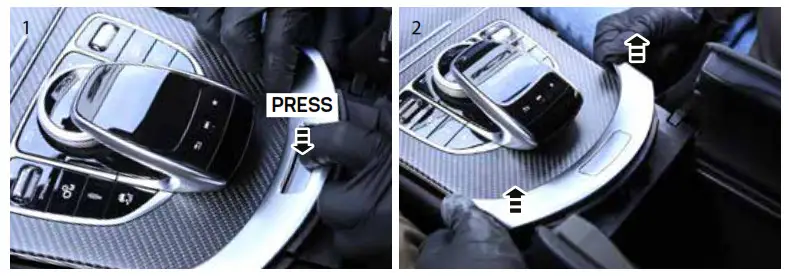

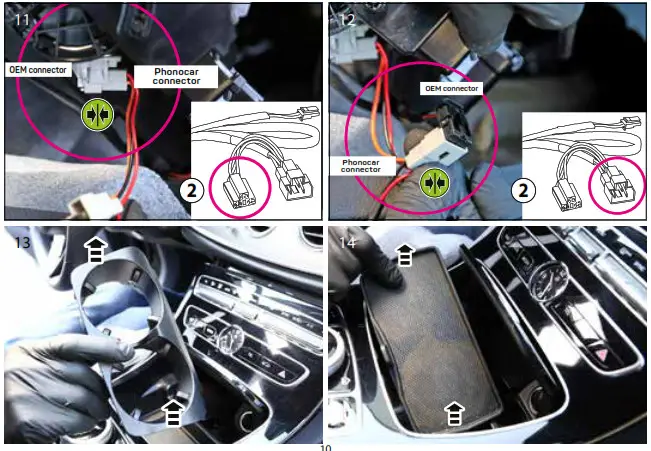

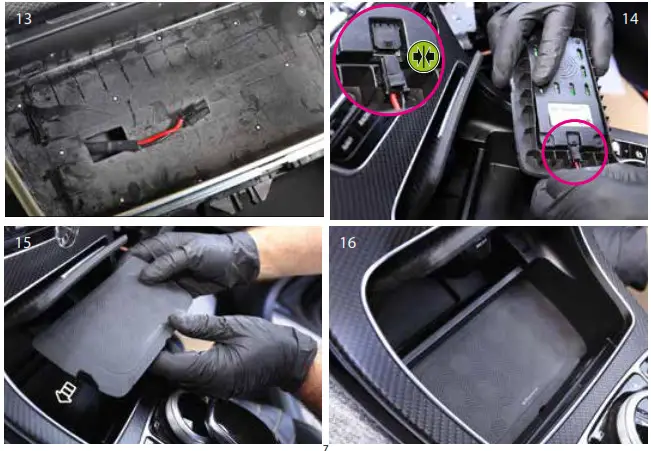

INSTALLATION
MERCEDES
Classe C/C-Class/GLC
 |  |
 |  |

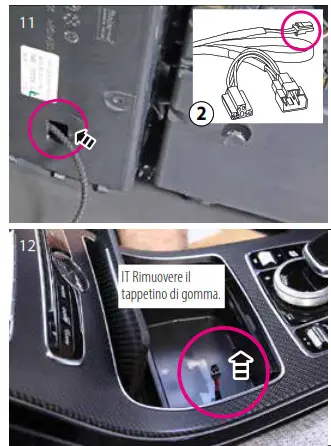

Remove the rubber mat.
 |  |
INSTALLATION
 |  |
 |  |
CAUTION HOT!
NO METAL OBJECTS
CAUTION! Don‘t place any other objects such as coins, credit cards, etc. onto the surface. Especially smartphones with attached ring stand holders should not be used!
Phonocar S.p.A. Via F.lli Cervi, 167/C • 42124 Reggio Emilia (Italy)
Tel. 0522 941621 • Fax 0522 1602093 • e-mail: [email protected] • www.phonocar.it
FRANCE Tél. 0811.48.55.59 • Fax 0811.48.17.39 • e-mail: [email protected] • www.phonocar.fr
DE/AT Tel. +49 0521 89880932 • Fax +39 0522 1602093 • e-mail: [email protected] • www.phonocar.com
ESPAÑA/PORTUGAL Tel. +34 958 302295 • Fax +34 958 302470 • Movil +34 607592406
e-mail: [email protected] • [email protected] • www.phonocar.es
BE – LUX Tel. +352 398136 • Fax +352 398133 • Mobil +352 6 91194848
e-mail: [email protected] • www.phonocar.com
GREECE and CYPRUS Tel. +30 210-6925680 • e-mail: [email protected] • www.phonocar.com
POLAND Tel. +48 71-3645358 • Fax +48 71-3645000 • e-mail: [email protected] • www.phonocar.com
