Instruction Manual
PENDANT LAMP
PD1659 Industrial Cone Pendant Light
Remove the fixture and the mounting package from the box and make sure that no parts are missing by referencing the illustrations on the installation instructions.
Save these instructions
IMPORTANT SAFETY INSTRUCTIONS:
- CAUTION – TURN OFF THE MAIN POWER AT THE CIRCUIT BREAKER BEFORE INSTALLING THE FIXTURE, IN ORDER TO PREVENT POSSIBLE SHOCK.
- CAUTION – If you feel you do not have enough electrical wiring experience contact a qualified licensed electrician for installation of your lighting fixture.
- These instructions are provided for your safety. Please read carefully and completely before beginning the assembly and installation of this lighting fixture.
- Do not use the electric cord only (without steel/reinforced cable) to support the weight of the lighting fixture.
- This lighting fixture is intended for indoor use only, and in dry locations.
- This lighting fixture is intended for ceiling mount only, and connected only to 3-wire, single-phase electrical supply system with proper Ground wire or system.
- For use with E26 (medium) base light bulbs only.
- To avoid the risk of fire, do not exceed the maximum wattage of 60W incandescent bulb
, or 9W LED bulb
, or 13W fluorescent (CFL) bulb
, or 9W self-ballasted LED bulb
. (Bulbs not included)
, or 9W LED bulb
, or 13W fluorescent (CFL) bulb
, or 9W self-ballasted LED bulb
. (Bulbs not included)WARNINGS:
- To reduce the risk of fire, electrical shock, or personal injury: always turn off this lighting fixture and allow it to cool before attempting to replace the light bulb.
- Do not touch light bulb while fixture is turned on.
- Keep flammable materials away from this lighting fixture.
- Never look directly at a lit bulb.
CARE INSTRUCTIONS:
- Turn light off and allow bulb to cool before cleaning.
- Carefully wipe clean with a soft, dry cloth or static duster.
- Always avoid the use of harsh chemicals or abrasive cleaners as they may cause damage to the fixture’s finish
Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or hardware.
- Feed wires through the mounting bracket (A).

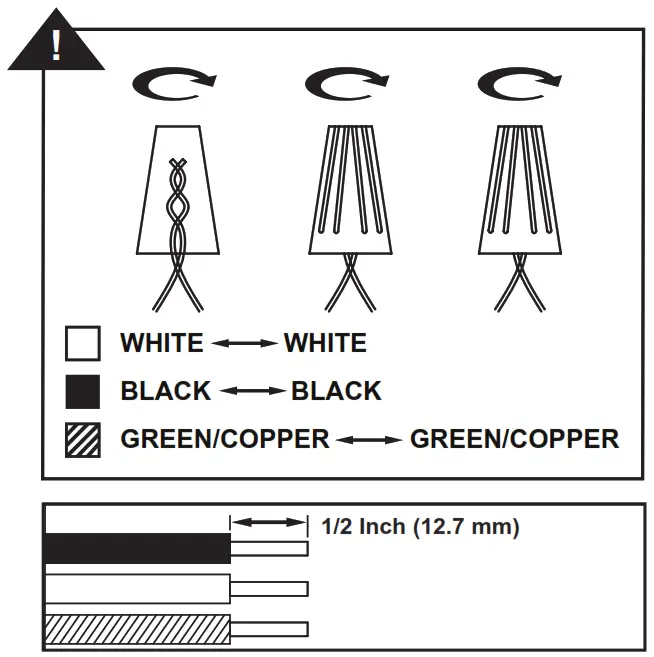

- Securely connect wires as shown using wire connectors. Connect white to white, black to black, and connect the green or copper ground wire to the mounting plate ground as shown.
- Secure mounting bracket (A) to the ceiling using long screws.
- Secure ceiling cover (B) to the mounting bracket (A) using short screws.

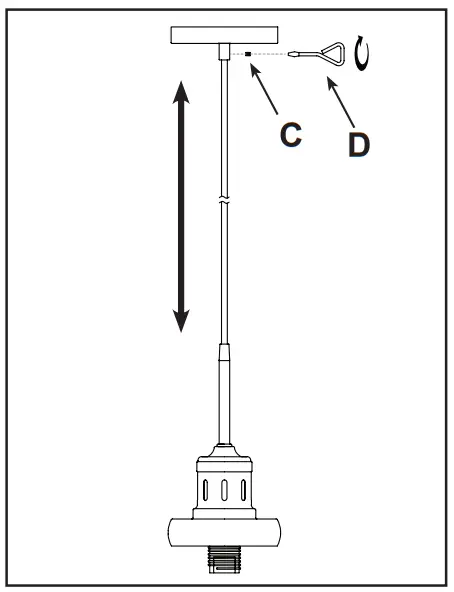

Required Supply Circuit: 120V, 60Hz - Determine the desired length of the lamp cord, and secure length using small screw (C) and tool (D).

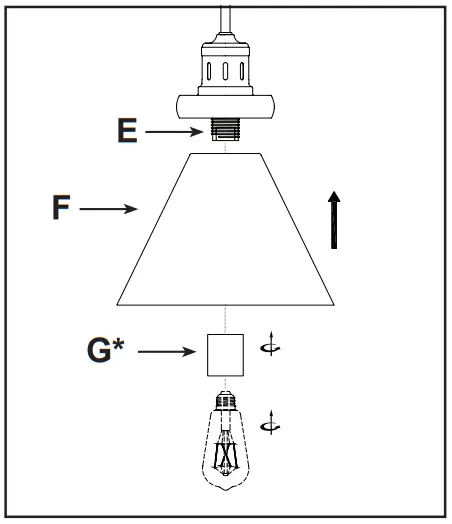

- Lift the Lampshade (F) into place and secure by screwing on the Socket Collar (G*).
- Install the specified light bulb.
* This part may come preinstalled to part E. Check parts carefully.
For use with light bulbs with a E26 (medium) base.
DO NOT EXCEED THE SPECIFIED WATTAGE.
PD1658 PD1659 PD1660
