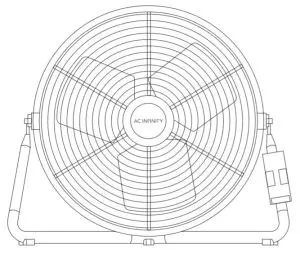

AC-WFS12 Wall And Floor Circulator Fan
User Manual
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information.
| EMAIL [email protected] | WEB www.acinfinity.com | LOCATION Los Angeles, CA |
| PRODUCT CLOUD LIFT S12 CLOUD LIFT S14 CLOUD LIFT S20 CLOUD LIFT S24 | MODEL AC-WFS12 AC-WFS14 AC-WFS20 AC-WFS24 | UPC-A 819137022263 819137022430 819137022485 819137022492 |
Power this fan OFF before unplugging it. Do NOT place this fan near open bodies of water.
KEY FEATURES
EC MOTOR
Next-generation motor runs quieter, is more energy-efficient, and has a longer lifespan than AC motors.
IP-44 PROTECTION
This industrial wall fan is sealed to Ingress Protection 44 standards, rated with high resistance to liquids and dust.
RUGGED BUILD
Black powder-coated steel fan guard supported by a rigid floor stand cages the fan blades for long-lasting performance.
DUAL BALL BEARINGS
The motor contains ball bearings with an estimated 67,000-hour lifespan. Enables the fan to be mounted in any direction.
WIDER COVERAGE
Pivoting fan head on the floor or wall-mounted creates dynamic circulation to direct airflow in a wide range.
SPEED CONTROLLER
Single-button controller with circular dot display wirelessly enables fan speed control in ten speeds.

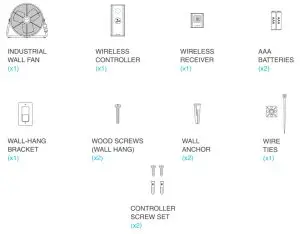

PRODUCT CONTENTS
INSTALLATION
MOUNTING
STEP 1

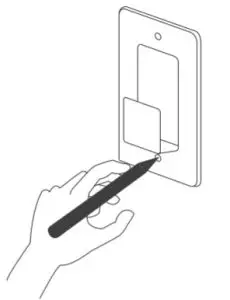

Mark the drilling holes in your chosen mounting location using the wall-hang bracket.
Make sure your chosen mounting location is structurally sound and free of obstruction.
STEP 2

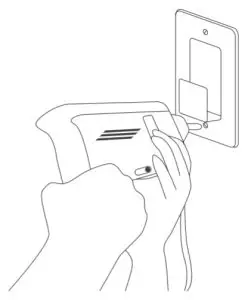

Drill the two holes into your marked locations and apply the wall anchors.
STEP 3
Replace the bracket and drill the screws into your wall to secure it.
STEP 4

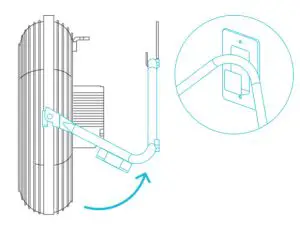

Pull the stand vertically and hook the fan onto the bracket.
STEP 5
As an option, you may install wall hang screws to mount your controller and receiver.

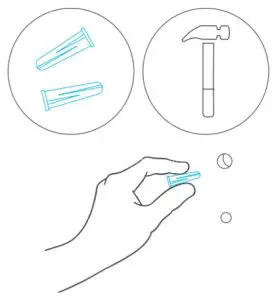

Drill holes into your marked location and apply the wall anchors.
STEP 6

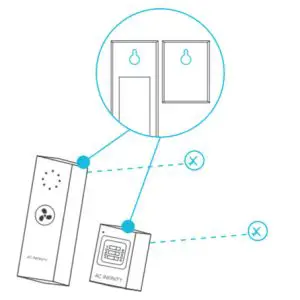

Apply the screws into the wall anchors. Hang your controller and receiver by the hole located behind each module.
POWERING AND SETUP
STEP 1
Plug the fan’s UIS™ cable into the receiver.

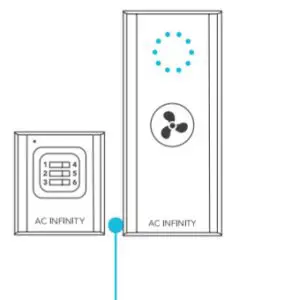

You may magnetically mount the receiver in the controller slot.
STEP 2

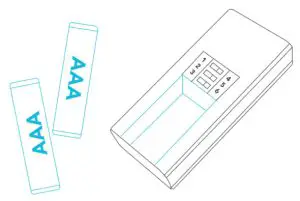

Insert the two AAA batteries into the wireless controller.
STEP 3

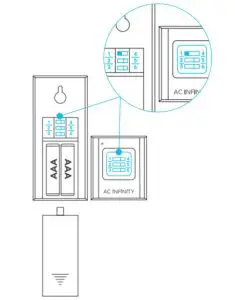

Adjust the sliders on the controller and receiver so their numbers match. Close the battery door when you are finished. The receiver’s indicator light will flash when connected.
Any number of devices may be controlled using the same controller, as long as the fans’ sliders match the controller’s.
Any number of controllers may control the same device, as long as the controllers’ sliders match the fans.
STEP 4

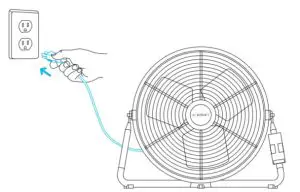

Plug the fan’s power cord into an AC power outlet to power the fan.

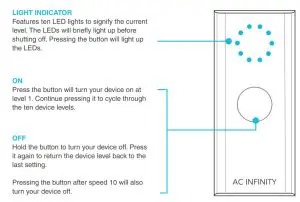

PROGRAMMING
AC INFINITY PRODUCTS

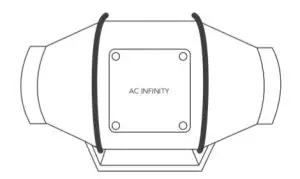

Inline Fans
The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures.

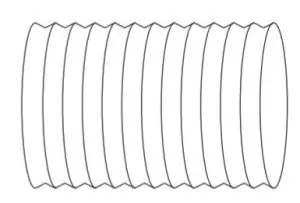

Ducting Tubes
The four-layer ducting tube is used to direct airflow, designed for ventilation systems in applications like HVAC, dryers, and grow rooms. It is highly durable and flexible and can be used anywhere from tight spaces to wide-open areas.

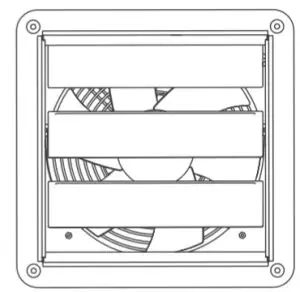

Shutter Fans
The AIRLIFT series is a line of shutter exhaust fans designed to expel heat, moisture, odor, and dust from spaces like greenhouses, garages, attics, and sheds. It features an intelligent controller that includes temperature and humidity programming, adjustable fan speed controls, a timer, and an alarm system.

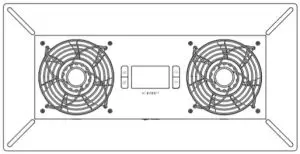

Crawlspace Fans
The AIRTITAN is a line of weather-proof fans designed to provide ventilation, as well as odor and moisture control for crawl spaces and basements.
Discover the latest innovations in cooling and ventilation at acinfinity.com
WARRANTY
This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in the manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
The warranty program applies to any order, purchase, receipt, or use of any products sold by AC Infinity or our authorized dealerships. The program covers products that have become defective, malfunctioned, or expressively if the product becomes unusable. The warranty program goes into effect on the date of purchase. The program will expire two years from the date of purchase. If your product becomes defective during that period, AC Infinity will replace your product with a new one or issue you a full refund.
The warranty program does not cover abuse or misuse. This includes physical damage, submersion of the product in water, incorrect Installation such as wrong voltage input, and misuse for any reason other than intended purposes. AC Infinity is not responsible for consequential loss or incidental damages of any nature caused by the product. We will not warrant damage from normal wear such as scratches and dings.
To initiate a product warranty claim, please contact our customer service team at [email protected]
If you have any issues with this product, contact us and we’ll happily resolve your problem or issue a full refund!
