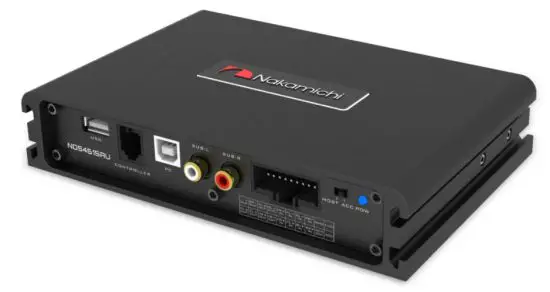

NDS4615AU Digital Sound Amplifier
User Manual

Contents hide

1 INTRODUCTION AND TROUBLESHOOTING

2 NOTICE

3 TROUBLESHOOTING

4 WHAT’S IN THE BOX

5 PRODUCT TECHNICAL DATA

6 PRODUCT DIMENSIONS

7 INSTALLATION INSTRUCTIONS

8 SOFTWARE INTRODUCTION

9 Documents / Resources

10 Related Posts

INTRODUCTION AND TROUBLESHOOTING

Thank you for your purchase and welcome to the world of Nakamichi! Please keep your original proof of purchase or invoice in a safe place in case of any warranty claims. Do
also, mail or register your warranty with the official Nakamichi service centers and/or agents to ensure that you are provided with the relevant technical support if required.

NOTICE

To prevent short circuits, please keep the device away from water or damp places.
If water or any other liquid enters the device, cut off the power immediately, and inform the nearest Nakamichi Service Center or Agent to inspect the product.
Users are not recommended to disassemble the device as there are no user-serviceable parts inside, please contact the nearest Nakamichi Service Center if necessary.

TROUBLESHOOTING

Ensure all cables and parts are securely connected before turning on the power. Shown below is the basic troubleshooting procedure that you should follow.

Troubleshooting method:

No.	Malfunction	Reason and Solution
1	No Power	•Check the power connection and make sure it’s secure. •Check the ACC connection and make sure it’s secure.
2	No Sound	•Double check if the unit is in MUTE mode. •Check if you have chosen the correct input channel.
3	Unable to connect through USB	•Check the USB connection and make sure it’s secure. •Check if the driver “HID-compliant device” has been properly installed on your PC.

WHAT’S IN THE BOX

NDS4615AU	LPC
User Manual	2PCS ( 1 Chinese, 1 English)
USB2.0 Cable( 1.5m)	LPC
Self-Tapping Oval Head Screws(420)	2PCS
Phillips Flat Head Machine Screw(36mm)	4PCS
Mounting brackets	2PCS
Velcro	2PRS

PRODUCT TECHNICAL DATA

Product data
Dynamic Range(RCA Input)	2>100dB
S/N (RCA Input)	2>90dB
THD	<0.05%
Frequency Response	20Hz – 20KHz
Input Impedance	High level:470
Low Level Output Impedance	510
Maximum Output Power	4CH50W
Signal Output Range	RCA:5Vpp; High level:28Vpp
Working Temperature	-20-70C
Power	DC 9V-16V
REM Input	High level Input signal:FL+/FL- or ACC control cable
REM Output	+12V start up voltage output(0.lA)
Standby Power	<0.1W
Net Weight	Approx. 0.66kg
Product Dimension	173(L) 115.5(W) 34(H)mm

Technical Sheet

Input Type	4 channels high level, support built-in Bluetooth, support U DISK playback Support manual adjustment function, Support external wiring controller
Output Type	2 channels low level, 4CH x 50W power
Output Gain	Gain range: mute, -59.9dB – 0.0dB
Output Signal EQ	Equalizer engine: 1.Frequency range: 20Hz – 20KHz, 1Hz accuracuy 2.Q value (slope): 0.404 – 28.852 3.Gain: -12.0dB -+ 12.0dB, 0.1dB accuracuy
Output Signal Crossover	Each output is equipped with multi-order high and low pass independent filters. 1. Filtering types: Link-Ril, Butter-W, Besse! 2. Filtering frequency division point: 20Hz – 20KHz. Resolution 1Hz 3.Filter slope (slope) setting: 6dB / Oct to 12dB / Oct and OFF
Output Phase and Time Alignment	Each output channel can be adjusted for phase and delay, parameter range: Phase: in-phase or reverse-phase (0° / 180°) Delay: 0.000 to 5.396ms, 0 to 187 cm, 0 to 74 inch
Presets	Save 6 presets into the device

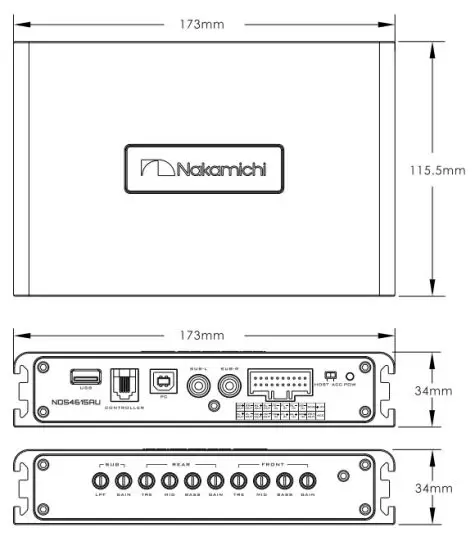

PRODUCT DIMENSIONS

INSTALLATION INSTRUCTIONS

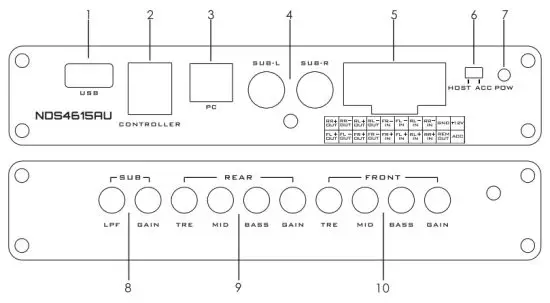

The machine interface diagram is as follows:

USB Port
Insert the U disk, and play the songs in the U disk under the audio source of the player.
The controller port
Data call and total volume adjustment can be performed by the line controller.
PC connection port
USB2.0 port, no need to download the driver installation, connected to the computer sound software installed automatically.
AUX Low-level input port
Install a bass amplifier or subwoofer to use the RCA output of SUB-R and SUB-L to enhance the bass intensity of the audio system.
High-level input and output port
RR+
OUT RR-
OUT RL+
OUT RL-
OUT FR-
IN FL-
IN RL-
IN RR-
IN GND +12V
FL+
OUT FL-
OUT FR+
OUT FR-
OUT FR+
IN FL+
IN RL+
IN RR+
IN REM
OUT ACC
a.”+” is positive or positive; “-” is negative or inverted (ground).
b. Before connecting the power supply, you must confirm that the power supply meets the designed power requirements and connect in strict accordance with the equipment instructions. Otherwise, the equipment may be damaged and may cause accidents such as fire, electric shock, etc.
Machine start mode switch
When the switch is turned to the “ACC” terminal, the machine is started by ACC, and when it is turned to the “HOST’ terminal, the machine is started by the high-level FL+/FL- input signal.
Power indicator light
Super bass effect adjustment knob Adjustable gain and low pass filter.
Rear sound field sound effect adjustment knob Adjustable gain, treble, midrange, bass.
Front sound field sound effect adjustment knob Adjustable gain, treble, midrange, bass.

SOFTWARE INTRODUCTION

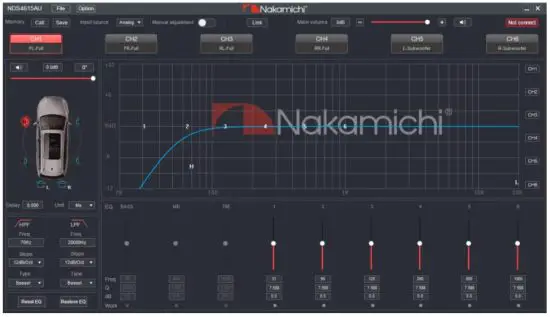

PC Software Operation Introduction
(PC can be downloaded from the official website (http://www.nakamichicaraudio.com, CONTACT, Downloads)) Computer Configuration Requirements: Screen resolution higher than 1280 768, otherwise the software UI is incomplete, only suitable for windows operation system laptop. desktop and pads.

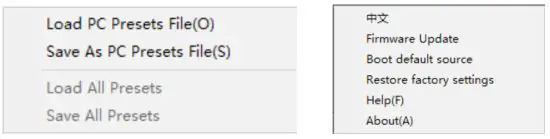

Menu editing area
Main functions: File and options operation.
a. Click the “File” pop-up window. and select to load the scene on your computer, save it as a scene on your computer, load the whole machine scene or save the whole machine scene.
b. Click on “Option” to select Chinese and English switching, firmware Update, boot default source restore factory settings, help and about settings.

Function editing area

Main functions: scene, input source, hardware manual tuning, and joint tuning settings
a. Click “Call or “Save” to recall or save 6 sets of scene data
b. Click the drop-down box of “Input source” to select the input audio source. Their ore analog, Bluetooth, and player options

c. Click the “Manual adjustment” fader to switch to the hardware manual adjustment setting.
d. Click “Link” to set the synchronization method of joint debugging: copy from left to right or copy from right to left.

Main volume and software connection editing area
Main functions: master volume and computer software connection settings.
a. Main volume adjustment range: off, -59dB 6d8. Click the speaker button to mute the main volume.
b. Click the “Not Connected” button to connect the host with a PC.

Output channel editing area

Main function: selection of output channel.
Channel delay, volume, phase editing area

Main functions: output channel volume, mute, forward and reverse and delay settings.
a. Volume adjustment: Push the fader left and right to adjust the sound level, you can also enter a value or scroll the mouse wheel in the volume input box to adjust the sound level. Click the ham button to switch to mute
b. Positive phase adjustment: Click [0″] or [180°] to switch between the positive phase and reverse phase.
c. Delay: set the delay value by scrolling the mouse wheel in the delay input box, or enter the value to set the delay value.
d. Delay Unit button: Click the drop-down list to select milliseconds, centimeters, and inches.

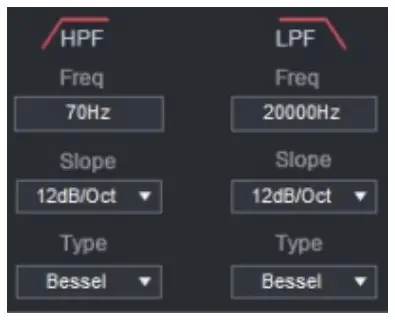

Channel divider editing area

Main Function Setup: Channel High & Low Pass Filter Setup
Adjustable: Filler Type. Frequency point and Q Value (Gradient or Slope).

Equalizer editing area

a. Reset EQ. II is used to restore the parameters of the 9-band equalizer to the original pass-through mode (the frequency of the equalizer, the Q value, and the gain are restored to the initial value].
b. Restore EQ: Switch between the currently designed equalizer state parameters and the pass-through mode (the gain of all equalization points is restored to 0 dB, the frequency and value are unchanged).

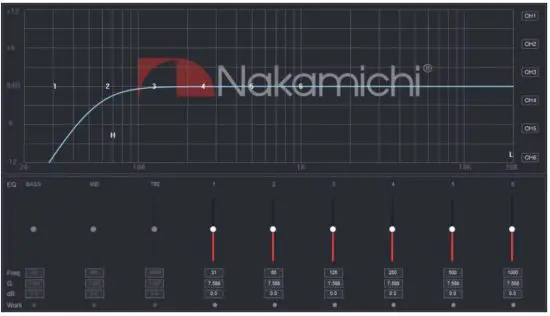

Channel EQ editing area

Main function: The equalization setting of the current output channel, equalization adjustable items: frequency, Q value {response bandwidth) and gain (increase or decrease the frequency response amplitude near the frequency point).

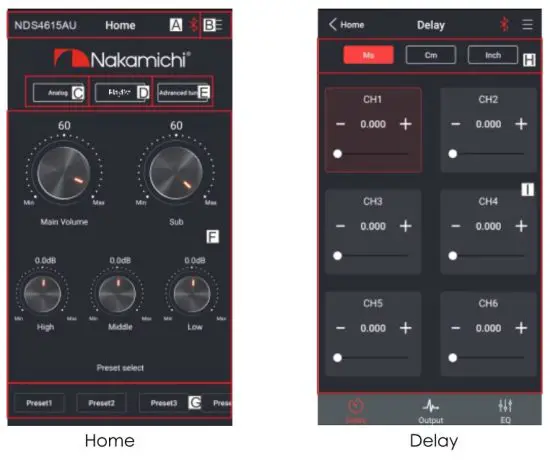

Smart-phone Software Operation Instruction
[APP can be downloaded from the official website [http://www.nakamichicaraudio.com, CONTACT, Downloads))

Home Interface
It can restore factory settings. hardware manual switch, the power-on default sound source. share sound effects, save the sound effects, turn on local sound effects, and check the model and version number of the unit. Frequency mode, Audio source setting, playlist, advanced tuning interface entry, and volume setting: storage and recall of 6 sets of preset scenes.
A. Connection Status:
Red means not connected, green means connected.
B. Menu:
You can perform operations such as restoring factory settings, and hardware manual switching. starting default sound source. sharing sound effects, saving sound effects, opening local sound effects, and viewing the model and version number of the machine
C. Audio source selection:
There are analog, Bluetooth, and player options.
D. Playlist:
Click on the playlist to enter the player interface, you can slide left and right to adjust the total volume, the volume range:
0-66. can play songs in the U disk.
E. Advanced tun:
Click [Advanced Tuning] to enter the delay interlace. channel interlace and EQ interlace settings.
F. Volume adjustment:
Press and hold the volume scale clockwise or counterclockwise to adjust the volume.
The main volume range is0 66, The subwoofer range:0 – is 60, and The medium, high, and low volume range is -12d8 – + 12dB.Tap the speaker button to mute the master volume.
G. Preset scene
There are l6 presets to choose from.

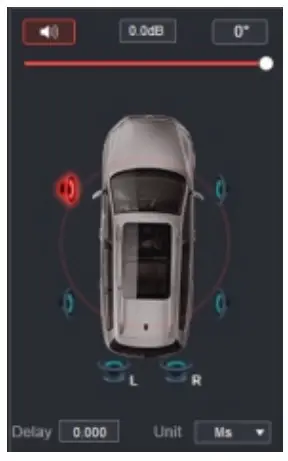

Deloy Interface
Sound field positioning output delay adjustment.
H. Unit switching:
Switch between milliseconds, centimeters. and inches.
I. Delay setting:
Click the setting window of the corresponding channel. Slide the dots left and right to set the delay value. Delay settings can be made for CHI-CH6 speakers.
Delay range: millisecond range: 0.000 ~5.396 cm range: 0 – 187; inch range:0 -74.

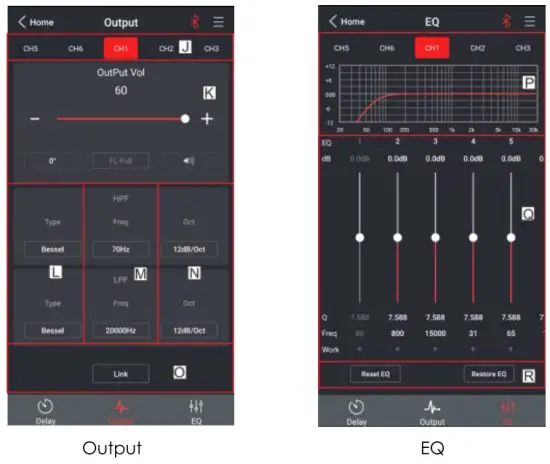

Channel Interface
Channel selection. volume. mute. forward and reverse, high and low pass frequency setting, and joint tuning operation.
J. Output channel selection: 6 channels are available
K. Channel volume. phase: The volume can be adjusted by sliding left and right, the volume range: 0 -60, click the speaker button to mute. Forward and reverse switching
L. Channel type: Choose from Link-Rill. Butter-W and Bessel.
M. Slope selection: 6dB/Oct. 12d8/0ct and OFF can be selected.
N. Frequency Range.20Hz–20KHz.
O. Channel joint debugging settings: Click the joint debugging button, and the joint debugging window will pop up to select the joint debugging method.
EQ Interface
Corresponding to the adjustment of the output channel EQ curve (gain, Q value, and frequency]; reset equalization, pass-through equalization, or parametric equalization operation settings.
P. EQ display: Edit the display area.
Q. Output EQ gain, Q value, and frequency settings: Output EQ go in setting: left and right sliding screen can select EQ, you con drog the slider up and down. Select the first-line value, and drag the slider bar left and right in the pop-up dialog box to adjust the adjustment range: -1208-+12d8.
Q value: Click the second line value, and drag the slider bar left and right in the pop-up dialog box to adjust, the adjustment range is 0.404-28.852 Frequency setting: Click the third line value, and drag the slider bar left and right in the pop-up dialog box to adjust it. The adjustment range is 20Hz-2OKHz.
Q . Reset equalization, restore equalization, pass-through equalization settings: Click [Reset EQ] to restore the parameters of the equalizer to the original pass-through mode (the equalizer frequency, Q value, and gain are restored to their initial values).
When there is channel adjustment, display [straight-through equalization], click [straight-through equalization], click [OK] all values (frequency, Q value, and gain) will return to the initial value. At this time, the [straight-through equalization] button will become [recovery equalization]. Press the button and click [Resume Equilibrium], all values (frequency, Q value, and gain) will be restored to the value before the pass-through.
