BHG-095 Aluminum Handguard Kit
Instruction Manual
FITTING INSTRUCTIONS for…
• TRIUMPH Tiger 660 Spor t (‘2 0 22 –on)
Preparation
Remove original handguards and bar end weights if fitted.
NOTE:
Wiring from the left and the right side will need to be moved.
Bar End Cap (11) will need to be centralized before tightening.
Installation for Right Side.
Repeat for the Left side with applicable parts.

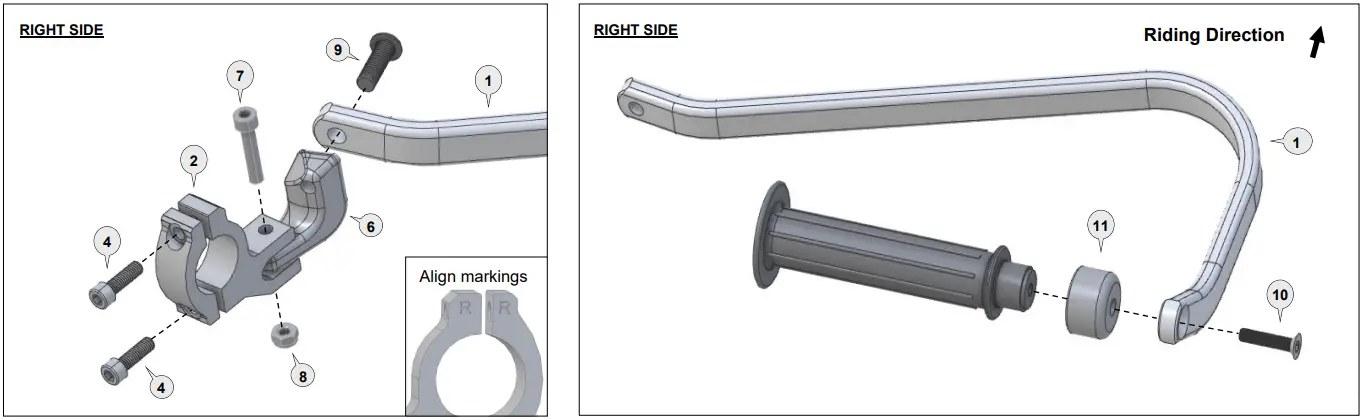

- Loosely assemble the clamp to the handlebar as per the diagram.
- Attach the handguard backbone (1) with applicable parts to the handlebar end and also to the clamp connector (5).

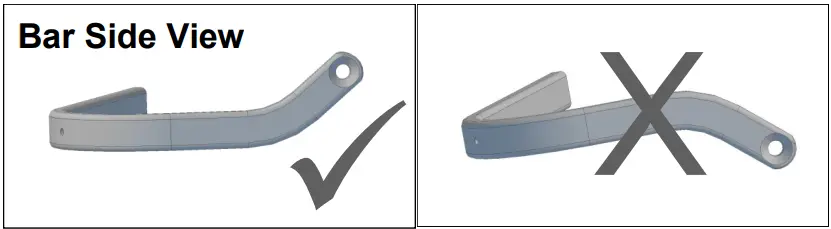

- Position the backbone so it is horizontal when viewed from the side.
- Tighten all bolts in the following order: (10), (9), (4) then (7).
Important: Use the specified torque setting over the page.

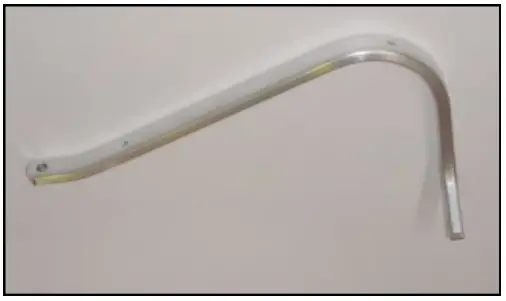

| 1. Aluminium Bar | 2. Multi Fit Clamp LEFT | 3. Multi Fit Clamp RIGHT |
 |  |  |
| PN: BAR-V-053 Pcs. Left/Right Pair | PN: MFC-L Pcs. 1 set | PN: MFC-R Pcs. 1 set |

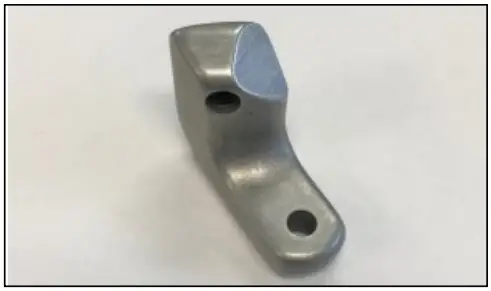

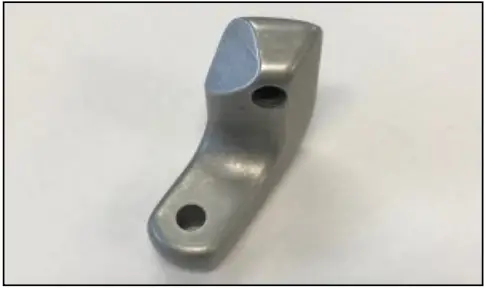

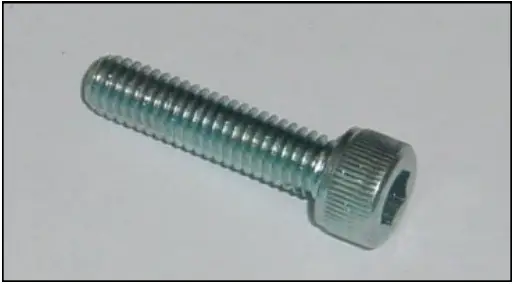

| 4. Socket Head Bolt 20mm | 5. Connector RIGHT | 6. Connector LEFT |
 |  |  |
| PN: M6X20SHCSZP Pcs. 4 | PN: CP8-R Pcs. 1 | PN: CP8-L Pcs. 1 |

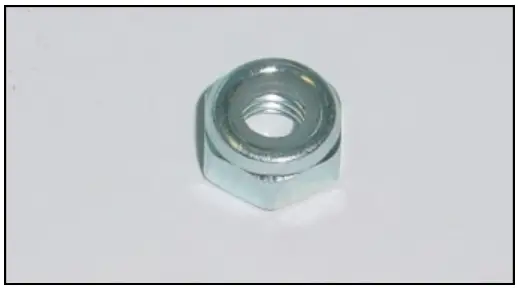

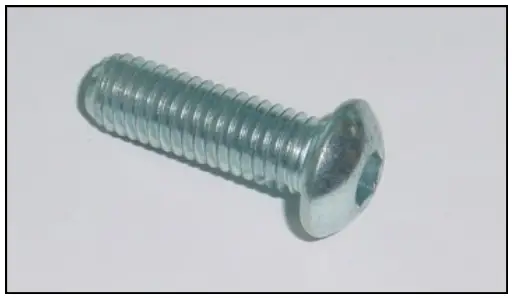

| 7. Socket Head Bolt 30mm | 8. Nylock Nut 6mm | 9. Button Head Bolt 25mm |
 |  |  |
| PN: M6X30SHCSZP Pcs. 2 | PN: M6LN Pcs. 2 | PN: M8X25BHCSZP Pcs. 2 |

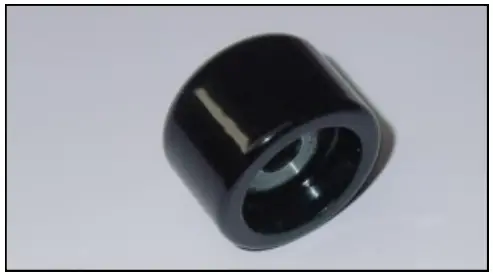

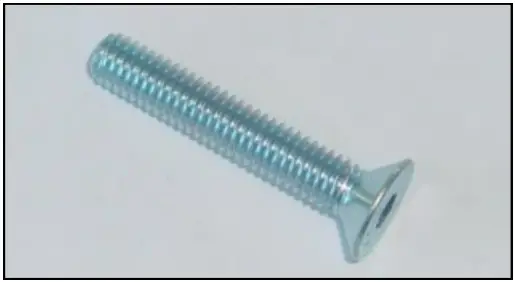

| 10. Flat Head Bolt 30mm | 11. Bar End Cap | |
 |  | |
| PN: M6X30FHCSZP Pcs. 2 | PN: BEC2 Pcs. 2 | |
| Recommended Torque Settings | |
| M6 | 10 Nm (7.4 Ibf ft) |
| M8 | 20 Nm (14.8 Ibf ft) |
Personalize Your Protection
Guard options are sold separately
| JET | JET-003 |
| UPS | VPS-003 |
| STORM | STM-003 |
| CARBON | BCF-003 |
CAUTION:
Installation of the handguard is safety-relevant work and can be complicated. We recommend the installation be performed by a motorcycle service technician. Rideworx accepts no liability for damages caused by improper mounting. All screws, bolts, and nuts, including all replacement hardware provided by Rideworx, should be tightened to the torque specified in the table. After the first 50km of riding check all screws, bolts, and nuts are tightened to the correct torque. We recommend a medium-strength liquid thread lock product on all fasteners.
WARNING:
It is important there is a working clearance (approx 3mm) between the throttle grip end and the handguard to ensure a free closing throttle.
Check the operation of all handlebar controls, specifically, the throttle, front brake, kill switch, and clutch to ensure they are operating correctly and are in accordance with the OEM specifications. Do not ride the motorcycle if any controls are not operating correctly. Check periodically that all bolts are tight.
Disclaimer:
A failure to follow these fitting instructions could cause serious injury, death, or property damage. These handguards are intended solely for use with motorcycles/ATVs/ snowmobiles/scooters that have not been modified. They are not designed to prevent injury or death while riding or in an accident or crash. The user must ensure that all controls are free of handguards every time they ride. By installing and/or using this product you acknowledge that you accept these terms and have followed the fitting instructions.
