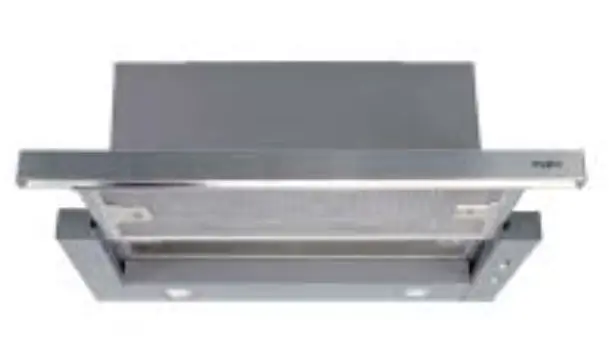

PHILCO GH806SNL 60cm Telescopic Cookerhood Installation Guide
INSTALLATION

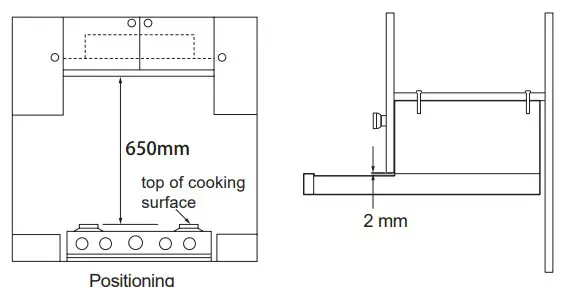

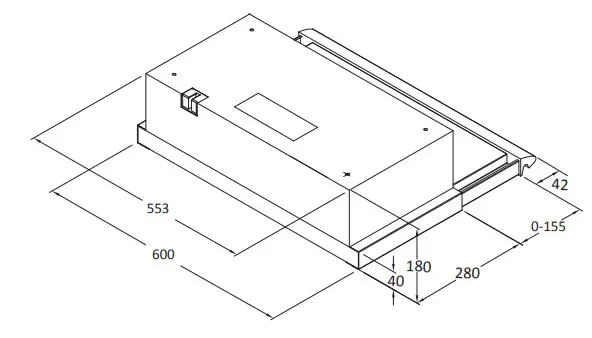

Fixing dimensions
Drilling holes
Drill the holes on top of wooden cupboard
- drill Ø 7mm hole
- cut Ø 165mm hole

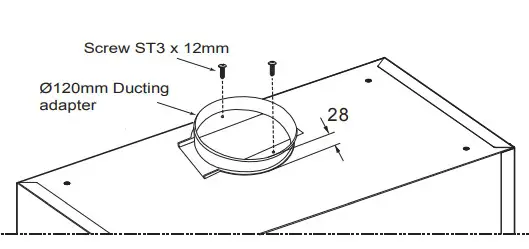

Fixing the ducting adapter
Connect Ø120mm ducting adapter to the blower outlet and use screws to fix it to the range hood.

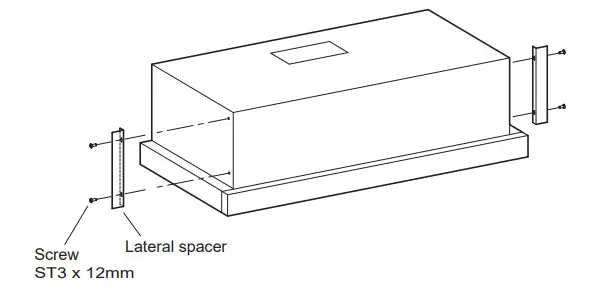

Fixing the Lateral spacers

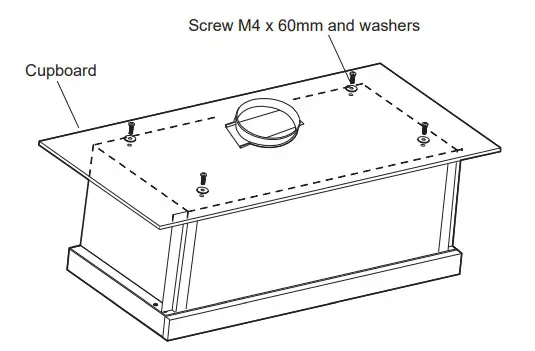

Mounting the rangehood to the underside of cupboard
Attach the rangehood to wooden support and fix it with the 4 screws supplied.
Fixing the Rear Spacer
Use suitable Rear Spacer to cover the space between the wall and the rangehood and fix it with 2 screws.

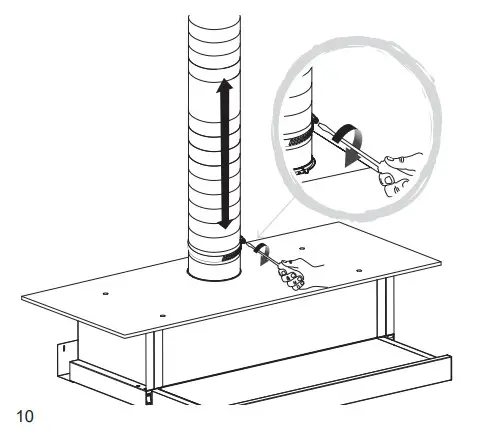

Fixing flexible duct
Connect Ø125 mm flexible duct to the adapter and fix it.
