UAP-AC-M-PRO Quick Start Guide

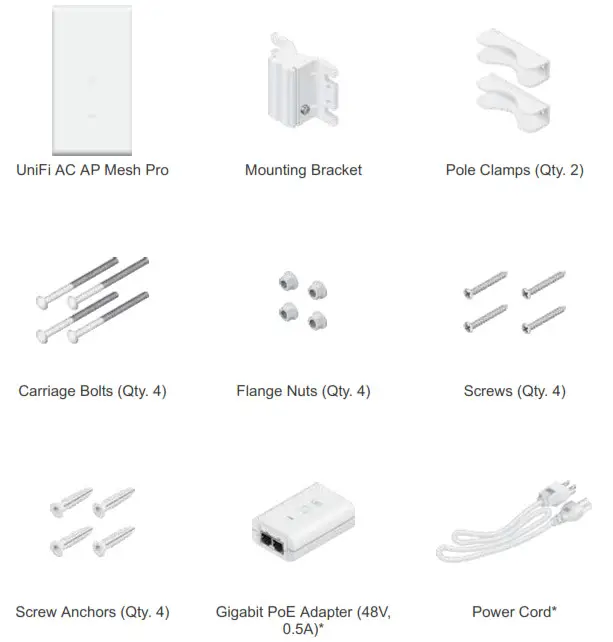

Package Contents

* Included only in the single-pack of the UAP-AC-M-PRO

Installation Requirements

• 13 mm wrench (for pole mounting)
• Drill and 8 mm drill bit (for wall mounting)
• Phillips screwdriver (for wall mounting)

Cable feed must be pointed downwards when mounted.
Shielded Category 5 (or above) cabling should be used for all outdoor wired Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable

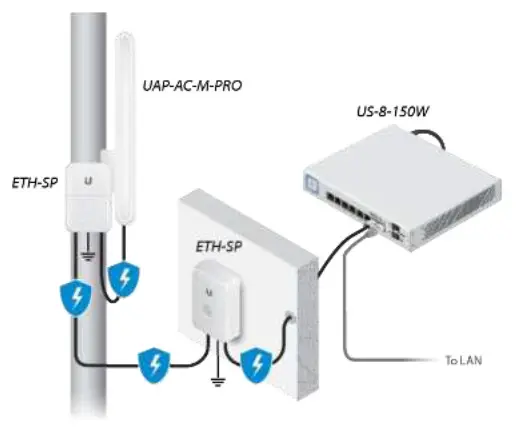

• Surge protection should be used for all outdoor installations. We recommend that you use two Ethernet Surge Protectors, model ETH-SP, one near the UAP-AC-MPRO and the other at the entry point to the building. The ETH-SP will absorb power surges and safely discharge them into the ground.
  IMPORTANT: The UAP-AC-M-PRO requires the UniFi Controller v5.4 or higher, available at: ui.com/download/unifi

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Google Chrome (Other browsers may have limited functionality) UniFi Controller software v5.4 or newer (available at: ui.com/download/unifi)

Wireless Adoption Requirements

The UAP-AC-M-PRO supports wireless adoption into your UniFi Wi-Fi network. This feature requires a currently managed UniFi AP operating with the following

• The UniFi AP must be running firmware 3.7.7 or newer
• At least one SSID enabled and operating on 5 GHz band
• The UAP-AC-M-PRO must be within wireless range of the UniFi AP

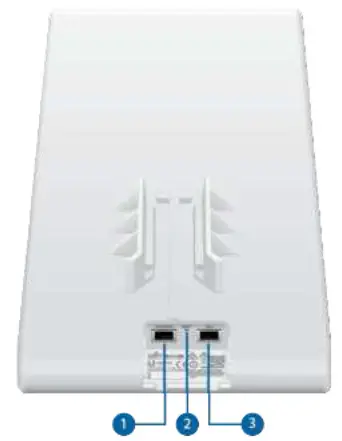

Hardware Overview

LED

Ports

1. Secondary
   The Secondary port is a Gigabit Ethernet port used for bridging.
2. Reset
   The Reset button serves two functions for the UniFi AP:
   • Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than five seconds.

The Main port is a Gigabit PoE port used to connect the power and should be connected to the LAN and DHCP server. Power can be provided by one of the following:

• Gigabit PoE Adapter (included)
• Ubiquiti UniFi Switch with PoE
• 802.3af/802.3at PoE+ compliant switch

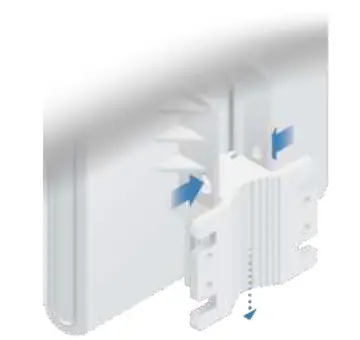

Hardware Installation

The UAP-AC-M-PRO can be mounted on a pole or mast, or on a wall. Perform the steps for the appropriate installation.

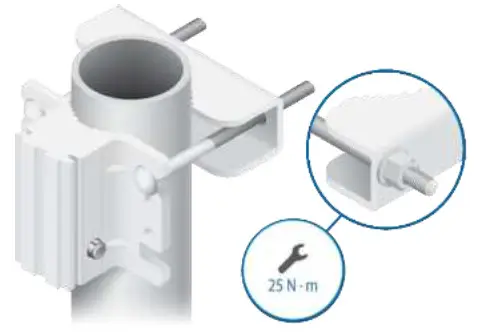

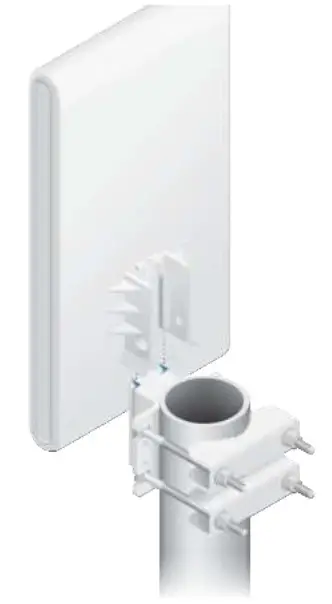

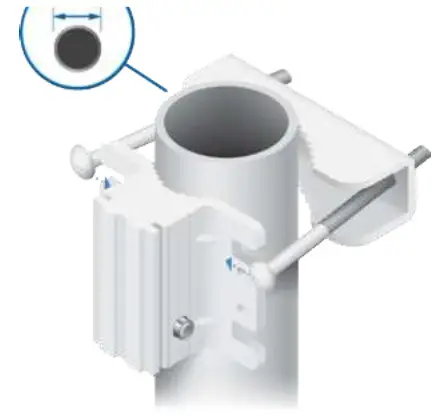

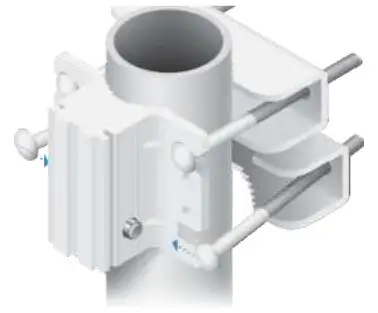

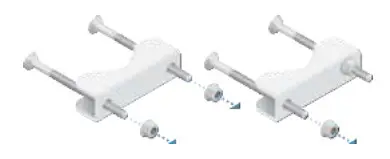

Pole Mount

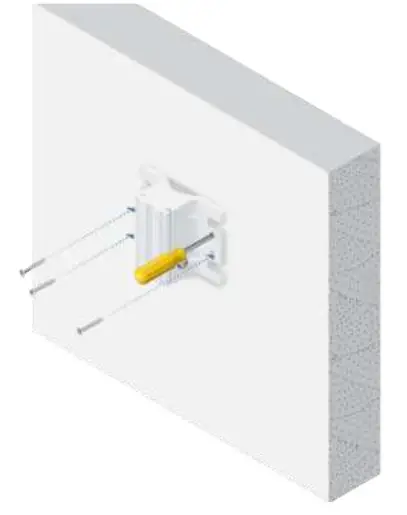

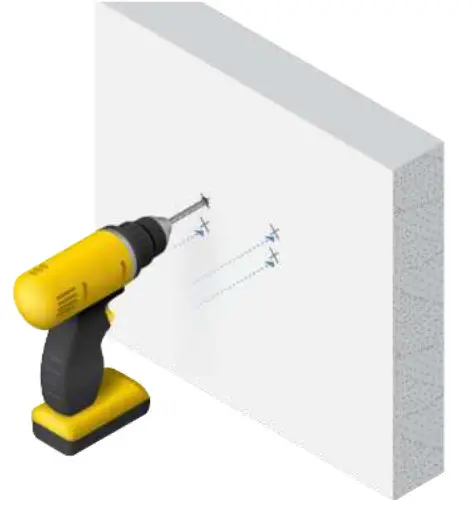

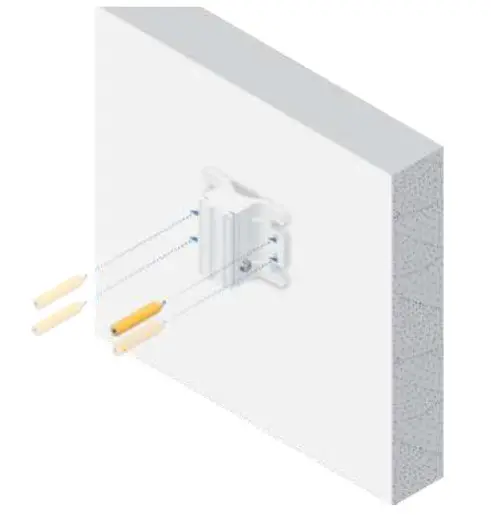

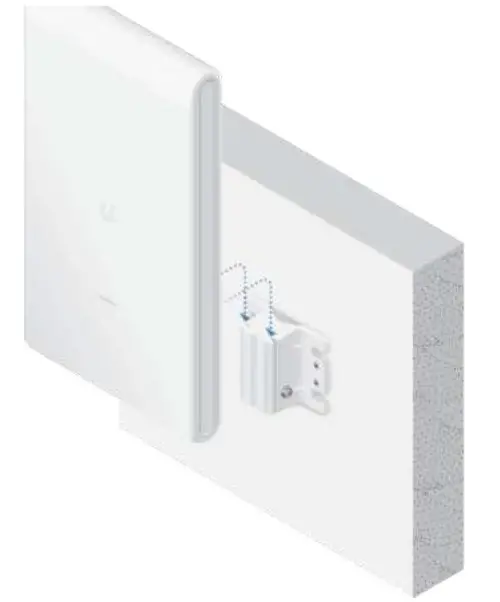

Wall Mount
Note: Secure the Mounting Bracket directly to a stud or other structurally stable surface using appropriate fasteners.

1.
2.
3. Note: Screws shown not included.
4.

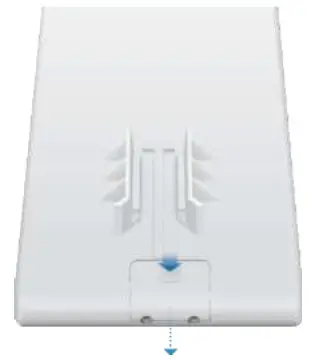

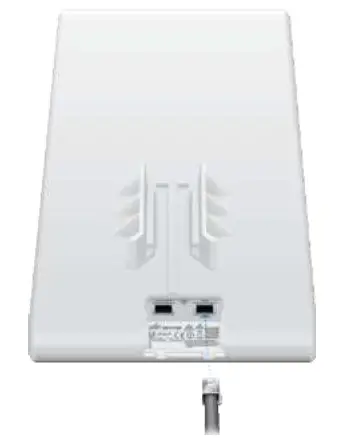

Connecting Ethernet

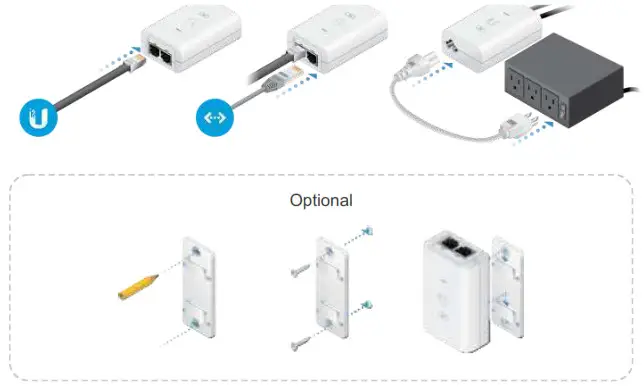

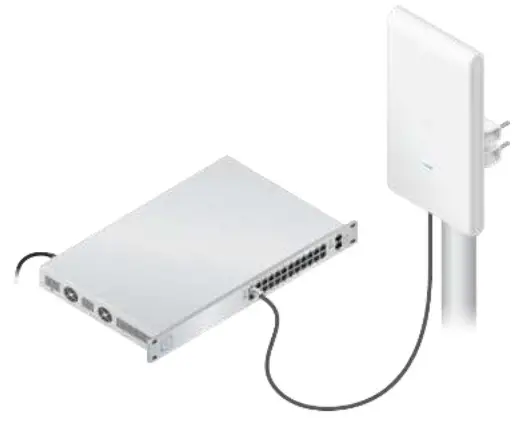

Connecting Power

OR

Wireless Adoption

See “Wireless Adoption Requirements” before proceeding.

1. Ensure the UAP-AC-M-PRO is powered on, and then launch the UniFi Controller software.
2. Go to the Devices page, and the UAP-AC-M-PRO will show up as Pending Approval (Wireless).
3. Click Adopt.

For information on configuring and using the UniFi Controller software, refer to the User Guide located on our website: ui.com/download/unifi

Software Installation

Download and install the latest version of the UniFi Controller software. Launch it and follow the on-screen instructions. The software and step-by-step instructions in the User Guide are available at: ui.com/download/unifi

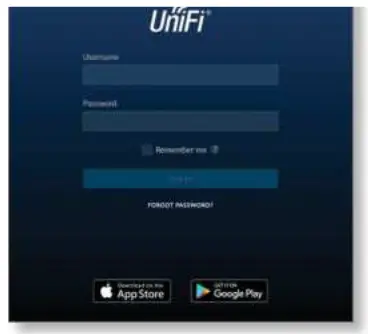

After you have installed the software and run the UniFi Installation Wizard, a login screen will appear for the UniFi Controller management interface. Enter the username and password that you created and click Sign In.
You can manage your wireless network and view network statistics using the UniFi Controller management interface. For information on configuring and using the UniFi Controller software, refer to the User Guide.

Mobile App Installation

Ubiquiti also offers the UniFi app, which is available from the App Store® (iOS) or Google PlayTM Store (Android). You can use it to provision a UniFi AP for basic functionality without configuring a UniFi Controller. It also allows seamless provisioning of APs for remote controllers (controllers not on the same Layer 2 network) and easy access to local controllers and those monitored on unifi.ui.com

Specifications

UAP-AC-M-PRO

Safety Notices

1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
   WARNING: Do not use this product in location that can be submerged by water.
   WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified may result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service should be provided only by a qualified service technician.
   a. Do not substitute the power cord with one that is not the provided approved type. Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.
   b. The equipment requires the use of the ground wire as a part of the safety certification, modification or misuse can provide a shock hazard that can result in serious injury or death.
   c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment.
   d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
   e. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and, where applicable, specify arbitration instead of jury trials or class actions.

Compliance

FCC
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions.

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This radio transmitter has been approved by FCC.

ISED Canada

CAN ICES-3(A)/NMB-3(A)

https://dl.ubnt.com/qsg/UAP-AC-M-PRO/UAP-AC-M-PRO_EN.html

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This radio transmitter has been approved by ISED Canada.

The device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

IMPORTANT NOTE

Radiation Exposure Statement

• This equipment complies with radiation exposure limits set forth for an uncontrolled environment.
• This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Australia and New Zealand

Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

Nota: Este equipamento não tem direito à proteção contra interferência prejudicial e não pode causar interferência em sistemas devidamente autorizados.

CE Marking
CE marking on this product represents the product is in compliance with all directives that are applicable to it.

Country List

BFWA (Broadband Fixed Wireless Access) members noted in blue

Note: This device meets Max. TX power limit per ETSI regulations.
The following apply to products that operate in the 5 GHz frequency range:
Note: This device is restricted to indoor use only when operating in the 5150 – 5350 MHz frequency range within all member states.
Note: Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other countries listed may use the 5.8 GHz frequency band.

WEEE Compliance Statement

Declaration of Conformity
Online Resources
