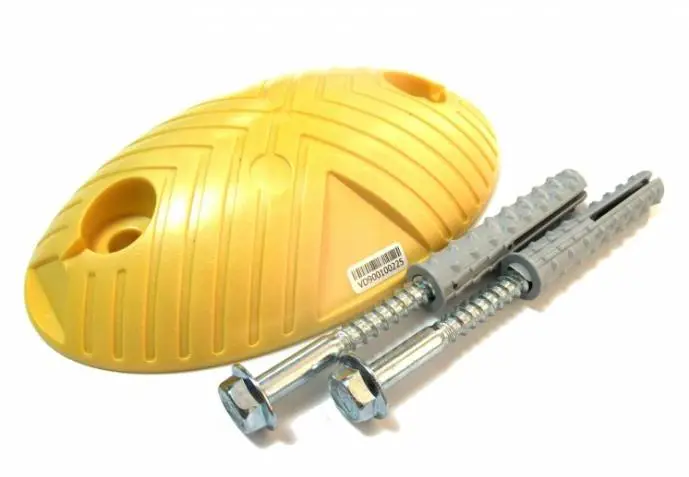

PAL ELECTRONIC SYSTEM VD900-433 Smart Vehicle Detector
INTRODUCTION
VD 900-433 series is a new wireless Vehicle Detector featuring compact dimension, This innovative detector is Plug and play, all-in-one device that operates at a frequency range of 433MHz and is an ideal solution for vehicle detecting when depart a public or office parking.
It includes a web interfaces that makes it easy to install and use.
| Technical Specifications | |
| Operating Frequency | 433MHz ISM Band |
| Power Supply | Buttery DC 3.6 v |
| Dimensions | 215mm × 125mm |
Applications
• Parking lot management.
• Vehicle access control
Before installation
- Remove 4 screws from bottom cover
- Open the bottom cover

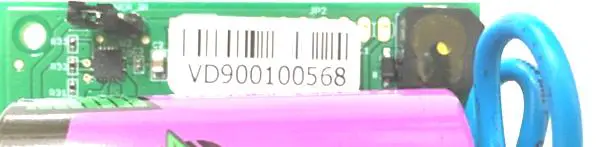

- Connect the jumper to it’s place.
- Close back the cover but very important to place the seal back to its place.
Highlights
- Power provided by a buttery which will last for approximately 5 years (1000 entrances per day).
- Holds approximately 1000 kg weight
WARNING: Not To Be Used for Personnel Protection

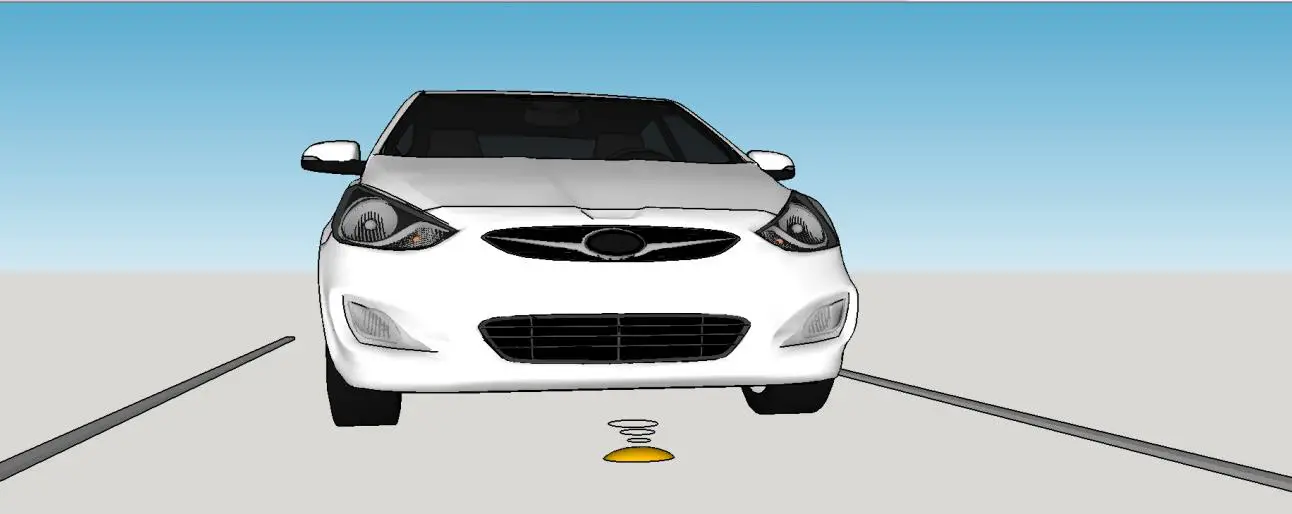

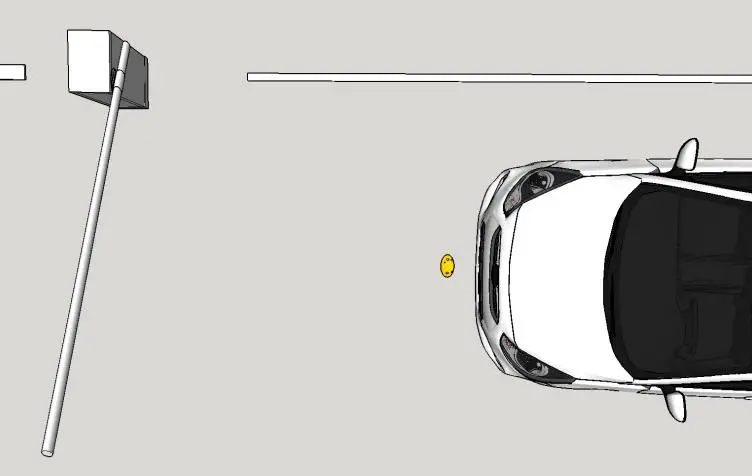

Step 1: Place the Vehicle detector at the center of rote on clean surface so vehicles will pass when it is beneath them

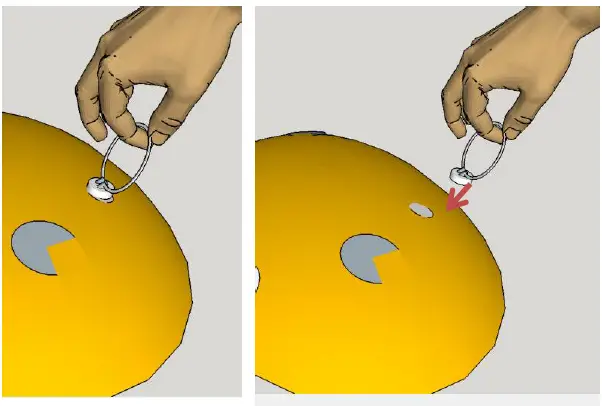

Step 2: To activate the detector, use the magnet provided along with the detector. Put the magnet on the set-up point and wait for 3 beep sounds slowly and a final long sound. After the long sound remove the magnet at least 1 meter from the detector.

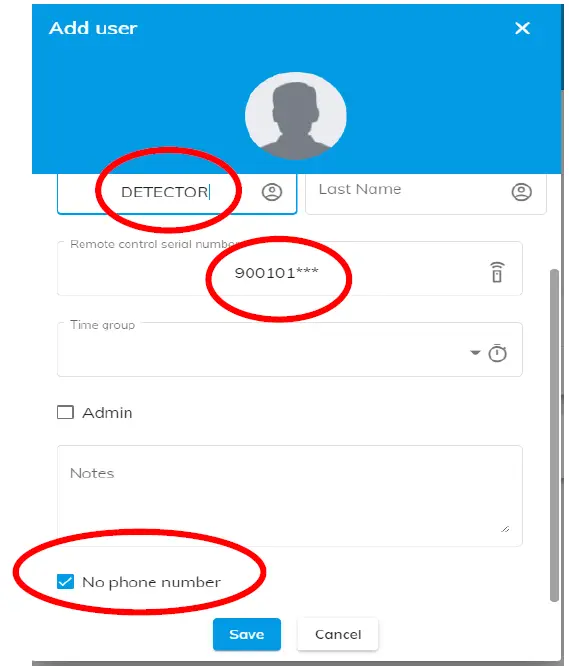

Step 3: Preparations: Add the new detector to Pal SG303 –**WR unit with RF technology such: GA-WRL, GA-WR, GB-WR, GI-WR. Enter the detector/s identification numbers.
PAL Electronics Systems, HaTa’asiya 25 st, Ra’anana, Israel 4365413, POB 2516 Tel:972-9-7920667, Website: www.pal-es.com, Email: [email protected]
