one
Mounting options
Product dimensions
Exploded drawing
Technical data
Mounting options: with wallbox
Installation in drywall, stone or solid wall etc.
Attach one to the wallbox.
Power supply: 100-240Vac or PoE (Power over Ethernet)

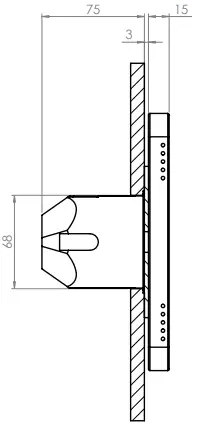

side view
from left to right: wallbox, wall, wall spacer, one

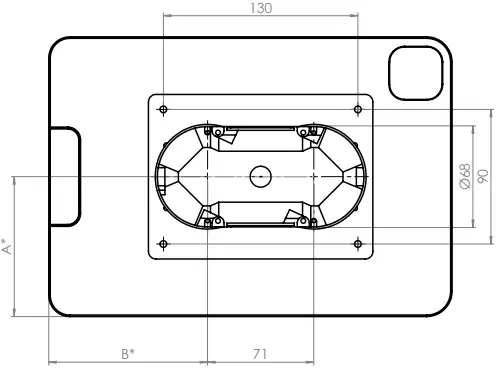

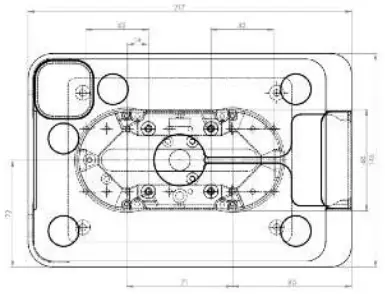

back view
! Attention: Measurements show one for iPad 9.7 inch.
Measurements for other generation on following page.
The size of one varies depending on the iPad generation. Mounting plate is always the same, it allows you to change iPad generation easily.
Scaled-ready drilling template at www.viveroo.com/downloads
Article:
MountingSet Inwall Incl. wallbox, power supply unit and mounting material
Mounting options: without wallbox
Installation in furniture, cabinets, wooden materials displays etc.
Direct screw-mounting.
Power supply unit:
USB-connector or PoE (Power over Ethernet)

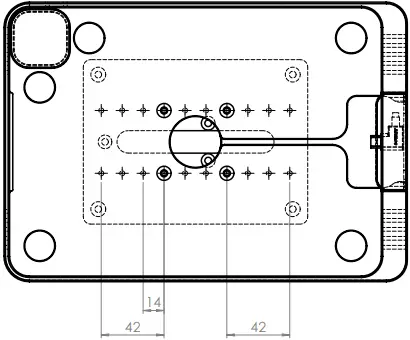

back view
! Attention: Measurements show one for iPad 9.7 inch. Measurements for other generation on following page.
The size of one varies depending on the iPad generation. Mounting plate is always the same, it allows you to change iPad generation easily.
Scaled-ready drilling template at www.viveroo.com/downloads
Article:
MountingSet Furniture Incl. wallbox, power supply unit and mounting material

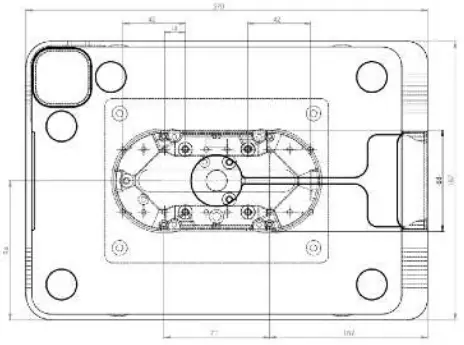

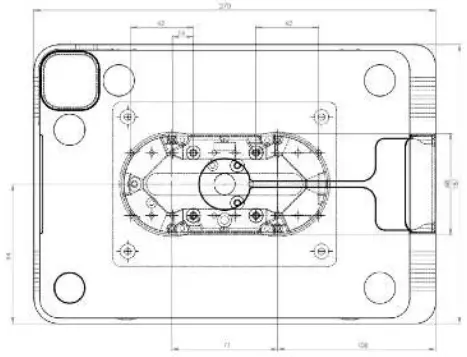

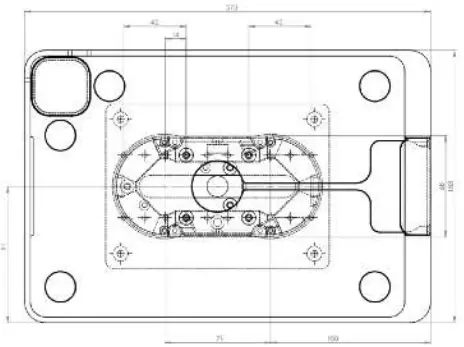

Product dimensions (incl. position of wallbox)
one für …
… iPad mini 6
… iPad 10.2 inch, Air (2019), Pro 10.5 inch
… iPad Pro 11 inch, Air 10.9 inch
… iPad 10.9 inch, 10 Gen
… iPad Pro 12.9 inch

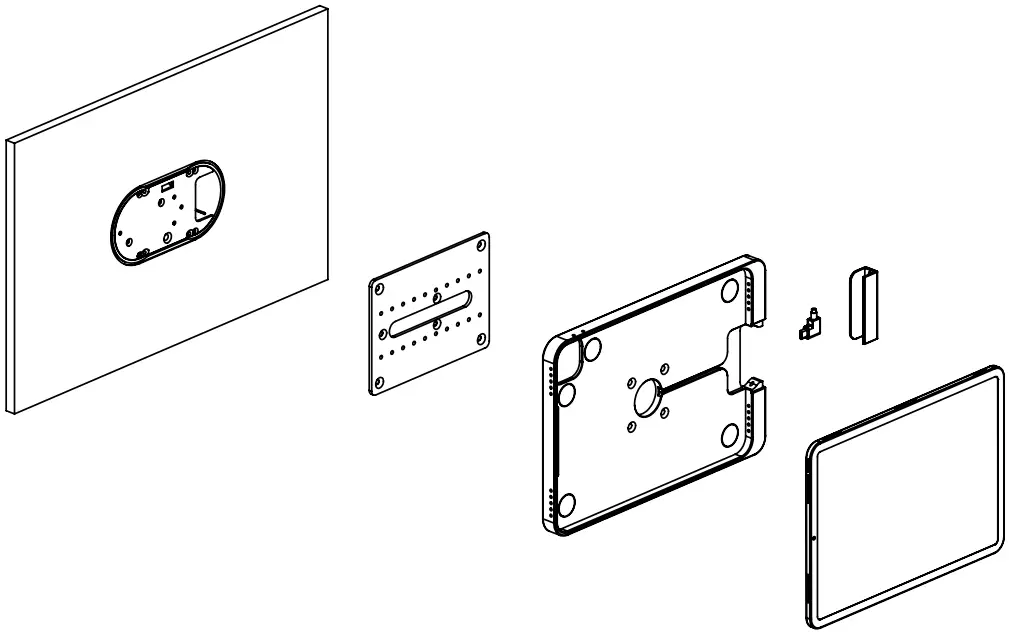

Exploded drawing
Technical Data
one
Product contents
– User manual one
– one
Please note! External cable, power supply and mounting screws are included in MountingSet.
Compatibility
Electrical operation of viveroo products is permitted only in connection with viveroo MountingSet and power supply and cable included in the MountingSet. Operation of viveroo iPad mounts without a MountingSet will lead to immediate loss of guarantee and warranty.
Weight
for iPad mini: 740 g
for iPad 10.2 inch (09/2019), Air (2019), Pro 10.5 inch: 866 g
for iPad Pro 11 inch, Air 10.9 inch: 952 g
for iPad Pro 12.9 inch: 1.118 g
Electrical connections
5,4Vdc 3A via USB-A
Disconnect from power supply
viveroo iPad mounts may be removed from the power supply via the circuit breaker in the respective rooms.
CE & Co.
All viveroo products have CE certiÞcation. viveroo iPad mounts are quality “Made in Germany”. We use only high-quality parts and components produced by market leaders. viveroo customers are proud of their iPad garage.
one with PoE Adapter
Input 48-56Vdc via RJ45 port
PoE standard 802.3af for iPads with Lightning connector; 802.3at for iPads with USBC connector
Mounting Furniture
Product contents
– Installation guide Furniture
– USB Power Adapter
(For USB-A: 100-240Vac, 50/60Hz, 12,5W, For USB-C: 100-240Vac, 50/60Hz, PD 3.0, up to 18W)
– True-to-scale drilling template
– Mounting material
Mounting Inwall
Product contents
– Installation guide Inwall
– free flush-mount box with installation disc, incl. integrated level
– Power supply unit (IN: 100-240 Vac, 50/60 Hz, OUT: 5,2 Vdc) installed on installation plate or USB Power Adapter USB-C: 100-240Vac, 50/60Hz, PD 3.0, up to 18W
Technical changes and mistakes are excepted.
Mounting options one
