Pentax Digital SLR Camera
To: RIAC Sales Team
From: RIAC/RICA Marketing
Date: 11/10/22
Bulletin: RIAC_11.2022
Subject:
Under Embargo for Pre-Orders until November 15, 2022, at 5 p.m. ET

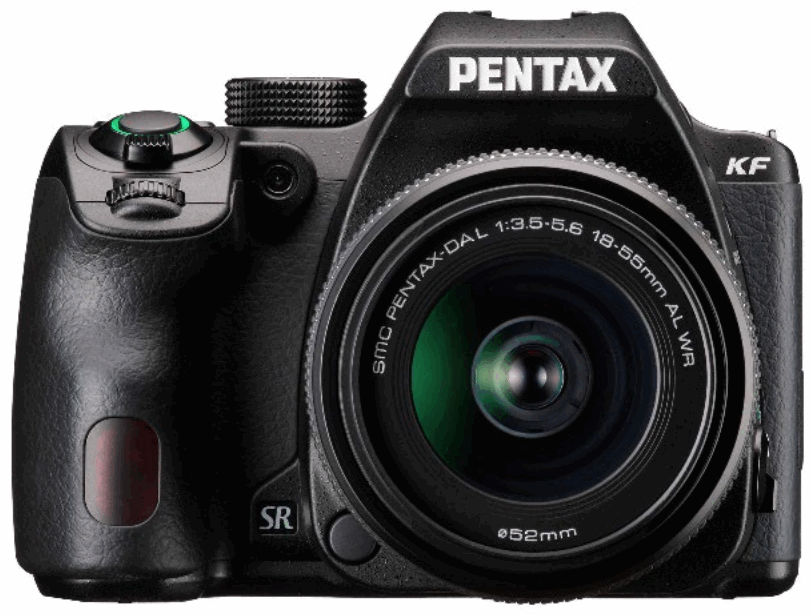

Ricoh Imaging is pleased to announce the launch of the PENTAX KF. This mid-range model provides outstanding imaging performance in a compact body. Featuring dustproof, weather-resistant construction and dependable cold-proof performance down to temperatures as low as -10°C, the KF is a perfect companion for travel, landscape and nature photography.
It incorporates a host of advanced functions and user-friendly features. The 24.24-megapixel AA-filter-less APS-C CMOS sensor delivers super-high-resolution images. The built-in PENTAX-original SR (Shake Reduction) mechanism provides 4.5 shutter-step compensation. The pentaprism-type optical viewfinder with approx. 100% field of view and 0.95-times magnification provides a large, clear view of the subject for quick, easy confirmation of focusing and framing. Custom Image modes, wireless remote capture and transfer via mobile device, 6fps continuous shooting and interval or interval composite shooting functions allow for diversified photographic expression.
Built with the photographer in mind, the grip, control buttons on the back panel and mode dials are contoured to offer optimum comfort and operability. The high-definition vari-angle LCD monitor makes it easier to compose images in a wide variety of applications, while the unique Night Vision Red Light LCD function minimizes eye strain and fatigue for nightscape and astrophotography.
MAP:
PENTAX KF Body Only – $849.95
PENTAX KF Kit with smc PENTAX DA L 18-55mm F3.5-5.6 AL WR lens – $949.95
Product Availability: Late November 2022
MAIN FEATURES:

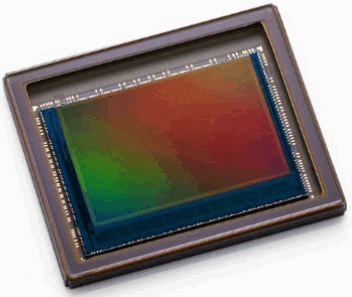

Super-high-resolution images captured with approximately 24.24 effective megapixels and at ISO 102400
The PENTAX KF assures super-high-resolution imaging with a state-of-the-art CMOS image sensor with approximately 24.24 effective megapixels and high-speed 14-bit image data readout. Combined with an AA-filter-free optical design, this image sensor delivers super-high-resolution images. Also, by coupling a highperformance accelerator unit with the high-speed PRIME MII imaging engine, the PENTAX KF effectively minimizes noise at all sensitivity levels and captures rich-gradation, fine-detailed images even in super-high-sensitivity shooting at a top sensitivity of ISO 102400.

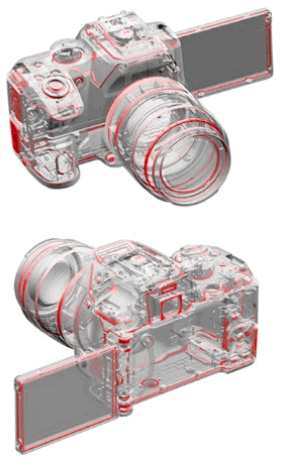

Dustproof, weather-resistant body perfect for rugged outdoor photography
The PENTAX KF is a dependable performer, even in demanding settings such as rain, fog or snow, or at locations prone to dust and freezing temperatures. It compact, easy- to-carry body features dustproof, weather-resistant construction with 100 seals throughout the body and outstanding cold-proof performance at temperatures down to 14°F (10°C).
Clear-view optical viewfinder
Within its compact body, the PENTAX KF incorporates a glass prism viewfinder featuring the same optics and coatings as those used in higher-level models. With its approximately 100% field of view and 0.95-times magnification, the viewfinder provides a large, clear view of the subject for quick, easy confirmation of focusing and framing.

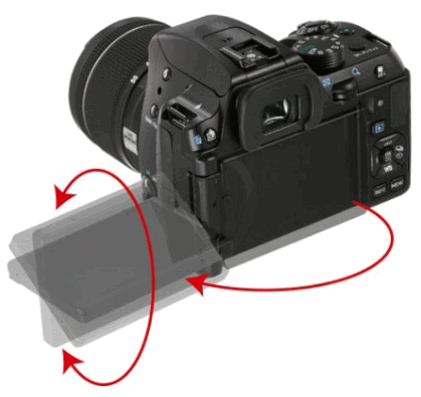

Vari-angle LCD monitor for easy image viewing from all angles
The vari-angle LCD monitor allows the monitor to be positioned at the desired angle, making it easier to compose images in a wide variety of situations: applications: high-angle shooting using outstretched arms, low-angle shots taken from ground level or astrophotography with the camera pointed upwards toward a starfilled sky. It also features a unique air-gapless construction, in which the air space between the high-definition LCD panel (with approximately 1,037,000 dots) and the protective cover has been filled with a special resin material to effectively reduce the reflection and dispersion of light for improved visibility during outdoor shooting.
PENTAX-original SR (Shake Reduction) System featuring the Pixel Shift Resolution System

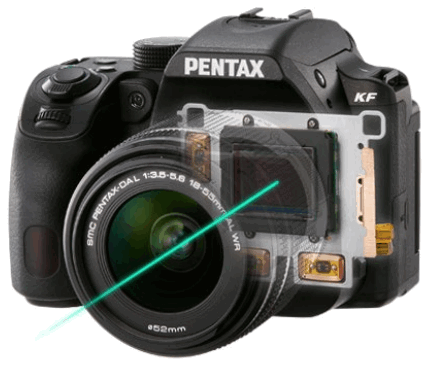

In-body SR mechanism
The built-in PENTAX-original SR (Shake Reduction) mechanism effectively minimizes camera shake and delivers sharp, blur-free images, even in conditions prone to camera shake, such as when using a telephoto lens, shooting low-light scenes with ambient light only, or photographing sunset scenes. Using a high-accuracy gyro sensor, it provides a compensation effect of 4.5 shutter steps. When taking a panning shot, this mechanism automatically detects the direction of the camera’s movement, and efficiently controls the SR unit to produce the best image possible without requiring any mode switching operation.
Pixel-Shift Resolution System with motion correction function
The Pixel Shift Resolution System* captures four images of the same scene by shifting the image sensor by a single pixel for each image, then synthesizes them into a single composite image. Compared to the conventional Bayer system, in which each pixel has only a single color data unit, this innovative system obtains all color data in each pixel to deliver super-high-resolution images with far more truthful colors and much finer details than those produced by conventional APS-C-size image sensors. This system even provides a motion correction function** which automatically detects a moving object during continuous shooting and minimizes negative effects during the synthesizing process in order to accommodate a wider range of scenes and subjects.
Innovative AA filter simulator to minimize moiré
By applying microscopic vibrations to the image sensor unit at the sub-pixel level during image exposure, the AA (anti-aliasing) filter simulator*** provides the same level of moiré reduction as an optical AA filter. Unlike an optical AA filter, which always creates the identical result, this innovative simulator lets the user switch the AA filter effect on and off, as well as adjust the level of the effect. This means that the ideal effect can be set for a particular scene or subject based on the current photographic conditions.
Additional shooting functions
The image sensor unit is designed to tilt in all directions, providing a host of handy shooting functions including ASTROTRACER, which simplifies advanced astronomical photography in combination with the optional O-GPS2 GPS Unit and the Auto Horizon Correction and Extra Sharpness functions.
* When using this system, the user is advised to stabilize the camera firmly on a tripod. When a moving subject is captured in the camera’s image field, its image may not be reproduced clearly, either in part or as a whole.
** The movement may not be sufficiently corrected when the object is moving in a certain direction and/or pattern. This function does not guarantee that the movement is properly corrected with all subjects.
*** This function works most effectively with a shutter speed of 1/1000 second or slower. This function may not be combined with some shooting modes, including the Pixel Shift Resolution system
Hybrid AF system for high-speed AF operation during Live View shooting
The PENTAX KF employs the Hybrid AF system during Live View autofocus operation. By positioning a contrast-detection AF sensor with superior focusing accuracy and a phasematching AF sensor on the image sensor’s surface, this innovative hybrid system optimizes the benefits of both AF systems to assure high-speed, pinpoint AF focusing on the subject.

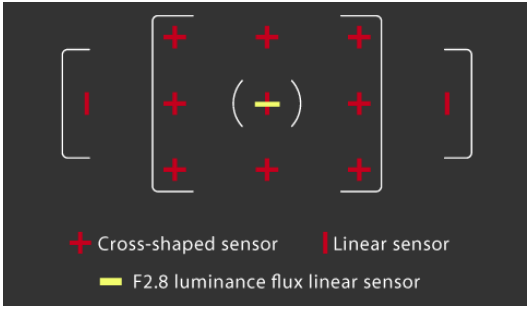

High-precision autofocus system with the SAFOX X module
The high-precision SAFOX X AF sensor module assures responsive, dependable autofocus operation. With its 11 sensors including nine cross-type sensors in the middle, this AF module assures pinpoint focus on the subject at a minimum brightness level as low as -3 EV. It also assures outstanding AF tracking performance with moving subjects, enabled by advanced features such as the Select-area Expansion function, which automatically refocuses on a moving subject after it moves away from the initial point, with the help of the neighboring points; and an AF Hold function that maintains the initial in-focus point even when the module loses sight of the subject.
An array of image processing functions for diversified photographic expression
The PENTAX-developed Custom Image function lets the user process an image with the desired finishing touch to express their creative intention, or to suit the particular scene. This function provides 14 Custom Image modes, including: SATOBI, which reproduces the colors resembling those of color pictures in the 60s and 70s, with cyan-tinged blues, subdued yellows and faded reds; Bleach Bypass, which recreates the profound atmosphere of movie scenes; and Cross Processing, which adds fantastic, unusual colors to captured images. The PENTAX KF also includes the special-edition Custom Image modes KYUSHU and KATEN. In combination with PENTAX Limited-series lenses, which are popular for their distinctive image renditions, these Custom Image modes capture images with distinctive themes.
A host of interval shooting functions
The PENTAX KF provides a host of advanced interval shooting functions, including: 4K- resolution Interval Movie, which allows recording a series of still images at a fixed interval and then linking them into a single 4K-resolution movie file; Star Stream Movie, which enables recording of the traces of stars or illuminations on a 4K-resolution movie file; and Interval Composite, which synthesizes a composite image with a choice of three synthesis modes (average, additive and comparative).
Design, features, and customization options to simplify and enhance camera operation
The PENTAX KF’s versatile design optimizes the ease of camera operation. The camera can be personalized to match the user’s shooting preferences by assigning their desired functions to the set of buttons and dials on the camera body. A double e-dial system which can be used to control the PENTAX-original Hyper operating system, allows the user to instantly shift the aperture or shutter-speed setting without taking their eye from the viewfinder. To assure a firm hold of the camera body, even with a gloved hand, the grip, control buttons on the back panel and mode dials are contoured to offer optimum comfort and operability in active outdoor shooting. The outdoor-friendly LCD monitor features selectable brightness levels which can be instantly adjusted to the lighting level of any shooting location. The LCD monitor also features a Night Vision Red Light LCD display function which greatly reduces eye-strain when shooting in dark locations such as nightscape and astrophotography when used in combination with the optional PENTAX OGPS2 GPS Unit.

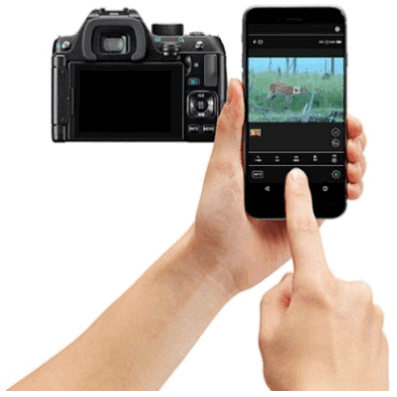

Wireless LAN connection to support smartphone operation
The PENTAX KF provides a host of wireless LAN (Wi-Fi) functions to support operations using smartphones and tablet computers. By installing the dedicated Image Sync application on a mobile device, the user can remotely check the Live View image, capture still images, and adjust such camera settings as aperture, shutter speed and ISO sensitivity to the desired level through the mobile device. It is even possible to download captured images onto a mobile device, then upload them on social networking service websites.
Other Features
- 77-segment multi-pattern metering system for high-precision light metering
- DR (Dust Removal) mechanism to shake dust off from the surface of the CMOS image sensor
- High-speed shutter unit with a top speed of 1/6000 second, and high-speed continuous shooting function at a top speed of approximately six images per second
- Self-timer function, compatible with the continuous shooting function
| DESCRIPTION | PRODUCT # | UPC | CERTIFIED | INTERNET | MAP | COO |
| KF (BLACK) BODY KIT | 01184 | 027075305076 | $747.96 | $764.96 | $849.95 | Made in Philippines |
| KF (BLACK) 18-55WR KIT | 01203 | 027075305175 | $835.96 | $854.96 | $949.95 | Made in Philippines |
| INCLUDED ACCESSORIES | ||||||
| RECHARGEABLE L-ION BATTERY D-LI109 | 39066 | 027075182172 | $41.97 | $44.96 | $59.95 | Made in China |
| BATTERY CHARGER D-BC186 | 37905 | 027075305311 | ||||
| USB POWER ADAPTER | ||||||
| AC PLUG | ||||||
| USB CABLE I-USB166 | 37822 | 027075300330 | $14.96 | $15.96 | $19.95 | Made in China |
| PENTAX STRAP O-ST132 | 38776-RIM | 027075221543 | $35.00 | $37.50 | $50.00 | Made in Philippines |
| EYECUP FR | 30200 | 027075155725 | $17.47 | $18.71 | $24.95 | Made in Philippines |
| HOTSHOE COVER FK | 31040 | 027075047426 | Made in Japan | |||
| BODY CAP | 31016 | 027075006591 | $4.20 | $4.50 | $6.00 | Made in Japan |
| SOFTWARE S-SW186 | ||||||
| DESCRIPTION | LENGTH (inches) | WIDTH (inches) | HEIGHT (inches) | # IN CARTON | WEIGHT (lbs) |
| KF (BLACK) BODY KIT – Individual Package | 8.07 | 6.34 | 4.92 | 1 | 2.71 |
| KF (BLACK) BODY KIT – Master Carton | 25.59 | 8.54 | 7.09 | 5 | 15.43 |
| KF (BLACK) 18-55WR KIT- Individual Package | 8.07 | 7.56 | 4.92 | 1 | 3.37 |
| KF (BLACK) 18-55WR KIT- Master Carton | 25.59 | 8.07 | 8.86 | 5 | 18.76 |
PENTAX KF Specifications
| Type | TTL autofocus, auto-exposure SLR digital-still camera with built-in retractable P- TTL flash |
| Lens Mount | PENTAX KAF2 bayonet mount (AF coupler, lens information contacts, K-mount with power contacts) |
| Compatible Lens | KAF4, KAF3, KAF2 (power zoom not compatible), KAF, KA mount lens |
| Image capture unit | |
| Image Sensor | Primary color filter, CMOS. Size: 23.5 x 15.6 (mm) |
| Effective Pixels | Approx. 24.24 megapixels |
| Total Pixels | Approx. 24.78 megapixels |
| Dust Removal | SP coating and CMOS sensor operations |
| Sensitivity (Standard output) | ISO AUTO/100 to 102400 (EV steps can be set to 1EV, 1/2EV or 1/3EV) |
| Image Stabilizer | Sensor-shift Shake Reduction |
| AA Filter Simulator | Moiré reduction using SR unit. OFF/Type1/Type2/Bracket (3 frames) |
| File formats | |
| File format | RAW (PEF/DNG), JPEG (Exif 2.3), DCF2.0 compliant |
| Recorded Pixels | JPEG: L(24M:6000×4000), M(14M:4608×3072), S(6M:3072×2048), XS(2M:1920×1280) RAW: (24M:6000×4000) |
| Quality Level | RAW (14bit): PEF, DNG JPEG: ★★★ (Best), ★★ (Better), ★ (Good), RAW + JPEG simultaneous capturing available |
| Color Space | sRGB, AdobeRGB |
| Storage Medium | SD, SDHC and SDXC Memory Card (Conforms to USH-I standards) |
| Storage Folder | Folder Name: Date (100_1018,101_1019…) or User assigned folder name (Default “PENTX”) |
| Recording File | File Name: “IMGP****” or User assigned file name File name numbering: Sequential, Reset |
| Viewfinder | |
| Type | Pentaprism Finder |
| Coverage (FOV) | Approx. 100% |
| Magnification | Approx. 0.95x (50mmF1.4 at infinity) |
| Eye-Relief Length | Approx. 20.5mm (from the view window), Approx. 22.3mm (from the center of lens) |
| Diopter adjustment | Approx. -2.5m to + 1.5m-1 |
| Focusing Screen | Interchangeable Natural-Bright-Matte III focusing screen |
| Live view | |
| Type | TTL method using image sensor |
| Autofocus | Hybrid AF (Image plane phase-matching and Contrast detection) AF area: Face detection, Tracking, Multiple AF points, Select, Spot Focus Peaking: ON/OFF |
| Display | Field of View approx. 100%, Magnified view (up to 16x), Grid Display (4×4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White), Histogram, Bright area warning |
| LCD monitor | |
| Type | Vari-angle TFT color LCD monitor featuring an air-gapless structure, tempered-glass front panel |
| Size | 3.0 inch (aspect ratio 3:2) |
| Dots | Approx. 1037K dots |
| Adjustment | Brightness, Saturation and Colors adjustable |
| Outdoor View Setting | Adjustable ±2 step |
| Night Vision LCD Display | ON/OFF |
| White Balance | |
| Type | TTL method using image sensor |
| White Balance | AUTO WB, Multi Auto WB, Daylight, Shade, Cloudy, Fluorescent Light (D: Daylight Color, N: Daylight White, W: Cool White, L: Warm White), Tungsten Light, CTE, Manual WB (up to 3 settings), Color Temperature Configuration (up to 3 settings), Copying the white balance setting of a captured image |
| Fine Adjustment | Adjustable ±7 steps on A-B axis or G-M axis |
| Autofocus System | |
| Type | TTL: Phase-matching autofocus |
| Focus Sensor | SAFOX X, 11 points (9 cross type focus points in the center) |
| Brightness Range | EV-3 to 18 (ISO 100 / at normal temperature) |
| AF mode | Single AF (AF.S), Continuous AF (AF.C), Auto select AF (AF.A) |
| AF Point Selection | Auto:11 points, Auto:5 points, Select, Expanded Area Select, Spot |
| AF Assist Light | Dedicated LED AF assist light |
| Metering | |
| Type | TTL open aperture, 77 segmented metering, center-weighted and spot metering |
| Metering Range | EV0 to 22 (ISO100 at 50mm F1.4) |
| Exposure Mode | Auto Picture mode (Standard, Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest), Scene Mode (Portrait, Landscape, Macro, Moving Object, Night Scene Portrait, Sunset, Blue Sky, Forest, Night Scene, Night Scene HDR, Night Snap, Food, Pet, Kids, Surf & Snow, Backlight Silhouette, Candlelight, Stage Lighting, Museum), Program, Sensitivity Priority, Shutter Priority, Aperture Priority, Shutter & Aperture Priority, Manual, Bulb |
| EV Compensation | ±5EV (1/2EV steps or 1/3EV steps can be selected) |
| AE Lock | Can be assigned to the AF/AE-L button |
| Shutter | |
| Type | Electronically controlled vertical-run focal plane shutter * Electronic shutter when using Pixel Shift Resolution |
| Shutter Speed | Auto:1/6000 to 30 sec., Manual: 1/6000 to 30 sec. (1/3EV steps or 1/2EV steps), Bulb (Timed exposure setting possible from 10 sec. to 20min.) |
| Drive modes | |
| Mode Selection | [Still Image] Single Frame, Continuous (H, L), Self-timer (12s, 2s, Continuous), Remote Control (0s., 3s., Continuous), Bracketing (2, 3 or 5 frames), Mirror-up, Multi-Exposure, Interval Shooting, Interval Composite, Interval Movie Record, Star Stream [Movie] Remote Control * Bracketing, Interval Shooting, Interval Composite, Interval Movie Record and Star Stream are possible to use with Self-timer/Remote Control * Mirror-up is possible to use with Self-timer * Multi-Exposure is possible to use with Continuous Shooting, Self-timer or Remote Control |
| Continuous Shooting | Max. approx. 6.0 fps, JPEG (L: ★★★ at Continuous H): up to approx. 40 frames, RAW: up to approx. 10 frames, RAW+: up to approx. 8 frames Max. approx. 3.0 fps, JPEG (L: ★★★ at Continuous L): up to approx. 100 frames, RAW: up to approx. 16 frames, RAW+: up to approx. 11 frames *ISO100 |
| Multi-Exposure | Composite Mode (Additive/Average/Bright) Number of Shots (2 to 2000 times) |
| Interval Shooting | [Interval Shooting] Interval: 2s. to 24h./ Standby Interval: Min.･1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Remote Control/Set Time [Interval Composite] Interval: 2s. to 24h./ Standby Interval: Min.･1s. to 24h., Number of shots: 2 to 2000 times, Start Interval: Now/Self-timer/Remote Control/Set Time, Composite Mode: Additive/Average/Bright, Save Process: ON/OFF [Interval Movie] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min･1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval: Now/Self-timer/Remote Control/Set Time [Star Stream] Recorded Pixels: 4K/FullHD/HD, File Format: Motion JPEG (AVI), Interval:2s. to 24h./ Standby Interval: Min･1s. to 24h., Number of shots: 8 to 2000 times (8 to 500 times at 4K), Start Interval: Now/Self-timer/Remote Control/Set Time, Fade-out: OFF/Low/Medium/High |
| Flash | |
| Built-in Flash | Built-in retractable P-TTL flash, GN: approx. 12 (ISO100/m), Angle of view of 28mm lens (35mm format equivalent) |
| Flash Modes | Auto Flash Discharge, Auto Flash + Red-eye Reduction (Auto Picture, Scene) Flash On, Flash On+ Red-eye Reduction, Slow-speed Sync, Trailing Curtain Sync, Manual Flash Discharge (Full-1/128) |
| Sync Speed | 1/180sec. |
| Flash Exposure Compensation | -2.0～+1.0EV |
| External Flash | P-TTL, Leading Curtain Sync, Trailing Curtain Sync, Contrast-control-sync, High- speed sync, Wireless sync * Contrast-control-sync and High-speed sync requires two or more dedicated external flash |
Capture Settings
| Custom Image | Auto Select, Bright, Natural, Portrait, Landscape, MIYABI, SATOBI, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing, KATEN?, KYUSHU? |
| Cross Process | Random, Preset 1-3, Favorite 1-3 |
| Digital Filter | Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome |
| Clarity | Adjustable ±4 step |
| Skin Tone | Type1, Type2, OFF |
| HDR | Auto, HDR1, HDR2, HDR3, Advanced HDR, OFF, Exposure bracket value adjustable, Automatic composition correction function |
| Pixel Shift Resolution | Motion Correction ON, Motion Correction OFF, OFF |
| Lens Correction | Distortion Correction, Peripheral Illumin. Correction, Lateral Chromatic Aberration Correction, Diffraction Correction |
| D-RANGE Compensation | Highlight Correction, Shadow Correction |
| Noise Reduction | Slow Shutter Speed NR, High-ISO NR |
| Horizon Correction | SR On: correction up to 1 degree, SR Off: correction up to 1.5 degrees |
| Electronic Level | Displayed in viewfinder: Horizontal direction only, Displayed on LCD monitor: Horizontal and vertical direction |
Movie
| File Format | MPEG-4 AVC/H.264（MOV） |
| Recorded Pixels | Full HD (1920×1080, 60i/50i/30p/25p/24p） HD (1280×720, 60p/50p) |
| Auto Focus | Hybrid AF (Image plane phase-matching and Contrast detection) AF mode: Single AF (AF.S), Continuous AF (AF.C) * Continuous AF (AF.C) is available with the dedicated lens. AF area: Multiple AF points, Select, Spot Focus Peaking: ON/OFF |
| Sound | Built-in stereo microphone, external microphone (Stereo recording compatible) Recording Sound Level adjustable |
| Recording Time | Up to 25 minutes or 4GB; automatically stops recording if the internal temperature of the camera becomes high. |
| Custom Images | Auto Select, Bright, Natural, Portrait, Landscape, MIYABI. SATOBI, Radiant, Muted, Flat, Bleach Bypass, Reversal Film, Monochrome, Cross Processing, KATEN?, KYUSHU? |
| Cross Processing | Random, Preset 1-3, Favorite 1-3. |
| Digital Filter | Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome |
Playback
| Playback View | Single frame, Multi-image display (6,12, 20, 35, 80 segmentation), Display magnification (up to 16x, Quick Zoom view available), Grid display (4×4 Grid, Golden Section, Scale display, Square 1, Square 2, Grid Color: Black/White ), Rotating, Histogram (Y histogram, RGB histogram), Bright area warning, Auto Image Rotation, Detailed information, Copyright Information (Photographer, Copyright holder), GPS information (latitude, longitude, altitude, Coordinated Universal Time) , Orientation, Folder Display, Calendar Filmstrip Display, Slide Show, |
| Delete | Delete single image, delete all, select & delete, delete folder, delete instant review image |
| Digital Filter | Base Parameter Adj, Extract Color, Replace Color, Toy Camera, Retro, High Contrast, Shading, Invert Color, Unicolor Bold, Bold Monochrome, Tone Expansion, Sketch, Watercolor, Pastel, Posterization, Miniature, Soft, Starburst, Fish-eye, Slim, Monochrome |
| RAW Development | RAW file select： Select Single Image, Select Multiple Images, Select a folder RAW Development Parameter: White Balance, Custom Image, Sensitivity, Clarity, Skin Tone, Digital filter, HDR, Pixel Shift Resolution, Shadow Correction, High-ISO NR, Distortion Correction, Peripheral Illumin. Corr., Lateral Chromatic Aberration Correction, Diffraction Correction, Color Fringe Correction, File Format (JPEG/TIFF), Aspect Ratio, JPEG Recorded Pixels, JPEG Quality, Color Space |
| Edit | Image Rotation, Color Moiré Correction, Resize, Cropping (Aspect ratio and Slant adjustment available), Movie Edit (Divide or delete selected frames), Capturing a JPEG still picture from a movie, Saving RAW data in buffer memory, Image Copy |
Customization
| USER Mode | Up to 3 settings can be saved |
| Custom Functions | 24 items |
| Mode Memory | 16 items |
| Button Customization | Fx1 Button, Fx2 Button (One Push File Format, Wi-Fi, Outdoor View Setting, Night Vision LCD Display, Preview, Red, Electronic Level, Change AF Area) AF/AE-L button (AF1, AF2, Cancel AF, AE Lock) Various settings for the action of the e-dials in each exposure mode can also be saved. |
| AF Customization | AF.S: Focus-priority/ Release-priority 1st Frame Action in AF.C: Release-priority/Auto/Focus-priority Action in AF.C Continuous: Focus-priority, Auto, FPS-priority Hold AF Status: OFF, Low, Medium, High AF in Interval Shooting: Locks focus at 1st exposure, Adjusts focus for each shot AF with Remote Control: OFF/ON |
| Text Size | Standard, Large |
| World Time | World Time settings for 75 cities (28 time zones) |
| Language | English, French, Germany, Spanish, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Polish, Czech, Hungarian, Turkish, Greek, Russian, Korean, Traditional Chinese, Simplified Chinese, Japanese |
| AF Fine Adjustment | ±10 step, Uniform adjustment, Individual adjustment (up to 20 can be saved) |
| Indicator Lamps | Other indicator lamps (OFF/1/2), Self-timer (ON/OFF), Remote Control (ON/OFF), GPS (ON/OFF) |
| Copyright Information | Names of “Photographer” and “Copyright Holder” are embedded to the image file. Revision history can be checked using the provided software. |
Power supply
| Battery Type | Rechargeable Lithium-ion Battery D-LI109 |
| AC Adapter | AC Adapter Kit K-AC168 (Optional) |
| Battery Life | Number of recordable images: (with 50% flash usage): approx. 400 images, (without flash usage): approx.: 460 images Playback time: Approx. 250 minutes * With a fully charged Rechargeable Lithium-ion Battery under the temperature at 23°C. Tested in compliance with CIPA standard. Actual results may vary depending on the shooting condition. |
Interfaces
| Connection Port | USB2.0 (micro B), HDMI output terminal (Type D), Stereo microphone input / Cable switch input (ø3.5mm connector) |
| USB Connection | MSC/PTP |
Wireless LAN
| Standards | IEEE 802.11b/g/n (Standard wireless LAN protocol) |
| Frequency (Center Frequency) | 2412MHz to 2462MHz (channels: Ch.1 to Ch.11) |
| Security | Authentication: WPA2, Encryption: AES |
Dimensions and Weight
| Dimensions | Approx. 125.5mm (W) x93.0mm (H) x 74.0mm (D) (excluding protrusions) |
| Weight | Approx. 684g (Including dedicated battery and SD Memory Card), Approx. 625g (body only) |
Operating Environment
| Temperature | -10°C～40°C (14°F～104°F) |
| Humidity | 85% or less (no condensation) |
Accessories
| Included | Strap O-ST132, Rechargeable Lithium-ion Battery D-LI109, Battery Charger D- BC186, Software S-SW186 <Mounted on the camera> Eye-cup FR, Hot shoe cover FK, Body Mount Cover |
| Software | Digital Camera Utility 5 |
Please let us know if you have any questions.
Thank you.
RIAC and RICA Marketing
