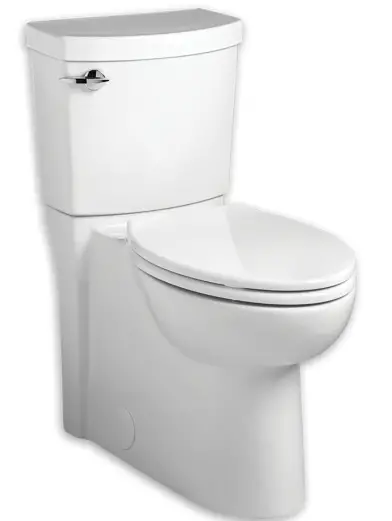

American Standard ASD10238 Studio S Studio Estate and Cadet 3 Concealed Trapway 2-Piece Toilets

Thank you for selecting American Standard – the benchmark of fine quality for over 140 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.

BEFORE INSTALLING YOUR TOILET: please see your product spec page to verify the dimensions and water supply connections. Visit our website where you can search by Model number for the product spec page at: http://www.americanstandard-us.com/

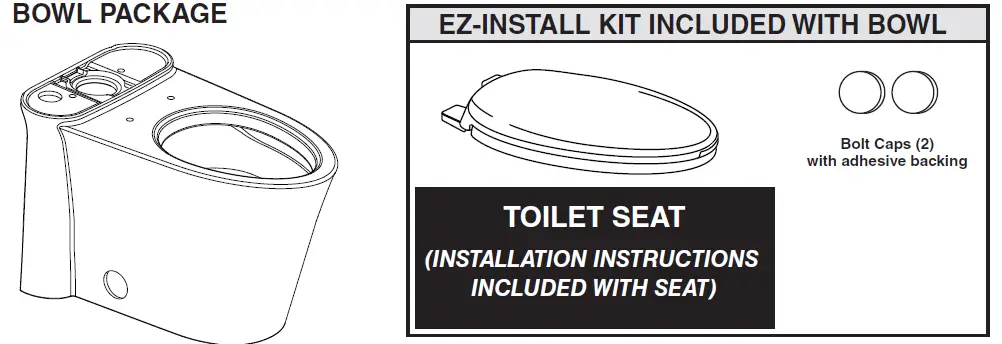

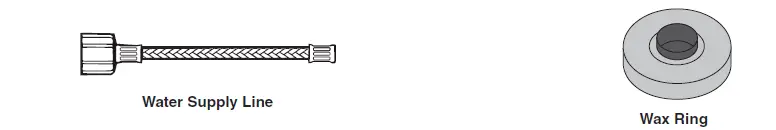

SOLD SEPARATELY

Before You Start

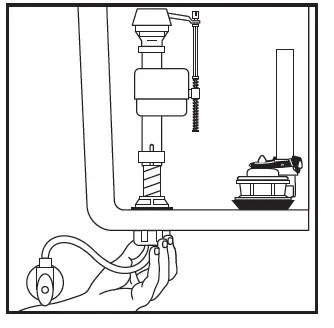

If Removing An Existing Toilet

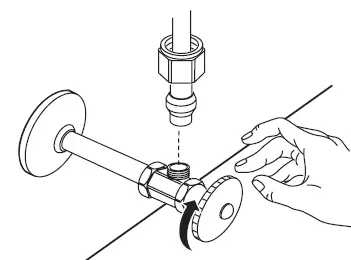

• Turn Off Water Supply
• Flush to remove water from tank; sponge remaining water from bowl before removing toilet

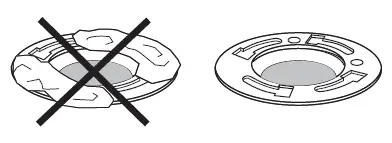

• Clean Flange

  Caution: If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gases.

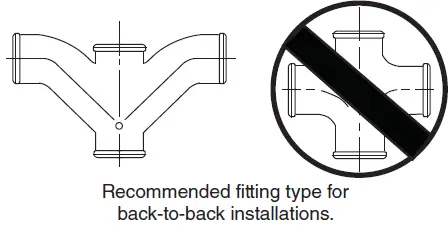

BACK-TO-BACK INSTALLATION

Depending upon your plumbing and venting conditions, the flow from the toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional “Y” style fitting with proper venting to direct the water downward and away from the other toilet.

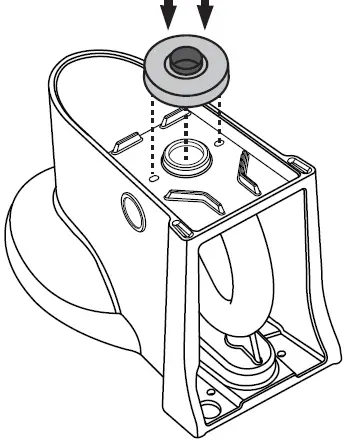

1.

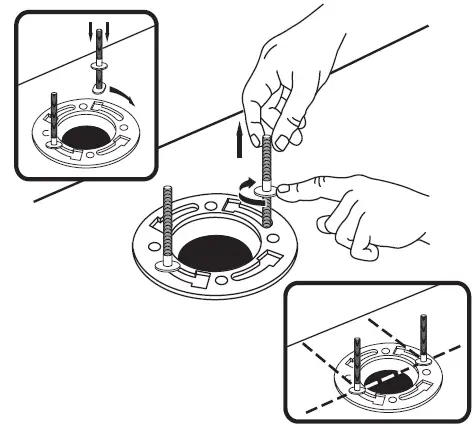

2. Press firmly.

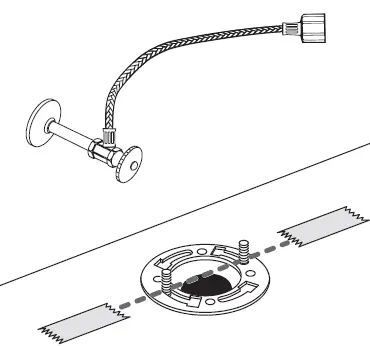

3. TIP: Place 2 pieces of masking tape on floor (as shown) to help with alignment in step 4.
4. Apply weight evenly. Do not move after placement. Water tight seal may break.

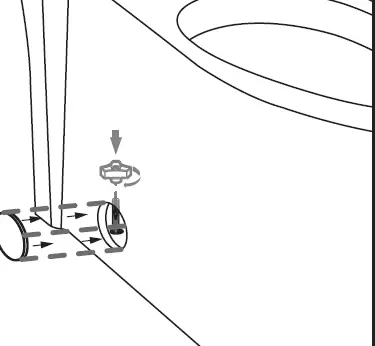

5. Hand Tighten Only. Do Not Overtighten.

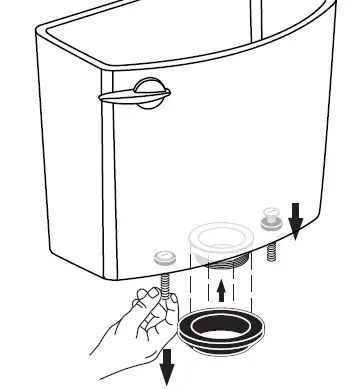

6. Tank-to-Bowl Gasket
   Place the tank gasket over the tank nut ensuring there are not gaps between the gasket and the chinaware.

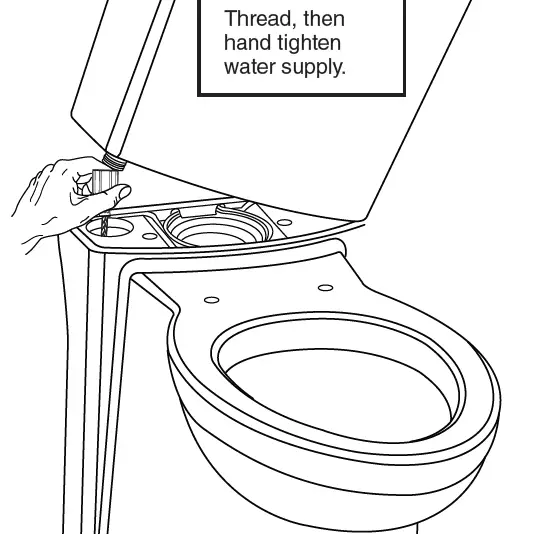

7. Thread, then hand tighten water supply.

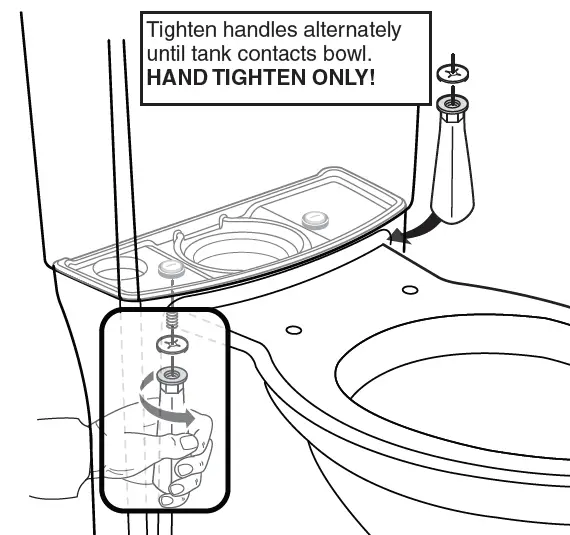

8. Tighten handles alternately until tank contacts bowl.
   HAND TIGHTEN ONLY!
9. WARNING: Overtightening of water supply line nuts could result in breakage and potential flooding. If the connection leaks after hand tightening, replace the supply line. Do not use any type of sealant on the water supply connection. Use of plumber’s putty, pipe dope, or any other type of sealant will void the warranty.
10. Before continuing, determine the type of water supply connection you have from the chart below and use the appropriate assembly parts required to properly reconnect the water supply. DO NOT use plumber’s putty to seal these fittings.
    1. METAL / COPPER FLARED TUBINGThese parts must be used as illustrated to insure water-tight connection. Use of existing coupling nut may result in water leakage. Water supply tube or pipe must extend at least 1/2″ inside threaded shank of valve (does not apply to flanged tubing).
    2. METAL FLANGED TUBING
       Use existing coupling nut and washer.
    3. METAL SPIRAL TUBING
       Use existing spiral cone washer. Fluidmaster cone washer may not seal completely on spiral type supply line.

    4. VINYL / BRAIDED CONNECTOR
       Captive cone washers already included. No additional washers needed.
       CAUTION: DO NOT USE CONE WASHER WITH PLASTIC SUPPLY LINE.
       CAUTION: Overtightening of LOCK NUT or COUPLING NUT could result in breakage and potential flooding.
11. With correct washers in place (see Step 10a), tighten COUPLING NUT 1/4 turn beyond hand tight. DO NOT OVERTIGHTEN.

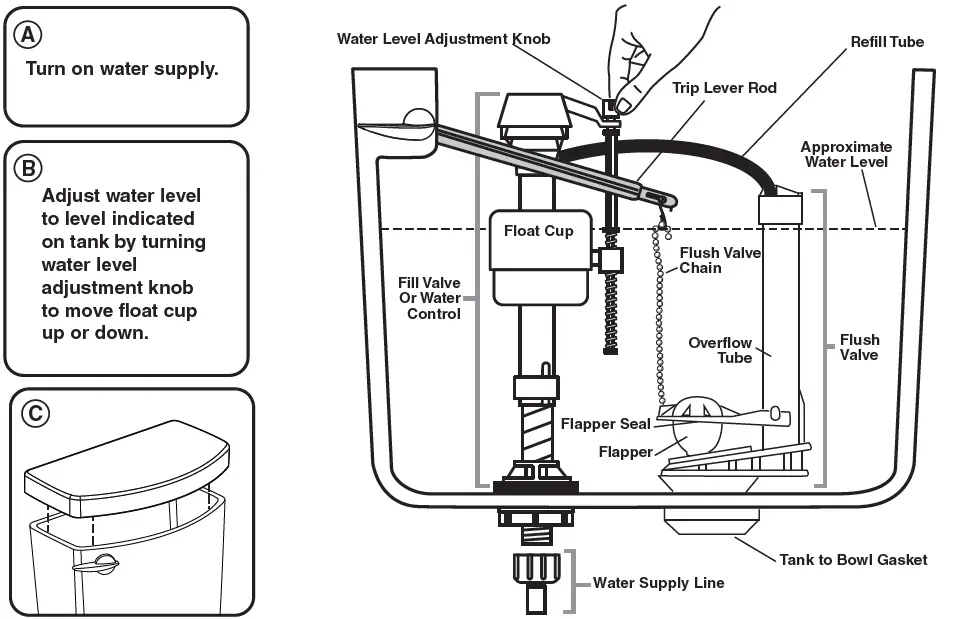

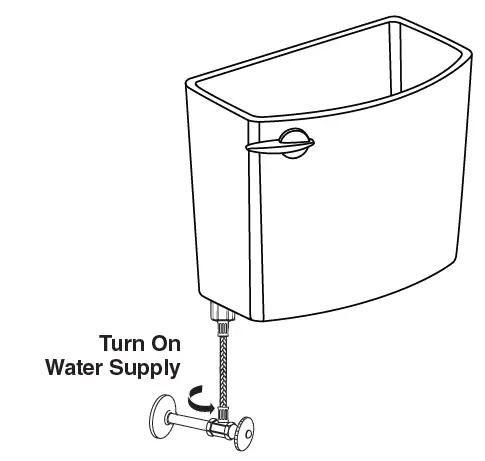

12.

TROUBLESHOOTING

CARE AND CLEANING:
When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth.
WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.

In the United States:                                                 In Canada:                                                       In Mexico:

American Standard Brands                                         LIXIL Canada, Inc.                                            American Standard B&K Mexico

30 Knightsbridge Rd., Suite 301                                  5900 Avebury Rd.                                             S. de R.L. de C.V.

Piscataway, New Jersey 08854                                    Mississauga, Ontario                                         Via Morelos #330

Attention: Director of Customer Care                            Canada L5R 3M3                                              Col. Santa Clara

For residents of the United States, warranty                  Toll Free:  (855) 836-9615                                   Ecatepec 55540 Edo. Mexico information may also be obtained by calling the                                                                                 www.americanstandard.ca                                 Toll Free: 01-800-839-1200 following toll free number: (855) 815-0004                                                                                       www.americanstandard.com.mx www.americanstandard.com

For warranty information please follow this link: https://www.americanstandard-us.com/support/warranty
