SOUND BASS WB-300 Universal Wall Mount

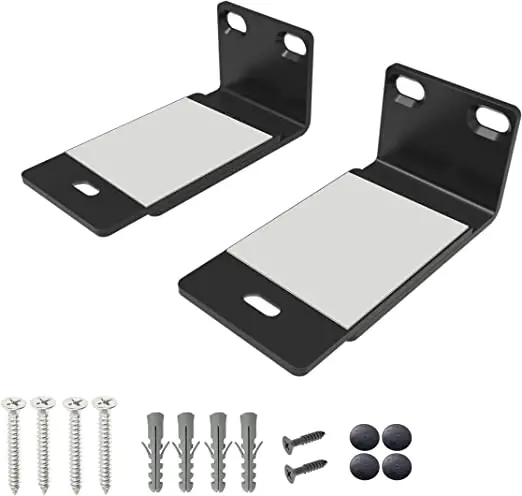

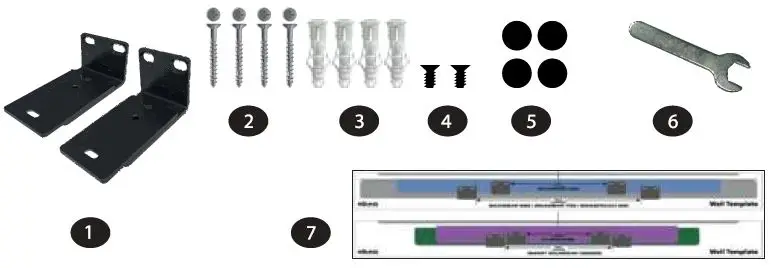

What’s In The Box

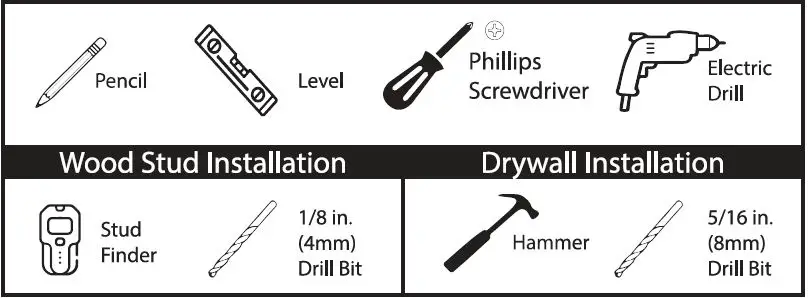

Tools Required
INSTALLING THE WALL MOUNT

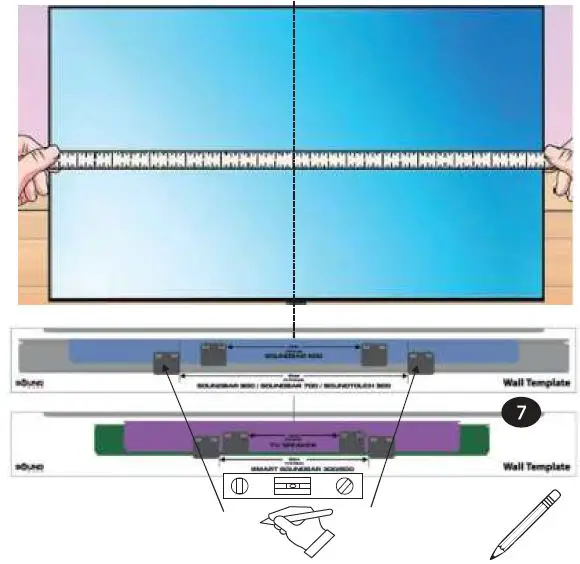

- Find the center measurement of the TV on the wall. Use the provided template to mark out the holes

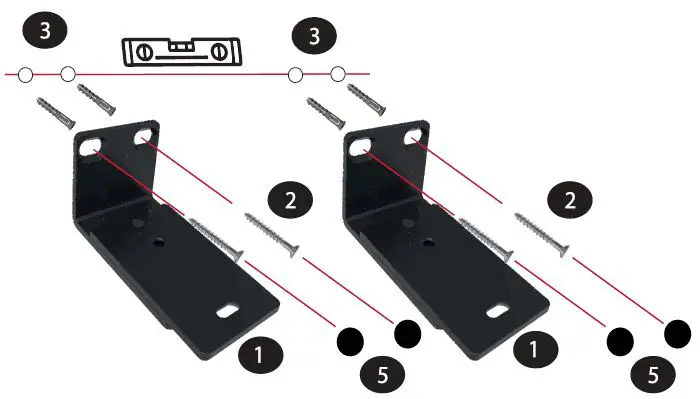

- Fix the wall mount to the wall using the provided hardware

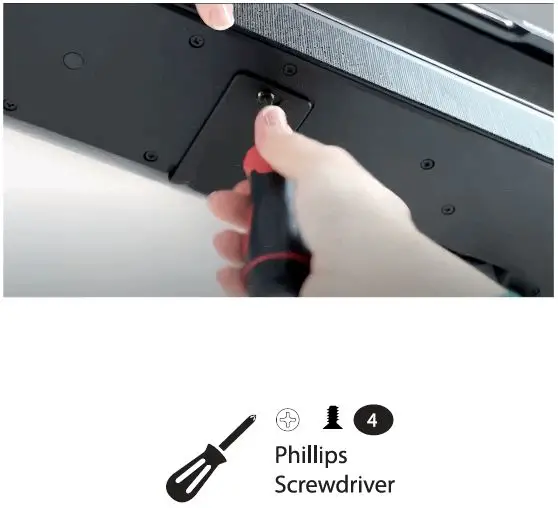

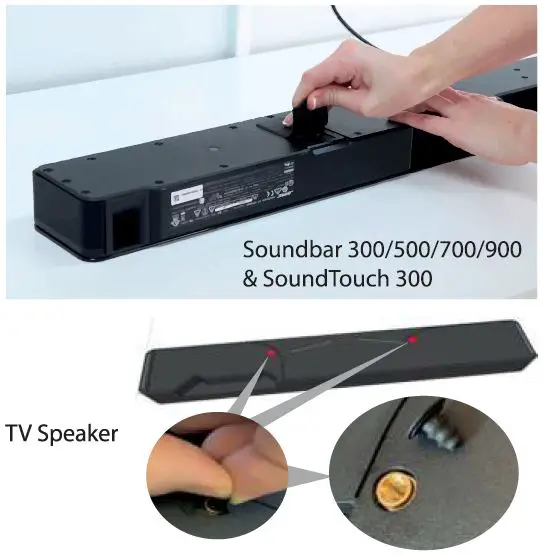

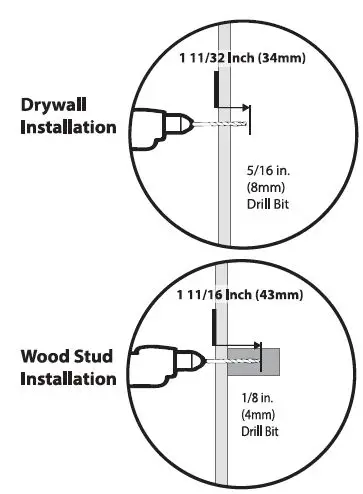

IMPORTANT: Before drilling any holes ensure all measurements and ensure the marks are perfectly level. - Remove rubber covers or grommets on the base of the speaker to reveal the screw fixings.

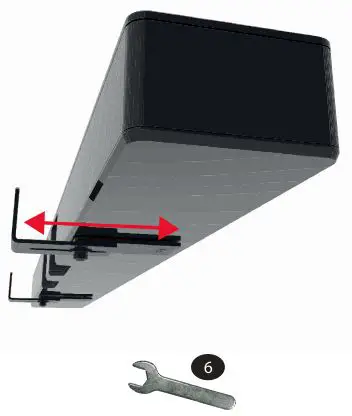

- Position the speaker onto the wall mount and tighten the screws provided fixing screws.
- Connect the cables to the speaker.
