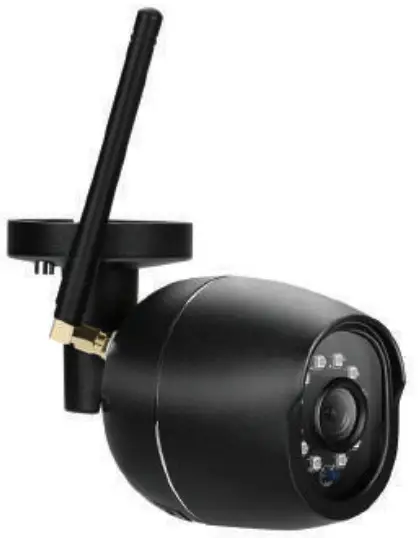

Ipixo Outdoor Bullet Camera User Guide

Ipixo Outdoor Bullet Camera
Start Up Guide

Struggling to read?
View this start up guide online at time2technology.com/manuals

What’s in the box

Be ready
You will need your WiFi router password. Write it down below so it’s handy when you need it!

Get Started

Please complete setup before mounting the camera.
Connect the camera to the mains using the power adapter provided.
The red LED will come on once plugged in and the camera will chime before it is ready to connect.
If you would like the camera to record, you will be required to insert a Micro SD card. The camera will support any sized Micro SD card up to 128 GB.

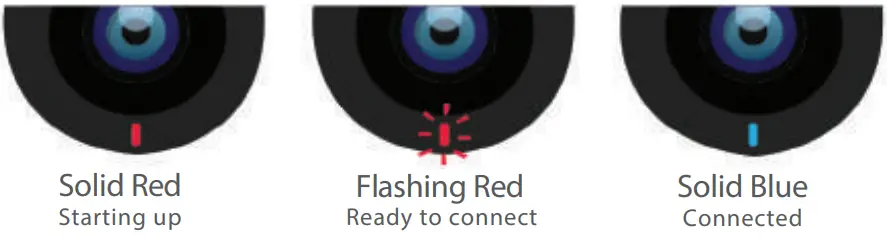

What do the flashing lights mean?

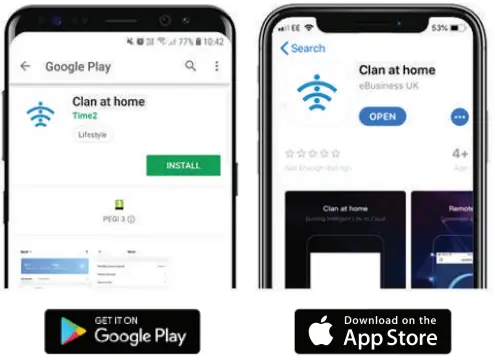

Download App

Download the “Clan at home” App on the iOS App Store or Google Play Store.

Register

Select Register, carefully read the Privacy policy and select Agree if you would like to progress

Enter your email address

Enter the verification code sent via email

Create your password to login

Add Home

Click Me in the bottom right-hand corner

Select Home Management

Select My Home. Enter a name for your home and a location.
Click Save

Select Complete and your home will be created.

Add Camera

In My Home, click the (+) icon in the top right-hand corner of the screen

Select Security and Sensors on the left-hand side and click Smart camera

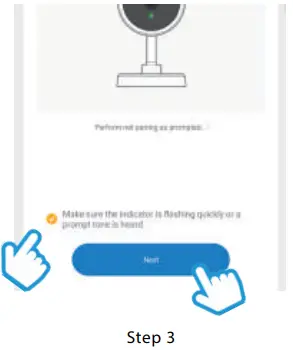

Make sure the LED indicator is flashing red, then select the tick box and press Next

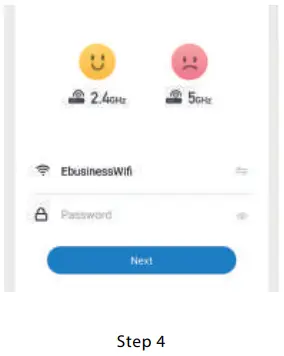

Enter your WiFi router password Then press Next →

Remove the plastic film from the camera lens

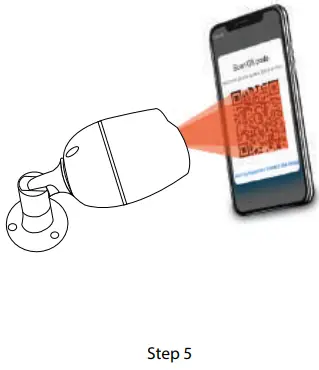

Hold your phone up to the camera as described in App

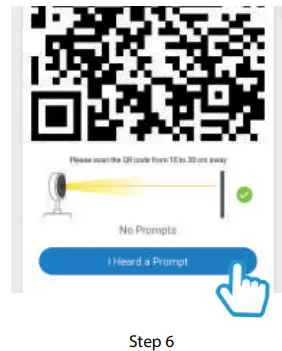

If you heard the camera chime, press I Heard a Prompt.
If you don’t hear the chime, reposition the camera in front of the phone and scan the QR code again.

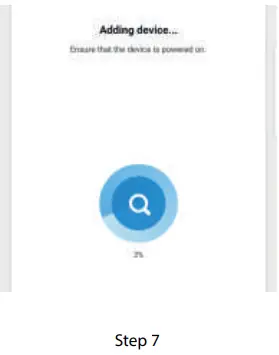

The camera will then establish a connection to Clan.

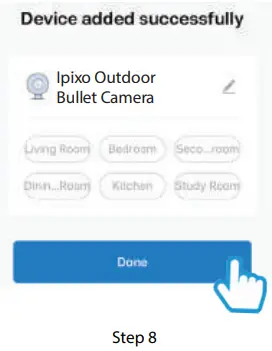

Once connected you can change the camera’s name and select the room it’s in.
Press Done

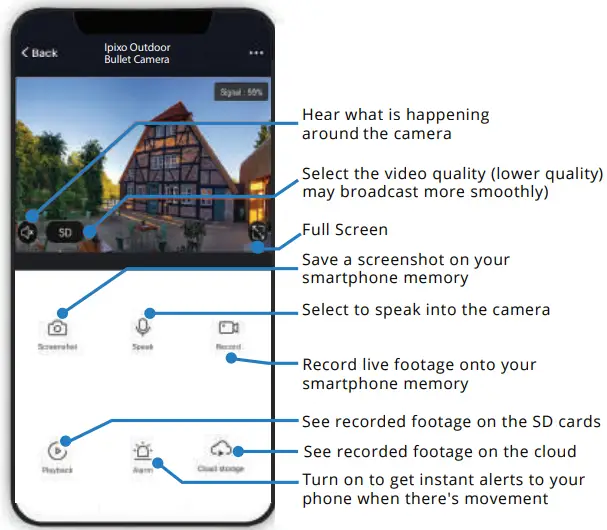

Live View

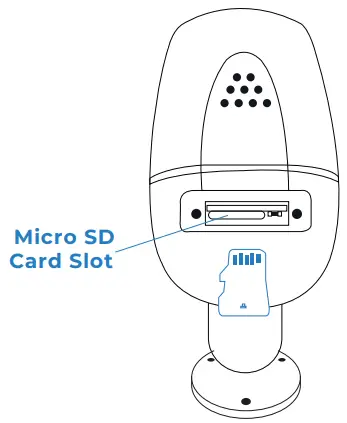

Add SD Card

If you would like the camera to record you will be required to insert a Micro SD card. The camera will support any sized Micro SD card up to 128 GB.

Step 1
Turn off the power to the camera.
Step 2
Find the Micro SD card slot on the underside of the camera and insert the card into the slot far enough for it to click into place.
Step 3
Turn the power to the camera back on.

Format SD Card

Before the camera can start recording you will have to format the micro SD card.

Step 3

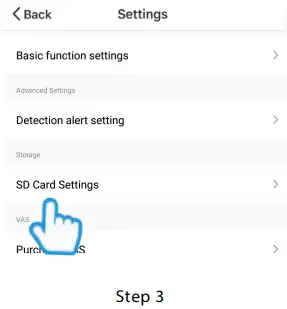

Select your camera and click on the pencil icon in the top-right Select SD Card Settings.

Step 4
Click Format SD Card and press confirm, the camera wilbegin to format the Micro SD card.

Please note: it will take a couple of minutes to format the card.

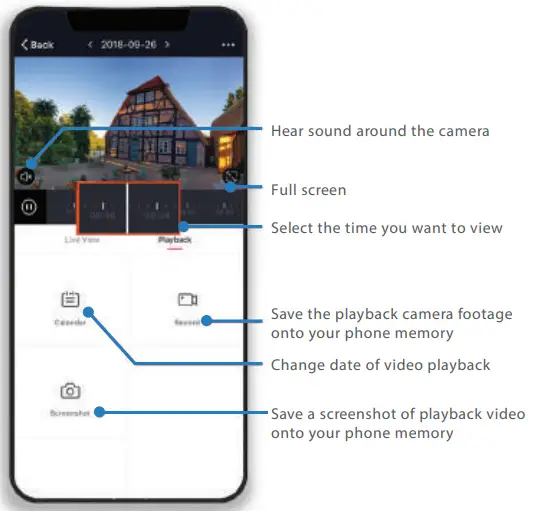

Playback

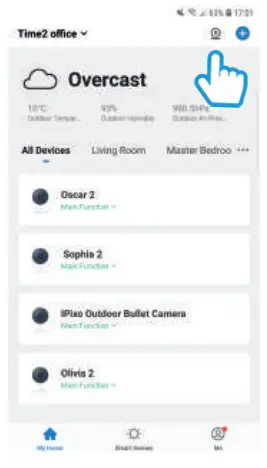

Multi-Camera View

Step 1
Click on the camera on the top right-hand corner

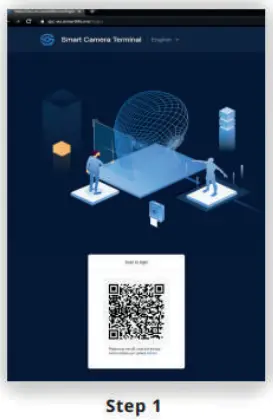

Web View

Go to the following website on your PC.
www.time2technology.com/webview and a QR Code will be displayed

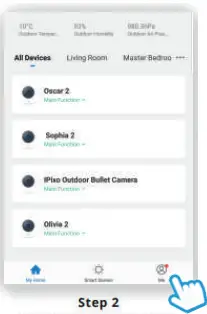

Go into the Clan at Home App and click on Me in the bottom right-hand corner

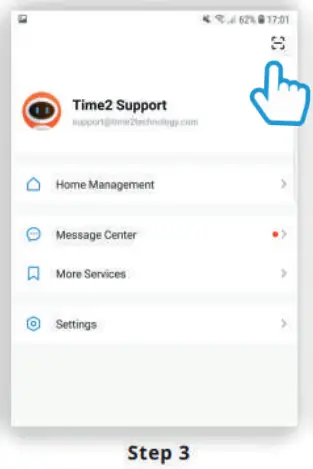

Click on the square on Using your phone scan the top right-hand corner the QR code

Ensure the QR code is within the Green square Then click confirm to log in

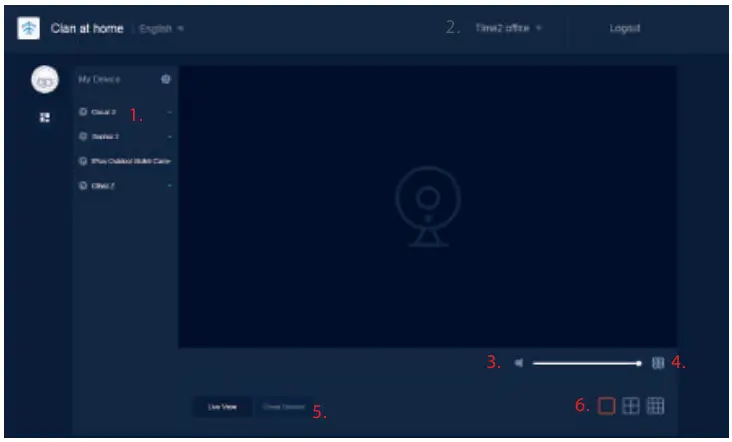

1. Select the home where you would like to view your cameras.
2. Select your camera.
3. Speaker – Listen in on what is going on around your camera.
4. Fullscreen
5. Cloud Service – View the recorded footage from the Cloud Service.
6. Multi-Camera View – Select how many cameras you would like to see at once.

Reset

If you are having trouble connecting to the Camera you may need to do a reset.

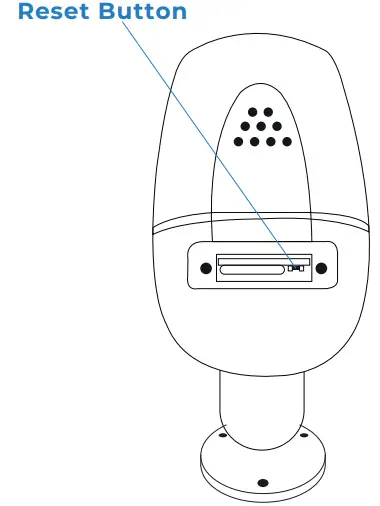

How to reset the Camera
Hold down the button on the underside of the camera for up to 15 seconds until the camera chimes and the LED is flashing red.

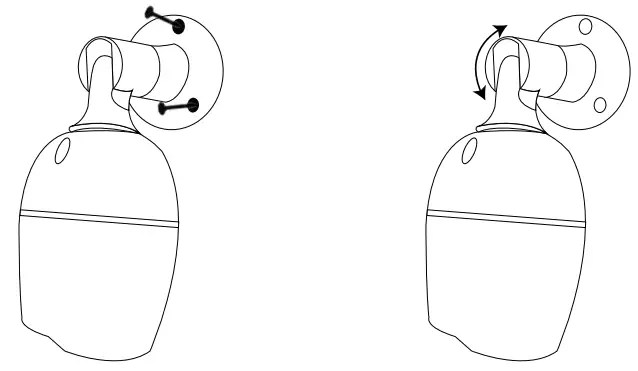

Installation

Easy Mounting
Use the provided wall screws to mount the camera onto the wall.
Adjust the camera angle according to your requirements.
