SENECA III 72 X 48 Inch Drop In Acrylic Combo
Instruction Manual
SENECA III 72 X 48 Inch Drop In Acrylic Combo
Features
- Color-matched jet trim and air controls
- 10 adjustable hydrotherapy jets
- 28 high output lateral air injectors
- Pillows included
- Constructed of high-gloss durable acrylic
- 3-Speed control for the 13.5 Amp pump
- 12.0 Amp variable speed blower
- Inline Heater available
- Mood light & Music system available
- Pre-leveled base for easy installation
- Made in the USA
*All dimensions are +/- 1/2” and subject to change without notice*
Confirm specifications before installation

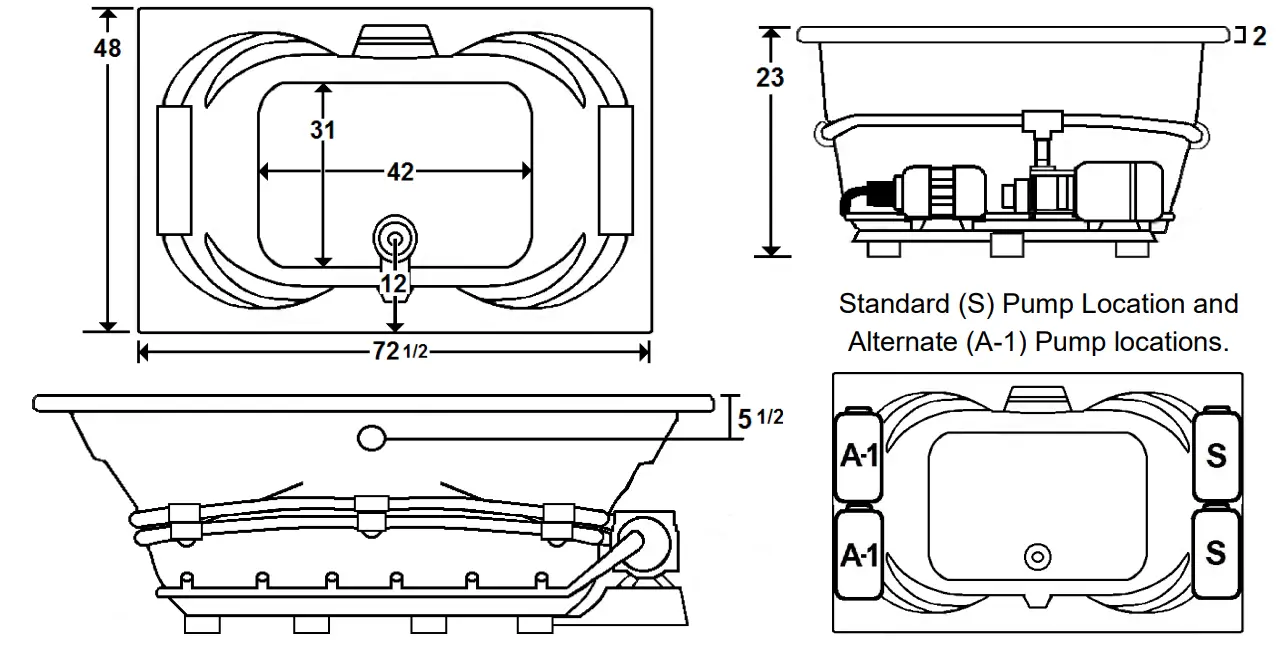

Technical Information
- Cut-Out Dimensions: 70 1/2” x 46”
- Weight: 235 lbs.
- Water Depth to Overflow: 16 1/4”
- Water Operating Level: 65 gal.
- Water Capacity: 112 gal.
- Sump Dimension: 42” x 31”
Electrical Requirements.
- Standard Pump: 13.5 Amps
- Silent Pump: 11.5 Amps
- Standard Blower: 12 Amps
- (Optional) LM300 Heater: 12 Amps
- Dedicated GFCI’s required for each option
AVAILABLE OPTIONS & UPGRADES
For current pricing, pictures, and descriptions of the Laurel Mountain options listed below, go to www.lowes.com. Enter the model number of the option into the search bar at the top right of the page next to the magnifying glass. For additional information, visit www.laurelmountainbath.com or call Laurel Mountain customer service at 800-930-0050.
Therapeutic
HEATERS (select one)
LM300 Inline Heater
LM320 Whisper Flow Silent Pump & Heater
BACK JETS – Two extra back jets on the same backrest LM500
OTHER THERAPIES (select one)
LM522 Chromatherapy Mood Light
LM525 Wāv Music. Vibe. Lights
Accessories
| WHIRLPOOL TRIM KITS | CABLE OPERATED DRAINS | LM335 Ozonator |
| LM101 Chrome | LM200 Chrome | (Sanitizing System) |
| LM102 Brushed Nickel | LM201 Brushed Nickel | |
| LM103 Bronze | LM202 Bronze | |
| LM210 White | ||
| LM211 Biscuit |
Design / Construction
| LM542 Plastic Flange | LM545 A-1 Pump Location |
| LM557 Skirt (drain side) | LM558 Skirt (non-drain side) |
INSTALLATION
Install this unit according to the Owner’s Manual. The Owner’s manual can be found at www.laurelmountainbath.com. Select “Resources” at the top of the homepage, then click on “Literature and Manuals”. Scroll down the page to the Owner’s Manual section then click on the “Whirlpool, Air Bath, Combo Bath” document.
Laurel Mountain Customer Service: 1-800-930-0050
