MICROBRITE™ PLUS
60 – 120x LED Lighted Pocket Microscope
MM-300
PDF: www.carson.com/MM300guide

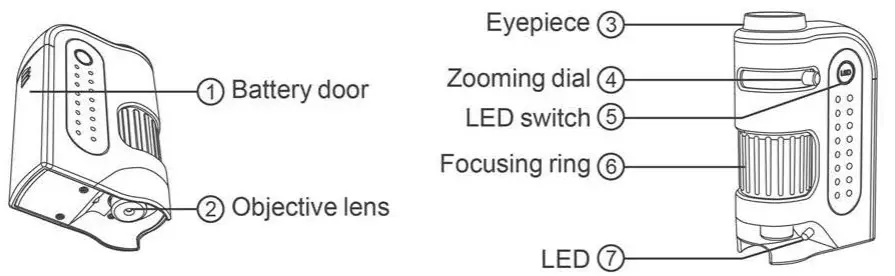

Product overview
Installing the battery
- Slide open the battery door 1 as shown below.
- Install 1 AA battery with the correct polarity.
- Attach the battery door 1 as shown below.
Using the microscope
- Place the viewing object directly below the objective lens 2.

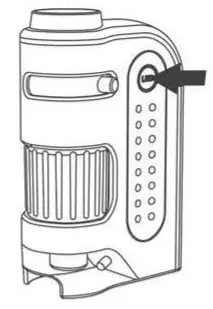

- Press the LED switch 5 to turn on the LED.
- Adjust the zooming dial 4 to the desired level of magnification.

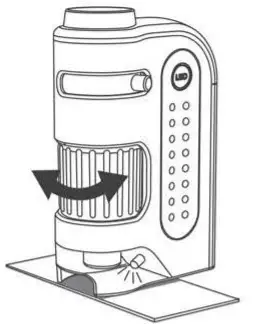

- Rotate the focusing ring 6 until the image is sharp and clear.
- Turn off the LED at the end of the observation by pressing the LED switch 5.
Product specification
| Magnification: | 60x – 120x |
| Exit pupil diameter: | 10mm – 14mm |
| Optical zoom: | 2x |
| Power: | 1 x AA battery (not included) |
| Illumination: | LED |
| Size: | 59mm x 30mm x 92mm |
| Weight: | Approx. 50 grams (excluding batteries) |
Warning
- To avoid possible permanent eye damage, do not look at the sun or bright objects with the microscope.
- To avoid possible permanent eye damage, do not place the lighted microscope directly upon the human eye.
- Remove the battery before storing the microscope for an extended period.
- The device may get warm after an extended period of use. This is normal and should not be considered a defect.
- Inspect all batteries for signs of corrosion or leakage. Do not expose to fire or excessive heat. Use alkaline batteries only, rechargeable batteries are not recommended. Insert battery in the direction indicated.
Carson Optical • 2070 5th Avenue, Ronkonkoma, New York 11779 • U.S.A.
©2017 Carson Optical
