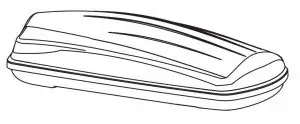

MODULA ciao 340L Gloss Black Roof Box Installation Guide
All the pleasure of travelling

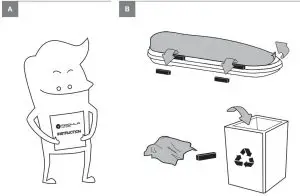

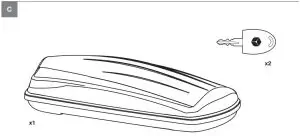

What’s in the box?

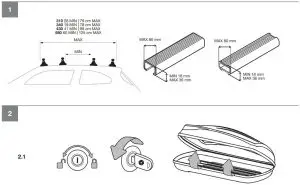

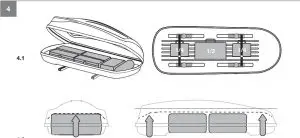

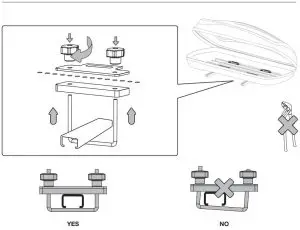

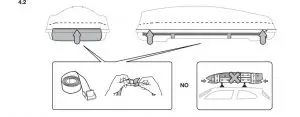

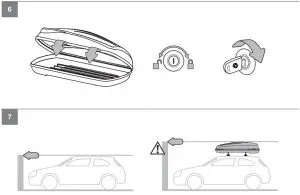

Installation
Requirements and recommendations:
After a short travel at first and specific time periods, depending on the road conditions, the bolt connections and the roof container fixing have to be checked.
The driving behavior of the vehicle changes (vulnerability to side winds, cornering and breaking behavior) when the roof container is mounted, especially when loaded.
By reasons of safety of other traffic participants and for matters of energy saving, the roof container should be taken off during periods of no use.
The information stated by the vehicle’s manufacturer, concerning the permissible roof load, has to be followed.
Consider the weight of the container, since permissible roof load is a combination of the actual load, adding the weight of the roof racks and container.

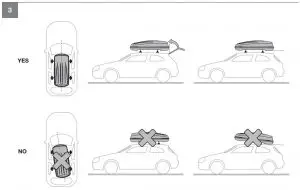

The roof container has to be mounted in direction of the travel without a positive angle of incidence, to avoid any increase in lifting forces.

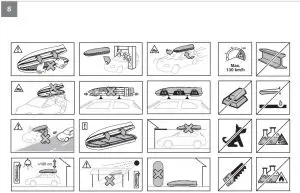

Warning:
It is very important to follow the instructions of fitting and use;
Tighten and check the fixing devices correctly and regularly during travel;
Keep this instruction manual safely;

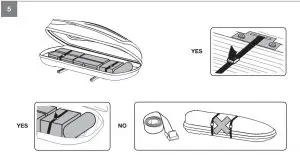

Secure the roof container load correctly and safe;
It is important to maintain the equipment in good working order.
Brand of Modula srl
Loc. Penisola 20/A
61026 Piandimeleto (PU) Italy
P +39 0722700070
F +39 0722 720017
W www.modulacs.com
E [email protected]
Design and manufactured made in Italy
