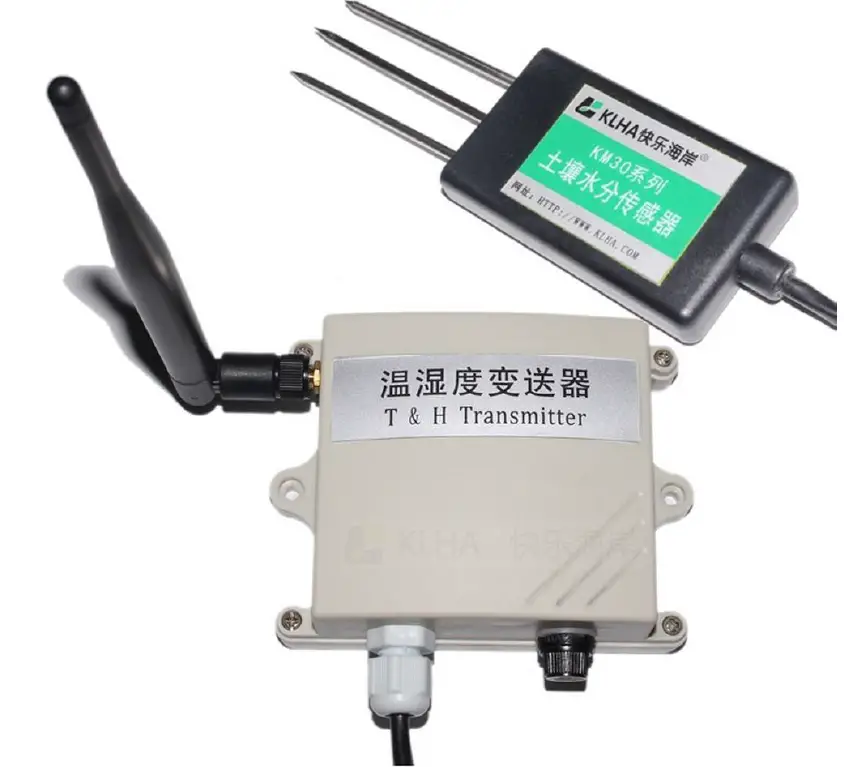

KLHA KZ21C30 Wireless zigbee soil sensor

INTRODUCTION

KZ21C30 uses the standard LORA Wireless Communication Interface, and easy access to PLC, DCS and other instruments or systems for monitoring soil Moisture,soil temperature state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485, CAN,4-20mA, DC0~5V\10V, ZIGBEE,Lora, WIFI, GPRS and other output methods.

Technical Parameters

Technical parameterParameter value
Moisture measuring range0~100%
Moisture measuring accuracy±3%    @25℃
Moisture Temperature range-30℃~80℃
Moisture Temperature accuracy±0.5℃ @25℃
Maximum transmit powerMAX 20dBm
Operating frequency410-441MHz Default 434MHz
Work modequery mode or active upload mode
Communication ProtocolMODBUS-RTU Protocol
Sleep battery<8uA
Max Current<150mA
Sleep interval1-36000 seconds
Built-in batterylithium battery inside
Standby duration2 to 5 years (collected every 30 minutes)
PowerDC6~24V 1A
Running temperature-40~80°C
Working humidity5%RH~90%RH

Wiring instructions

Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as follows in the case of power failure, and then connect the cable to confirm the correctness and then use it again.

IDCore colorIdentificationNote
1RedV+Batter V+
2GreenV-Batter V-

In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the core color is for reference.

Communication Protocol

Because the device only has LORA wireless communication mode, the user can read and modify the parameters involved in this communication protocol through the wireless transparent transmission of the LORA transparent transmission module. The product uses the MODBUS-RTU standard protocol format, All operation or reply commands are hexadecimal data. The default device address is 1 when the device is shipped from the factory. The default baud rate is 9600, 8, n, 1. Since the LORA sensor cannot directly modify the LORA parameters, it is generally based on the standard parameters (434MHz). The carrier frequency, that is, channel 24) is shipped. If other parameters such as channel, signal bandwidth, and spreading factor are required, please specify when ordering.
Read Data (Function id 0x03)

Device IDFunction idStart AddressData LengthCRC16
010300 0000 0305 CB

For the correct query frame, the devi ce will respond with data:01 03 06 00 7B 00 00 00 00 C5 7F , the response format is parsed as follows:

Device IDFunction idData Length数据 1数据 2数据 3Check Code
01030600 7900 7A00 7BC5 7F

Data Address Table

AddressStart AddressDescriptionData typeValue range
4000100 01soil Moistureread0~65535
4000200 02soil temperatureread0~65535
4010100 64model coderead/write0~65535
4010200 65total pointsread/write1~20
4010300 66Device IDread/write1~249
4010400 67baud rateread/write0~6
4010500 68moderead/write1~4
4010600 69protocolread/write1~10
4010700 6Aintervalread/write0~36000
4010800 6Bchannelread/write0~31
4010900 6Ctransmit powerread0~3
4011000 6Dsignal bandwidthread0~9
4011100 6Espreading factorread0~6

Lora has a total of 32 channels. When the device is concentrated, you can change the channel to prevent signal crosstalk. The default channel value is 24, which corresponds to 434MHz. The device generates from 410MHz to 441MHz every 1MHz. For example, if the current channel value is 24, the actual frequency of use is: 410+24=434MHz. Device transmit power is divided into 4 files, 0 pairs are 20db, 1 pair is 17db, 2 pairs are 14db, 3 pairs are 11db, because the actual transmit power is related to many factors, so here is the maximum transmit power. Signal bandwidth is divided into 10 files,read-only, default 07, ie 125KHz, 0-9 are: 7.8KHz, 10.4KHz, 15.6KHz, 20.8KHz, 31.2KHz, 41.7KHz, 62.5KHz, 125KHz, 250KHz ,500KHz.  The spreading factor value range is 0 to 6,read-onlyZ, the default is 02, ie SFactor=8, 0-6 corresponds to the spreading factor SFactor: 6, 7, 8, 9, 10, 11, 12, respectively.

Read and modify device address

Device IDFunction idStart AddressData LengthCRC16
FA0300 6400 0290 5F

Read or query device address
If you don’t know the c urrent device address and there is only one device on the bus, you can use the command FA 03 00 64 00 02 90 5F Query device address.

FA is 250 for the general address. When you don’t know the address, you can use 250 to get the real device address, 00 64 is the device model register. For the correct query command, the device will respond, for example the response data is: 01 03 02 07 12 3A 79, the format of which is as shown in the following table:

Device IDFunction idStart AddressModel CodeCRC16
01030255 3C 00 013A 79

Change device address
For example, if the current device address is 1, we want to change to 02, the command is:01 06 00 66 00 02 E8 14 .

Device IDFunction idStart AddressDestinationCRC16
010600 6600 02E8 14

Read and Modify Baud Rate

Read baud rate
The device default factory baud rate is 9600. If you need to change it, you can change it according to the following table and the corresponding communication protocol . For example, read the current device’s baud rate ID, the command is:01 03 00 67 00 01 35 D5 , its format is parsed as follows. Read the baud rate encoding of the current devic e. Baud rate encoding: 1 is 2400; 2 is 4800; 3 is 9600; 4 is 19200; 5 is 38400; 6 is 115200.
For the correct query command, the device will respond, for example the response data is: 01 03 02 00 03 F8 45, the format of which is as shown in the followin g table:

Device IDFunction idStart AddressData LengthCRC16
010300 6700 0135 D5

Change the baud rate
For example, changing the baud rate from 9600 to 38400 , ie changing the code from 3 to 5, the command is: 01 06 00 67 00 05 F8 1601 03 00 66 00 01 64 15 .

Device IDFunction idData LengthRate IDCRC16
01030200 03F8 45

Read Correction Value

Read Correction Value
When there is an error between the data and the reference standard, we can reduce the display error by adjusting the correction value. The correction difference can be modified to be plus or minus 1000, t hat is, the value range is 0 1000 or 64535 65535. For example, when the display value is too small, we can correct it by adding 100. The command is: 01 03 00 6B 00 01 F5 D6 . In the command 100 is hex 0x64 If you need to reduce, you can set a negative val ue, such as 100, corresponding to the hexadecimal value of FF 9C, which is calculated as 100 65535=65435, and then converted to hexadecimal to 0x FF 9C. The correction value starts from 00 6B. We take the first parameter as an example. The correction valu e is read and modified in the same way for multiple parameters.

Device IDFunction idStart AddressData LengthCRC16
010300 6B00 01F5 D6

For the correct query command, the device will respond, for example the response data is: 01 03 02 00 64 B9 AF, the format of which is as shown in the following table:

Device IDFunction idData LengthData valueCRC16
01030200 64B9 AF

Change correction value
Fo r example, the current state quantity is too small, we want to add 1 to its true value, and the current value plus 100 correction operation command is:01 06 00 6B 00 64 F9 FD .

Device IDFunction idStart AddressDestinationCRC16
010600 6B00 64F9 FD
