SONBUS SM3568M 4-20mA Current Type Irradiance Sensor
Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Radioactivity measuring range | 0~2000W/M2 |
| Radioactivity allow deviation | ±7% |
| Repeatability test | ±5% |
| Radioactivity detection chip | Import digital |
| Wavelength range | 380nm~730nm |
| Communication Interface | DC4~20mA |
| Power | DC12~24V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |
Wiring instructions
Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as follows in the case of power failure, and then connect the cable to confirm the correctness and then use it again.
ID | Core color | Identification | Note |
| 1 | Red | V+ | Power V+ |
| 2 | Blue | I+ | sensor output |
| 3 | BLACK | V- | Power negative electrode |

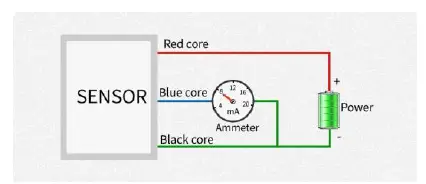

In the case of broken wires, wire the wires as shown in the figure. If the product itself has no leads, the core color is for reference.
