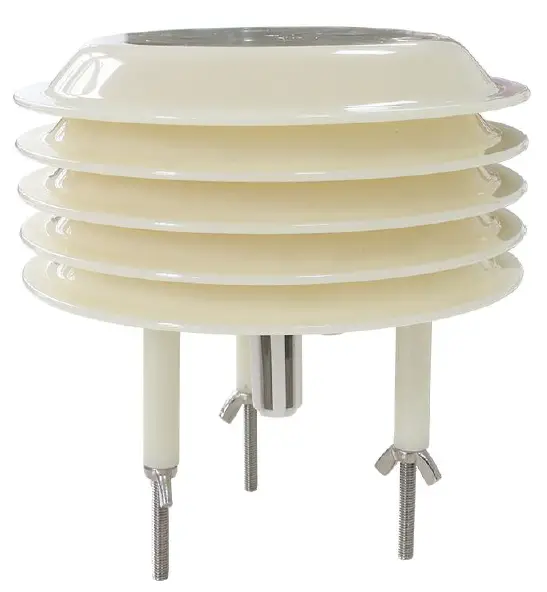

SONBUS SM6388B Temperature Sensor

SM6388B uses the standard RS485 bus MODBUS RTU protocol, easy access to PLC DCS, and other instruments or systems for monitoring temperature humidity and atmospheric pressure state
quantities. The internal use of high precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS 232, RS485, CAN,4 20mA, DC0~5V 10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.

Technical Parameters

Technical parameter	Parameter value
Brand	SONBEST
Temperature measuring range	-30℃~80℃
Temperature measuring accuracy	±0.5℃ @25℃
Atmospheric pressure range	30~110kpa
Atmospheric pressure accuracy	±0.5%
Communication Interface	RS485
Default baud rate	9600 8 n 1
Power	DC9~24V 1A
Running temperature	-40~80°C
Working humidity	5%RH~90%RH

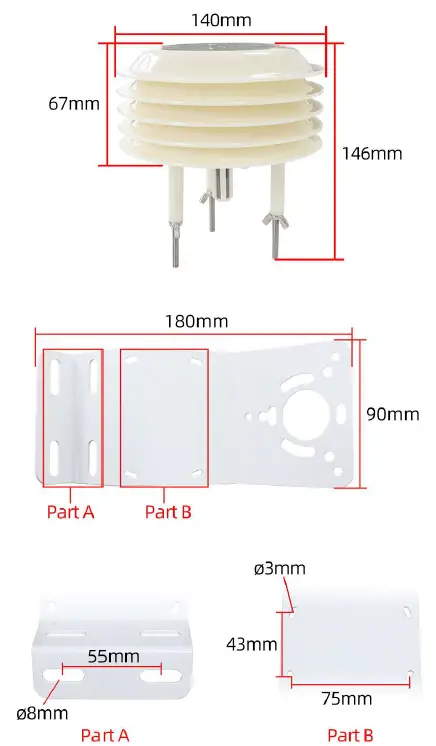

Product Size

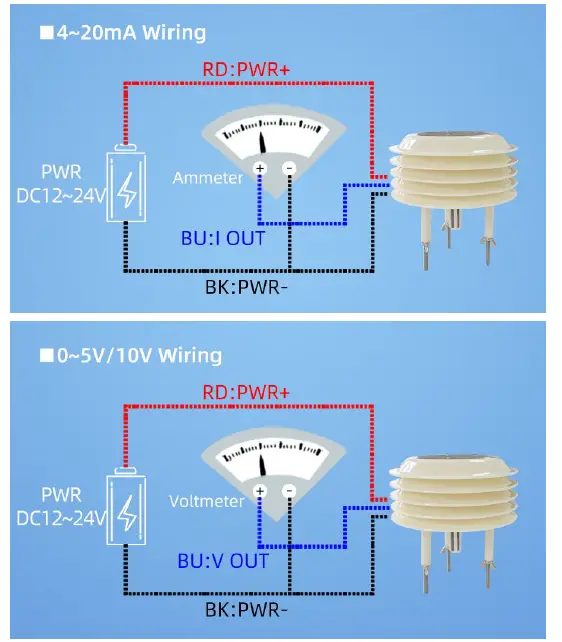

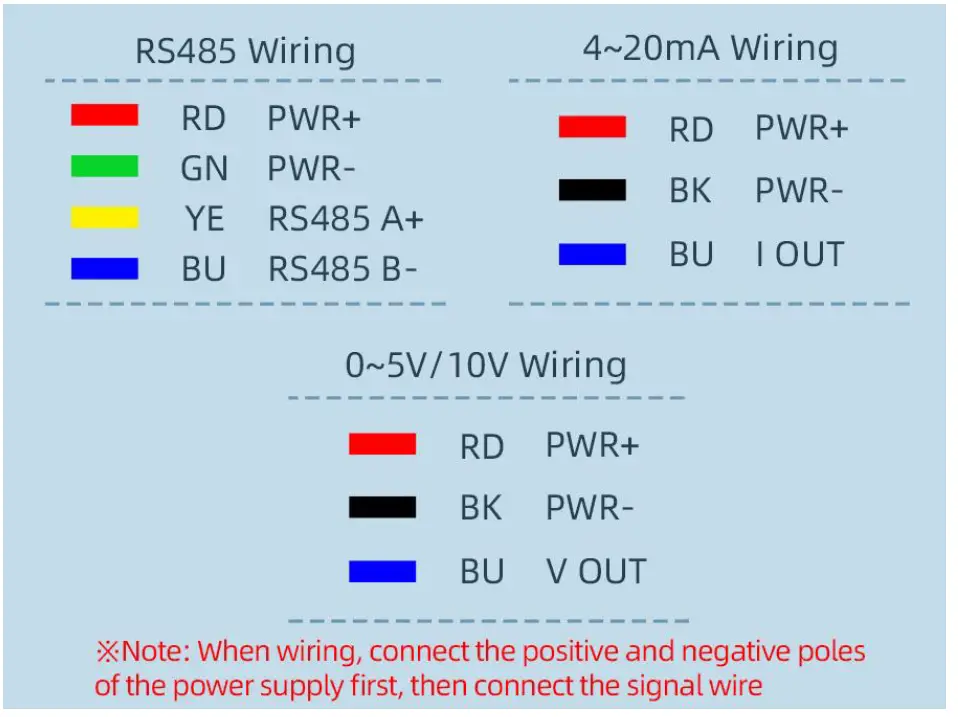

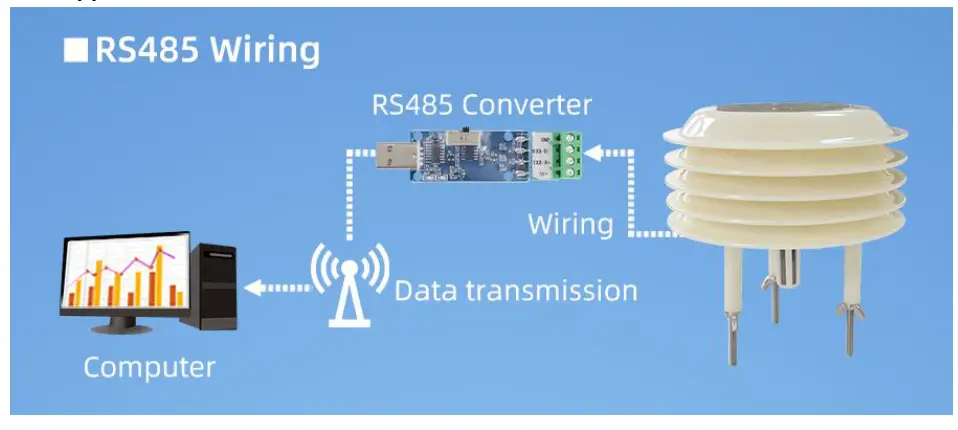

How to wiring?

Application solution

How to use it?

Communication Protocol

Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability, or the infringement liability for any patent, copyright, or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
