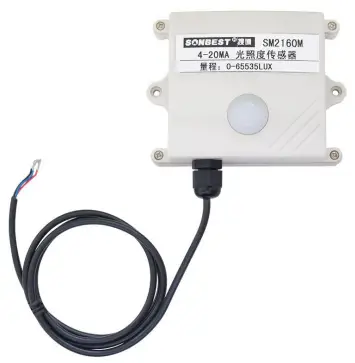

SONBEST SM2160M 4-20M Current Interface Protection Type Small Range Illuminance Sensor
SM2160M using the standard DC4-20mA current output signal,easy access to PLC，DCS and other instruments or systems for monitoring illuminance state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485,CAN,4-20mA, DC0~5V\10V, ZIGBEE,Lora, WIFI, GPRS and other output methods.
Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Illuminance measuring range | 0~65535Lux |
| Illuminance allow deviation | ±7% |
| Repeatability test | ±5% |
| Illuminance detection chip | Import digital |
| Wavelength range | 380nm~730nm |
| Communication Interface | DC4~20mA |
| Power | DC12~24V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RH |

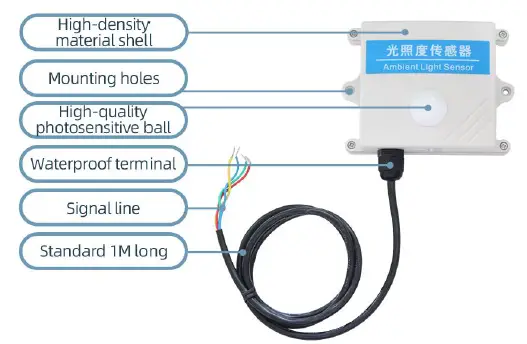

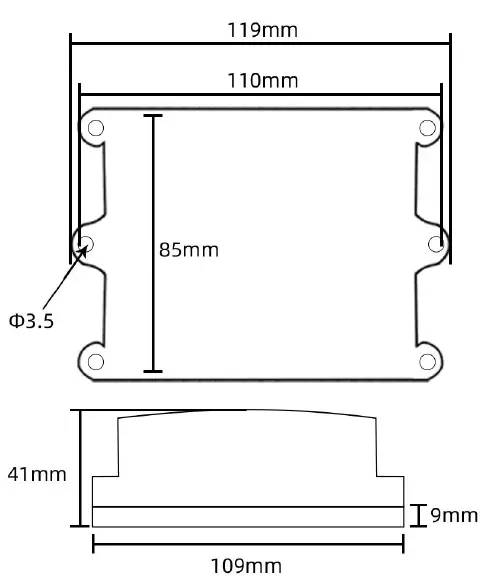

Product Size

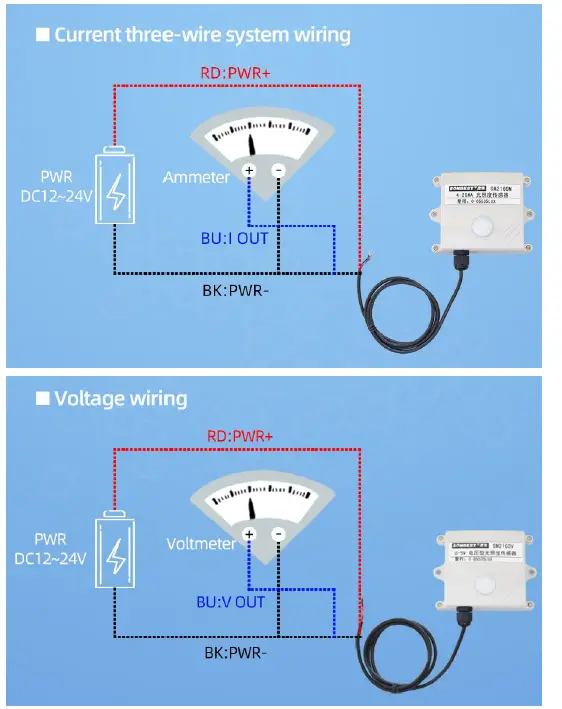

How to wiring?
Application solution
Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
Contact Us
- Company: Shanghai Sonbest Industrial Co., Ltd
- Address:Building 8,No.215 North east road,Baoshan District,Shanghai,China Web: http://www.sonbest.com
- Web: http://www.sonbus.com
- SKYPE: soobuu
- Email: [email protected]
- Tel: 86-021-51083595 / 66862055 / 66862075 / 66861077
