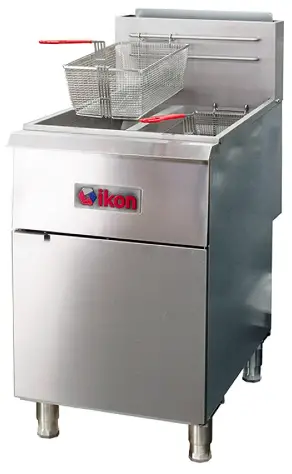

ikon IGF-40-40-2 Gas Fryer

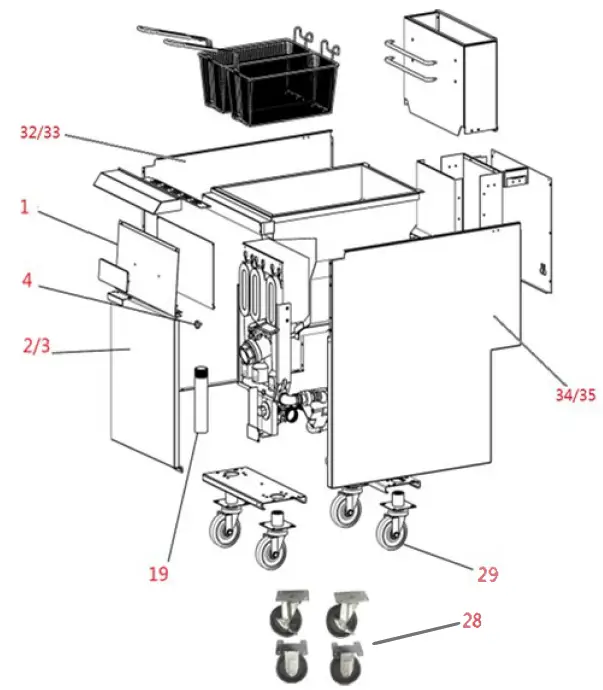

OVERVIEW
| LABEL NO. | MVP PART NO. | MVP PART NO. DESCRIPTION |
| 1 | 1190270 | FRONT PANEL FOR FRYER |
| 2 | 1190168 | DOOR ASSEMBLY, 3+4 TUBE FRYER (DOOR/HANDLE/HINGE/ROD) |
| 3 | 1190172 | DOOR ASSEMBLY, 5-TUBE FRYER (DOOR/HANDLE/HINGE/ROD) |
| 4 | 1190001 | DOOR MAGNET |

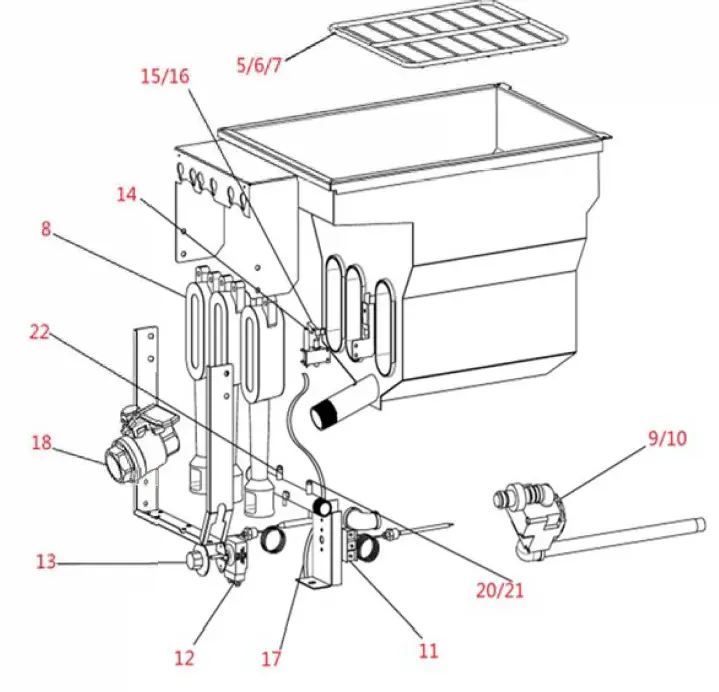

| 5 | 1190003 | SCREEN -TUBE, FRYER 3 TUBE |
| 6 | 1190352 | SCREEN -TUBE, FRYER 4 TUBE |
| 7 | 1190026 | SCREEN – TUBE, FRYER 5 TUBE |
| 8 | 1190007 | CAST IRON BURNER, FRYER |
| 9 | 1190008 | VALVE, COMBI, MILLI-VOLT, NG |
| 10 | 1190009 | VALVE, COMBI, MILLI-VOLT, LP |
| 11 | 1190010 | HI LIMIT |
| 12 | 1190011 | THERMOSTAT |
| 13 | 1190012 | KNOB, THERMOSTAT |
| 14 | 1190013 | THERMOPILE |
| 15 | 1190015 | BURNER, PILOT, LP |
| 16 | 1190351 | BURNER, PILOT, NG |
| 17 | 1190016 | TUBE, FLEXIBLE, 1/4″, 23IN, PILOT |
| 18 | 1190017 | VALVE, BALL, DRAIN, 1-1/4″ |
| 19 | 1190018 | DRAIN, EXTENSION |
| 20 | 1190283 | ORIFICE # 39 (NAT), USE PART# 266003 KIT OF 5 |
| 21 | 1190284 | ORIFICE # 52 (LP), USE PART# 266002 KIT OF 5 |
| 22 | 1190006 | KIT ORIFICE EXTENSION KIT OF 5 |

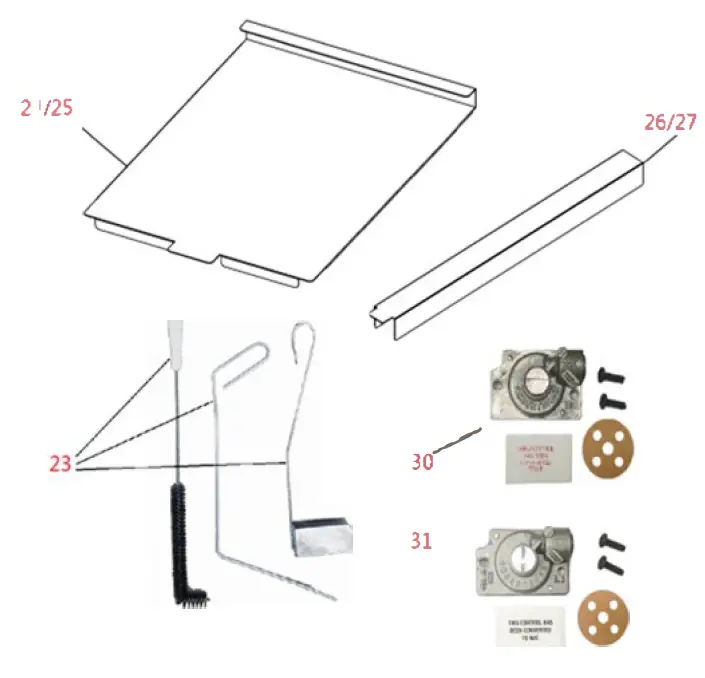

| 23 | 1190032 | TANK CLEANING TOOLS (BRUSH, SCOOP, ROD) |
| 24 | 1190144 | TANK COVERS, 3&4 TUBE FRYERS ( 10/CARTON) |
| 25 | 1190145 | TANK COVERS, 5-TUBE FRYERS ( 10/CARTON |
| 26 | 1190146 | CONNECTING STRIPS, 3&4 TUBE FRYERS ( 10/CARTON) |
| 27 | 1190147 | CONNECTING STRIPS, 5 TUBE FRYERS ( 10/CARTON) |
| 28 | 1190031 | CASTER SET; NON-ADJ. & SWIV. |
| 29 | 1190021 | CASTER SET; ADJ. & SWIV. |
| 30 | 1190055 | COVERSION KIT, FRYER NG TO LP |
| 31 | 1190353 | COVERSION KIT, FRYER LP TO NG |
| 32 | Left side panel 3+4 TUBE FRYER | |
| 33 | Right side panel 3+4 TUBE FRYER | |
| 34 | Left side panel 3+4 TUBE FRYER | |
| 35 | Right side panel 3+4 TUBE FRYER |
