Izzy Iz-8216 Air Fryer Instruction Manual

Air Fryer 6Lt Digital IZ-8216
Instructions Manual

IZ-8216 Air Fryer

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any use which does not conform to the instructions will absolve IZZY from any liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
• Always plug your device into an outlet that is earthed. Failure to comply with this requirement may result in electric shock and possible serious injury.
• Never leave the appliance unattended when it is operating.
• Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with a lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Switch off and unplug:
  − After each use.
  − Before cleaning.
  − Before moving
• Never use the appliance for any other use than indicated.
• The device is intended for indoor use. Do not use the device outdoors.
• The device is intended only for domestic use. Any other use will cancel the warranty.
• Always use the kettle on a secure, dry, clean and heat-resistant surface.
• Do not operate or place the device or parts in places of high humidity or where it may get wet.
• Never let the body of the appliance, cord or plug get wet. If the appliance does get wet, immediately remove the power cord from the wall outlet and do not put your hands in the water. Never run the wet appliance and contact one of the authorized BENRUBI service centres.
• Don’t put the appliance near curtains, under shelves or cupboards, or near anything that might be damaged by the escaping steam.
• Don’t cover the appliance or put anything on top of it during use.
• The appliance must have sufficient airflow. Leave more than 10 cm around the appliance.
  ATTENTION: During use, be careful and do not touch the air outlet, on the back of the appliance. Hot air comes out.
• Misuse of the air fryer can result in injury.
• Do not let the power cord of the appliance hang over the edge of a table or bench top or where a child could grab it. Do not let the power cord touch any hot surface.
• Never leave the power cable wrapped during use. Unwind it completely.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
  CAUTION: The surface of the appliance is hot during operation. Do not touch hot parts of the appliance during operation.
  CAUTION: Do not let the resistance of the appliance get wet.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.
• Do not use an extension power cord.
• This appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• Check the power cord periodically for possible damages. If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centres.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Use only original spare parts.
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/EU Low Voltage Directive, the 2011/65/EU RoHS Directive, the directive 2009/125/EC for eco-design and the EC regulation no. 1935/2004 on materials intended to contact with food.
  SAVE THESE INSTRUCTIONS

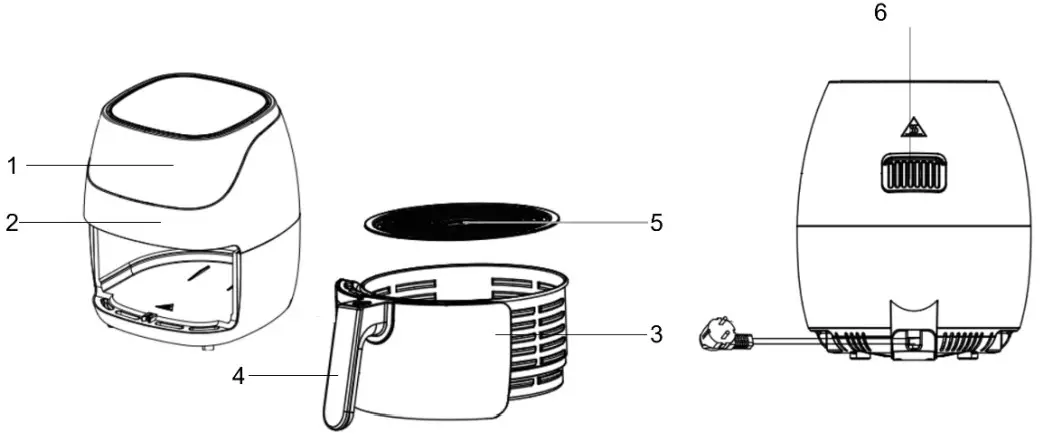

Parts of the Appliance

1. Control panel
2. Body
3. Detachable non-stick bucket 6L
4. Bucket handle
5. Detachable non-stick rack
6. Air outlet

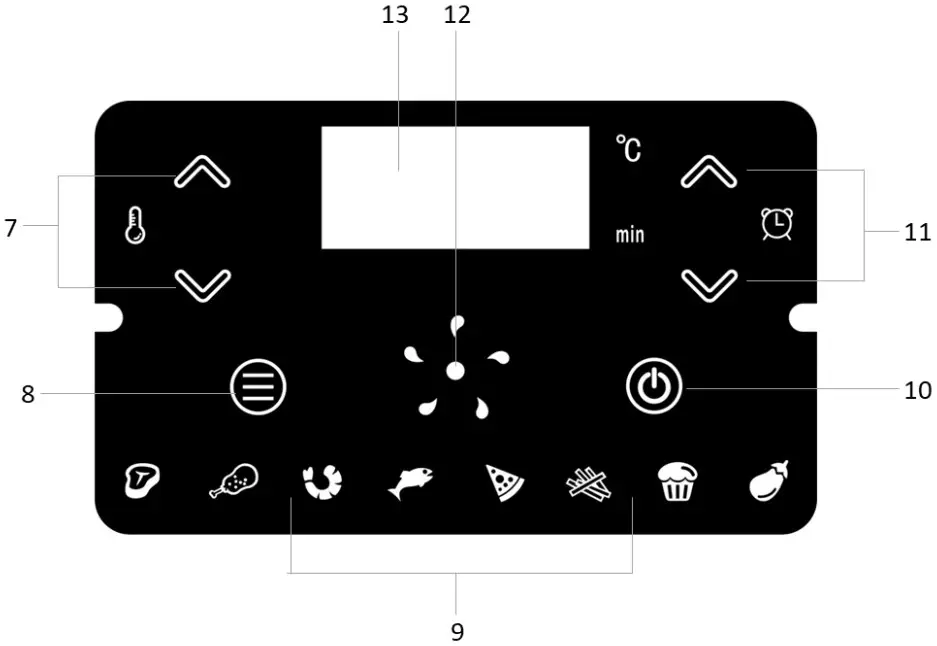

   Control panel
7. Temperature selection buttons “ ” / “ ”
8. Program selection button
9. Programs indication lights
10. Start/stop button
11. Time selection buttons “ ” / “ ”
12. Operation indication
13. Display screen

Programs and Preset Times and Temperatures

The following table lists the programs and the preset temperatures and times.
Use this table for reference only.

Temperature (°C)	180	180	180	180
Time (min)	12	25	12	18
Temperature range (°C)	80-200	80-200	80-200	80-200
Time range (min)	1-60	1-60	1-60	1-60
Temperature (°C)	160	200	145	180
Time (min)	17	18	55	12
Temperature range (°C)	80-200	80-200	80-200	80-200
Time range (min)	1-60	1-60	1-60	1-60

Before the First Use

• Make sure the appliance is switched off and unplugged before use.

NOTE: Smoke and odours may occur during first use.

1. Wash the parts of the appliance. See the “Care and Cleaning” section.
2. Place the appliance on a clean, flat and heat-resistant surface.
3. Place the rack (5) in bucket (3).
4. Insert the rack with the bucket in the reception without food until it snaps into place.
   Note: If the bucket with the basket does not fit well into the reception, the appliance will not turn on.
5. Plug in the appliance. All the lights on the control panel (1) will turn on briefly, then they turn off and the start button indication (10) will stay on.
6. Press the start button (10) for 3 seconds. A sound will be heard and all the lights on the control panel will turn on. On the display screen (13) “200º C” and “15min” will alternate.
7. Press the time setting button “ ” to set 10 minutes.
8. Press the start button (10) and the preheat will start. The program indicator lights (9) will turn off and the temperature (7), time (11), program selection (8) and start (10) indication lights will remain on. The operation indication (12) will turn on.
9. On the display screen (13) the selected time (10min) and the preset temperature (200°C) alternate.
10. When pre-heating is complete, the display will show “OFF”, all the indicator lights will turn off, the operation indication will stay on and the start button (10) will flash. The appliance will work for a few seconds.
11. It will beep 5 times and the device will stop and be ready for use.

Using the Appliance

• Make sure the appliance is switched off and unplugged before use.
• It is recommended to preheat the appliance for 5 minutes without food before cooking.

1. Wash the parts of the appliance. See the “Care and Cleaning” section.
2. Place the appliance on a clean, flat and heat-resistant surface.
3. Place rack (5) in bucket (3).
   Note: Do not use the appliance without the detachable rack.
4. Place the food on the rack (5) and insert the bucket in the reception until it snaps into place.
   Note: Make sure the food in the pot does not exceed the “MAX” indication.
   Note: If the bucket with the rack does not fit well into the air fryer cavity, the appliance will not turn on.
5. Plug in the appliance. All the lights on the control panel (1) will turn on briefly, then they turn off and the start button indication (10) will stay on.
6. Press the start button (10) for 3 seconds. A sound will be heard and all the lights on the control panel will turn on. On the display screen (13) “200º C” and “15min” will alternate.
7. Press the program selection button “ ” (8) successively until the corresponding indication of the selected program (9) turns on (see section “Programs & preset times & temperatures”).
8. The preset temperature and time of the selected program will alternate on the display screen (13).
9. Press the temperature setting buttons (7) consequently to set the temperature of your choice.
10. Press the time setting buttons (11) consequently to set the time of your choice.
11. Press the start button (10) to start the program. The program indicator lights (9) will turn off and the light of the program you have selected will remain on. The temperature (7), time (11), program selection (8) and start (10) indication lights will remain on. The operation indication (12) will turn on.
12. On the display screen (13) the selected time and temperature alternate.
    Note: During cooking, it is recommended to mix the food in the bucket for best results: – remove the bucket (3) and mix with a spoon. Then place the bucket back into place to continue the program you have selected.
    Note: Your settings will be retained for approximately 10 minutes after you remove the bucket.
13. When the selected program is complete, the display will show “OFF”, all the indicator lights will turn off, the operation indication will stay on and the start button (10) will flash. The appliance will work for a few seconds.
    Note: If you want to stop the program before the selected time, press for 3 seconds the start/stop button (10)
14. It will beep 5 times and the appliance will stop. The start button (10) will remain on.
15. Carefully remove the bucket from the reception.
16. Serve using wooden or plastic tongs.

Note: Before serving, check that the food has been cooked. If it takes extra time to cook, repeat the process by adjusting the time and temperature. Cooking time depends on the density, thickness and humidity of the food.

Notes:

• Always hold the bucket (3) by the handle (4).
• When removing the basket, be careful as steam may escape.
• Do not cover the device or place anything on it during use.
• Do not fill the basket with oil or any other liquid.

Tips

• Add 1-2 tablespoons of oil (depending on the amount) and stir before cooking.
• Smaller ingredients usually require less cooking time than larger ingredients.
• To ensure uniform cooking, in the middle of the cooking time, it is recommended to mix the food in the frying basket during cooking.
• Snacks that are normally baked in the oven can also be cooked in the fryer.
• Cooking extremely fatty ingredients is not recommended.
• The ideal quantity for preparing crispy potatoes is 500-600 grams.
• Use the pre-made dough to make filling snacks quickly and easily. The pre-made dough also requires less preparation time than homemade dough.
• Place a baking tin or baking tray on the detachable rack if you want to bake a cake or quiche or if you want to fry brittle or stuffed ingredients.
• The appliance is suitable for heating food. To reheat your food, set the temperature to 150℃ for up to 10 minutes.

Table of Recommended Times and Temperatures

The table below is for reference only.

• Adjust the cooking time and temperature according to your preferences, quantity and size of food.
• It is recommended to stir the food during cooking for better circulation of hot air.

* Smaller ingredients usually require less cooking time than larger ingredients.

Care and Cleaning

• Before cleaning and storage, unplug the appliance and let it cool down.
• Always clean the appliance and accessories after each use.

Body:

• Wipe with a damp cloth, then dry.
• Never use highly corrosive or abstractive cleaning agents.
• Never use metal scouring pads for cleaning.

Detachable rack & bucket:

• Wash with warm soapy water and dry thoroughly.
• Never use highly corrosive or abstractive cleaning agents.
• Never use metal scouring pads for cleaning.
• It is recommended not to wash the parts in the dishwasher.

Technical Characteristics

Model: Air fryer DIGITAL IZ-8216 IZZY
Voltage: 220~240V
Frequency: 50/60Hz
Power: 1500W

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.
As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting a purchase receipt.
  If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is at the discretion of BENRUBI Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure to implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discolouration or scratches.
• Burns due to exposure to heat or flame.
• Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:
(NEW) H. BENRUBI & FILS SA
27 Aghiou Thoma str, GR15124, Maroussi – Athens,
Tel/Customer Support.: +30210 6156400
e-mail: [email protected] FOR FURTHER INFORMATION:
(NEW) H. BENRUBI & FILS S.A.
27 Aghiou Thoma str. GR 15124, Maroussi-Athens
Tel: +302106156400, Fax: +302106199316
e-mail: [email protected]
