8263509 Gas Fryers
FRYMASTER DEAN 8700 LINE AVENUE, SHREVEPORT, LA 71106
Product Information

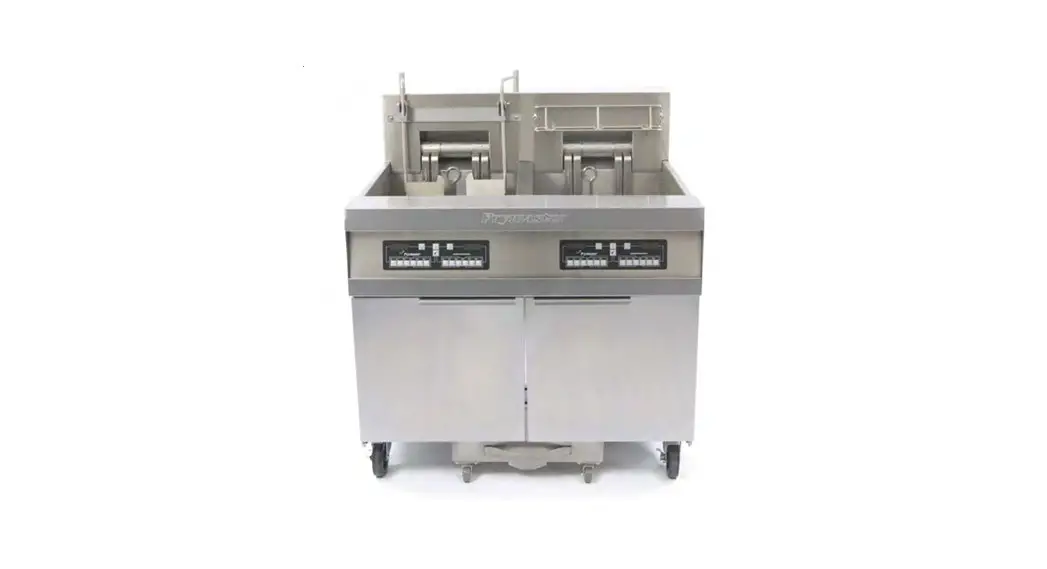

The Frymaster Dean 8700 is a line of gas fryers that come
equipped with a basket lift kit. The basket lift kit (part numbers
8263509, 8263560, and 8263561) is suitable for OCF/H55/FilterQuick
Gas models. The kit includes various components such as a basket
lift assembly, guide, cable assembly, harness, arm, cover, nut,
screw, and wiring diagram. Please note that not all parts are
included in each kit.
Product Usage Instructions
- Disconnect power and gas from the fryer.
- Remove the fryer from the hood to gain access to the rear of
the fryer. - On the rear of the fryer, remove the four (4) side screws
towards the outer edge of the fryer. - Using the screws removed from the previous step, insert the
screws into the holes in the center of the fryer back and thread
the holes if not already threaded. Remove the screws after
threading. - Using the screws removed from step 3 and supplied screws,
attach the basket lift assembly. - Insert the supplied cable assembly through the opening in the
bottom of the basket lift assembly. Connect the male Molex
connector to the female Molex connector. - Attach the conduit plate to the bottom of the basket lift
assembly using four supplied screws. - Route the other end of the conduit harness along the inside of
the fryer to the front of the fryer. - Disconnect the 2-pin blower power connection.
- Remove the blower by removing the four 7/16 nuts (2-left and
2-right). - On the rear of the control box are two connectors that attach
to the rear of the interface board. The photo is viewed from inside
from the rear of the fryer. Note that Pin 1 is on the lower right
corner. From the front of the fryer, it would be on the lower
left. - Reach up through the opening where the blower was removed and
locate the plugs shown in Figure 9. - Disconnect the plug located to the left of where your hand is
located and gently lower, ensuring that no pins are pulled from the
plug. - Disconnect the plugs from the front of the fryer.
FRYMASTER DEAN 8700 LINE AVENUE, SHREVEPORT, LA 71106
Instruction Sheet
318-865-1711 800-551-8633 WWW.FRYMASTER.COM EMAIL: [email protected]
Subject: 8263509, 8263560 & 8263561 Basket Lift
Installation Instructions (Gas)
Models affected: OCF/H55/FilterQuick Gas
Follow these instructions to install
Fryers
the basket lift kit.
In This Kit
1. Disconnect power and gas from the fryer.
2. Remove the fryer from the hood to gain access to the rear of the fryer.
3. On the rear of the fryer, remove the four (4) side screws towards the outer edge of the fryer (see Figure 1).
4. Using the screws removed from previous step, insert the screws into the holes in the center of the fryer back (see Figure 2) and thread the holes, if not already threaded. Remove the screws after threading.
5. Using the screws removed from step 3 and supplied screws, attach the basket lift assembly (see Figure
Part #
Description
1085394 B/L ASSEMBLY, FPGL MODULAR
1084142 B/L ASSEMBLY, H55 MODULAR 120V
130154838 B/L ASSEMBLY, H55 MODULAR 208-240V
1086946 GUIDE, BASKET LIFT ARM
1087490 CABLE ASSY
1083454 HARNESS, GAS OCF B/L INTERFACE
8072000 HARNESS, H50/52 BL
8238842 ARM W/A BL LEFT FPGL
8238843 ARM W/A BL RIGHT FPGL
8238458 ARM W/A BL LEFT H55
8238459 ARM W/A BL RIGHT H55
8050518 DIAGRAM, WIRING BL 100/120V
2601474 COVER, BASKET LIFT HANGER
2401707 COVER FPRE/H55 MODULAR BASKET LIFT
2601846 COVER, FPGL MODULAR BASKETLIFT
2401693 SHIELD, REAR MODULAR B/L COVER
8090047 NUT, CAP 1/4-20 HI-PROFILE SS
8090364 SCREW, #8 X 5/8″ HX
8090361 SCREW, DRILL #8 X ½” HX
8091101 SCREW, #12X1/2 HX WSHR SL HD Z
8090417 NUT, FLNG 1/4-20 SERR
8140015 TY WRAP
8051964 DIAGRAM, WRNG MOD. B/L 208-250V
8197536 INSTRUCTIONS
NOTE: Not all parts are included in each kit.
Qty
1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 4 14 6 4 4 6 1 1
3). If any of the holes
don’t line up, use the
supplied self-tapping Figure 1
screws.
6. Insert the supplied cable assembly
(1087490) through the opening in
the bottom of the basket lift
assembly. Connect the male Molex
Figure 4
connector to the female Molex
connector (see Figure 4).
Figure 2
Figure 3
*8197536*
Document Number: FRY_INST_8197536 03/2023 1 of 6
7. Attach the conduit plate to the bottom of the basket lift assembly using 4 supplied screws (see
Figure 5).
8. Route
the
other
end of
the
conduit
harness, Figure 5
along
Figure 6
the inside of the fryer, to the
front of the fryer (see Figure 6).
Figure 7
Figure 8
9. Disconnect 2-pin blower
power connection (see
Figure 7).
10. Remove the blower by
removing the four (4) 7/16″
nuts (2-left and 2-right) (see
Figure 8). 11. On the rear of the control Figure 9
Figure 10
box are two (2) connectors that attach to the rear of the interface board (see
Figure 9). The photo is viewed from inside from the rear of the fryer. *Note the Pin 1 is on the lower
right corner. From the front of the fryer it would be on lower left.
12. Reach up through opening where blower was removed and locate the plugs shown above in Figure
9.
13. Disconnect the plug located to the left of where
your hand is located and gently lower ensuring
that no pins are pulled from the plug (see Figure
10). 14. Disconnect the plugs from the front of the
interface board and remove and replace the interface board with the new interface board
K1 Basket Lift Relay
K4 Basket Lift Relay
included the kit.
15. Remove the heat relay(s) from the old interface board and attach to the two bottom connectors (K2 and K3) on the new interface board (see Figure 10A).
K2 Heat and Blower Relay
K3 Heat and Blower Relay
16. Attach the new basketlift relays included in the
kit to the two top connectors (K1 and K4) of the Figure 10A new interface board (see Figure 10A).
2 of 6 Document Number: FRY_INST_8197536 03/2023
17. Reattach all plugs on the front of the interface board, removed in step 14, to the new interface board.
18. Locate new 1083454 harness and
insert the red wire into pin 7 and
the black wire into pin 10 (see
Figure 11) of the harness
disconnected in step 13. (Note
Pin 1 is indicated by the ridge in
the corner (see Figures 12 and 13)). Reference drawing on last
Figure 12
page of these instructions.
19. Gently tug on the two (2) wires
inserted into the connector in the previous step to ensure the
Figure 11
pins are fully locked into the connector 20. Reconnect the connector disconnected in step 13 to
the rear of the control box. 21. Disconnect the plug located to the right of where
1 4 7 10 2 5 8 11 3 6 9 12
Figure 14
your hand is located and gently lower ensuring that no pins are pulled from the plug (see Figure 14). 22. Insert the blue wire from the harness in step 18, to
Figure 13 Viewed from the Rear
pin 7 and orange wire into pin 10 (see Figure 15) of
the harness disconnected in step 21. (Note Pin 1
is indicated by the ridge in the corner (see Figures
12 and 13)). Reference drawing on last page of
these instructions.
23. Gently tug on the two (2) wires inserted into the
connector in the previous step to ensure the pins
are fully locked into the connector.
24. Reconnect the connector disconnected in step 21
to the rear of the control box.
25. Remove the controller bezel (see Figure 16). 26. Remove the two screws, attaching the controller, Figure 15
associated with the basket lift (see Figure 17).
Figure 16
Figure 17
3 of 6 Document Number: FRY_INST_8197536 03/2023
27. Route the green
ground wire and the
white wire from the
new harness from step
18 up through the
grommet in the
bottom of the control
box (see Figure 18).
28. Locate the T2 terminal
Figure 19
block with the wire
wires, in the control Figure 18
box. Press down on the
lock of an empty terminal and
insert the white wire (see Figure
19) and release the lock. Ensure
the wire is locked into the
terminal block.
29. Remove a screw from the inside of the control box. Insert the Figure 20
screw into the ground wire eye connector and reattach the screw to Figure 21
the side of the control box (see Figure 20).
30. Connect the new 1083454 harness female connector to the male connector of the 1087490 harness
in step 8, that was routed to the front from the basket lift (see Figure 21).
31. Use zip ties to secure wires out of the way.
32. Reattach the controller and bezel removed in steps 25 and 26.
4 of 6 Document Number: FRY_INST_8197536 03/2023
34. Reattach
the
blower and blower
power connection
removed in steps 9 and 10.
Figure 24
35. Attach the
included wiring diagram to the
Figure 22
inside of the basketlift cover (see Figure Figure 23
22).
Figure 25
36. Slide the cover over the
basket lift arms (see Figure
23).
37. Attach 3 cabinet screws to
the two outer holes and the Figure 26 center hole, on the top of
Figure 27
the basketlift cover (see Figure 24).
38. Using supplied 8091101screws,
attach to the cover using the two
inner holes (see Figure 25).
39. Remove existing basket lift hanger
(see Figure 26) and discard. Slide
new basket lift bracket over the
existing studs (see Figure 27).
Figure 28
40. Attach the new arms into bracket
Figure 29
Figure 30
by inserting at a 45 degree angle and placing over the basket lift shaft (see Figures 28 and 29).
41. Insert the baskets into the basket lift arms (see Figure 30).
42. Reconnect power to the fryer.
43. Enable basketlift in vat setup of OCF and FilterQuick fryers. See IO manual for instructions.
44. Turn on fryer and test both sides of the basketlift, ensuring that both arms raise and lower when
starting a cook, associated with the basketlift side.
45. Ensure the fryer is repositioned under the hood.
5 of 6 Document Number: FRY_INST_8197536 03/2023
BLK GRN WHT RED ORG BLU
LINE (UP) RIGHT GROUND NEUTRAL LINE (DOWN) RIGHT LINE (UP) LEFT LINE (DOWN) LEFT
1087490 BASKET LIFT HARNESS
6 of 6 Document Number: FRY_INST_8197536 03/2023
LINE
LINE
LINE NEUTRAL GROUND LINE
(DOWN) (UP) (DOWN)
(UP)
LEFT LEFT RIGHT
RIGHT
REFERENCES TO LEFT AND RIGHT ARE FROM THE REAR OF THE FRYER
