TEC Air Flow Method Pressure Matching with Duct Blaster
INSTALLATION

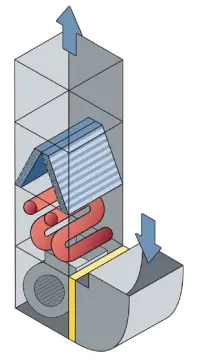

- Operate the fan in the speed used for heat or cooling.

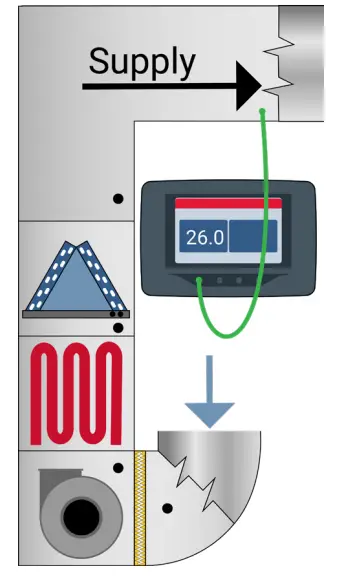

- Record the supply static pressure.

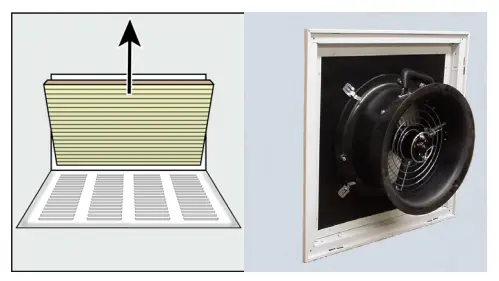

- Remove the filter and install duct blaster. Ensure there is no bypass around duct blaster.

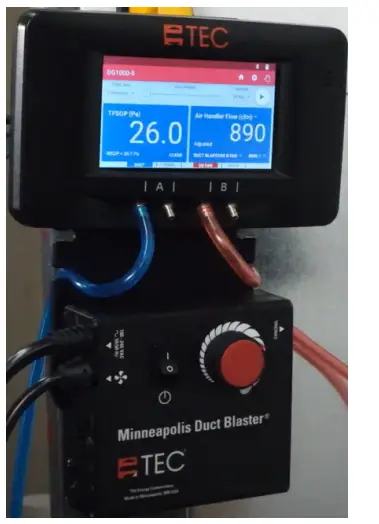

- Turn on the system and (if necessary) the Duct Blaster to match previous measured supply static. Record the flow through a two-channel manometer once pressure is matched.
