NOCTUA NA-IS1-14 Sx2 chromax.black
INSTALLATION MANUAL
NA-IS1-14 Chromax Black

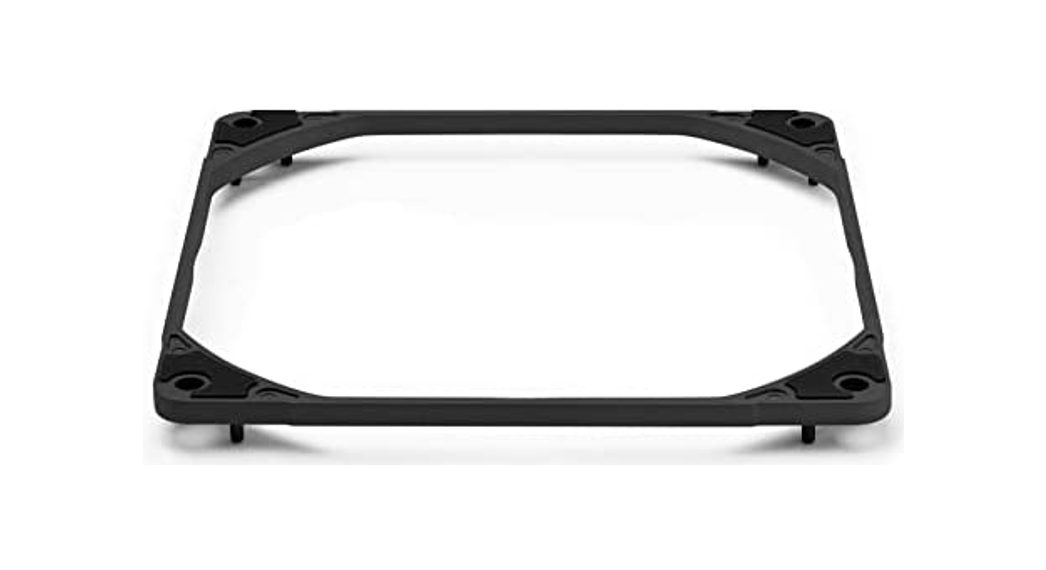

Designed to replace the fan’s stock NA-AVP1 anti-vibration pads, the NA-IS1-14 are compatible with all current square-frame Noctua 120x25mm fans and extremely straightforward to install:
For case fan applications, either the supplied self-tapping screws or the included NA-AV3 anti-vibration mounts can be used to sandwich the spacer between the fan and the case panel. For radiator mounting, both M3 and UNC 6-32 screws are supplied.
Included mounting parts:
2x NA-IS1-12 inlet spacers
 |  |

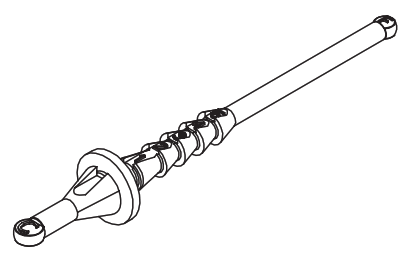

| 8x NA-AV3 anti-vibrations mounts | 8x NM-SFS4-BK long fan screws |
 |  |
| 8x NM-SFS5-BK radiator screws (M3) | 8x NM-SFS6-BK radiator screws (UNC) |

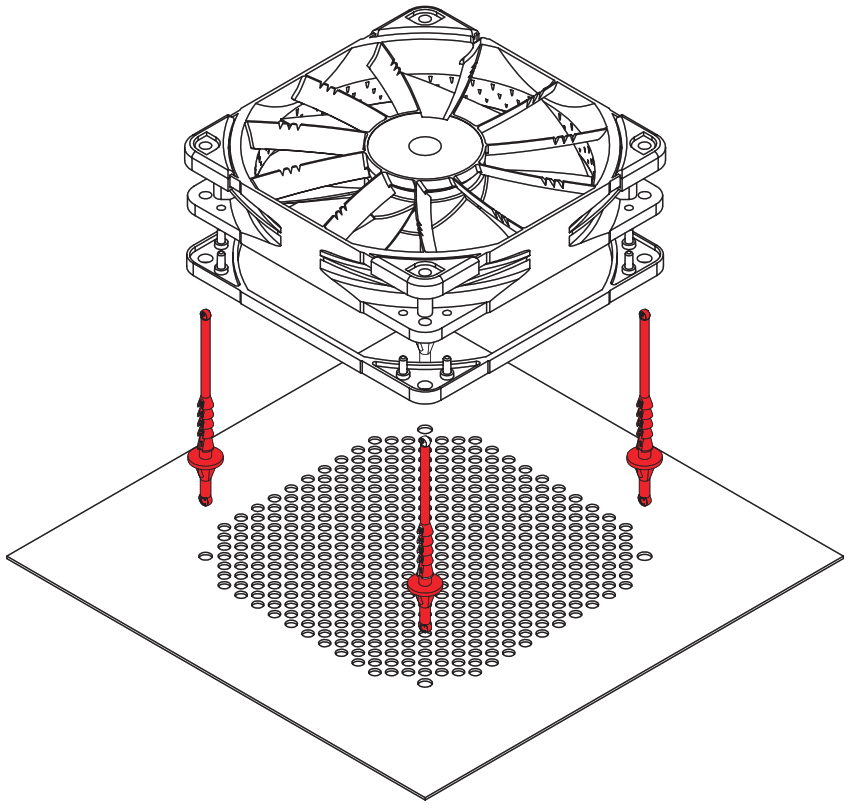

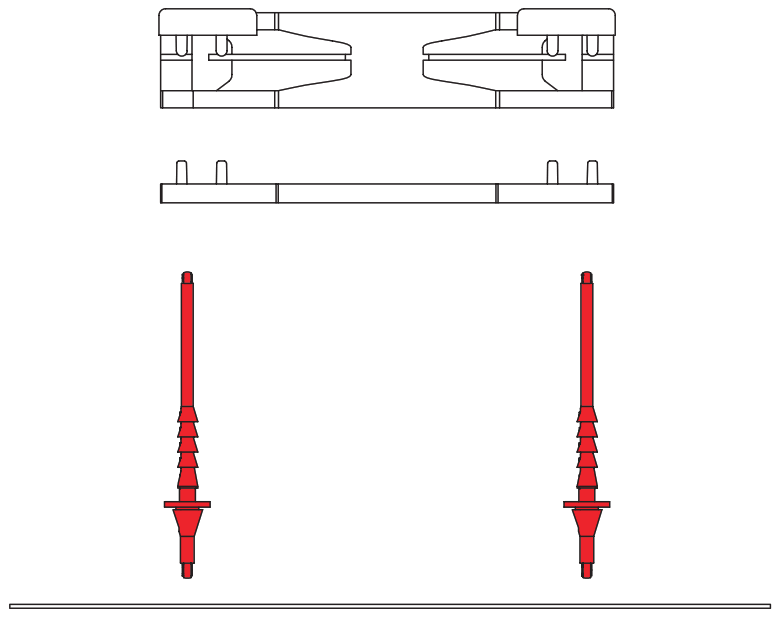

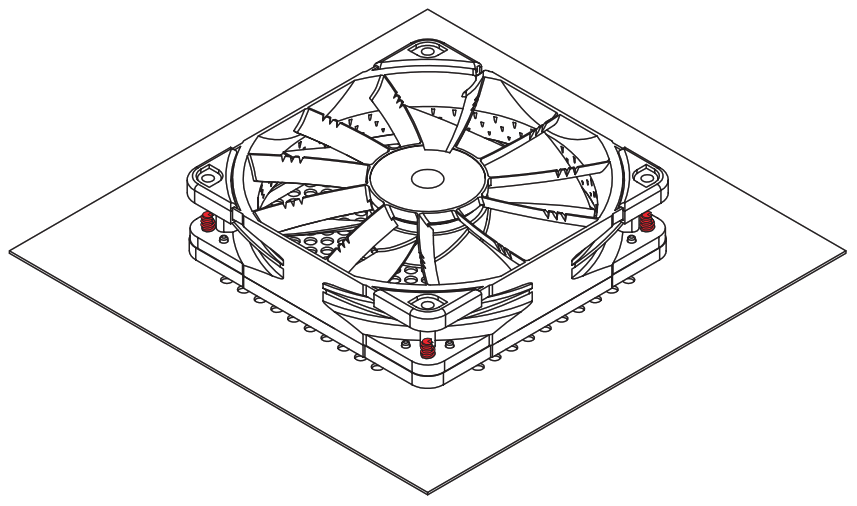

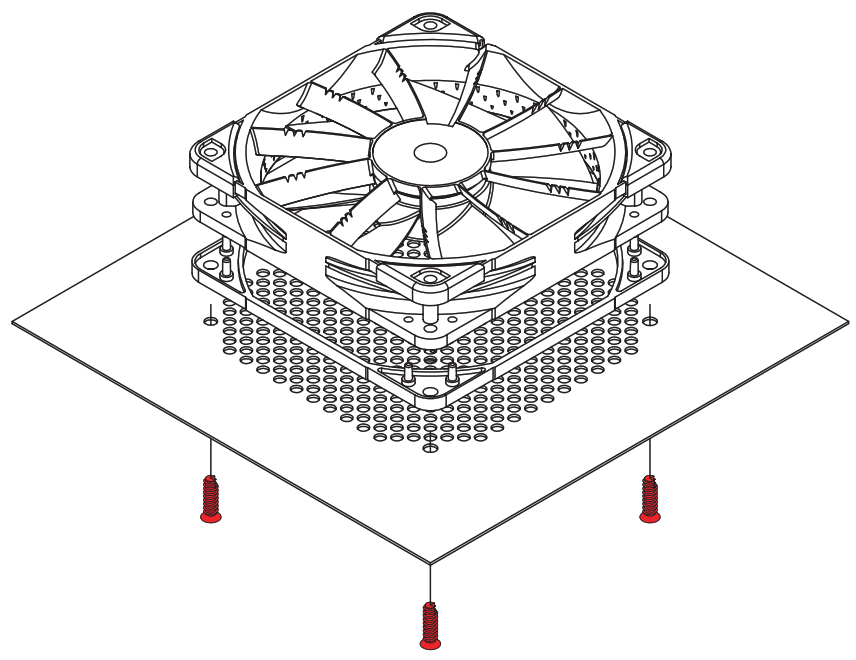

Case fan installation with NA-AV3
 |  |

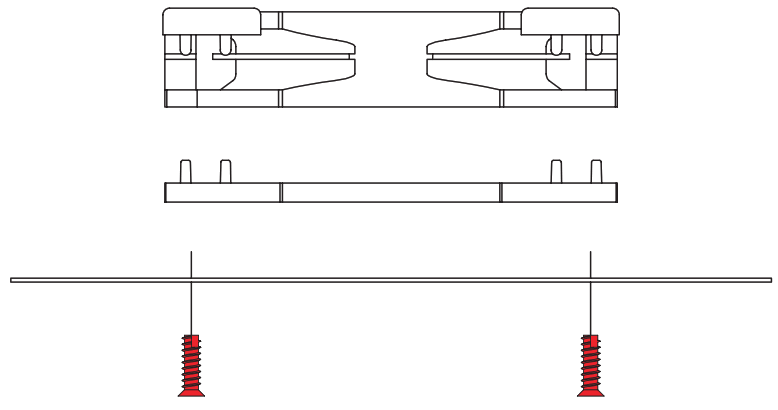

Case fan installation with screws
 |  |

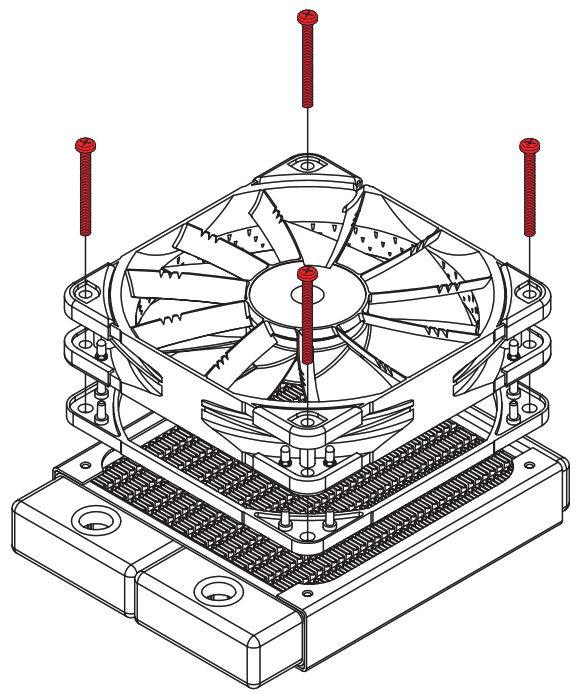

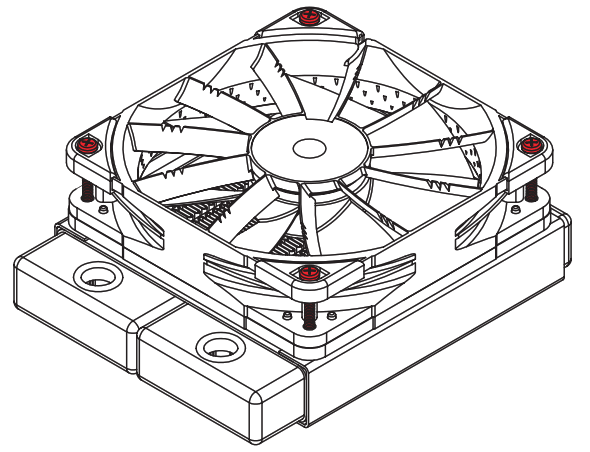

Radiator installation
 |  |
Caution

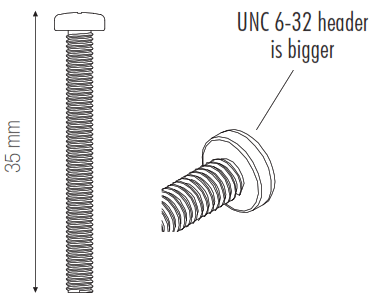

We supply both M3 thread (small head) and UNC 6-32 thread (bigger head) screws. Please make sure to select the correct screw type for your radiator (refer to manufacturer specifications or contact manufacturer)!
M3
UNC
! Warranty, support and FAQs
Even with high-grade products and strict quality control, the possibility of defects cannot be eliminated entirely. Therefore, we aim at providing the highest possible level of reliability and convenience by offering a warranty period of 6 years and direct, fast and straightforward RMA service.
Should you encounter any problems with your NA-IS1-14 Sx2, please don’t hesitate to contact our support team at [email protected].
Please also consult the FAQ section on our website: www.noctua.at/faqs
http://mobile.noctua.at/manuals/accessories/NA-IS1-14_Sx2/index.php
Scan this code to display multilingual manuals on your phone.
