Jbl Go 2 Ultra Compact Speaker User Manual

Jbl Go 2 Ultra Compact Speaker User Manual

JBL-logo

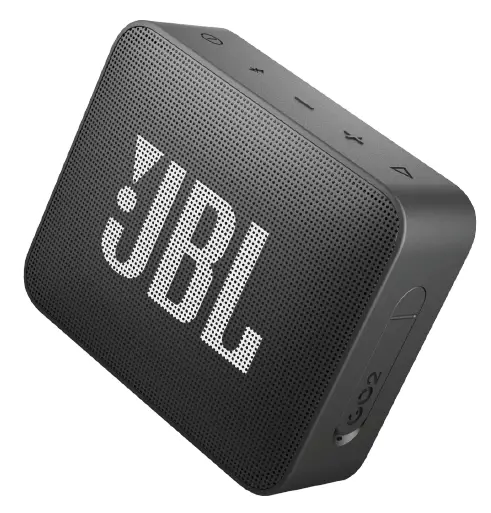

JBL Go 2 ultra compact speaker

JBL-Go 2-ultra-compact-speaker

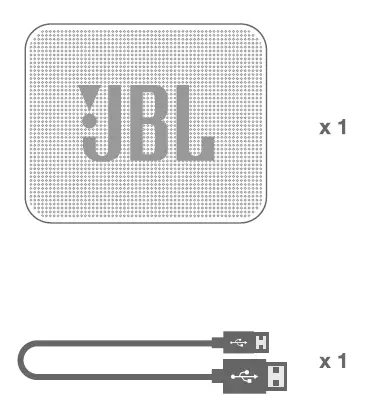

What’s in the boxJBL-Go 2-ultra-compact-speaker-fig-1

INSTALLATION

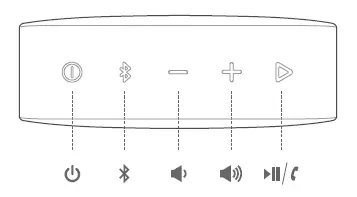

  1. ButtonsJBL-Go 2-ultra-compact-speaker-fig-2

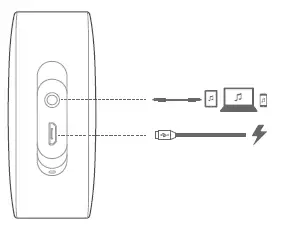

  2. Connections JBL-Go 2-ultra-compact-speaker-fig-3
  3. Bluetooth®

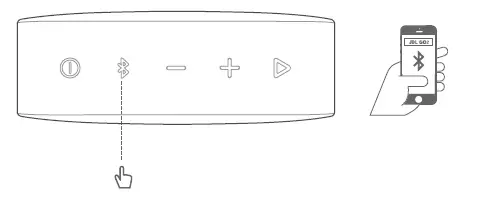

    1. Bluetooth connectionJBL-Go 2-ultra-compact-speaker-fig-4

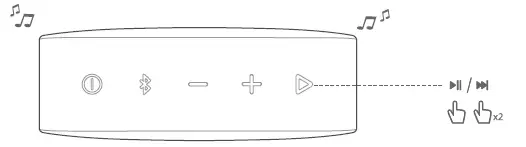

    2. Music Control JBL-Go 2-ultra-compact-speaker-fig-5

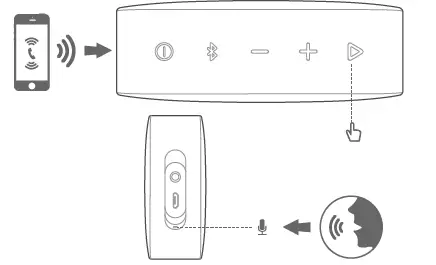

  4. Speaker PhoenJBL-Go 2-ultra-compact-speaker-fig-6

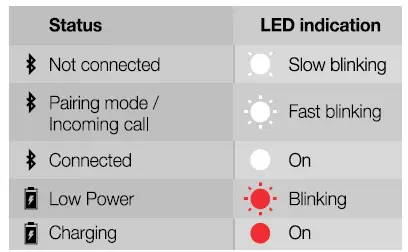

  5. LED indicationJBL-Go 2-ultra-compact-speaker-fig-7

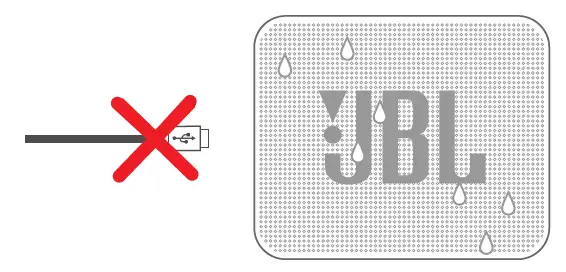

  6. WarningJBL-Go 2-ultra-compact-speaker-fig-8

JBL GO 2 is IPX7 waterproof.
IMPORTANT: To ensure that the JBL GO 2 is waterproof, please remove all cable connections and tightly dose the cap: exposing the JBL GO 2 to liquids without doing so may result in permanent damage to the speaker. And do not expose JBL GO 2 to water while charging, a.s doing so may result in permanent damage to the speaker or source.
IPX7 waterproof Is defined as the speaker can be immersed In water up to 1m for up to 30 minutes.
If the speaker will not be used for a long period of time, please recharge the battery at least once f!N8f’/ 3 months. Battery life will vary due to usage patterns and environmental conditions.

Specifications

  • BkJeloothversion:4.1
  • Bk.Jetooth Profl19: A2DP vl .2 AVRCP v1 .5 HFP
    v1.5,HSPv1.2
  • Transducer:1×40!Tm
  • Rated power: 3.1W RMS
  • Frequm::yresponse:100Hz.-2Cld-lz
  • Signal-to-noiseratio:80dB
  • Battery type; Uthk.im-00 potty,ner (3.7V, 730nAh)
  • Battery charge time: 2.5Hoo-s
  • Musk: playilg tme: 5Holn
  • Bluetooth transmitter power: 0-4cBm
  • BU91oothtran.sitter frequency range:2402-2480v1Hz
  • BUlloothtransmlttor medication: GFS!v!X:lPSt<JBDPSK
  • Dimensions:71.2×86.0x31.6(mm)
  • Weig,1:184 g

The Bluetooth- word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
