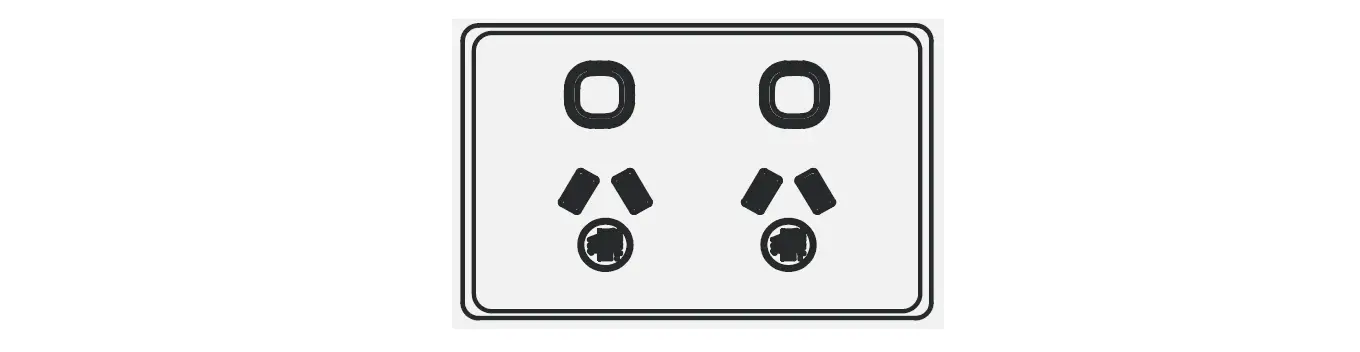

Kasta Ke2pphb Powerpoint Double Horizontal Instruction Manual

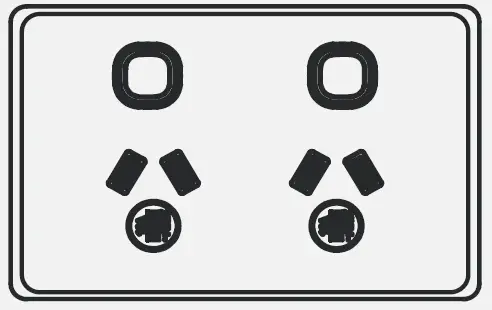

KASTA KE2PPHB Powerpoint Double Horizontal Instruction

APP Installation

Visit www.kasta.com.au or your app store to download the free KASTA app. iOS: requires iOS 9.0 or later. Android: requires Android 4.4 or later. Devices must support Bluetooth 4.0

Important Safety Information

• This product must be installed by a licensed electrician in accordance with all the requirements of AS/NZS 3000 (current edition) and other relevant Standards and Regulations.
• Electricity MUST be disconnected prior to installation. Failure to do so may result in serious injury and or loss of life.
• Indoor use only. Not suitable for damp or explosive environments.
• Complies to Australian Standards: AS/NZS 3112; AS/NZS 60669.2.1; AS/NZS 4268 and AS/NZS CISPR 15.
• No user serviceable parts inside.
• It is strongly recommended to have a surge protection device installed at the main switchboard. Products that are damaged by power surges are not covered by warranty.

FEATURES

• Control and monitor appliances with a standard 2 or 3-pin plug.
• 2x 10A individually switched power outlets.
• Simple 3 wire connection – A, N, E.
• Pair with KASTA remote switch devices for control (up to 8x maximum).
• Smart functions per outlet programmed via phone/tablet with the KASTA app. This includes schedules, timers, scenes and groups.
• Child Lock function per outlet (lock outlet in off state) activated from the button or the KASTA app.
• Energy monitoring function per outlet viewed from the KASTA app.
• Built in overvoltage, overcurrent and overtemperature protection.

FUNCTION SETUP

• ON/OFF SWITCH: 1 CLICK
  Turns load on or off. Button LED indicator is blue when on.
• CHILD LOCK: 4 SECOND LONG PRESS (WHEN OUTLET IS OFF)
  Button LED indicator changes to green if successful after long press (four seconds).
  Long press (four seconds) again to deactivate.
• DELAY TO OFF: 3 CLICKS
  Load automatocally turns off after set time selected via the app.
  LED indicator will flash 3 times if successful. 1 click to cancel,
  LED indicator will flash once.
• FACTORY RESET: 9 CLICKS
  Restores both outlets back to factory setttings.
  If successful, light and LED indicator light will pulse the number of times that the button was clicked, indicating function.

TECHNICAL SPECIFICATIONS

• Supply: 220-250V a.c. 50Hz
• Operating Temp: -20ºc to 40ºc
• Maximum Load: 2 x 10A (2400W)

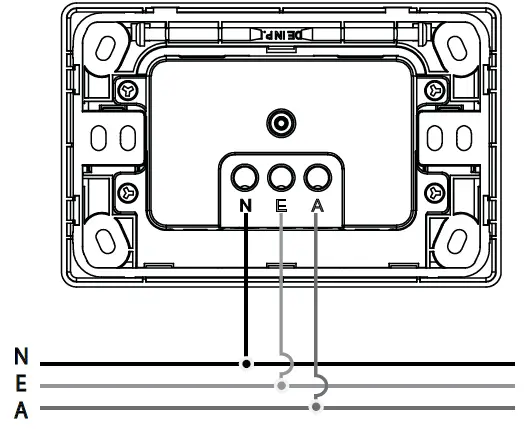

CONNECTION DIAGRAM
