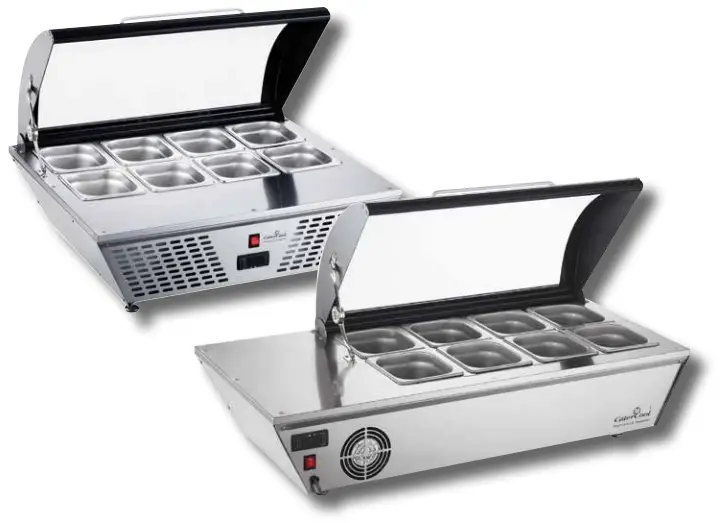

CaterCool *712.020 – *712.024 Refrigerated Counter Instruction Manual

Thank you for choosing and purchasing our product. Please carefully read the operation instructions before use for a correct application and satisfactory effect.

GENERAL

1. Top brand fully enclosed compressor is used on the desk-top refrigerator. The refrigerant R134a or R600a is of an environmentally friendly agent. It features a rational configuration of refrigeration system with blower forced air cooling. The temperature is quite even inside the refrigerator.
2. Double hollow transparent glasses are used on door and body. It features an artistic and elegant appearance, perfect perspective and easy access.
3. It has a wide application in department store and house as well as the meeting room and sitting room

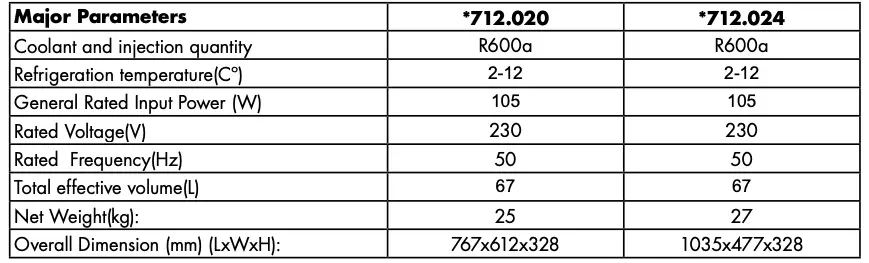

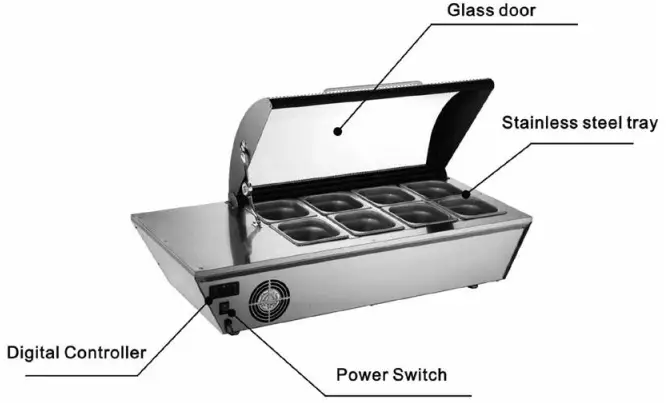

STRUCTURE AND PARTS

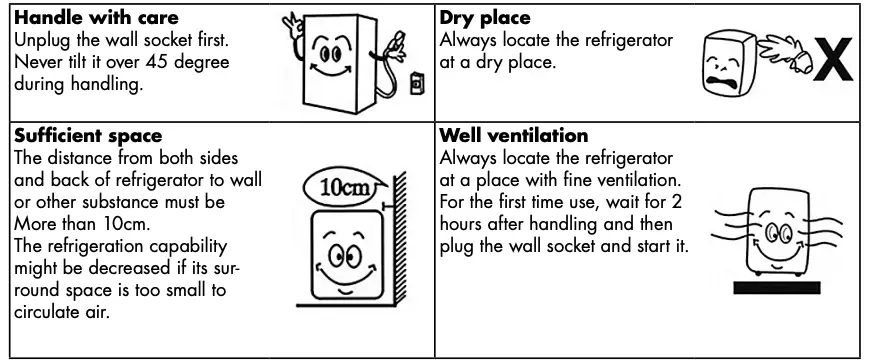

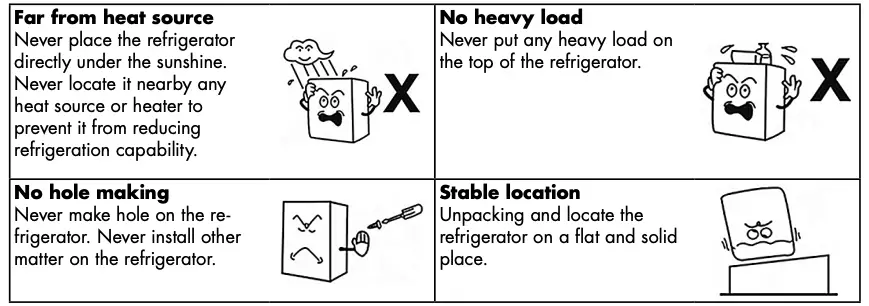

HANDLE AND ERECTION

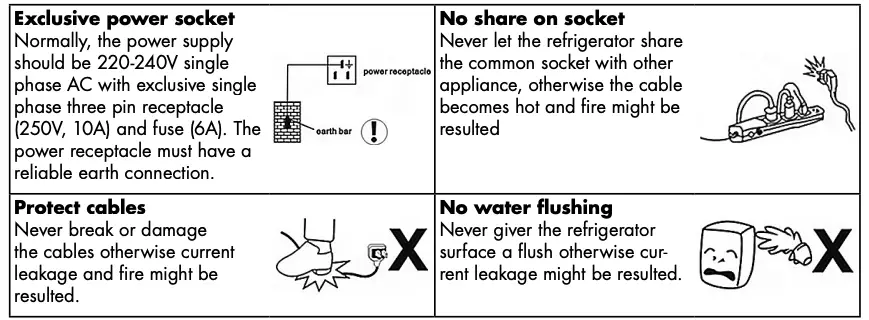

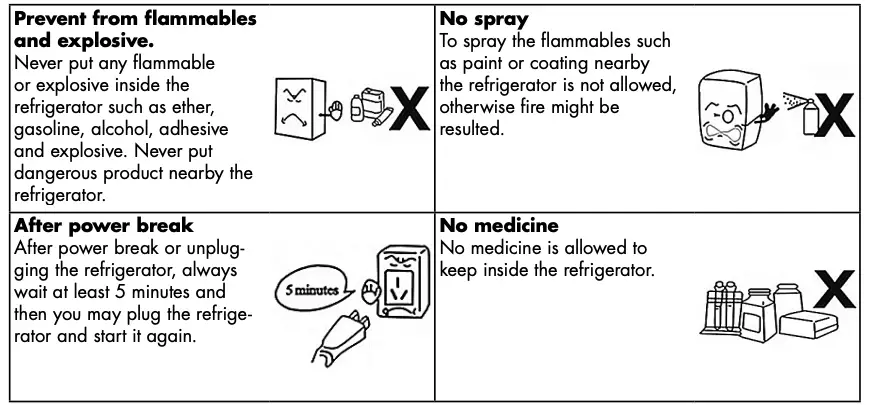

PREPARATION AND POWER SUPPLY

USE AND CAUTION

1. Before use:

Plug the refrigerator on 220-240V-exclusive socket.
After the refrigerator running, put hand on the air suction to confirm it is sufficient cold. Then you may put food inside the cold box.

2. Digital temperature controller.

It is a mini-sized and integrated intelligent controller and applicable to the compressor of one Hp. The main functions are: Temperature Display, Temperature Control, Manual, automatic defrost by turning off, Illumination Control, Value Storing, Self Testing, Parameter Locking

FRONT PANEL OPERATION

1. Set temperature
   Press button. the set temperature is displayed.
   Press or button to modify and store the displayed value.
   Press button to exit the adjustment and display the cold-room temperature.
2. If no more button is pressed within 10 seconds, the cold-room temperature will be displayed.
3. Illumination: Press button. it lights; Press again, it stops.
   Manual start/stop defrost: Press button and hold for 6 seconds to defrost or slop defrost.
4. Refrigerant LED: During refrigeration, the LED is on; When the cold room temp. is constant, the LED is off; During the delay start, the LED flashes.
5. Defrost LED: during defrosting, the LED is on; When is stops defrosting, the LED is off, During the delay display of defrost. the LED flashes.

3. Cautions

Shorten the door open time and reduce open frequency is good to keep a cold temperature inside the refrigerator.
Never block the air suction and out/et. Keep air circulation and refrigeration capability.
Do not make food congested as it will influence the cooling effect.
Adjust the rack height for proper food storage.
Cool the hot food down to room temperature before you put it into the refrigerator.
Try to reduce the open times and keep refrigerator inside cold in case the power is cut off.
Only skilled service man is allowed to repair the damaged power cable with special tools.
Never touch compressor to avoid from scald.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The operation manual are not suitable for the persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices of other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

ADDITIONAL WARNING
Caution: risk of fire. The height of the triangle in the symbol shall be at least 15 mm.

MAINTENANCE

1. Notice
   Often keep the refrigerator clean and periodical maintenance is necessary.
   Always unplug the socket before maintenance.
   Never use damaged plug or loose socket to prevent from electric shock or short circuit.
   Never flush the refrigerator.
   Never use alkali detergent, soap, gasoline, acetone or brush.
2. Clean outside
   Dip soft cloth in neutral detergent (tableware detergent) to clean the outside of the refrigerator and then wipe it with dry soft cloth.
3. Clean inside
   Take rack out for cleaning with water.
   Use soft cloth to wipe the box.
4. Shut down refrigerator for a long time
   Take all food out and unplug the wall socket.
   Clean both inside and outside of the refrigerator thoroughly and open the door for sufficient dry.
   The glass breaks easily. Keep the glass far from children.
5. Replacement of lamp in the light box
   If the LED lamp is damaged, it must be replaced by the manufacturer, its service agent.

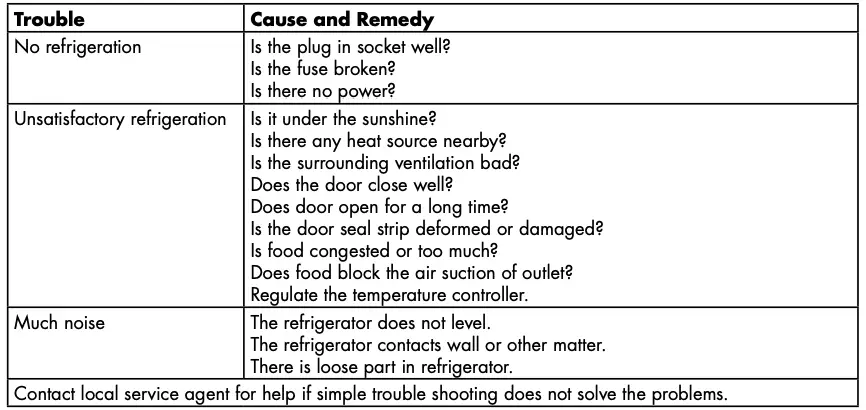

TROUBLE SHOOTING

NOTE

Following phenomena are not troubles:

The murmur of water is heard when the refrigerator is working. It is a normal phenomenon as the coolant is circulating in the system.
In wet season, condensation might be found on the outside of the refrigerator. It is not a trouble, which is caused by high humidity. Simply use cloth to wipe it.

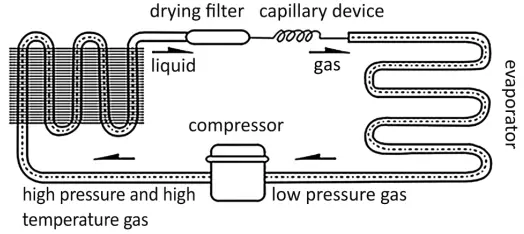

PRINCIPLE OF REFRIGERATION SYSTEM END ELECTRIC CIRCUIT DIAGRAM

The principle of compression refrigeration consists of “compression”, “condensation”, “throttling” and “vaporization”.
The compression is undertaken by compressor, the condensation is completed by condenser, the throttling valve is executed by capillary and the vaporization is implemented by evaporator.
When the coolant is circulating in the closed refrigeration system, the compressor sucks coolant, which has absorbs heat in evaporator, the coolant becomes a high pressure and high temperature gas.
In condenser, it dissipates heat in air, while the coolant is re-liquefied and throttled in capillary and then enters into evaporator with low pressure.
The liquefied coolant quickly boils and vaporizes into gas when the pressure suddenly drops.
Meanwhile, it absorbs heat inside the refrigerator.
And the compressor sucks the low pressure and low temperature gaseous coolant,
It is circulating in this way up to realization of intended refrigeration.

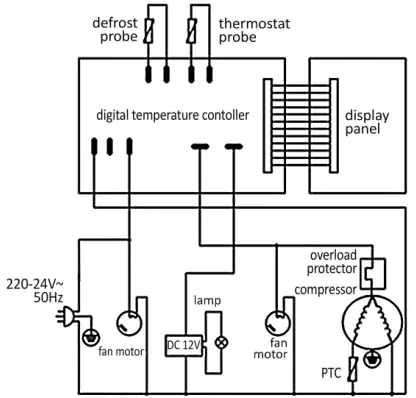

CIRCUIT DIAGRAM

NOTE

1. The electric circuit diagram and parameters on the product nameplate are final ones if they have been changed.
2. The design might be improved without notice.

Meaning of crossed out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.
