Wisenet Ard-1610 Digital Video Recorder User Guide

Digital Video Recorder
User Guide
ARD-1610
ARD-810
ARD-410

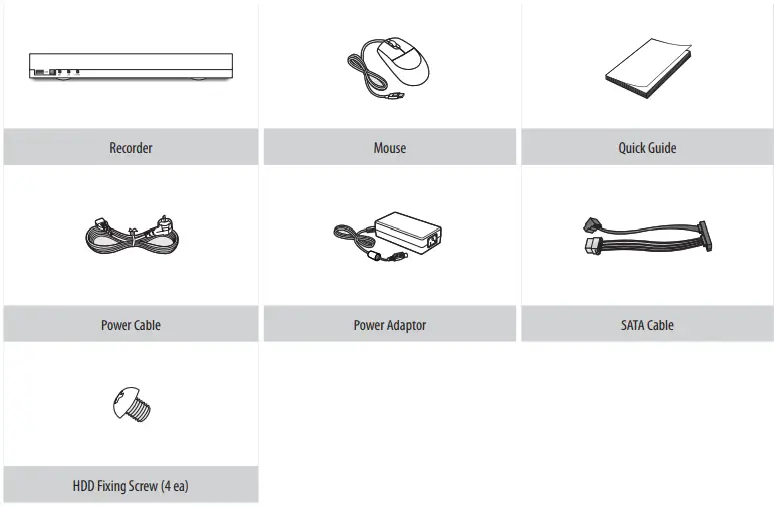

Package Contents

• The appearance of the components may differ from the image shown.
• Accessory category and quantity may differ depending on sales region.
• For some regions, HDD is not pre-installed. HDD Fixing Screw, SATA Cable quantity vary depending on the model.

ARD-1610

ARD-810/ARD-410

Installing the HDD

• If you are adding a new or previously used HDD to this product in addition to the HDD(s) originally installed, format the new HDD manually in the set before use.
• If you wish to replace or add an HDD, contact your dealer or our customer service first.

ARD-1610

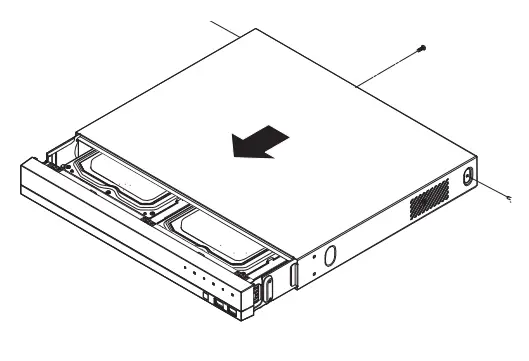

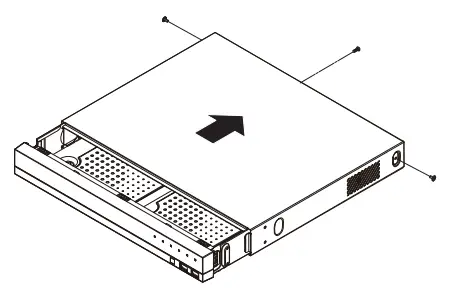

1. Loosen the screws on the left/right sides and back and slide the cover back to remove it.

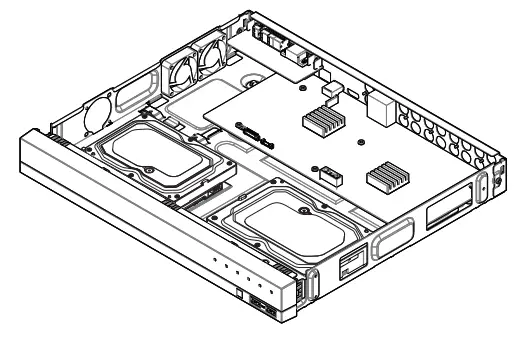

2. Connect the SATA/power cable of the HDD to the connector on the motherboard.

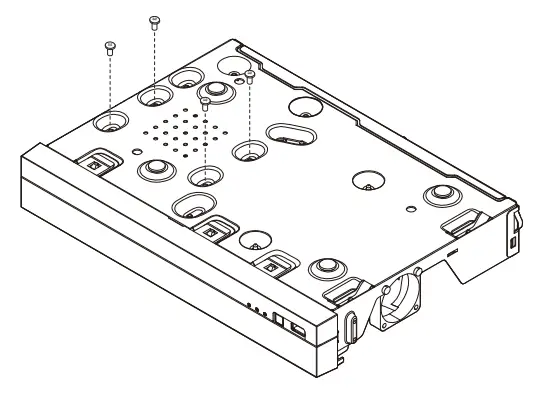

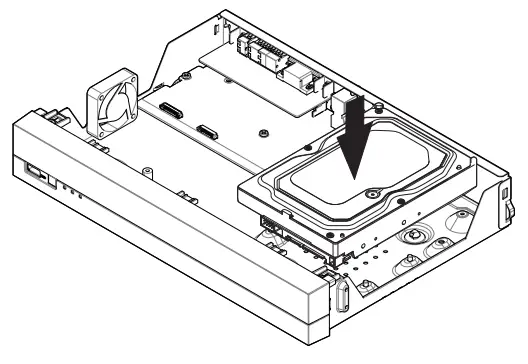

3. Fix the HDD to the bottom of the recorder with screws.

4. Check if there is any problem with the connection terminal and wiring inside the product.

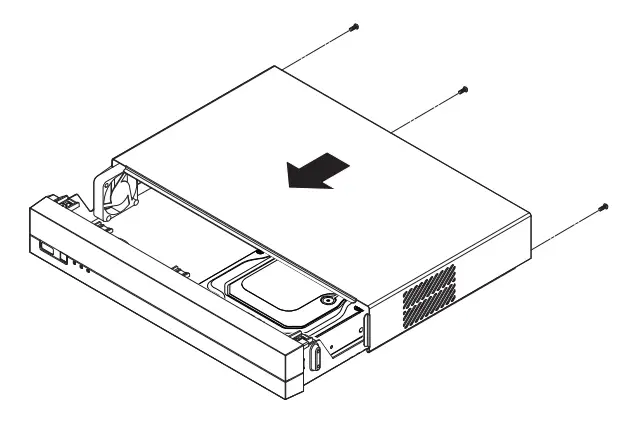

5. Close the cover and secure it with screws.


ARD-810/ARD-410

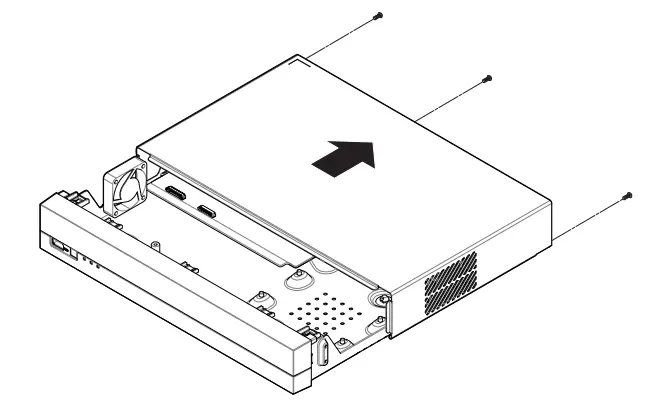

1. Loosen the screws on the back and slide the cover back to remove it.

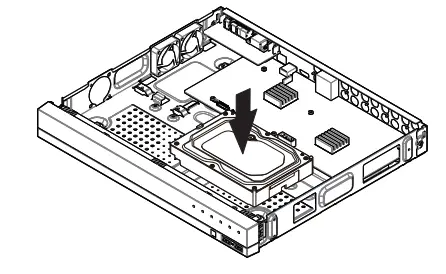

2. Connect the SATA/power cable of the hard disk to the connector of the main board.

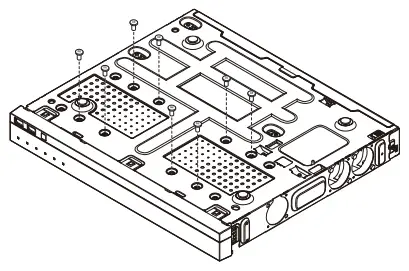

3. Fix the HDD to the bottom of the recorder with screws.

4. Check if there is any problem with the connection terminal and wiring inside the product.

5. Close the cover and secure it with screws.


Using Product Information

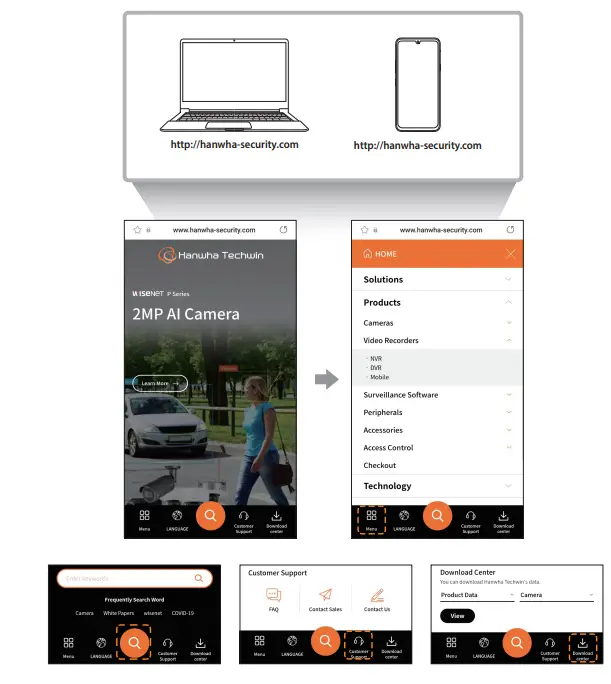

You can check the product information/manual/firmware information/FAQ/HDD compatibility list on the homepage or mobile web of your smartphone.

Connecting to a Network Using a Router

If you want to add 1-3 PCs and recorders in an environment using xDSL/Cable modem, you can use the router with only one Internet line.
This guide is an installation guide for network beginners. Follow the instructions to set up your router, local PC, and recorder.

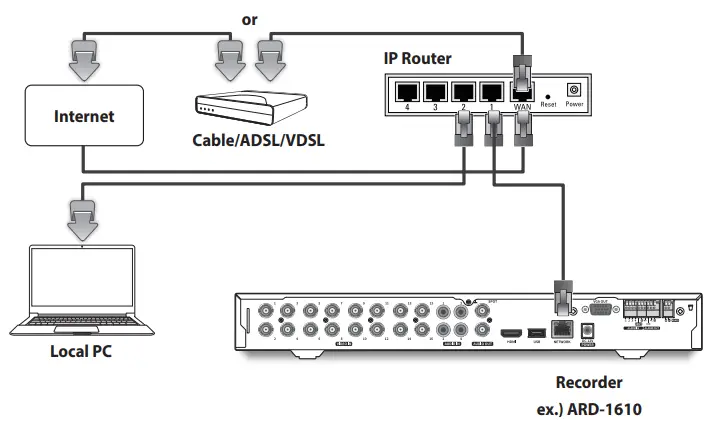

Connecting the cable

Connecting a router with PC

■ Refer to the router’s user manual.

Connecting a recorder and a router

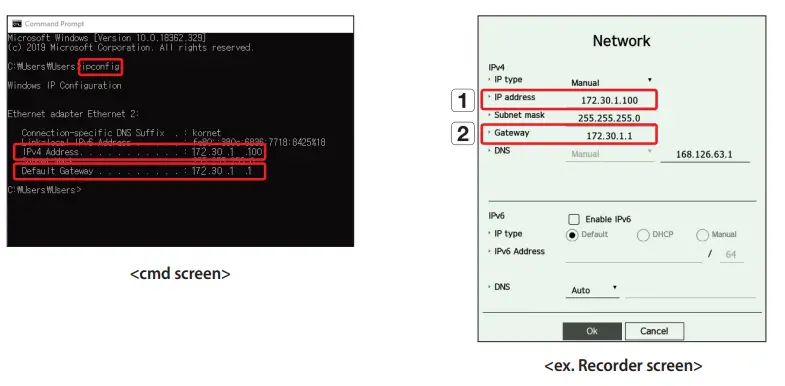

Move to <IP & Port> of the Recorder <Network> Setting menu, and set the 1 <IP address> and 2 <Gateway> in <Setup>.
※The <Default gateway> checked in the [cmd.exe] window of the local PC and the <Gateway> of the recorder must be the same.
※The first three numbers of the recorder <IP address> should match the first three of the <Default gateway> checked in the [cmd.exe] window of the local PC.
