Arch+ 4G LTE Mobile Hotspot
Owner’s Manual
ALM-W02

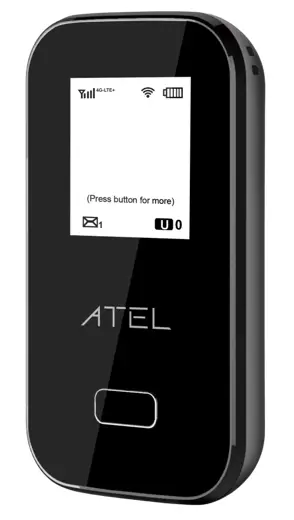

ALM-W02 Arch+ 4G LTE Mobile Hotspot
Anywhere and anytime, WiFi connectivity on-the-go
ATEL’s mobile hotspot ALM-W02 Arch™ + is designed to offer pure wireless high-speed data service to the end user, it utilizes LTE network backward connect to internet and uses Wi-Fi upward to share the data service with different Wi-Fi devices, it is small in size and can be used as portable device.
IT’S RELIABLE
The Arch™ + is a high-performance device. It includes a Qualcomm LTE Cat 4 Chipset and a durable, long-lasting battery for extended use that charges with a Type-C universal charger.
IT’S SIMPLE
With a rechargeable battery, the Arch™ + is easy to manage on-the-go. It’ll help you stay connected with your mobile devices, laptops, tablets and more with flexible WiFi connectivity with 2.4GHz and 5GHz support. The LCD display helps to inform you of signal strength, battery usage and notifies you of any unread messages so you know where you stand.
IT’S FUNCTIONAL
The Arch™ +’s 4G LTE connectivity makes it a great solution for remote workers who need to stay connected, for students learning remotely and for those who lead an active lifestyle and need to stay connected wherever their travels and adventures take them.
IT’S SECURE
Tether wirelessly with your own password created in the easy-to-use Web Interface or tether with the USB Type-C cable for additional security.
HIGHLIGHTS
- 4G LTE Cat-4 150Mbps Downlink.
- 1.77” LCD Display for Signal Strength, Battery Usage and Message Notifications.
- Heavy Duty Battery; use time of up to 15 hours and standby time of up to 240 hours.
- Easy-to-use Web Interface.
- WiFi Connectivity for up to 15 devices.
- On-the-go LTE connectivity for your mobile devices, laptops, tablets and more.
- Verizon ODI Certified.
The application firmware is flexible and can be customized to be compatible with your existing server at special request with dedicated personnel to create the best solution for your use case.
SPECIFICATIONS
| CELLULAR | 4G LTE Cat-4 LTE B2/4/5/12/13/66/71 WCDMA B2/4/5 |
| FEATURES | OS: Linux 3.18 Chipset: Qualcomm MSM9207 Memory: 512MB + 256MB HD Battery for Extended Use Time 3GPP |
| WiFi | WiFi: 802.11 b/g/n/ac 2.4GHz/5GHz Up to 15 devices 4×2 MIMO Data Speed: 150Mbps DL/50Mbps UL |
| ENVIRONMENTAL | IP32 Rating Operation Temperature: -10-60° Storage Temperature: -20-80° |
| PHYSICAL | Dimensions: 106 x 62 x 18 mm Weight: 109g |
| DISPLAY | 1.77” LCD Display, Monochromatic Details: Signal Strength, WiFi, Battery Usage, Message Notifications |
| BATTERY INFORMATION | 3000mAh Operating Time with charged battery: Up to 15 hours |
| HARDWARE FEATURES | RF Transmit Power: 23dBm Receive Sensitive: -97dBm Antenna: Internal |
| PACKAGE CONTENTS | ALM-W02 Battery Battery Charger USB Cable Quick Start Guide (English) |
| DEVICE CERTIFICATION+ REGULATORY | Device Certifications: FCC, PTCRB, UL, Verizon ODI. Chipset Carrier Certifications: AT&T, T-Mobile, Rogers, Verizon, U.S. Cellular, Telus. |

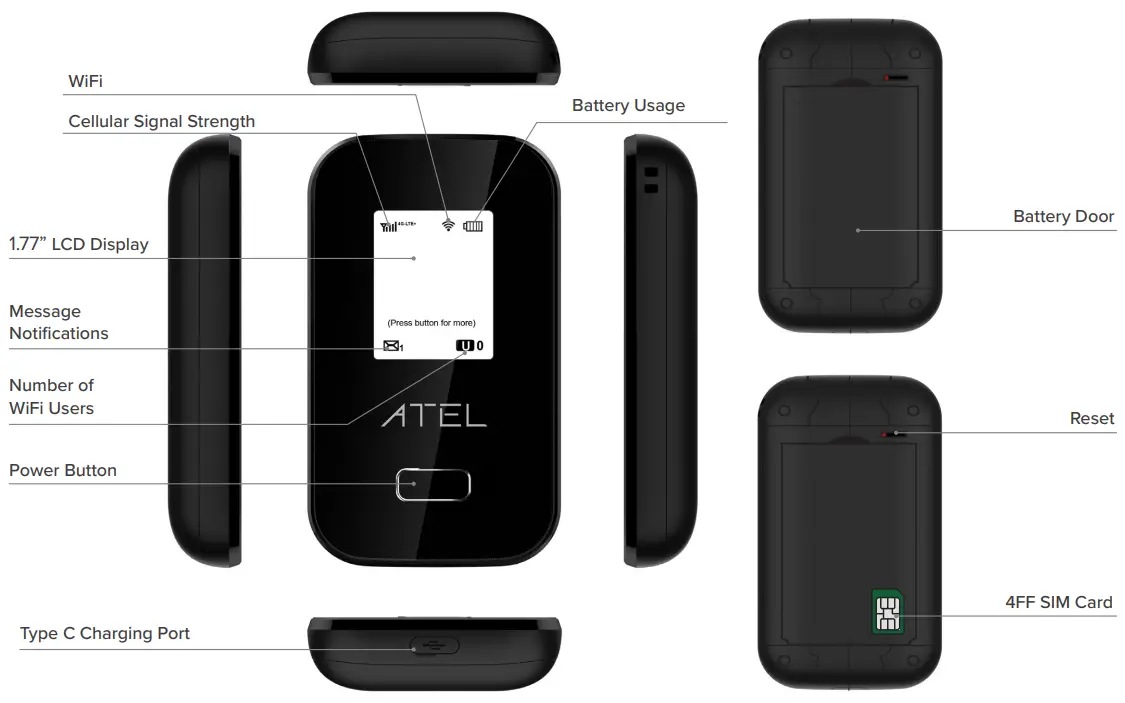

Get to Know

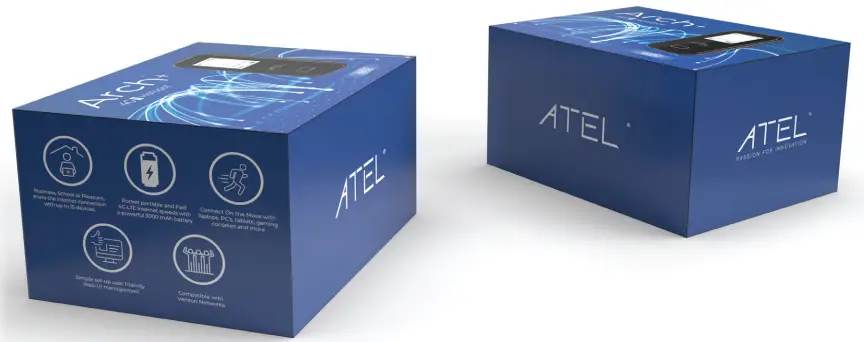

Product Box
4.53in (L) x 3.23in (W) x 2.36in (H)
For support information: [email protected]
Visit our website: www.atel-usa.com
The full User Manual in English and Spanish can be found at www.atel-usa.com
Specifications are subject to change. Please see your ATEL® contact for more details.
© 2022Asiatelco Inc. All rights reserved. The ATEL® and Arch™ + name and logo are trademarks of Asiatelco Technologies, Inc.
