Moman B08v81pflx Microphone Emr User Manual

MOMAN B08V81PFLX Microphone EMR

Caring For Your MOMAN Product

• Please keep the product in a dry, clean, dust-free environment.
• Keep corrosive chemicals, liquids and heat source away from the product to prevent mechanics damage.
• Use only a soft and dry cloth for cleaning the product.
• Malfunction may be caused by dropping, impact of external force.
• Do not attempt to disassemble the product. Doing so voids warranty. Please have the product checked or repaired by authorized technicians if any malfunctions happened.
• Failure to follow all the instructions may result in mechanics damage. Warranty does not apply to human errors.

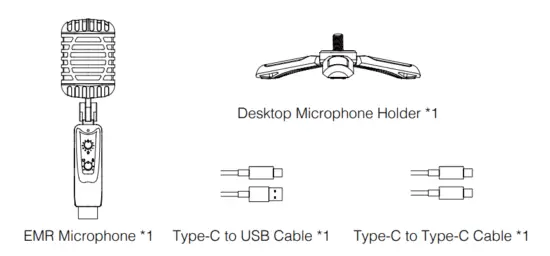

Package List

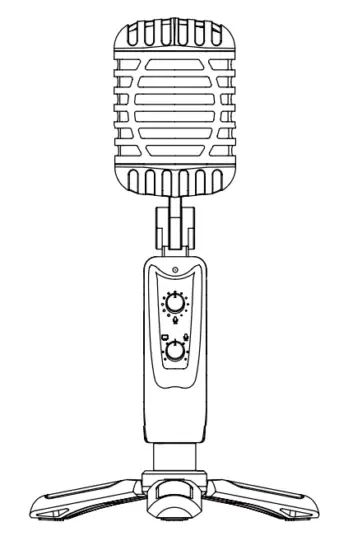

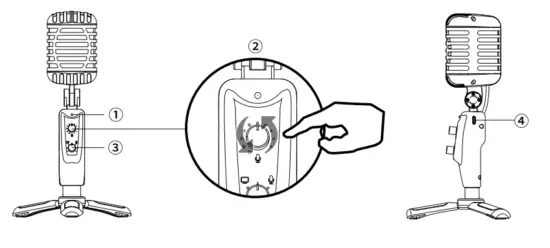

Product Introduction

1. Working Indicator
   Volume Control
2. Rotate clockwise:increase mic volume
   Rotate anticlockwise: decrease mic volume
3. Monitoring Adjustment
   Rotate toward left: Mic Output -, Computer Output + Rotate toward right: Mic Output +, Computer Output –
4. Type-C Output

Operations

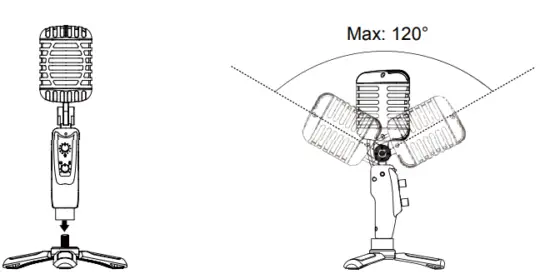

1.  The Use of Desktop Microphone Stand
2.  Adjustable Microphone Angle

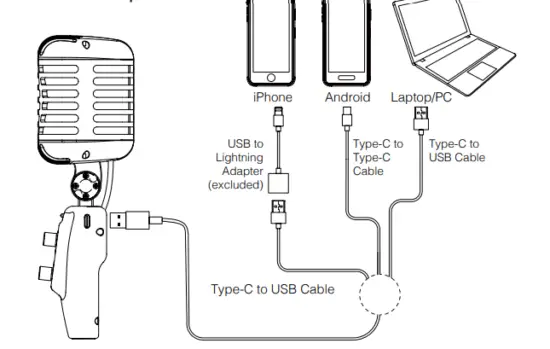

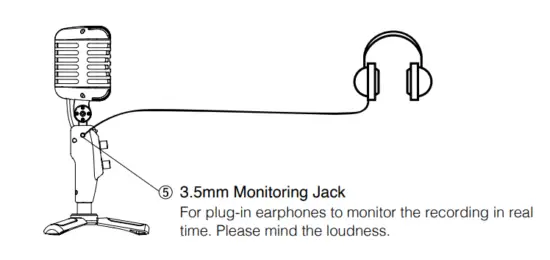

3.  The Use of Microphone

SPECIFICATION

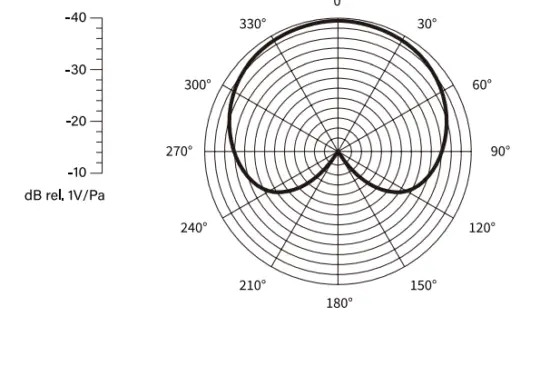

1.  Polar Pattern: Cardioid
2. Performance Parameter


   Transducer	Electret Condenser
   Frequency Response	20Hz-20KHz
   Headphone Output Power	125mW
   Sensitivity	-38±3dB (0dB=1V/Pa,at 1KHz)
   Sampling Rate	192KHz/24bit
   Max. SPL
   S/N Ratio	85dB
   Equivalent Noise Level	-82dBFS
   Power Supply	DC 5V
   Dimensions	57.5mm*64.5mm*220mm
   Output	Type-C
   Net Weight	129g
