INSTALLATION MANUAL

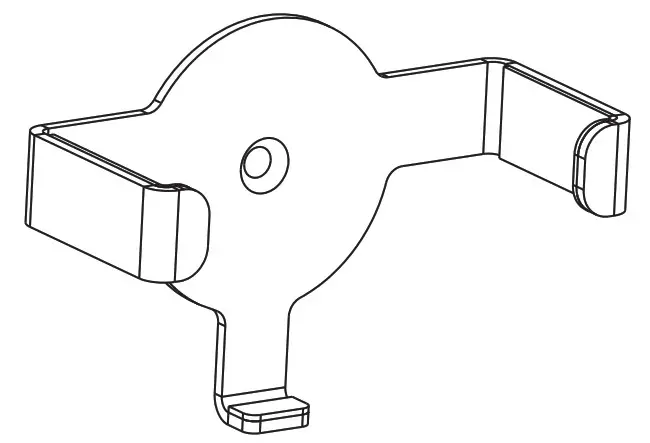

Speaker Wall Mount Holder
SWM-EH-01B/SWM-EH-01W
SWM-EH-02B/SWM-EH-02W
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly, or inappropriate use.
TIPOVER WARNING
SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:
- NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF MONITOR OR STAND.
- USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL.
USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE BUT NOT ELIMINATE RISK OF TIP OVER.
SMALL PARTS- NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
Step 1

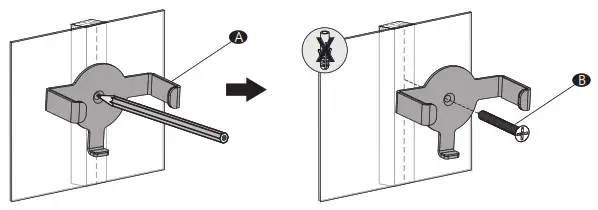

Option A : Wood Stud
Drill holes at the marked positions. Place the Bracket
over the marked screw locations. Insert Screws
into the mounting holes and tighten using a screwdriver.

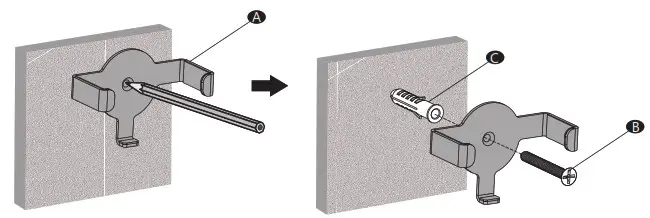

Option B : Concrete/Brick Wall
Drill holes at the marked positions. Insert the Anchors
into the mounting holes. Place the Bracketover the marked screw locations. Insert Screwsinto the mounting holes and tighten using a screwdriver.
Step 2

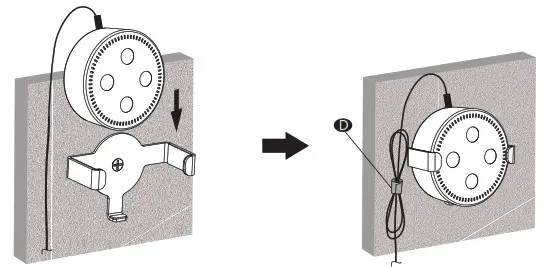

Guide the Dot 2nd Gen to the bracket. Tie the power cord with Velcro Strap
if needed.
