Quick start guide

This quick start guide contains important information on the safe operation of the product. Read and follow the safety advice and instructions given. Retain the quick start guide for future reference. If you pass the product on to others please include this quick start guide.

Safety instructions

Intended use
This device is used to convert acoustic signals into electrical ones. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let unattended children use electrical devices.
Caution

Never remove the screen holding the capsule, as this may damage the microphone!
Never drop the mic, as this may cause severe damage!
When the microphone is not in use, take it out of its clamp and put it in its case. Clean with damp cloth only.

Where to use the product
Never use the product

in direct sunlight
in conditions of extreme temperature or humidity
in extremely dusty or dirty areas
at locations where the unit can become wet
near magnetic fields

General handling

To prevent damage, never use force when operating the switches and controls.
Never immerse the appliance in water. Just wipe it with a clean dry cloth. Do not use liquid cleaners such as benzene, thinners, or flammable cleaning agents.
Keep foreign substances from the unit!
Keep the device away from containers with liquids. Should any liquid get into the unit, this could lead to its destruction or fire. Be sure not to let any metal objects into the unit.

Features

Condenser Instrument microphone
Easy installation with different instrument holders for many different instruments (not included)
Flexible gooseneck for easy alignment on the instrument Incl. foam windscreen
Detachable cable with screw contact
3-pin mini XLR connector for operation with t.bone wireless systems (also suitable for Sirus and AKG wireless systems)
Delivery including phantom power adapter (phantom power required for operation) and hard case (with space for one of the optional holders)

Main product

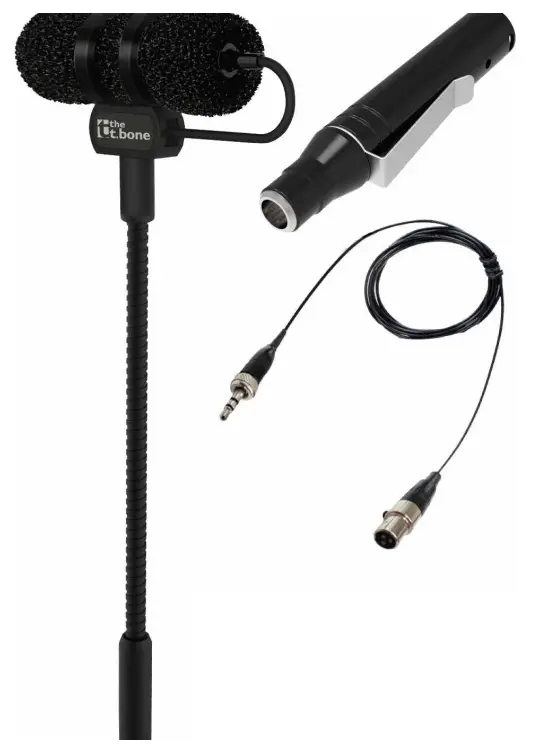

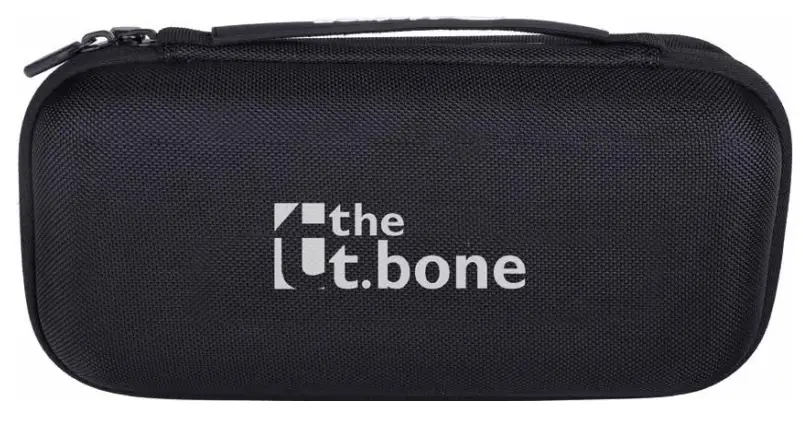

Microphone, foam windscreen, detachable cable with screw contact, phantom power adapter, and hard case

Technical specifications

Directivity	Cardioid	Impedance	100 Ω
Frequency response	30 Hz – 20 kHz	Distortion	<1 %
Sensitivity	-38 dB ±2 dB	Gooseneck length	120 mm
Max. sound pressure level (SPL)	130 dB	Cable length	approx. 2 m
Signal-to-noise ratio	71 dB	Hardcase dimensions (L x W x H)	260 mm x 130 mm x 70 mm

Accessories and spare parts

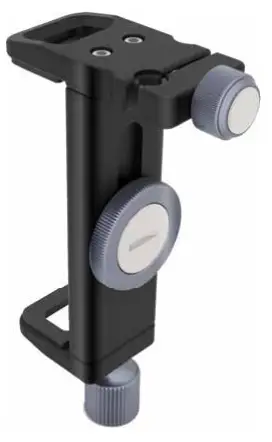

Holder for guitar Name: Lucan System CC 200 GH Item no.: 500230 Microphone holder for clamping to guitars or similar instruments with a thickness of 73 to 120 mm

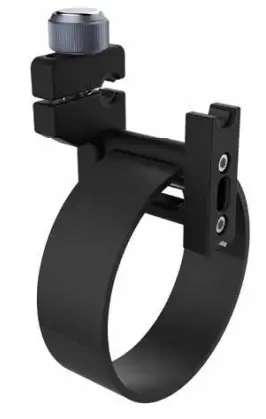

Holder for clarinet Name: Lucan System CC 200 CH Item no.: 500232 Microphone holder for fixing to clarinets or similar instruments with a strong Velcro strip up to a diameter of 65mm
Multi holder Name: Lucan System CC 200 MH Item no.: 500235 Microphone holder for clipping to cello, saxophone, trombone, cornet, or similar instruments up to 23 mm thick

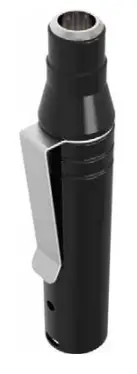

Replacement phantom adapter Name: Lucan System CC 200 PA Item no.: 500242 Phantom adapter for the Lucan System CC 200 RC; mini-XLR to XLR

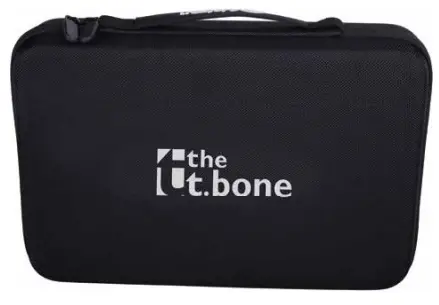

Hardcase Name: Lucan System CC 200 BH Item no.: 500255 Large hard case with space for all system components (microphone, phantom adapter, cable, 1 × holder each GH, VH, CH, PH, MH, SH). Dimensions (L×W×H): 330 mm×220 mm×70mm

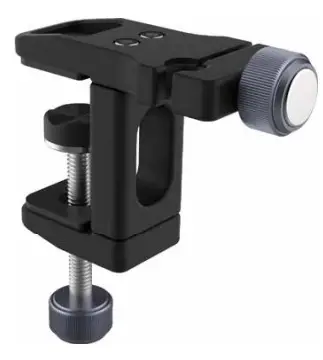

Holder for violin Name: Lucan System CC 200 VH Item no.: 500231 Microphone holder for clamping to violins or similar instruments with a thickness of 35 to 55 mm
Holder for piano Name: Lucan System CC 200 PH Item no.: 500233 Microphone holder for attaching to pianos or similar instruments with a strong magnet

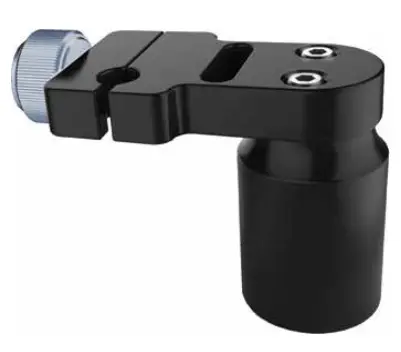

Stand holder Name: Lucan System CC 200 SH Item no.: 500236 Microphone holder for screwing onto all tripods with a standard 5/8″ thread

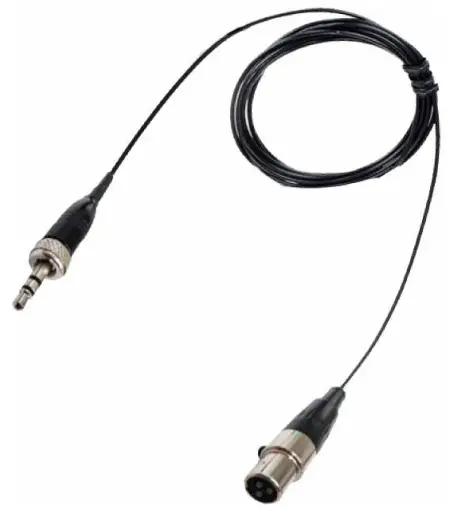

Replacement cable Name: Lucan System CC 200 CA Item no.: 500244 Mini screw jack to mini XLR for operation with t.bone wireless systems (also suitable for Sirus and AKG wireless systems); length approx. 2m

For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.
This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose of your old device with your normal household waste. Dispose of this product through an approved waste disposal firm or through your local waste facility. Comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility.
