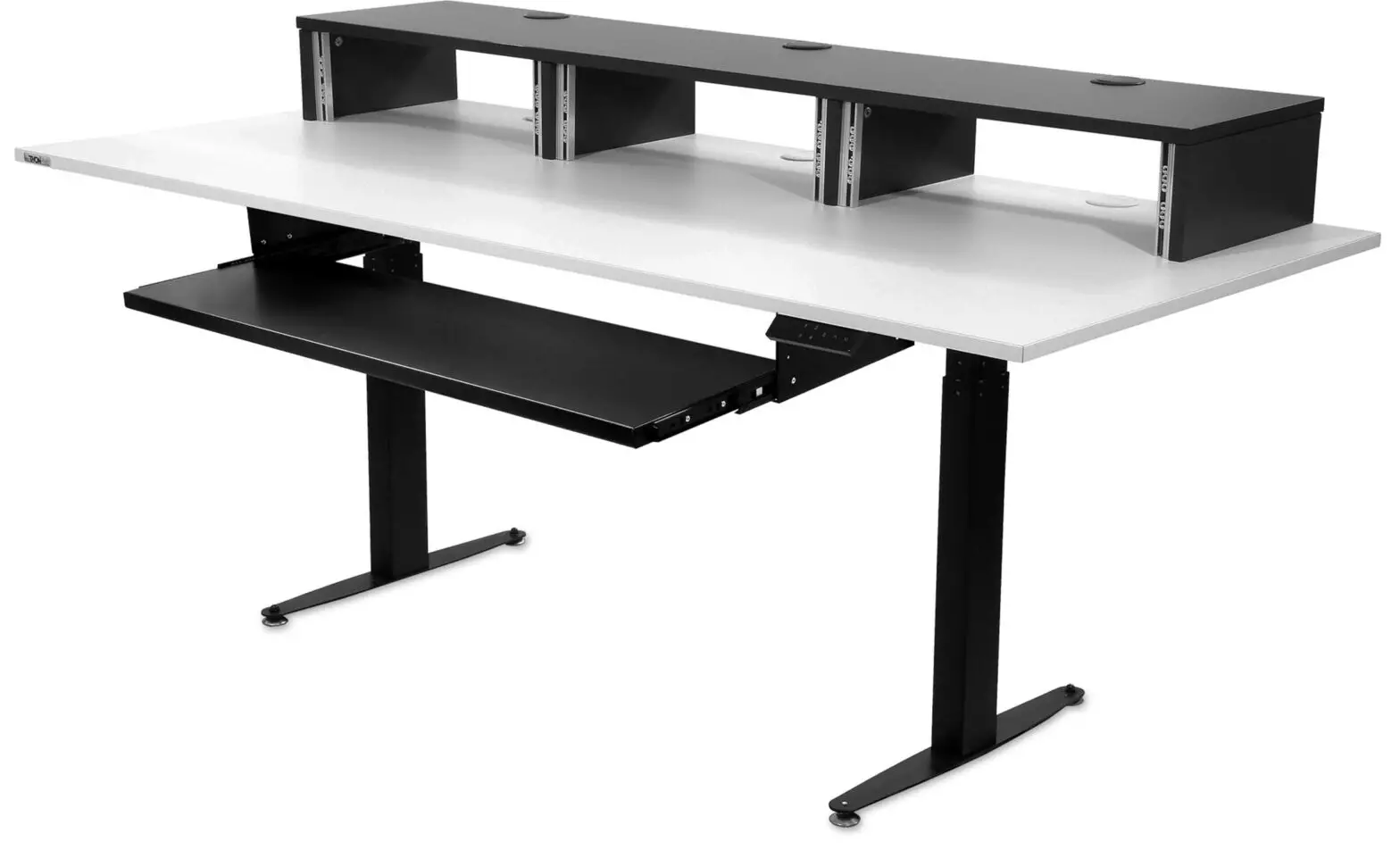

Thon 507338 Studio Extension Desk Instruction Manual

Thon Studio Producer Desk 1750/curved
Studio Desk

Assembly Instructions

Safety instructions

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke!
Never let children play unattended with the product.

CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the studio desk, at least two persons are required for transport and assembly.

CAUTION!
Risk of injury to the hands
When assembling and screwing the individual parts, pay attention to sharp edges on tools, screws and components.

Scope of delivery

Before you assemble the studio desk, make sure the contents of package is complete according to the following list.
Thon Studio Producer Desk 1750 / Thon Studio Prod. Desk 1750 curved

• 1 × table top, 19 mm chipboard
• 3 × cable feed-through
• 4 × screw M8 × 30
• 4 × washer
• 20 × Euro screw
• 2 × tapping screw
• 1 × assembly instruction

Optional accessories
Thon Studio Extension Desk 3U

• 1 × monitor bridge, 19 mm chipboard
• 4 × side panel
• 6 × rack rails with 12 × wood screw
• 8 × wood screw, long
• 8 × connector housing
• 8 × connector bolts
• 3 × cable feed-through
• 1 × assembly instruction

Thon Studio Ext. Desk 3U curved

• 1 × monitor bridge, 19 mm chipboard
• 6 × side panel
• 6 × rack rails with 12 × wood screw
• 12 × wood screw, long
• 12 × connector housing
• 12 × connector bolts
• 3 × cable feed-through
• 1 × assembly instruction
• Roadworx Multi Electric Stand (item # 491963) incl. control unit
• Thon Studio Producer Drawer (item # 507364)
• Thon Studio Cable bridge (item # 507362)
• the t.racks Power 3 USB (item # 437416)
• the t.racks Power 8 (item # 415280)

Installation

For assembly, place all components on a suitable assembly surface. Use a soft pad in order to avoid damage to the surfaces.

Thon Studio Producer Desk 1750 / Thon Studio Prod.Desk 1750 curved

Overview
The following figure shows an overview of the individual components.

Optional accessories

Roadworx Multi Electric Stand (item # 491963)
Place the table top on the Roadworx Multi Electric Stand and fasten the table top with four M8 × 30 screws and four washers in the flush-mounted threaded sleeves for M8 threads. Fasten the control unit of the Roadworx Multi Electric Stand to the pre-punched positions on the left or right on the underside of the table top with two tapping screws.

Thon Studio Producer Drawer (item # 507364)

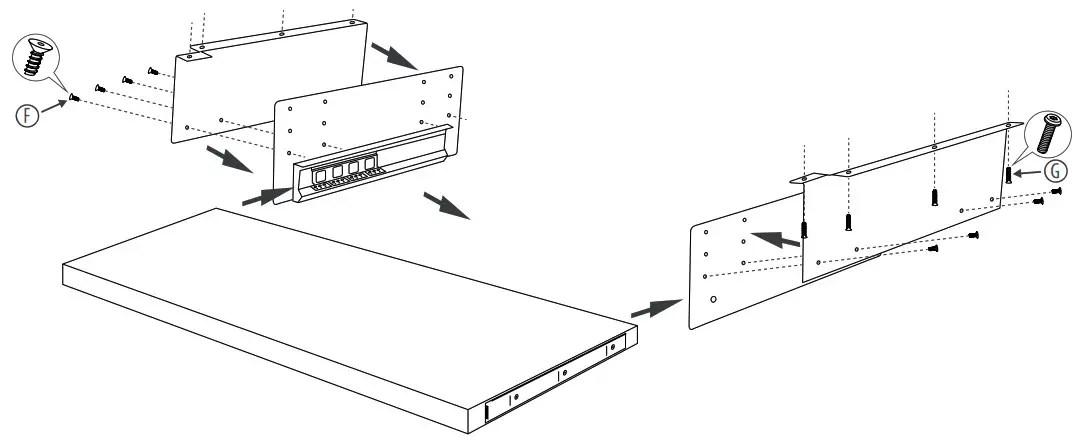

Slide the shelf of the keyboard extension into the drawers and fasten the components together with the screws provided. Attach the brackets to the drawers at the required height with four M4 × 4 screws (F) each. Fasten the assembled keyboard drawer with eight raised countersunk screws M6 × 14 (G) in the flush-mounted threaded sleeves for M6 threads on the underside of the table top.

Thon Studio Cable bridge (item # 507362)
Fasten the cable duct with four Euro screws to the drill holes provided on the underside of the table top.

the t.racks Power 3 USB (item # 437416)
Fasten the power strip with four Euro screws to the drill holes provided on the underside of the table top. the

t.racks Power 8 (item # 415280)
Fasten the power strip with four Euro screws to the drill holes provided on the underside of the table top.

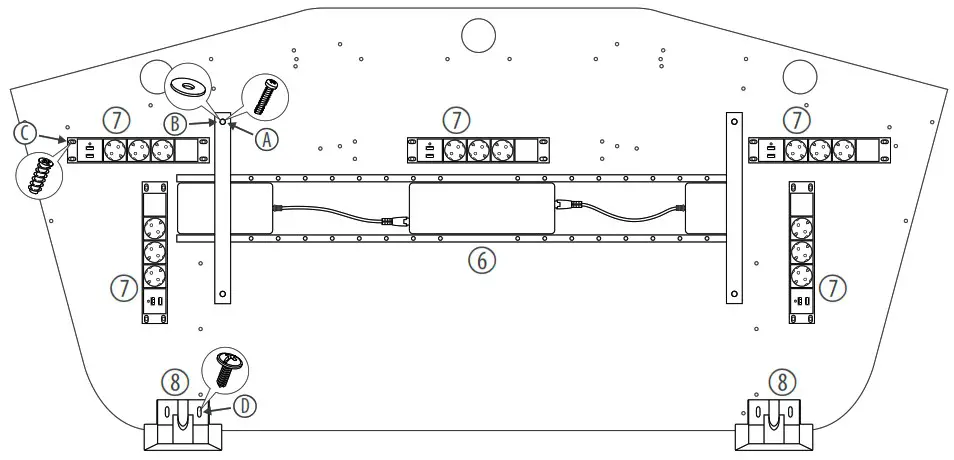

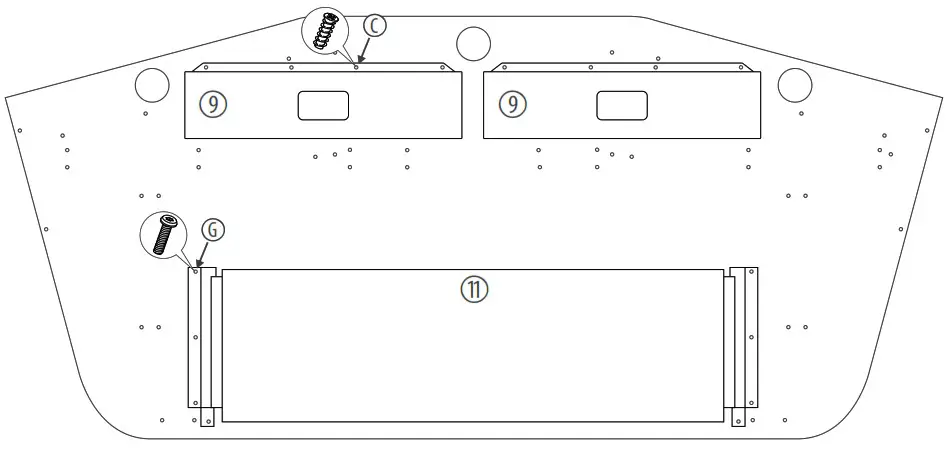

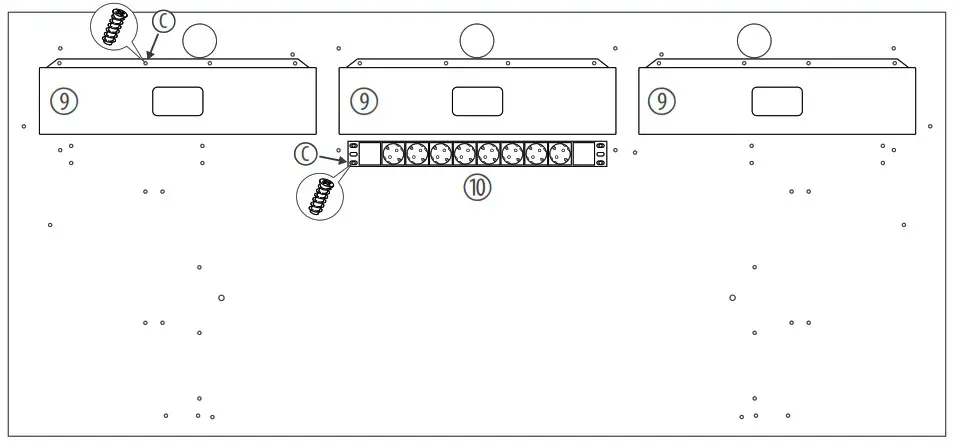

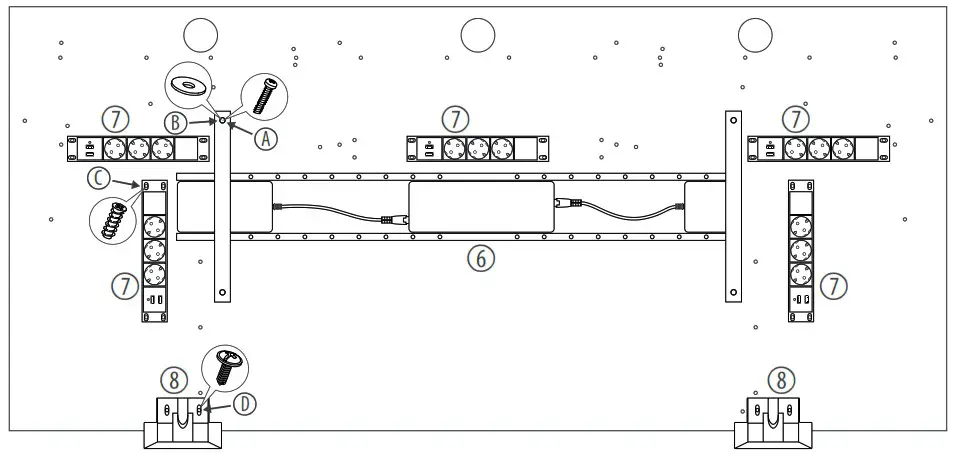

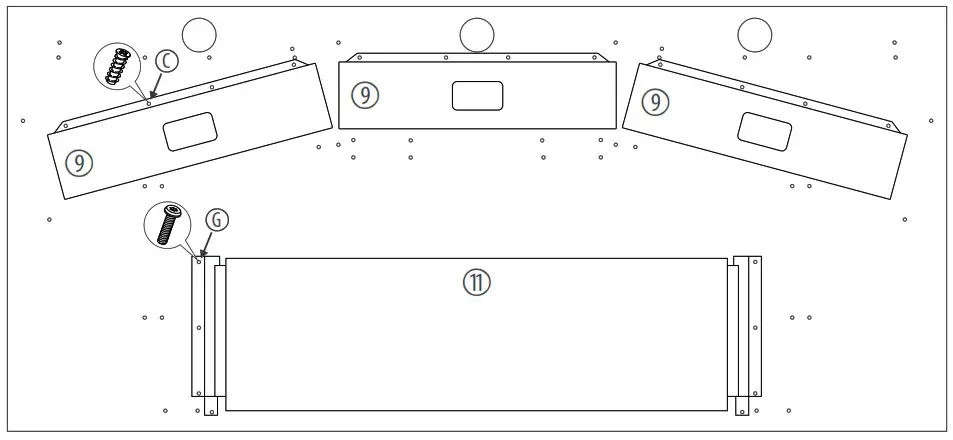

Mounting options for optional accessories

Thon Studio Producer Desk 1750

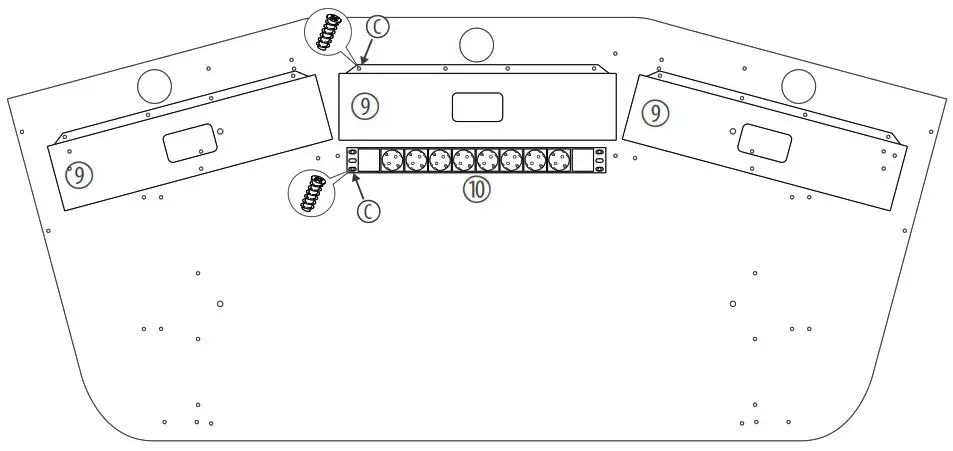

Thon Studio Prod. Desk 1750 curved

Thon Studio Extension Desk 3U / Thon Studio Ext. Desk 3U curved

Overview
The following figure shows an overview of the individual components.

Mounting Thon Studio Extension Desk 3U
Put the connecting bolts into the drill holes provided in the monitor bridge (8 × connecting bolts) and the connector housings into the drill holes provided in the side panels (2 × connector housings each). Insert the cable feed-throughs into the recesses of the monitor bridge from above.

After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associ-ated component are tightened.

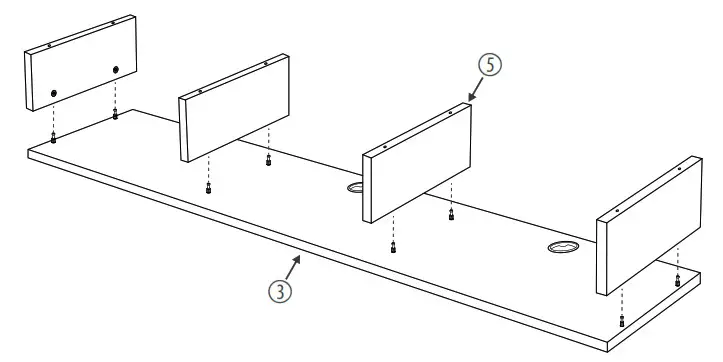

Put the four side panels on the connecting bolts of the monitor bridge and tighten the connector housings of the side panels clockwise to lock the connection with the inserted connecting bolts.

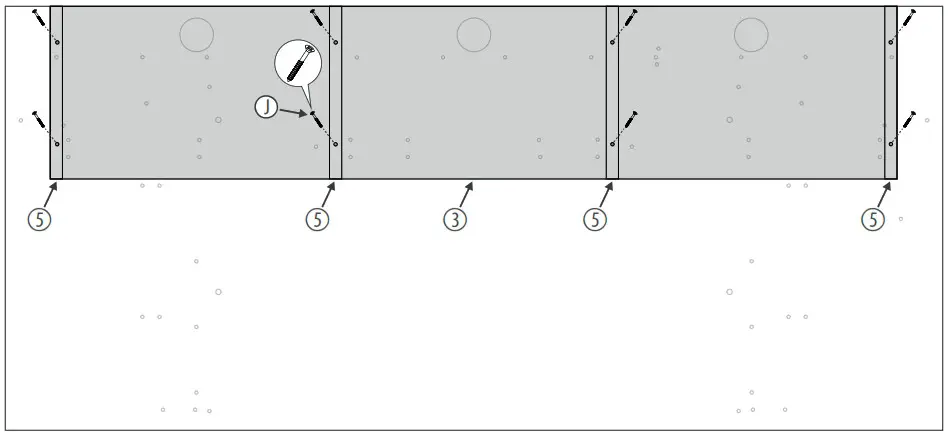

Turn the tabletop over so the bottom is facing up. Place pieces of wood under the drill holes to prevent the coating from cracking out when drilling. Using a 4mm bit, drill the eight holes through the pre-punched positions on the underside of the table top.
Turn the tabletop over so the top is facing up. Insert the long wood screws from below through the drill holes in the table top and attach the assembled unit consisting of the monitor bridge and side panels to the table top.
Screw the rack rails (L) with the help of the supplied wood screws (K) on the inside in parallel to the front edge of the side panels. We recommend a distance of approx. 1 cm from the front edge.

Montage Thon Studio Ext. Desk 3U curved

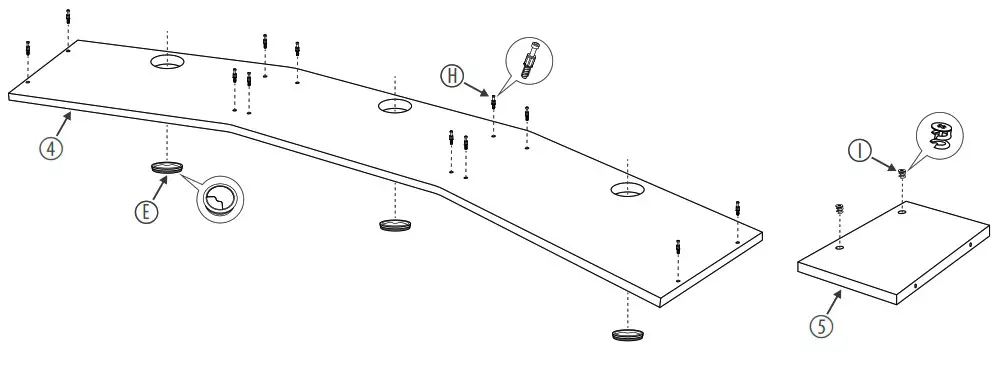

Put the connecting bolts into the drill holes provided in the monitor bridge (12 × connecting bolts) and the connector housings into the drill holes provided in the side panels (2 × connector housings each). Insert the cable feed-throughs into the recesses of the monitor bridge from above.
After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associated component are tightened.

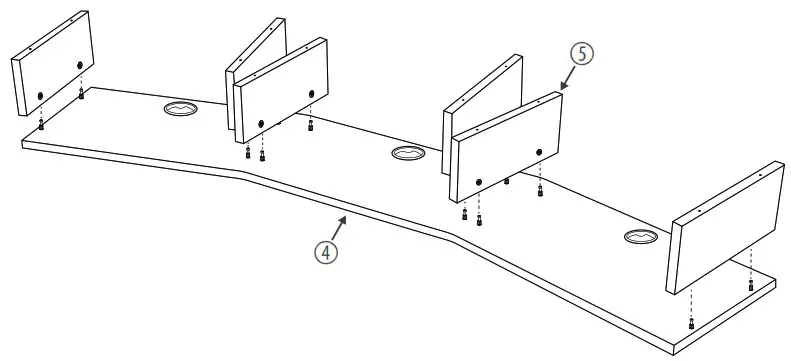

Put the six side panels on the connecting bolts of the monitor bridge and tighten the connector housings of the side panels clockwise to lock the connection with the inserted connecting bolts.

Turn the tabletop over so the bottom is facing up. Place pieces of wood under the drill holes to prevent the coating from cracking out when drilling. Using a 4mm bit, drill the twelve holes through the pre-punched positions on the underside of the table top.

Turn the tabletop over so the top is facing up. Insert the long wood screws from below through the drill holes in the table top and attach the assembled unit consisting of the monitor bridge and side panels to the table top.
Screw the rack rails (L) with the help of the supplied wood screws (K) on the inside in parallel to the front edge of the side panels. We recommend a distance of approx. 1 cm from the front edge.

Technical specifications

Thon Studio Producer Desk 1750

Thon Studio Prod. Desk 1750 curved

Thon Studio Extension Desk 3U

Thon Studio Ext. Desk 3U curved

Accessories

Protecting the environment

Disposal of the packaging material

For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging.

Notes
_______________

Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach Germany
Telephone: +49 (0) 9546 9223-0
Internet: www.thomann.de
13.02.2023, ID: 507338, 507336, 507339, … (V2)
